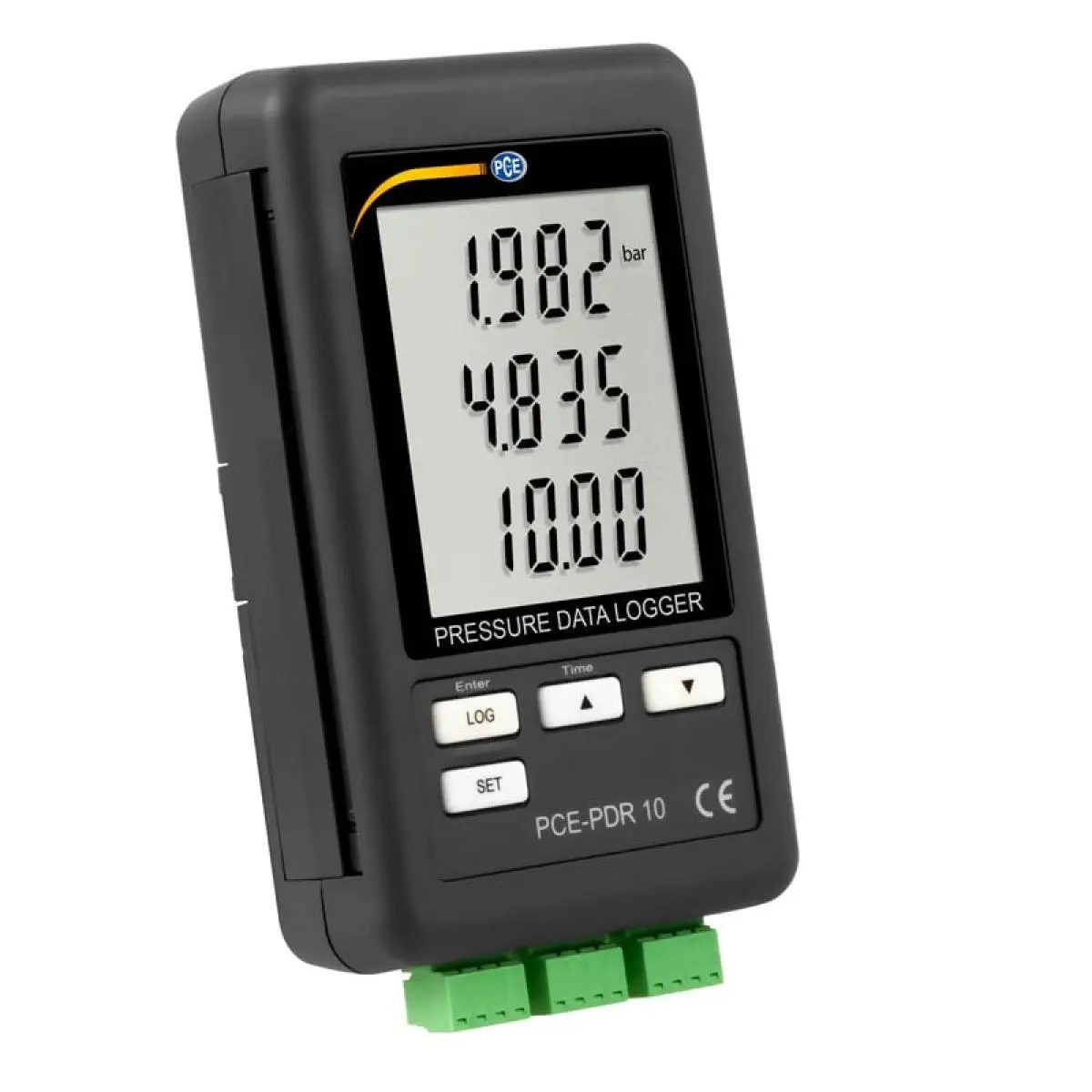

Differential Pressure Meter PCE-PDR 10 Pressure data logger with three sensor connections / SD card / CSV data format / stand wall-mounted / battery-powered / mains operation / 4 … 20-mA / LC display / Storage in CSV / Advanced storage interval
The pressure data logger PCE-PDR 10 is a display for measuring pressure. Up to three pressure sensors can be connected to this pressure data logger and synchronously read out and logged. Thanks to the 4 … 20-mA input signal, many different pressure sensors can be connected. Thanks to the advanced memory interval, measured values can only be stored after a change of ± 10 digits by the pressure data logger. As a result, constant and superfluous measured values are filtered by the pressure data logger. This saves a lot of storage space. With the stand, the pressure data logger can be positioned freely at a workstation. Due to the included wall mounting set, the pressure data logger can also be fixed to a wall.
Highlights
- 4 … 20-mA measuring signal
- Intelligent storage system
- Connection to a PC via RS232
- Wall mounting for permanent installation
- SD card slot for up to 16GB
- Measurement of three pressure sensors simultaneously
- Terminal connection
- Stand for use at a workplace
- Sensors optional!
Technical specifications
General technical data Number of measuring channels 3 Inputs 4 … 20 mA Resolution 0.01 mA Accuracy±(0.5% +0.02 mA) Measuring functions pressure measurement Units bar, psi, kPa, inHg, mmHg, inH₂O, kg/cm², mH₂O, ATM Display type LCD Display size 3,08 Inch Display refresh rate 1 s Storage medium SD card Storage capacity 16 GB Storage interval from 5 s Storage interval to 600 s Interface RS232 Input impedance 10 Ω Protection class (device)IP20 Power supply- 9V DC, 1 A power supply batteries Connector type Device-europlug (Rechargeable) battery 6 x 1,5 V AAA battery , Alkali-manganese Capacity 1200 mAh Operating conditions 0 … 50 °C , 0 … 85 % RH Storage conditions 0 … 50 °C , 0 … 85 % RH Dimensions ( L x W x H )132 x 80 x 32 mm Weight 199 g
Delivery scope
1 x Differential Pressure Meter PCE-PDR 10 1 x Power supply 9V 1.0 A 6 x AAA batteries 1 x Wall mounting bracket 1 x SD card 1 x Operating instructions Sensors optional!
