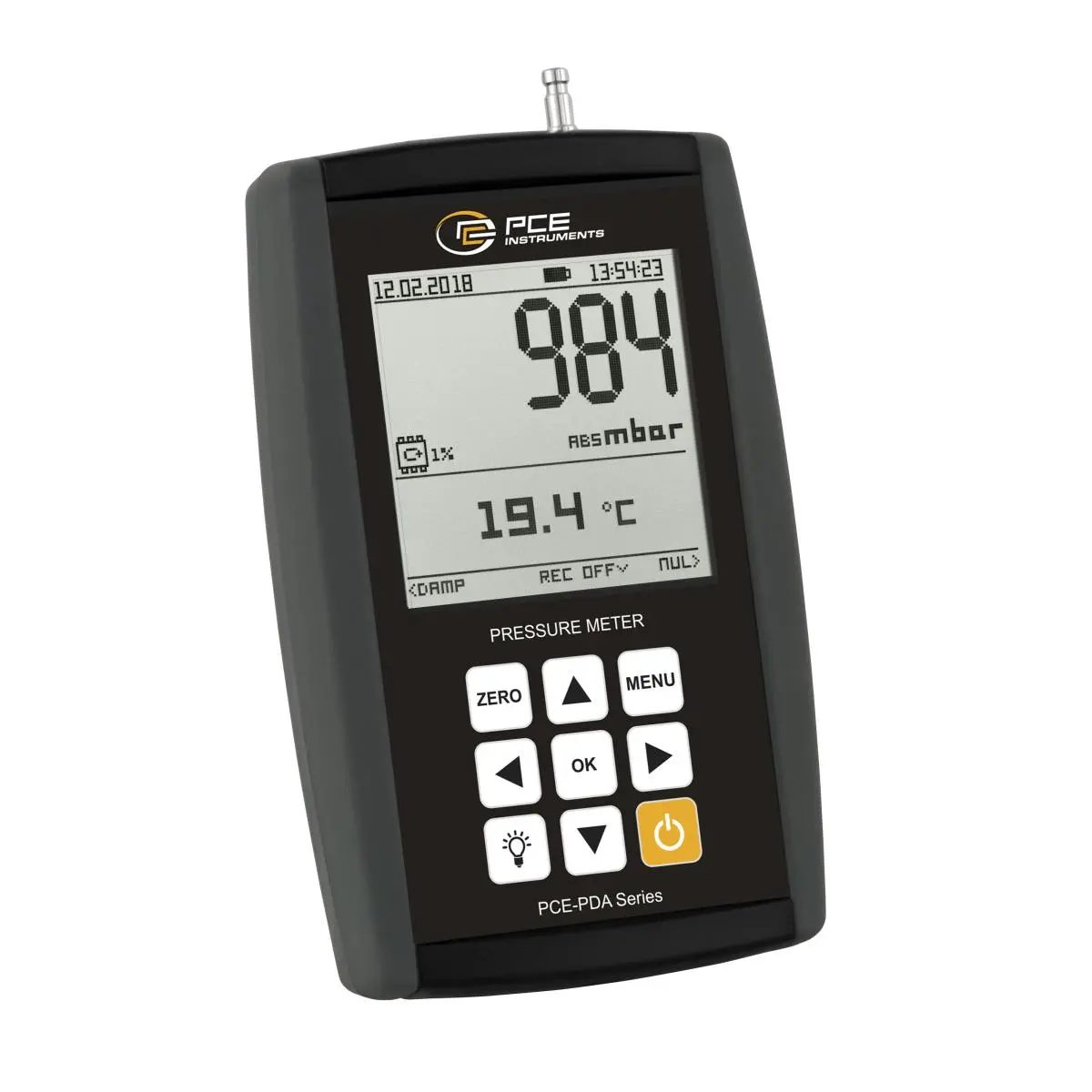

PCE-PDA A100L Pressure Meter Measuring instrument for barometric absolute pressure up to 200 kPa / Data logger / Graphic LCD / With USB interface / MAX MIN HOLD function
The pressure meter PCE-PDA A100L is suitable for the measurement of the atmospheric pressure. This pressure meter records the pressure from absolute zero to 200 kPa. The pressure meter can be used for many mobile applications in industry and crafts. This professional pressure gauge can either be operated with batteries or rechargeable batteries. In battery mode, the USB interface allows charging of the inserted batteries. The PCE-PDA A100L pressure meter is equipped with a large LC display. A display illumination makes it easier to read the measured values even under poor conditions. The pressure is measured by an internally installed sensor.
A plug-in nipple is available from the pressure connection. At these, the pressure of air and liquids can be passed through quick couplings to the sensor. The pressure meter has a precision mode that allows the resolution of the measured value to be increased tenfold. In addition to the continuous pressure measurement, the display shows the maximum and minimum measured values directly in the display. At the touch of a button, this storage can be reset. Furthermore, the pressure meter performs a temperature measurement. To store the measured values for further documentation purposes, the pressure meter has a data logger. Here, the user can specify a storage interval and a recording period in which the pressure measured values are stored.
Highlights
- Graphic LCD
- USB interface
- Datalogger
- Absolute pressure measurement
- Different units
- MAX MIN HOLD function
- Measured value smoothing
- Integrated temperature measurement
Technical specifications
Absolute pressure Measuring range 0 … 200 kPa Resolution 0,01 kPa Accuracy<±0.5 % of Rd Temperature Measuring range 0 … 50 °C Resolution 0,1 °C Accuracy±1 °C General technical data Measuring functions ALARM, HOLD, MAX, MIN, Average value Units kPa, MPa, Pa, PSF, psi, Torr, inHg, mmHg, inH₂O, cmH₂O, mmH₂O, kg/cm², ATM, bar, mbar, hPa Connections 5 mm nipple for quick connector Display type LCD graphic display with backlight Display size 3 Inch Display refresh rate 5 x per second Measuring rate 10 Hz Storage medium Internal memory Storage capacity 1024 Values Storage interval from 1 s Storage interval to 255 h Interface Micro-USB Current consumption meter 50 mA DC Measured medium non-explosive gases, Air Operating time 100 h Automatic power-off 255 min Housing ABS (acrylonitrile-butadiene-styrene copolymers) Overpressure 200 kPa Menu language English, German, Czech Protection class (device)IP41 Power supply 5 V, 500 mA Connector type Device-europlug (Rechargeable) battery 2 x 1,5 V AA – rechargeable battery , Nickel-metal hydride battery Capacity 2000 mAh Operating conditions 0 … 50 °C , 0 … 80 % RH Storage conditions 10 … 55 °C , 0 … 80 % RH Dimensions ( L x W x H )170 x 100 x 30 mm Weight 230 g
Delivery scope
1 x Pressure Meter PCE-PDA A100L 2 x 1.2V AA NiMh batteries 1 x USB power adapter 1 x Micro USB cable 1 x User manual
