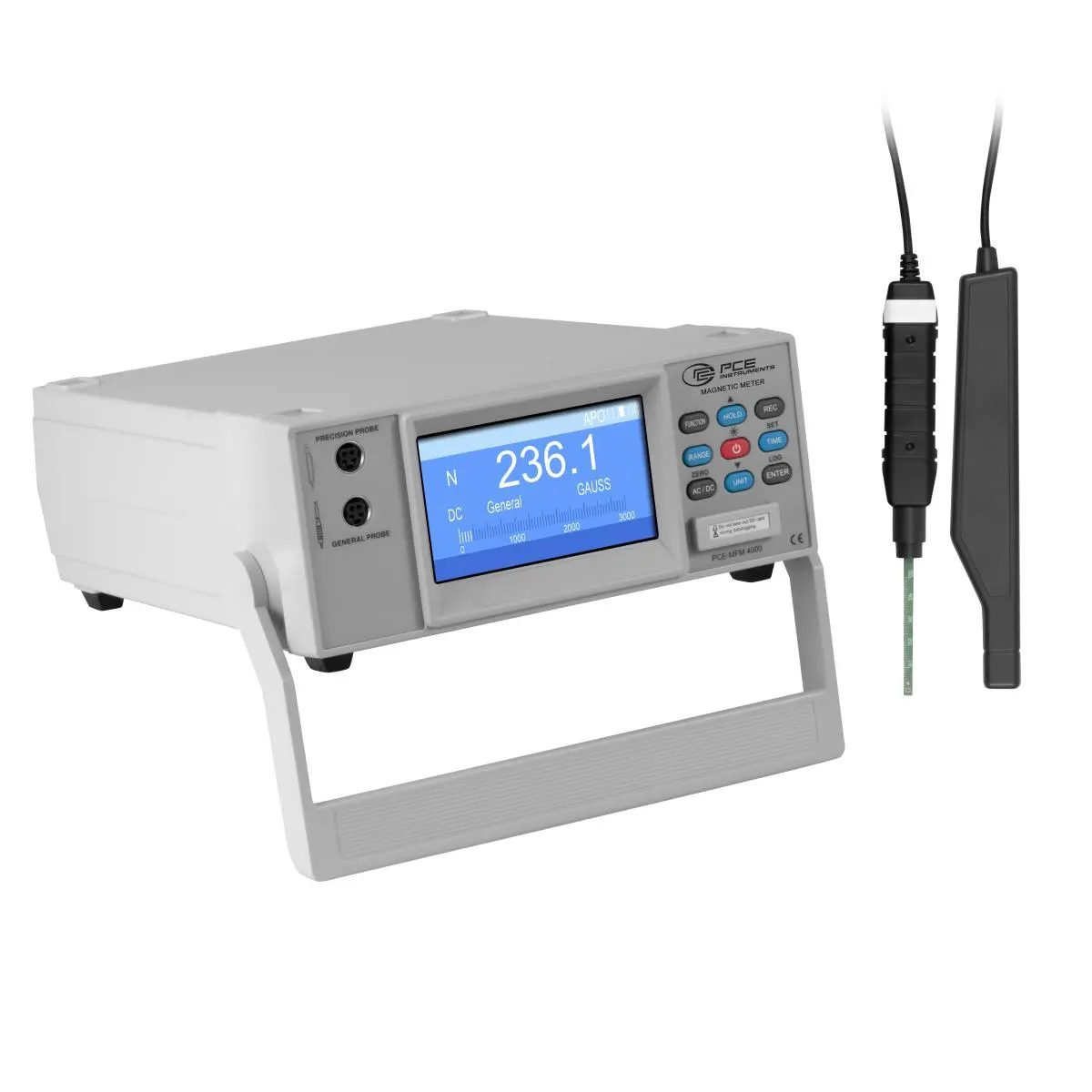

EMF measuring device for AC and DC magnetic fields /
Precision and standard sensor / LCD display /SD data logger /
Serial interface / Tabletop device

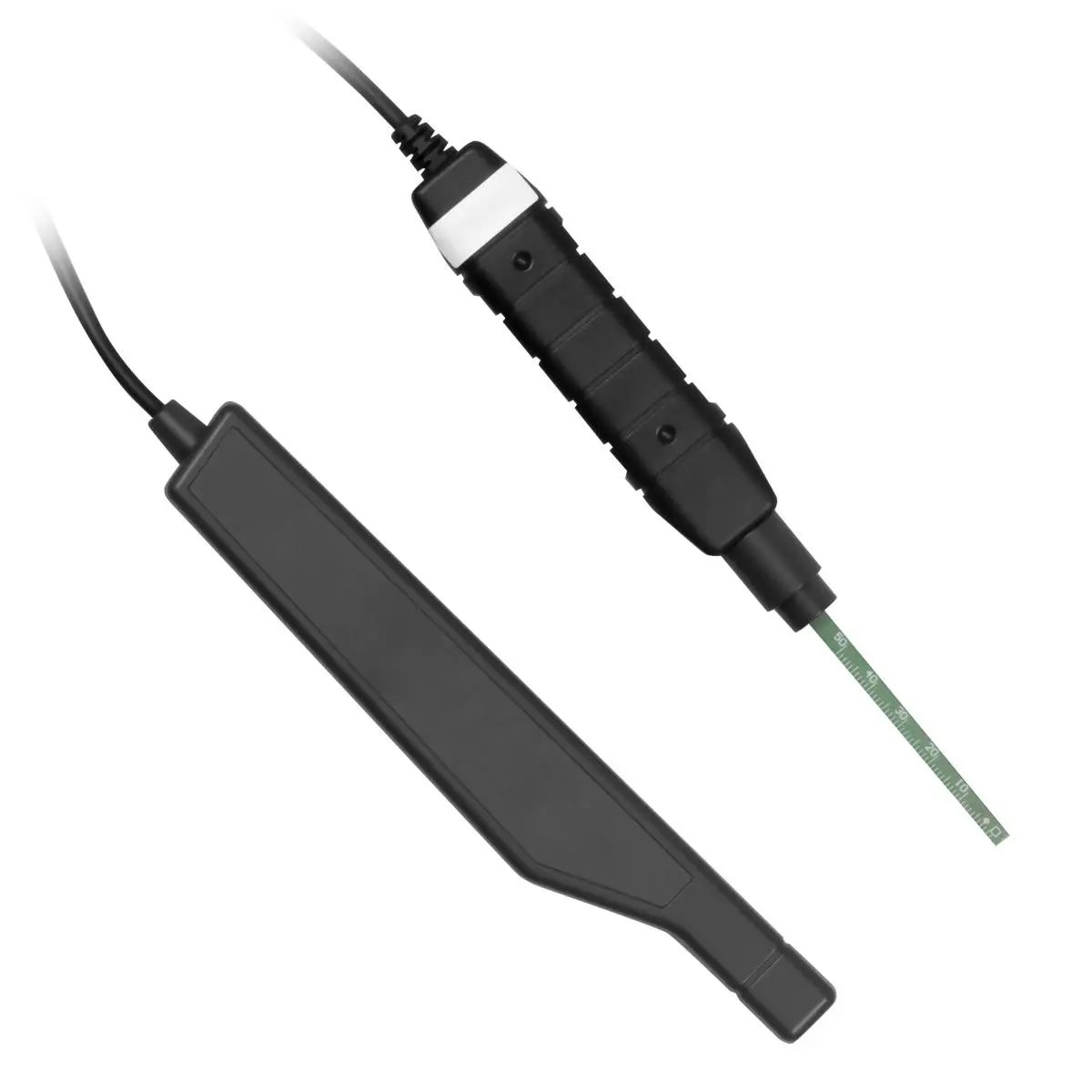

The EMF measuring device is used in the laboratory and quality assurance to measure the strength of magnetic fields.The EMF measuring device is delivered with two different sensors.There is a magnetic field sensor for general measurements in the Gauss and milli-Tesla range, as well as a precision sensor for measurements in the milli Gauss and micro-Tesla range.The EMF measuring device sensors have automatic temperature compensation.The EMF measuring device can be used for measurements of DC and AC magnetic fields.The Electromagnetic Radiation Detector shows the polarity of the DC magnetic field on the display next to the measured value.This precise EMF measuring device can be connected to a PC via serial interface for measurement value analysis.
The EMF measuring device also has a data logging function.The EMF measuring device is able to save the measured values on an SD memory card at a preset interval during the measurement.In addition to interval storage, up to 99 individual measured values can be stored in the memory at the push of a button.The measurement data are stored by the EMF measuring device on the SD card in Excel format.This has the advantage that no additional software has to be used for the EMF measuring device.

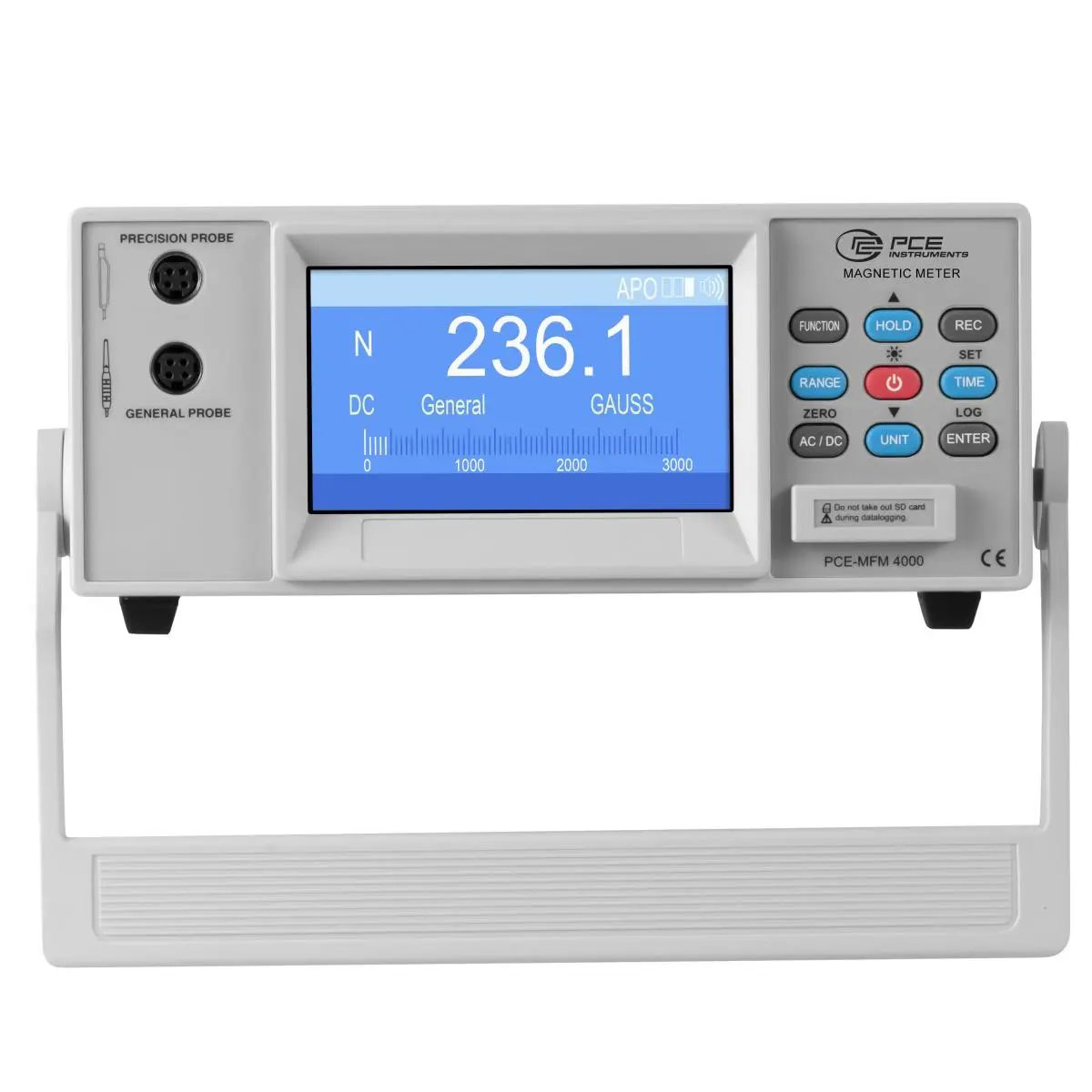

The EMF measuring device is supplied as a table device and is particularly suitable for stationary measurements in QA, the test laboratory or also in research and.The bright display of the EMF measuring device is easy to read at all times and shows all the necessary information about the magnetic field strength. The EMF measuring device also has an automatic switch-off.The EMF measuring device is supplied with 6 x 1.5V AA batteries or with a 9V plug-in power supply.
Highlights
- Tabletop device with 2 sensors
- General Probe Range: 0-3000 milli-Tesla (0-30,000 Gauss)
- Precision Probe Range: 0-300 micro-Tesla (0-3000 milli-Gauss)
- For static and changing magnetic fields
- Highly accurate Transverse Hall sensor
- Different units selectable (mG / µT)
- Data storage on SD memory card
- Automatic shutdown
- Serial interface
- Max.- min.- hold function
Technical specifications
- Magnetic field AC — Measuring range: 0 … 150 mT
- Magnetic field AC — Resolution: 0,01 mT
- Magnetic field AC — Accuracy: ±(5% o Rd +10 digits)
- Magnetic field AC — Frequency: range 50 … 60 Hz
- Magnetic field AC — Measuring range: 0 … 1500 mT
- Magnetic field AC — Resolution: 0,1 mT
- Magnetic field AC — Accuracy: ±(5% o Rd +10 digits)
- Magnetic field AC — Measuring range: 0 … 1500 g
- Magnetic field AC — Resolution: 0,1 g
- Magnetic field AC — Accuracy: ±(5% o Rd +10 digits)
- Magnetic field AC — Measuring range: 0 … 15000 g
- Magnetic field AC — Resolution: 1 g
- Magnetic field AC — Accuracy: ±(5% o Rd +10 digits)
- Magnetic field DC — Measuring range: -300 … +300 mT
- Magnetic field DC — Resolution: 0,01 mT
- Magnetic field DC — Accuracy: ±(5% o Rd +10 digits)
- Magnetic field DC — Measuring range: -3000 … +3000 mT
- Magnetic field DC — Resolution: 0,1 mT
- Magnetic field DC — Accuracy: ±(5% o Rd +10 digits)
- Magnetic field DC — Measuring range: -3000 … +3000 g
- Magnetic field DC — Resolution: 0,1 g
- Magnetic field DC — Accuracy: ±(5% o Rd +10 digits)
- Magnetic field DC — Measuring range: -30000 … +30000 g
- Magnetic field DC — Resolution: 1 g
- Magnetic field DC — Accuracy: ±(5% o Rd +10 digits)
- General technical data — Measuring functions: MIN, MAX, HOLD
- Measuring direction Uniaxial — Frequency: 50 … 60 Hz
- Measuring direction Uniaxial — Display type: LCD
- Measuring direction Uniaxial: Measuring rate 1 Hz
- Storage medium SD card: Memory capacity (additional information)Data logger single-value memory
- Storage medium SD card — Storage interval from: 1 s
- Storage medium SD card — Storage interval to: 3600 s
- Storage medium SD card — Sensor: Hall sensor
- Storage medium SD card — Dimensions: Precision sensor: 195 x 25 x 19 mm
- Storage medium SD card: Standard sensor: 177 x 29 x 17 mm
- Storage medium SD card — Menu language: English, English (GB)
- Storage medium SD card — Protection class (device): IP20
- Storage medium SD card — (Rechargeable) battery: 6 x 1,5 V AA battery , Alkali-manganese
- Storage medium SD card — Capacity: 3000 mAh
- Storage medium SD card — Operating conditions: 0 … 50 °C , 0 … 85 % RH
- Storage medium SD card — Storage conditions: 0 … 50 °C , 0 … 85 % RH
- Storage medium SD card — Dimensions: ( L x W x H )292 x 236 x 98 mm
- Storage medium SD card — Weight: 275 g

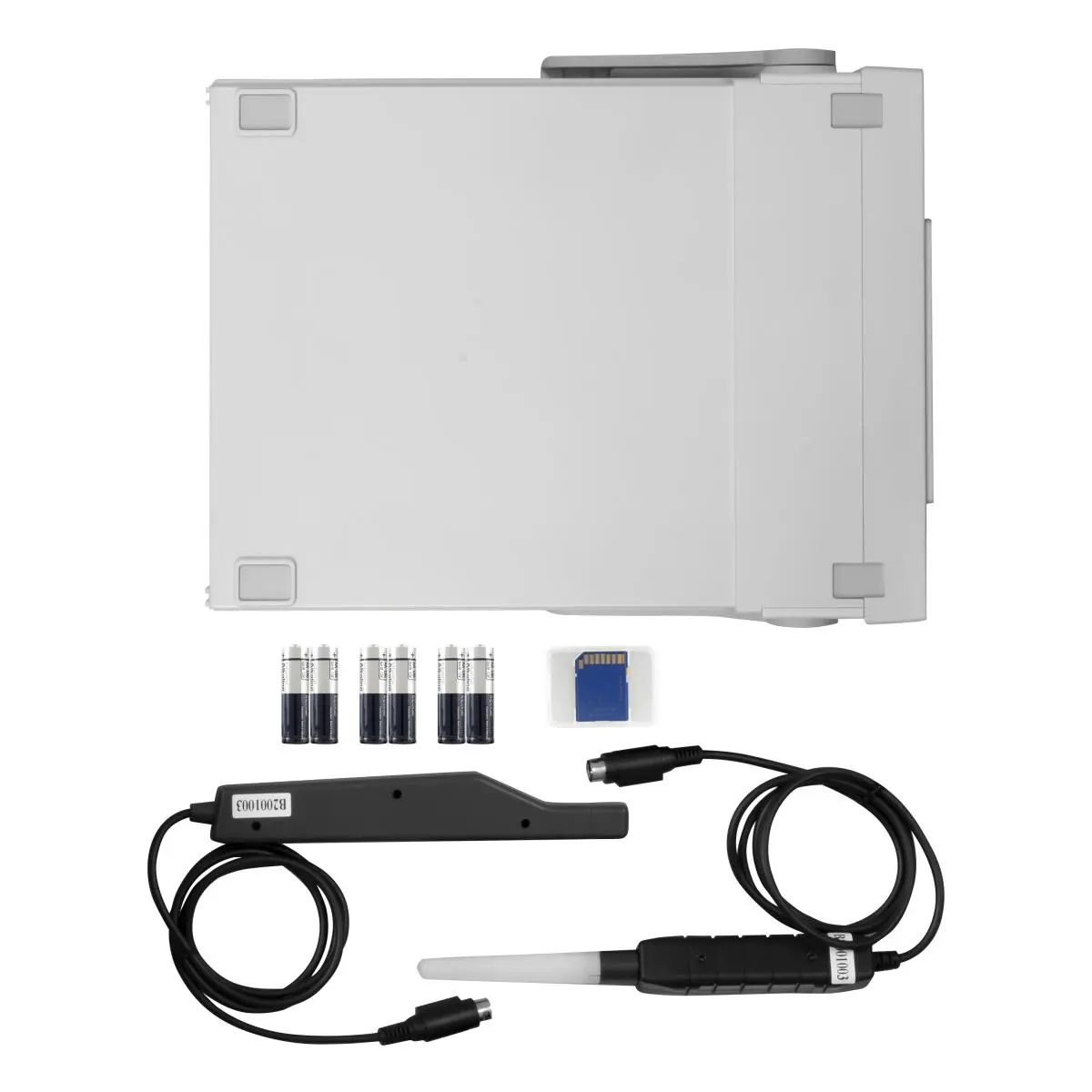

Delivery scope
- 1 x Radiation Detector PCE-MFM 4000
- 1 x Standard Sensor Range: 0-3000 milli-Tesla (0-30,000 Gauss)
- 1 x Precision Sensor Range: 0-300 micro-Tesla (0-3000 milli-Gauss)
- 1 x SD memory card
- 6 x 1.5V AA batteries
- 1 x Instruction manual
