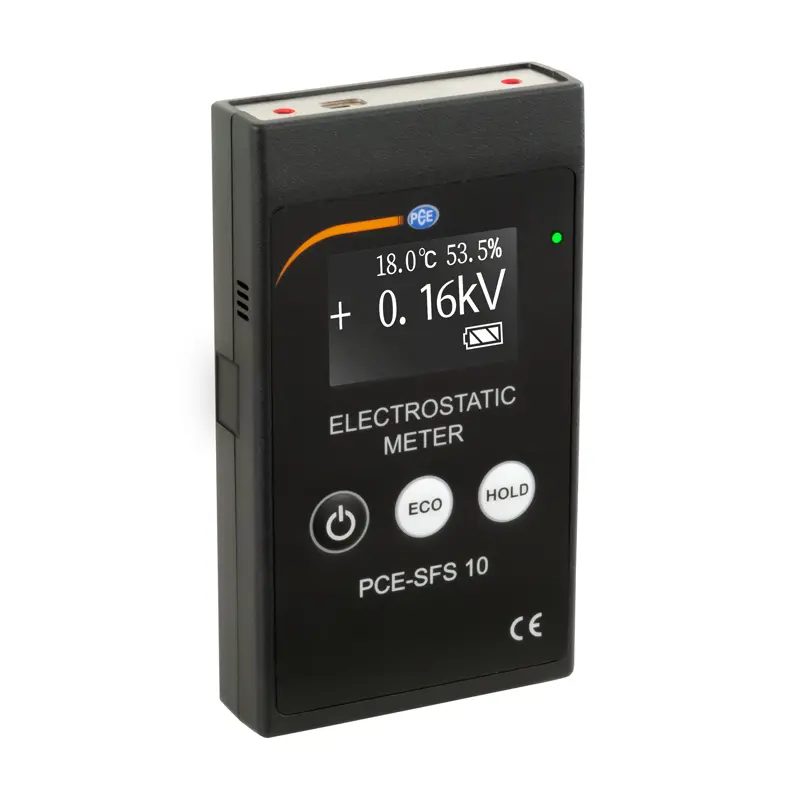

PCE-SFS 10 Electromagnetic Radiation Meter
Electromagnetic radiation detector with a measurement range of ±60 kV DC / Battery status indicator /
Easy to use / Grounding cable with alligator clips / Alignment via two lasers /
For Mobile Use / Measuring Ambient Temperature and Humidity
Electrostatic measurement is particularly important for checking whether surfaces, components, or the human body are electrostatically charged. If a discharge occurs, electronic components can be damaged. In the worst case, flammable gases and liquids can ignite. Such electrostatic charges can be detected using an electromagnetic radiation detector. For this reason, an electromagnetic field meter is used for monitoring in production facilities with ESD protection. The measurement range of the electromagnetic field meter is ±60 kV DC.
The electromagnetic radiation detector can be grounded using the alligator clip included in the kit so that the electromagnetic field meter does not lose its own measurement results or, if necessary, damage components in the production facility due to an electric shock. The lasers in the electromagnetic field meter are used to optimally align the sensors.
In addition to measuring radiation, the electromagnetic radiation detector can simultaneously measure the ambient temperature and humidity. For portable use, the electromagnetic field meter operates on a 9-volt block battery. The electromagnetic field meter has a maximum operating time of 20 hours. The electromagnetic field meter displays the current battery charge level via a battery status indicator.
Static Electricity Meter
Highlights
– Battery life up to 20 hours
– Measurement range: ±60 kV DC
– Audible alarm when the measured value is exceeded
– Temperature and humidity display
– Laser for aligning the measuring device
– Easy-to-read display
| electromagnetic field | |
| Measurement range | ±60 kV DC |
| resolution | ±20 kV DC: 0.01 kV DC |
| -60 … -20 kV DC / | |
| +20 … +60 kV DC: 0.1 kV DC | |
| accuracy | within ±5% of Mw. |
| temperature | |
| Measurement range | -40 … 123.8 °C |
| resolution | 0.1 °C |
| accuracy | ±1.5 °C |
| moisture | |
| Measurement range | 0 … 100% r. F. |
| resolution | 0.1% r. F. |
| precision | ±4.5% r. F. |
| Additional Specifications | |
| response time | <100 ms |
| acoustic alarm | when the measuring device is turned on, |
| 5 seconds before the device turns off automatically, | |
| if the measurement range is exceeded | |
| Automatic Shut-Off | After 5 minutes |
| power supply | 9 V block battery |
| working hours | > 20 hours |
| Operating conditions | 0 … 40 °C, 0 … 60% relative humidity, non-condensing |
| Dimensions | 123 x 70.4 x 21.5 mm |
| Weight | 147 g |
1 x radiation meter PCE-SFS 10
1 x grounding cable
1 x carrying case
1 x 9 V block battery
1 x user manual
