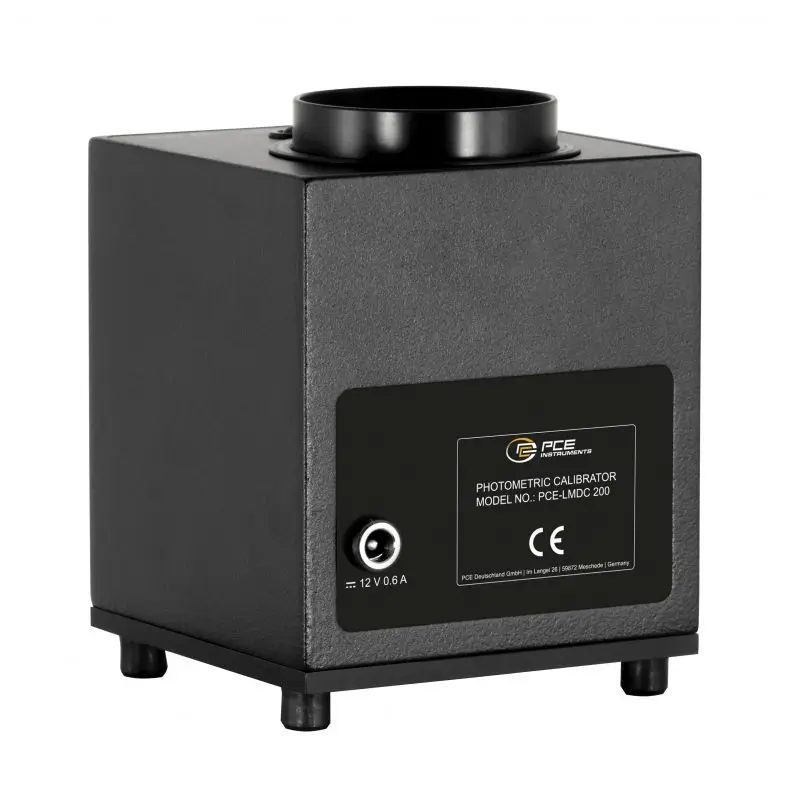

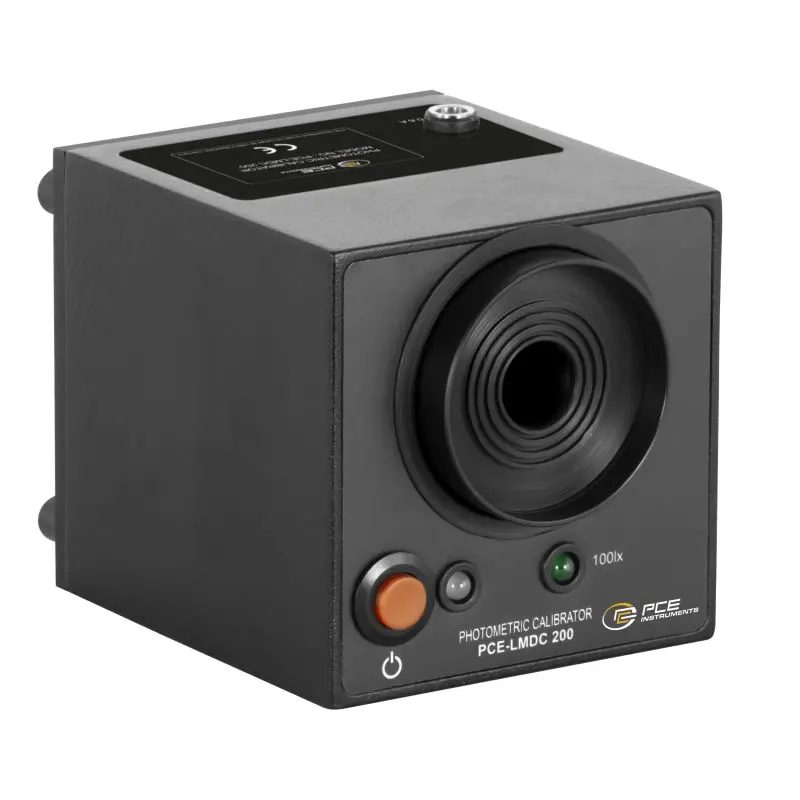

Calibrator / Simulator for light measuring devices / Light intensity 100 lx / Light colour 3000 k / Input voltage control
The simulator for light measuring devices is characterised by its precise properties. The light intensity of the simulator is fixed at 100 lux and ensures reliable and precise adjustment of the light sensors. Light measuring devices that are checked and adjusted with the simulator provide reliable measured values under real conditions.
Another important feature of the simulator is its defined light colour of 3000 Kelvin. This colour temperature of the simulator's light source is adapted to common lighting conditions and therefore enables realistic calibration. The working period of the simulator is 1 minute. This short period of time ensures that the simulator's light source is not subject to unnecessary wear and tear.
In addition, the simulator includes an input voltage control to ensure that the simulator is operated under optimal conditions. This function helps to eliminate possible sources of error and ensure the accuracy of the light output. Overall, this simulator is a reliable and precise solution for calibrating light meters, especially the PCE-LMD 200. Its carefully defined features allow the instruments to be precisely adapted to different lighting conditions, ensuring the reliability of light measurements.
Highlights
- Light intensity 100 lx
- Light colour 3000 K
- Working period 1 min.
- Input voltage control
- Suitable for PCE-LMD 200
- Ø probe 44 mm Ø receiving field 12.5 mm.
Technical specifications
General technical data Luminous intensity 100 lx Light colour 3000 K Accuracy±0.1 % (max. ±0.3 %) after 3000 periods or 1 year ±1 % Protection class (device)IP20 Power supply 12V DC 0.6 A Plug type Euro plug device Weight 650 g Device weight with scope of delivery 1310 g Device weight with scope of delivery and outer packaging 1450 g Dimensions (L x W x H)110 x 80 x 80 mm Operating conditions 0 … 40 °C , 0 … 80 % r.H Storage conditions 0 … 40 °C , 0 … 80 % r.H
Delivery scope

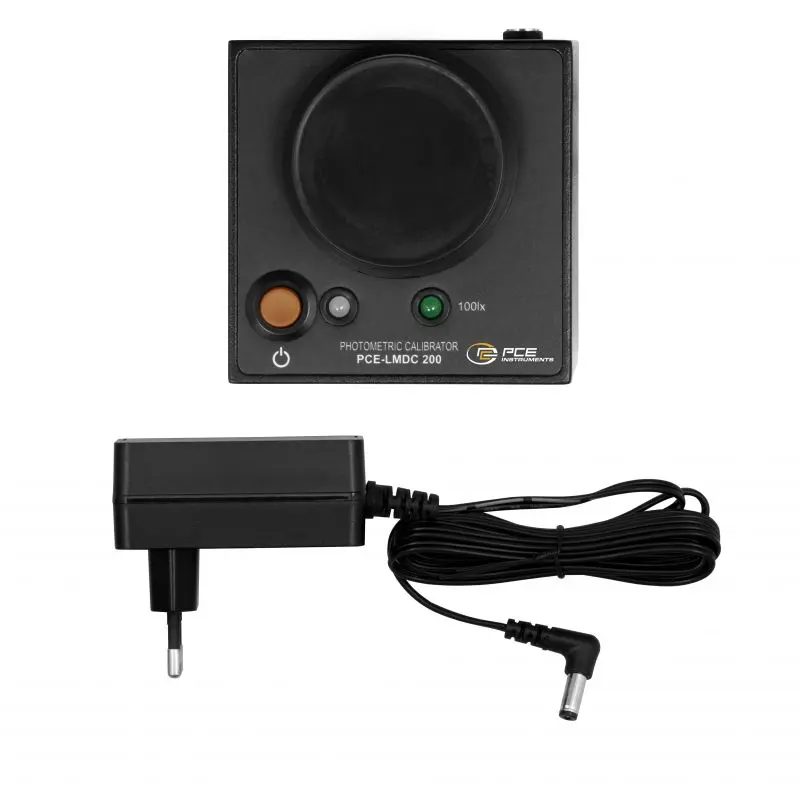

1 x calibrator / simulator PCE-LMDC 200 1 x plug-in power supply 1 x wooden storage box 1 x operating instructions
