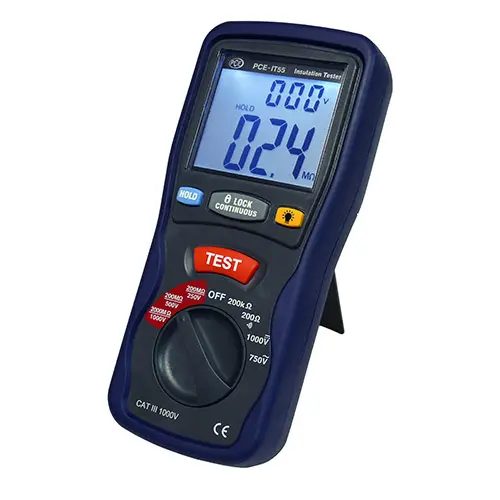

PC E-IT 55 Photovoltaic Meter
**CAT III 1000V / for insulation resistance up to 2000 MΩ**
The PCE-IT 55 Photovoltaic Tester determines insulation resistance up to a maximum of 2 000 MΩ (for auxiliary voltages of 250, 500 and 1000V). This Photovoltaic Tester also offers the ability to measure alternate and continuous currents up to a maximum 750V / 1000V and resistance up to 2 kΩ. Includes test current and a warning whistle.
Readings can be stored by pressing a single key. The device meets with these standards: DIN 57 411 part 1 / VDE 0411 part 1, protective measures for electronic devices (IEC1010-1) and DIN VDE 0413 (Insulation Tester). It comes calibrated from the manufacturer and an optional laboratory calibration and ISO certificate can be ordered separately for annual recalibrations.
Highlights
- Meets the stand ards: IEC1010-1,
- CAT III 1000 V
- Has a large dual, backlit display
- Individual or prolonged measurements can be
- made by pressing the "lock" key
- Indicates overload and battery level
- Auto shut of to conserve battery power
- Comes ready to use in its own carrying case
- optional ISO calibration certificate
Technical specifications
Measurement ranges:Voltage AC Voltage DC Re s is tance Insulation resistance 0 … 750 V 0 … 1000 V 0 … 200 Ω / 200 … 2000 Ω 0 … 200 MΩ / 200 … 2000 MΩ Resolution Voltage AC Voltage DC Re s is tance Insulation resistance 1V 1V 0.1 Ω / 1 Ω 100 kΩ to1 MΩ Accuracy Voltage AC Voltage DC Re s is tance Insulation resistance±1.2% ±10 digits ±0.8% ± 3 digits ±1.0% ± 2 digits ±3.5% ± 5 digits Test voltages 250V -200 MΩ 500V -200 MΩ 1000V – 2000 MΩ Test current whistle: ≤40 Ω, test current ≤200mA Power 6 AA batteries Operating conditions 0 to 40°C / <80% r.h. Dimensions 200 x 92 x 50mm Weight 700g Standards IEC10101, CAT III 1000V
Delivery scope
1 x PCE-IT 55 Photovoltaic Tester, 1 x test cables, 1 x extractable clamp with 1m cable, 1 x 6 batteries, 1 x carrying case 1 x user's manual (see image)
