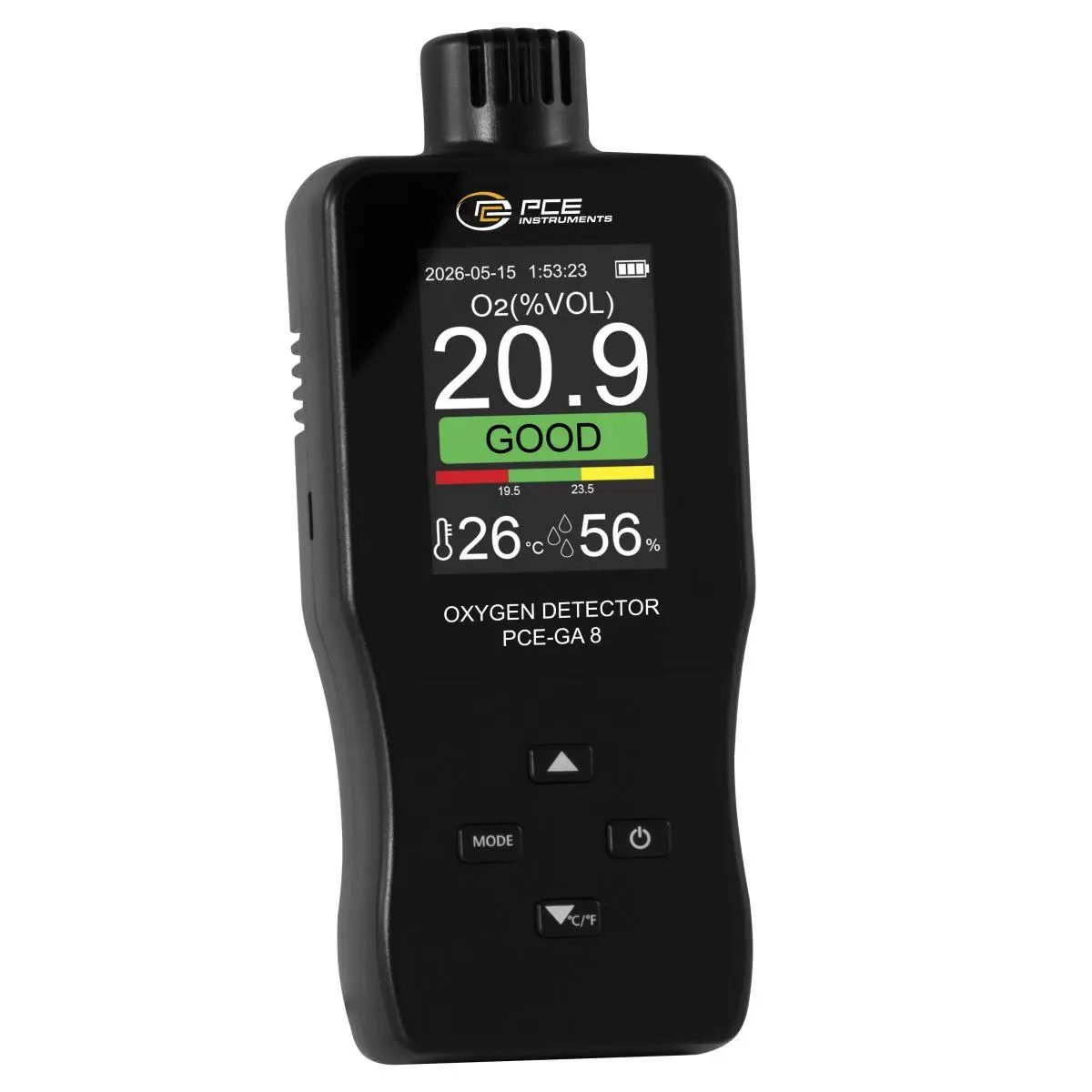

Versatile Gas Detector / Gas Detection Instrument with real-time data display and USB charging
The Gas Detector / Gas Detection Instrument is a reliable measuring instrument for monitoring the oxygen concentration in ambient air. With a measuring range of 0 to 30% vol. oxygen and a resolution of 0.1% vol., the Gas Detector / Gas Detection Instrument delivers precise readings for a wide range of applications in industry, laboratories, storage, and occupational safety.

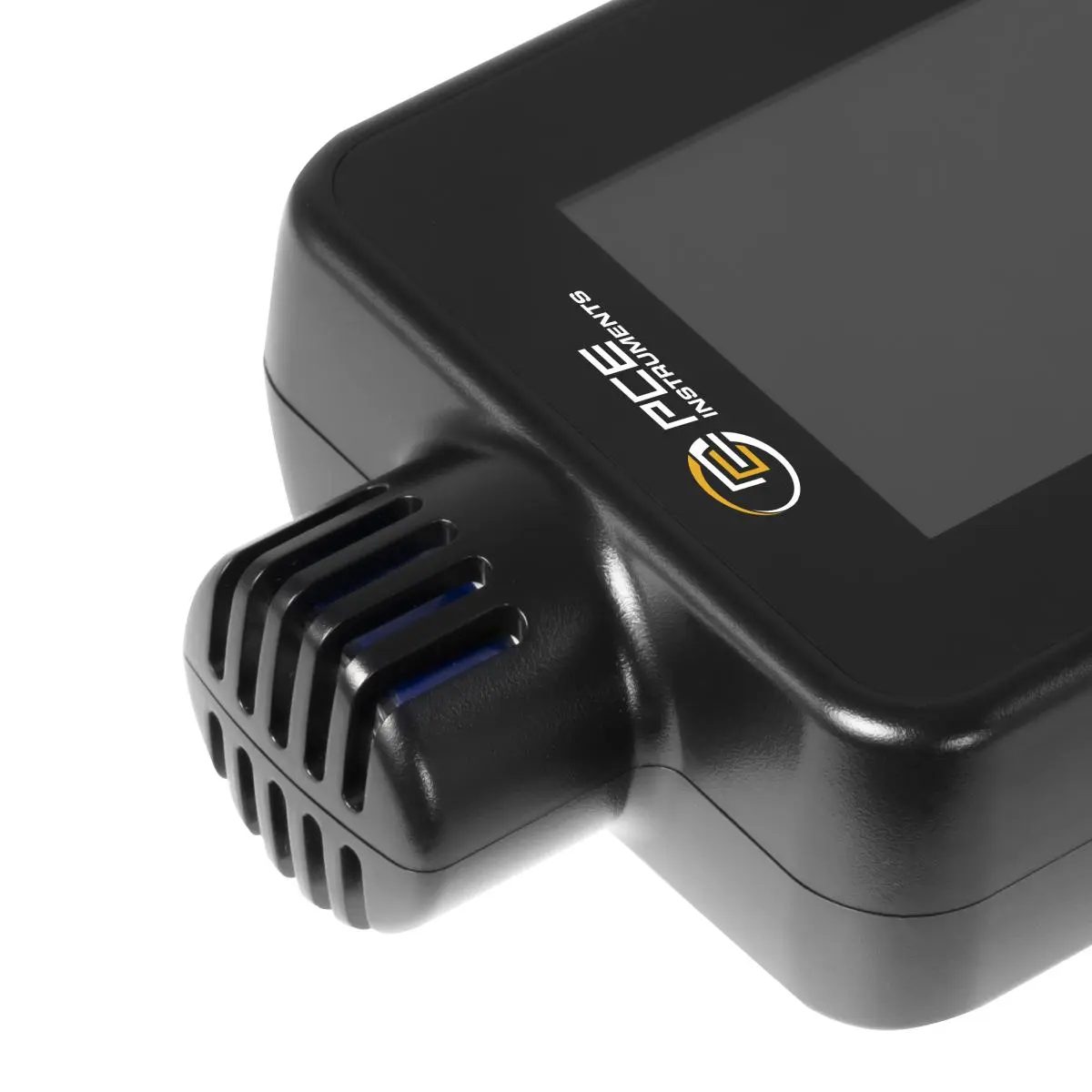

In addition to oxygen measurement, the device also records temperature and humidity. The integrated oxygen, temperature, and humidity sensor enables comprehensive monitoring of ambient conditions. Oxygen measurement is performed with an accuracy of ±0.3% of reading, while temperature values in the range of -9 to 55°C and humidity values from 0 to 100% RH are displayed.

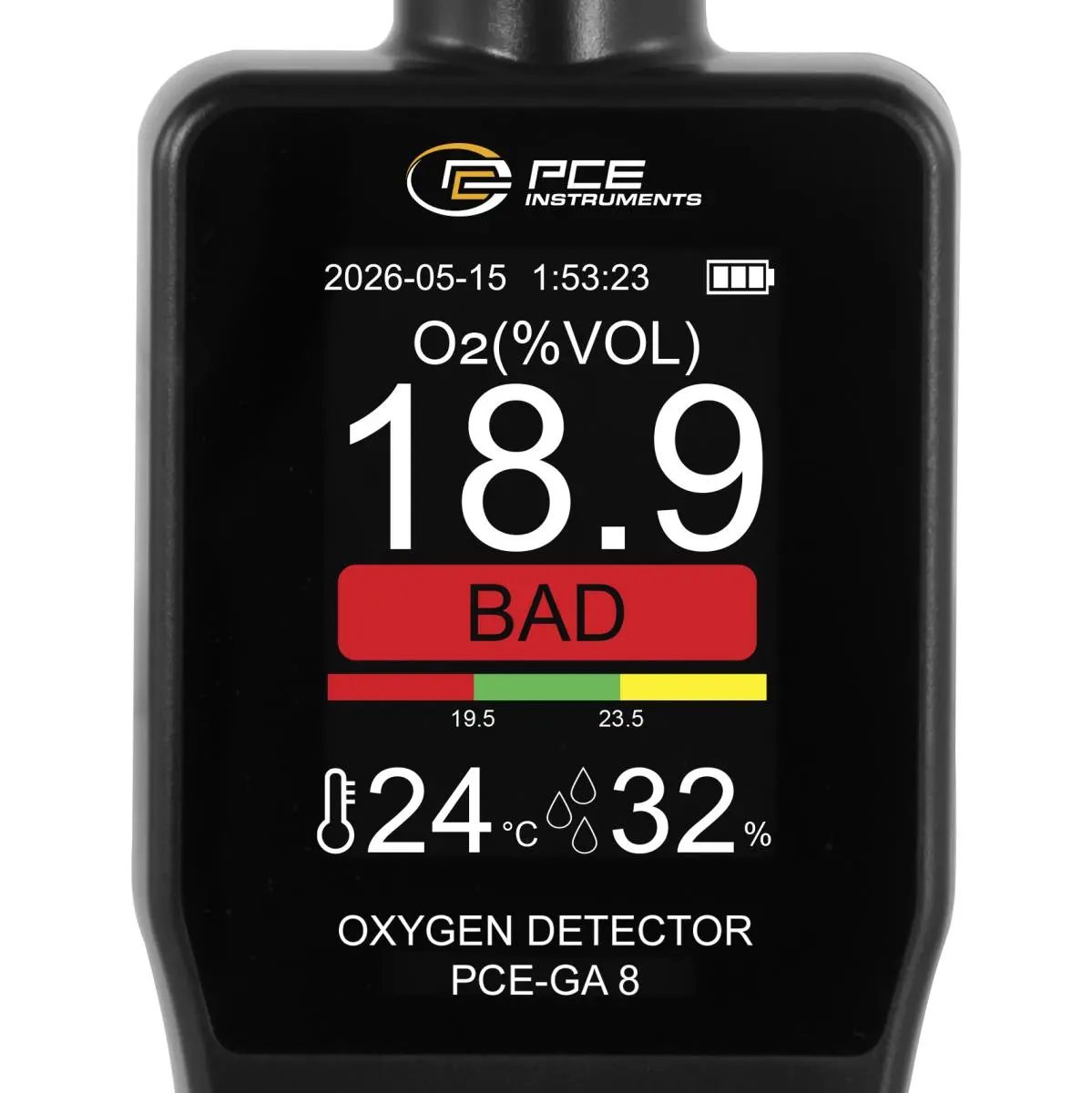

For easy evaluation, the Gas Detector / Gas Detection Instrument features a graphical trend display. This makes it possible to track changes in measured values directly on the device. In addition, up to 100,000 data sets can be stored, allowing even longer measurement series to be documented reliably.

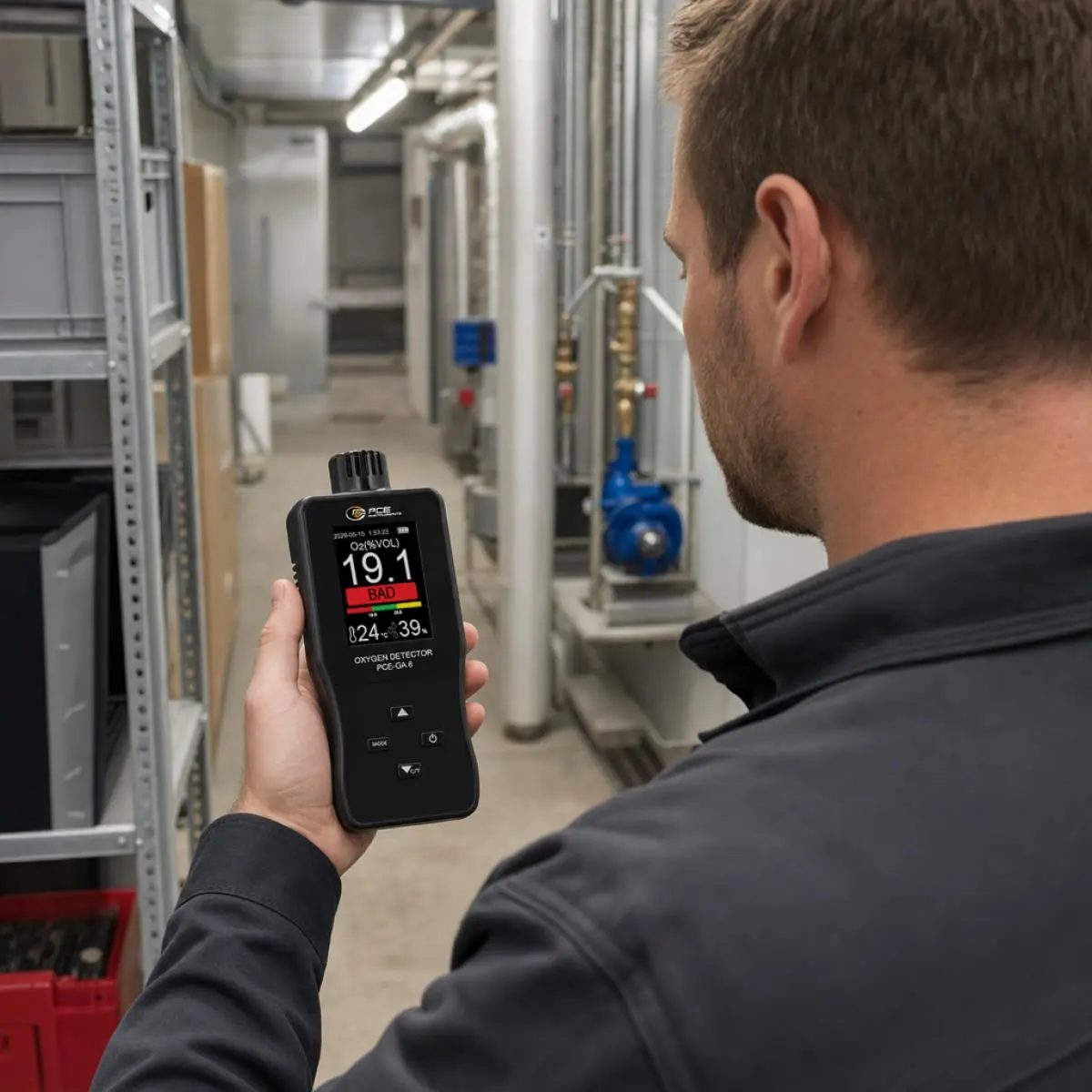

An adjustable alarm warns the user when oxygen values become critical. This makes the Gas Detector / Gas Detection Instrument ideal for continuous monitoring of areas where a safe oxygen concentration is important. The built-in 3000 mA lithium battery ensures flexible mobile use and operation independently of a fixed power supply. This Gas Detector / Gas Detection Instrument is ideal for applications in industry, laboratories, warehousing, occupational safety, and building services. Wherever oxygen concentration needs to be monitored reliably, the Gas Detector / Gas Detection Instrument supports control of room air and helps to identify critical oxygen values at an early stage.
Highlights
- Oxygen, temperature and humidity sensor
- Memory: 100,000 data sets
- Adjustable alarm
- Graphical trend display
- Built-in 3000 mA lithium battery
Technical specifications
Oxygen Measuring range 0 … 30 % vol. Resolution 0,1 % vol. Accuracy±0.3% of reading Relative humidity Measuring range 0 … 100 % Resolution 0,1 % Accuracy±5 % RH Temperature Measuring range-9 … +55 °C Resolution 1 °C Accuracy±0.5 °C General technical data Display type TFT colour display Display size 2,8 Inch Storage medium Internal memory Storage capacity 100000 Data records Storage interval from 10 s Storage interval to 600 s Interface Micro-USB Operating time 8 h Automatic power-off from…to 0 … 1080 min. Menu language English (GB), English Protection class (device)IP20 Power supply 5 V DC (Rechargeable) battery 1 x 3,7 V internal , Capacity 3000 mAh Operating conditions-9 … 55 °C , 90 % RH Storage conditions-9 … 55 °C , 90 % RH Dimensions ( L x W x H )180 x 76 x 31 mm Weight 207 g

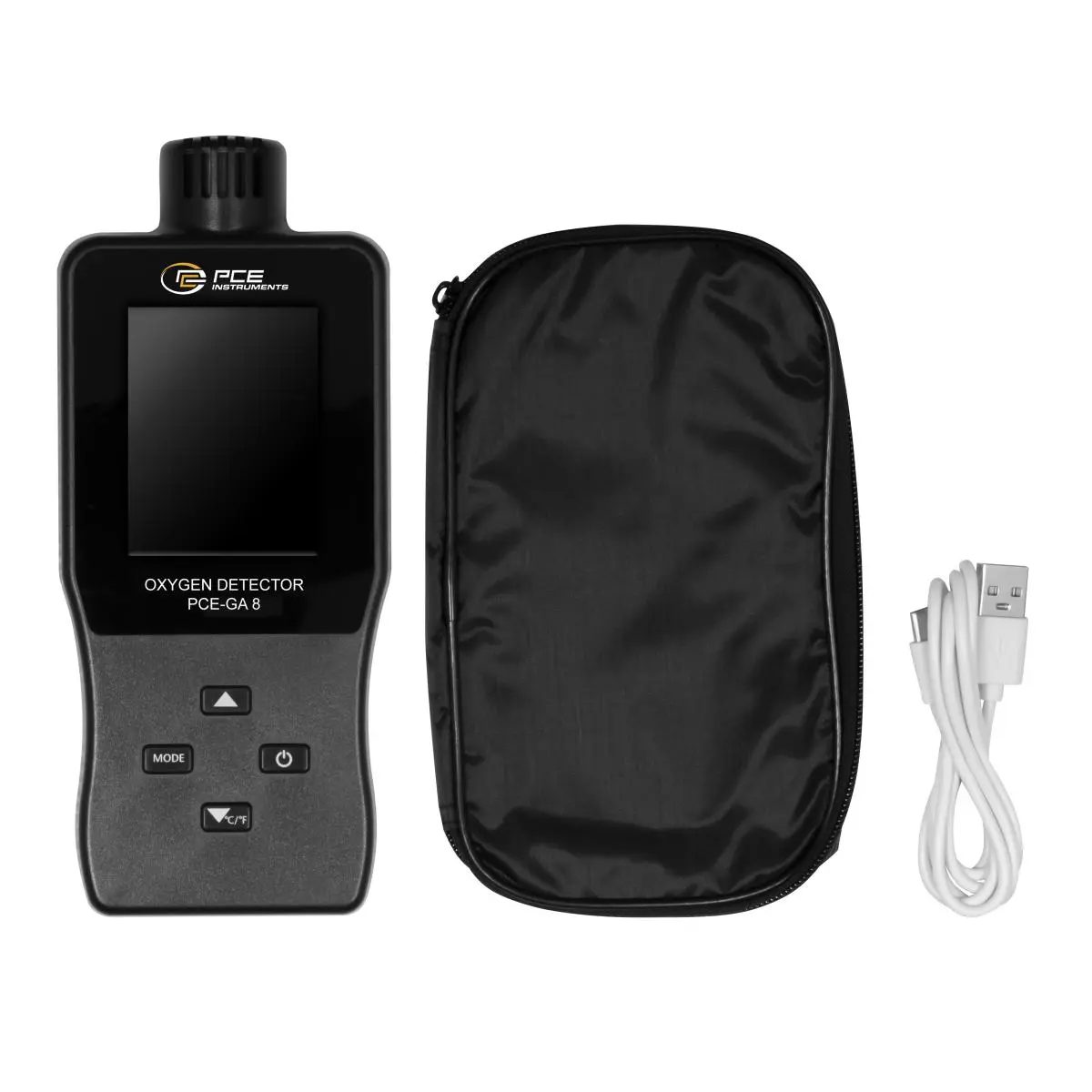

Delivery scope
1 x Gas Detector / Gas Detection Instrument PCE-GA 8 1 x USB-C cable 1 x Instruction manual
