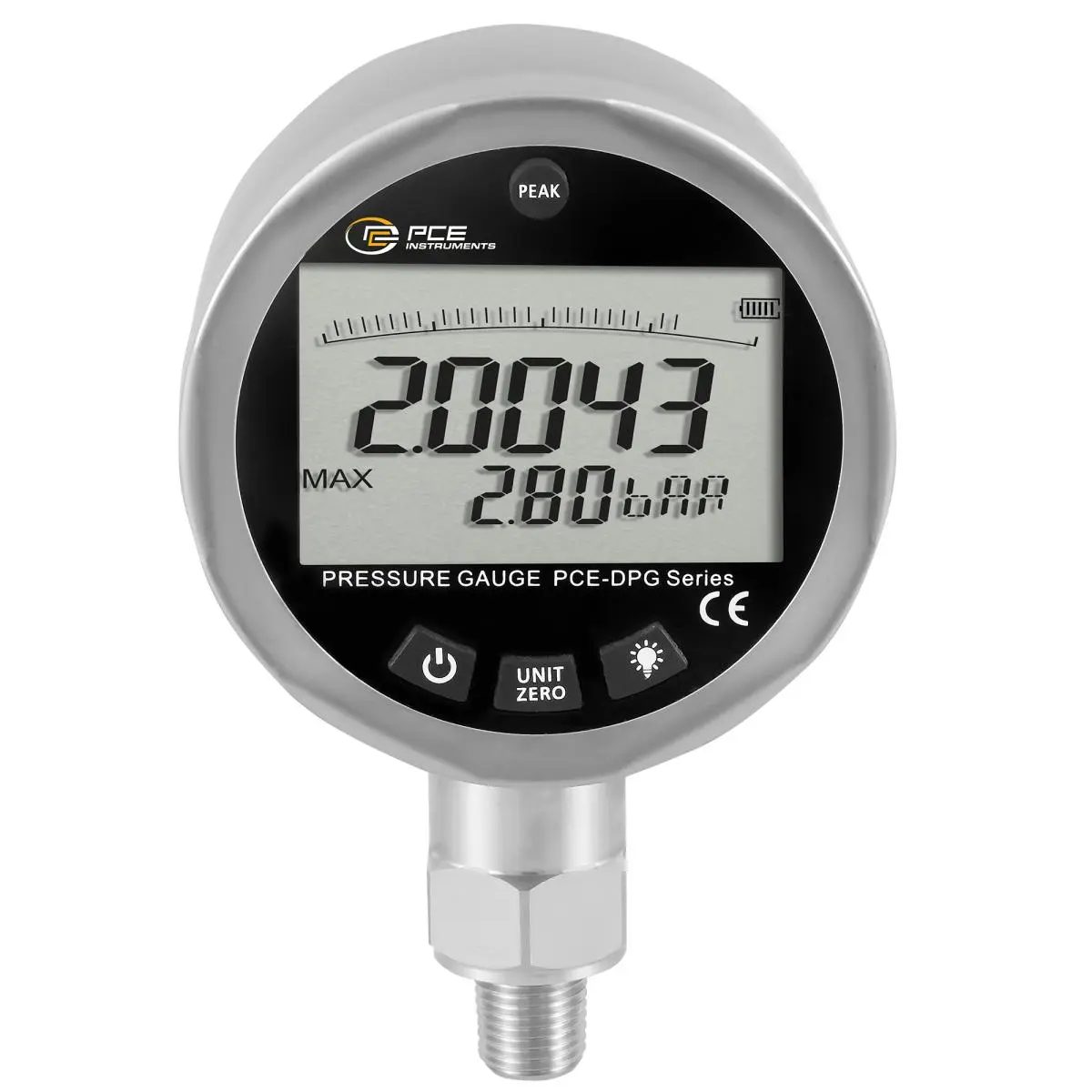

PressuremeterPCE-DPG 3 Pressure sensor for water and gases / 1/4" NPT threaded connection / Adjustable backlight / PEAK function / Battery status indicator / Battery-operated
The pressure meter of the PCE-DPG series is well suited for monitoring and displaying air pressure and water pressure. Thanks to its high measuring resolution and high accuracy, this pressure meter is versatile. The current pressure is displayed by the pressure meter as a value and at the same time as a bar graph. As an additional function, the pressure meter offers a peak function. This function shows the operator the maximum and minimum pressure measured on the pressure meter at the push of a button.

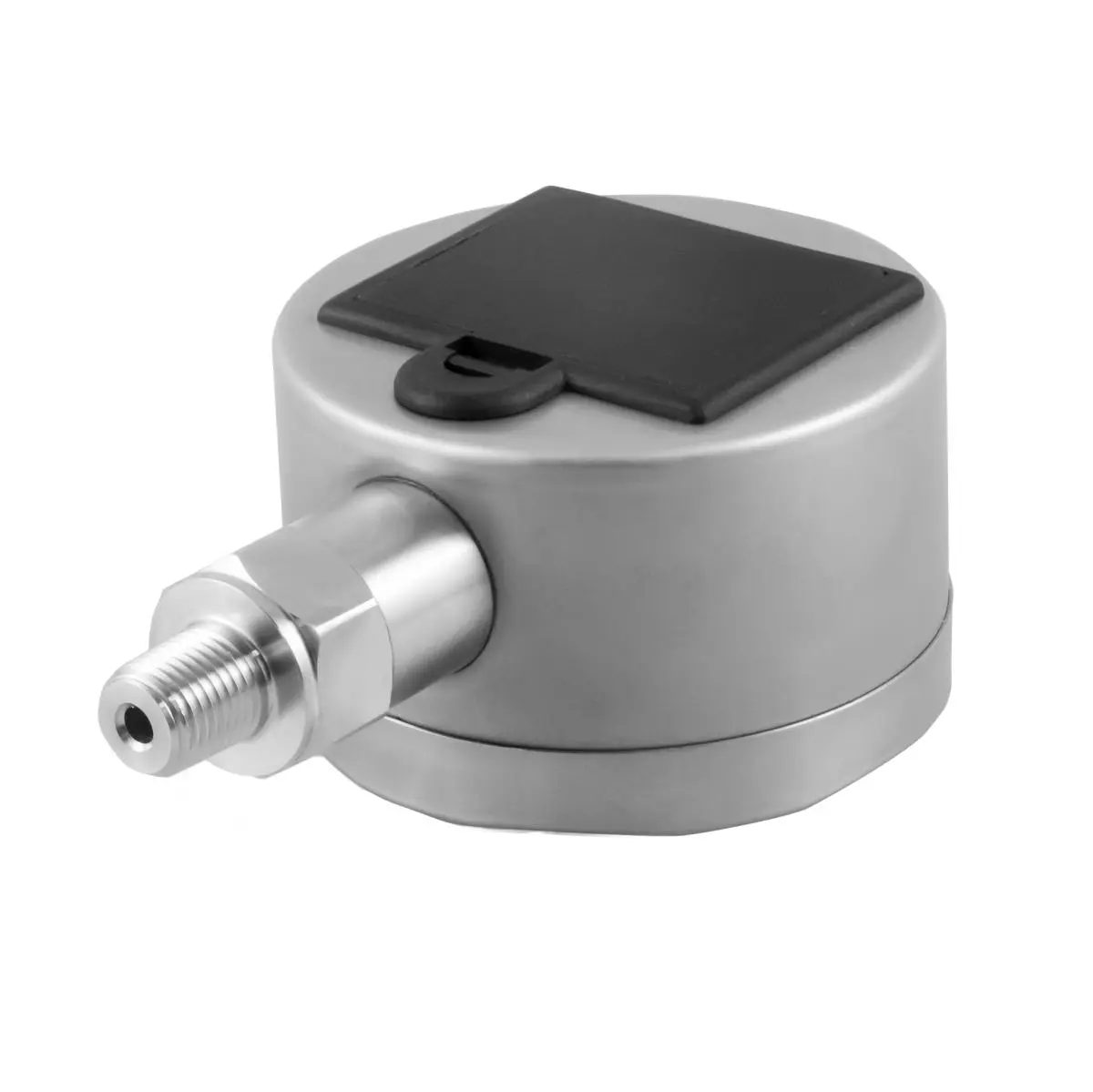

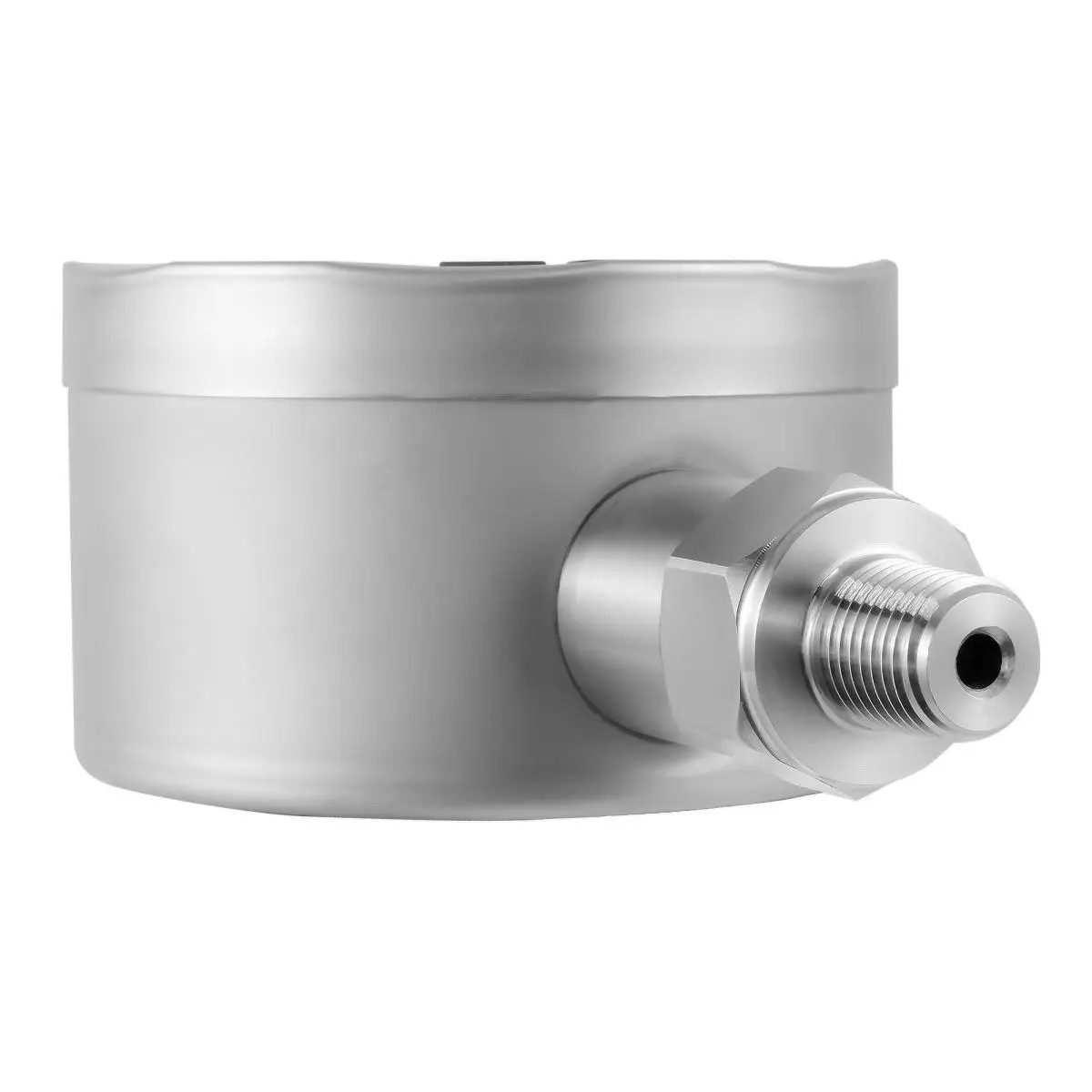

Thanks to the large display of 2.5" almost all measured values can be read directly. Possible adjustable units for the pressure meter would be Mpa, bar, Kpa, mH2o, kg / cm2, psi, mmH2o, in.WC and mbar. The response time of the pressure meter is < 50 ms. The connection of the pressure meter to the process is realized via a 1/4" NPT connection. Typical applications include suction control, leak testing or pressure monitoring.
Highlights
- Measuring range up to 43.5 psi, 3 bar
- Scaled bar graph
- Battery powered 3 x 1.5V AAA
- Large 2.5" display
- Adjustable backlight
- 1.4" NPT connection thread
Technical specifications
Pressure Measuring range-1 … +3 bar Resolution 0,001 bar Accuracy 0.25% FSO % General technical data Measuring functions MIN, MAX Units bar, kPa, MPa, mH₂O, kg/cm², mmH₂O, psi, mbar, in.WC Connections 1/4 NPT (external thread) Display type LCD Display size 2,5 Inch Response time 50 mS Measured medium Gases, Water Housing Metal Overpressure 1,5 x Protection class (device)IP56 (Rechargeable) battery 3 x 1,5 V AAA battery , Alkali-manganese Capacity 1200 mAh Operating conditions-10 … 60 °C , 0 … 80 % RH Storage conditions-10 … 60 °C , 0 … 80 % RH Dimensions ( L x W x H )80 x 80 x 50 mm Weight 276 g
Delivery scope
1 x Pressure Meter PCE-DPG 3 3 x Batteries 1.5V AAA 1 x Operating instructions
