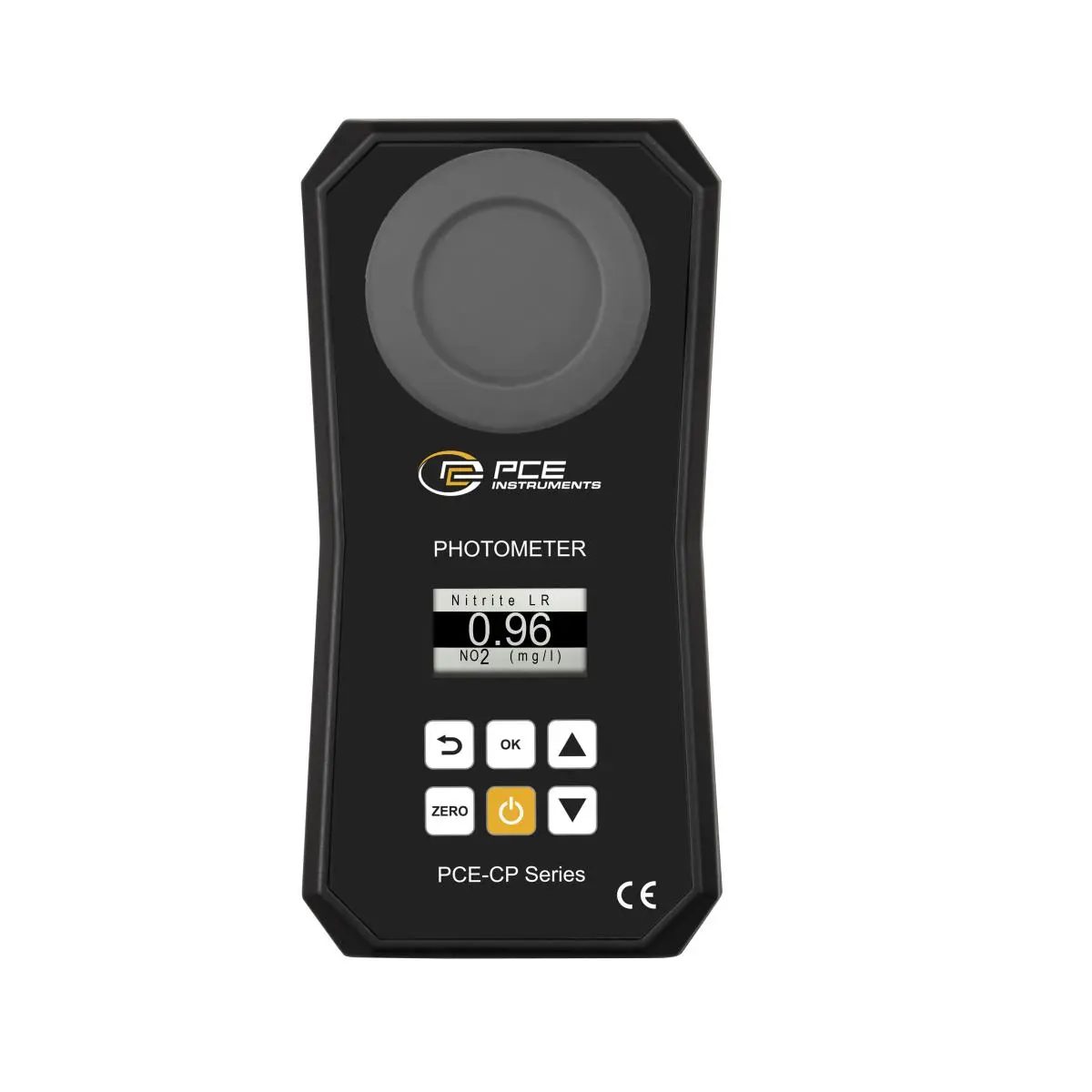

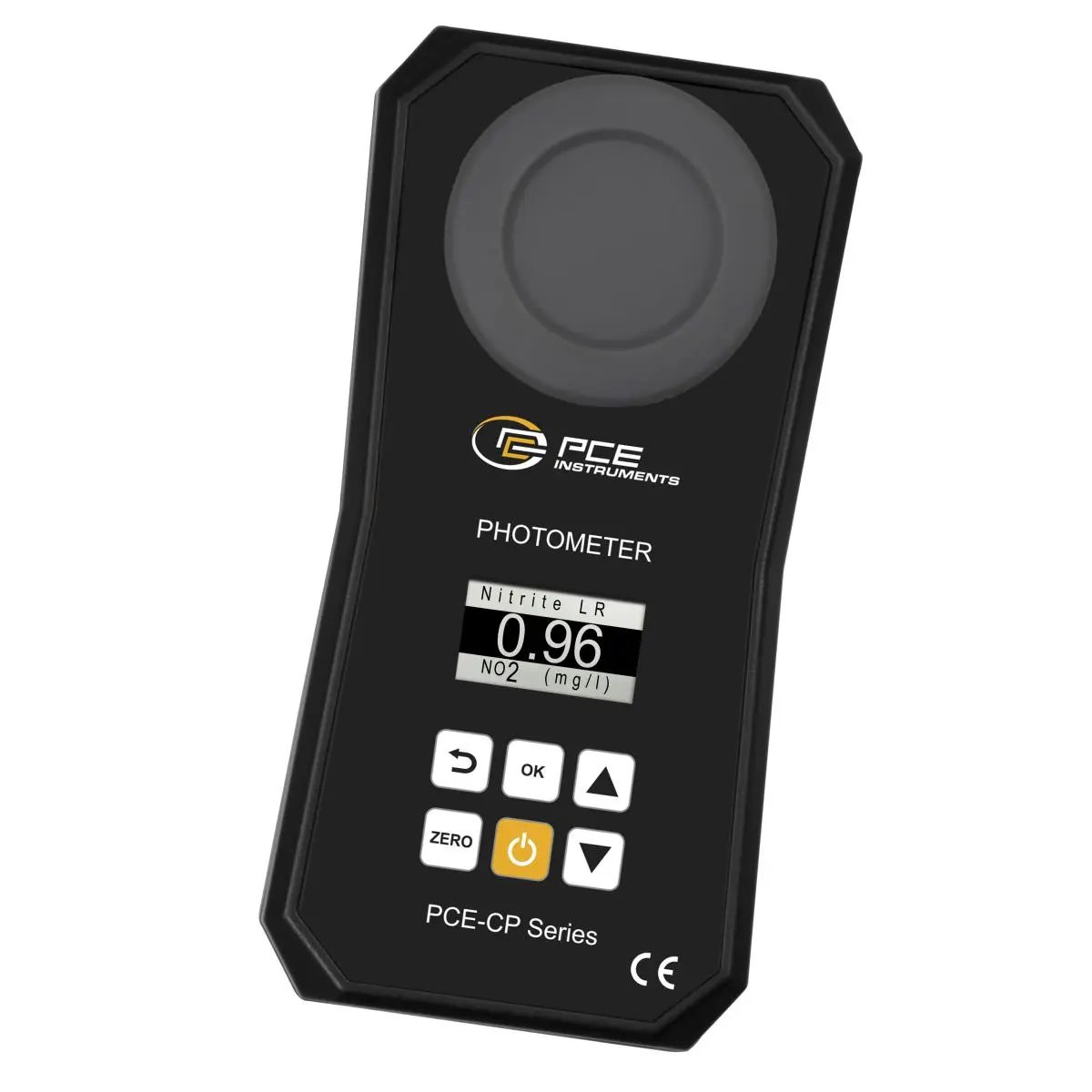

Multi-parameterwater hardness tester with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values / Up to 13 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values
The multi-parameter water hardness tester is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the water hardness tester. With this water hardness tester, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the water hardness tester, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the water hardness tester generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.
Each measurement is automatically saved by the multi-parameter water hardness tester. The stored measured values can then be read out, for example, via a mobile device via the Bluetooth interface built into the water hardness tester. A free app is available to analyze the measured values from the water hardness tester. It is also possible to establish a Bluetooth connection between the water hardness tester and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the water hardness tester, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the water hardness tester is also free of charge.
Highlights
- Up to 13 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Technical specifications
Ammonia Measuring range 0 … 0,12 mg/L Resolution 0,01 mg/L Accuracy 0.02 mg/l Ammonia Measuring range 0,12 … 0,25 mg/L Resolution 0,01 mg/L Accuracy 0.04 mg/l Ammonia Measuring range 0,25 … 0,57 mg/L Resolution 0,01 mg/L Accuracy 0.06 mg/l Ammonia Measuring range 0,57 … 1,21 mg/L Resolution 0,01 mg/L Accuracy 0.09 mg/l Iron Measuring range 0 … 0,2 mg/L Resolution 0,01 mg/L Accuracy 0.02 mg/l Iron Measuring range 0,2 … 0,6 mg/L Resolution 0,01 mg/L Accuracy 0.04 mg/l Iron Measuring range 0,6 … 1 mg/L Resolution 0,01 mg/L Accuracy 0.08 mg/l Urea Measuring range 0 … 0,3 mg/L Resolution 0,01 mg/L Accuracy 0.05 mg/l Urea Measuring range 0,3 … 0,6 mg/L Resolution 0,01 mg/L Accuracy 0.06 mg/l Urea Measuring range 0,6 … 1 mg/L Resolution 0,01 mg/L Accuracy 0.09 mg/l Urea Measuring range 1 … 1,5 mg/L Resolution 0,01 mg/L Accuracy 0.12 mg/l Urea Measuring range 1,5 … 2,5 mg/L Resolution 0,01 mg/L Accuracy 0.19 mg/l Potassium Measuring range 0,8 … 3 mg/L Resolution 0,1 mg/L Accuracy 0.3 mg/l Potassium Measuring range 3 … 7 mg/L Resolution 0,1 mg/L Accuracy 0.4 mg/l Potassium Measuring range 7 … 10 mg/L Resolution 0,1 mg/L Accuracy 0.5 mg/l Potassium Measuring range 10 … 12 mg/L Resolution 0,1 mg/L Accuracy 1 mg/l Copper Measuring range 0 … 2 mg/L Resolution 0,01 mg/L Accuracy 0.20 mg/l Copper Measuring range 2 … 3 mg/L Resolution 0,01 mg/L Accuracy 0.31 mg/l Copper Measuring range 3 … 5 mg/L Resolution 0,01 mg/L Accuracy 0.44 mg/l Nitrate Measuring range 0 … 20 mg/L Resolution 1 mg/L Accuracy 2 mg/l Nitrate Measuring range 20 … 40 mg/L Resolution 1 mg/L Accuracy 4 mg/l Nitrate Measuring range 40 … 60 mg/L Resolution 1 mg/L Accuracy 6 mg/l Nitrate Measuring range 60 … 100 mg/L Resolution 1 mg/L Accuracy 10 mg/l Nitrite Measuring range 0 … 0,25 mg/L Resolution 0,01 mg/L Accuracy 0.02 mg/l Nitrite Measuring range 0,25 … 0,4 mg/L Resolution 0,01 mg/L Accuracy 0.06 mg/l Nitrite Measuring range 0,4 … 1,3 mg/L Resolution 0,01 mg/L Accuracy 0.09 mg/l Nitrite Measuring range 1,3 … 1,64 mg/L Resolution 0,01 mg/L Accuracy 0.12 mg/l pH Measuring range 6,5 … 8,4 pH Resolution 0,01 pH Accuracy 0.11 pH Phosphate Measuring range 0 … 0,4 mg/L Resolution 0,01 mg/L Accuracy 0.04 mg/l Phosphate Measuring range 0,4 … 1,2 mg/L Resolution 0,01 mg/L Accuracy 0.12 mg/l Phosphate Measuring range 1,2 … 2 mg/L Resolution 0,01 mg/L Accuracy 0.20 mg/l General technical data Display type LED Storage medium Internal memory Storage capacity 255 Values Interface Bluetooth Sensor Photodiode Light source 530 nm / 570 nm / 620 nm LED Number of calibration points 0 Menu language English, Spanish, German, French, Italian Protection class (device)IP21 (Rechargeable) battery 3 x 1,5 V AAA battery , Alkali-manganese Capacity 1200 mAh Performance 1,8 Wh Operating conditions 5 … 45 °C , 20 … 90 % RH Storage conditions 5 … 45 °C , 20 … 90 % RH Dimensions ( L x W x H )150 x 75 x 52 mm Other dimensions Cuvette: 36 x ø 21 mm (10 ml) Weight 196,5 g
Delivery scope
1 x Multi-parameter Water Hardness Meter / Water Hardness Tester PCE-CP 22 incl. Cuvette 1 x Replacement cuvette 1 x Light protection cover 1 x Microfiber cloth 1 x Plunger 1 x 25 ml shaker (for nitrate) 1 x 10 ml dosing pipette 3 x AAA batteries 1 x Quick start guide 1 x Service bag 1 x Free app 1 x Free PC software 1 x Free cloud service
