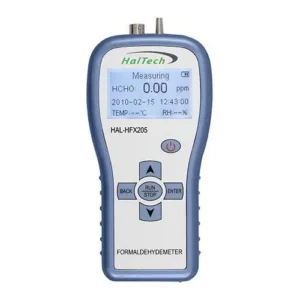

Professional Formaldehyde Meter HFX205 to measure air after the evaporation of wooden material, flooring, furniture, textiles… / alarm signal exceeding of limit / USB-interface
This Alert Meter is designed to detect formaldehyde in air. The Alert Meter shows the formaldehyde-concentration on site and thereby avoids time-consuming and expensive analysis in laboratories. The formaldehyde Alert Meter runs with help of an electromechanical sensor and is designed to determine the current permitted limit. A measurement can be accomplished in less than 30 seconds. The concentration is measured in ppm units. Some substances such as ethanol, propanol or methanol can interfere with the measuring data.
An optionally purchasable hygrometer-sensor allows for a correction of the measured data in order to achieve accurate measurements. The Alert Meter can be connected to a computer or laptop by means of the USB-Interface, thereby allowing an automatic and continuous measuring over a long period of time. Time and battery status are shown continuously on a display. Information on all the gass-measuring devices of PCE Instruments is shown below. For further information, please feel free to read the following technical data. Our engineers and technicians will gladly advise you on the measuring device for formaldehyde concentration or any other product in terms of regulation and control, or scales and balances of PCE Instruments.
Highlights
- Short reaction time
- Real-time display
- Manual and auto data storage
- High-speed USB
- Software for Online Data transfer
- No warm-up time necessary
- Automatic background lightening
- Self-calibration
- Alarm signal if level of limit is reached
- Operating time up to 6 hrs
Technical specifications
- Measuring range: (selectable)0 … 10 ppm
- 0 … 25 ppm
- 0 … 50 ppm
- 0 … 100 ppm
- Resolution: 0.01 ppm
- Repeatability: < ± 2 %
- Sensor: Electrochemical sensor
- Response time: < 30 seconds
- Calibration: Automatic self-calibration
- Data memory Up to 500 data sets
- Interface: USB
- Operating temperature 5 … 40 °C
- Humidity 15 … 90 % RH
- Power supply: Li-ion rechargeable batteries (3.7 V / 1200 mAh)
- AC adapter 100 … 240 V to 5 VDC / 1 A
- Continuous operation 6 hours with rechargeable batteries
- Dimensions: 80 x 45 x 157 mm
- Weight: approx. 200 g
- ChemicalFormaldehyde equivalent: Ethanol C₂H₆O 45 %
- ChemicalFormaldehyde equivalent: Sulphur dioxide SO₂ 12 %
- ChemicalFormaldehyde equivalent: Phenol C₆H₆O 7 %
- ChemicalFormaldehyde equivalent: Carbon monoxide CO 1 %
- ChemicalFormaldehyde equivalent: Molecular hydrogen H₂ 0.1 %
- ChemicalFormaldehyde equivalent: Chlorine Cl₂-3%
- ChemicalFormaldehyde equivalent: Acetone (C₃H₆O), ammonia (NH3), CO₂, water H₂O vapours have no reaction;
- ChemicalFormaldehyde equivalent: C2H4, H₂S, NO, and NO₂ No data available
Delivery scope
- 1 x Formaldehyde Meter HFX205
- 1 x rechargeable battery (Li-Ion)
- 1 x 230 V adaptor to recharge battery
- 1 x USB- cable
- 1 x software for online data-transfer
- 1 x instruction manual (in German language)
