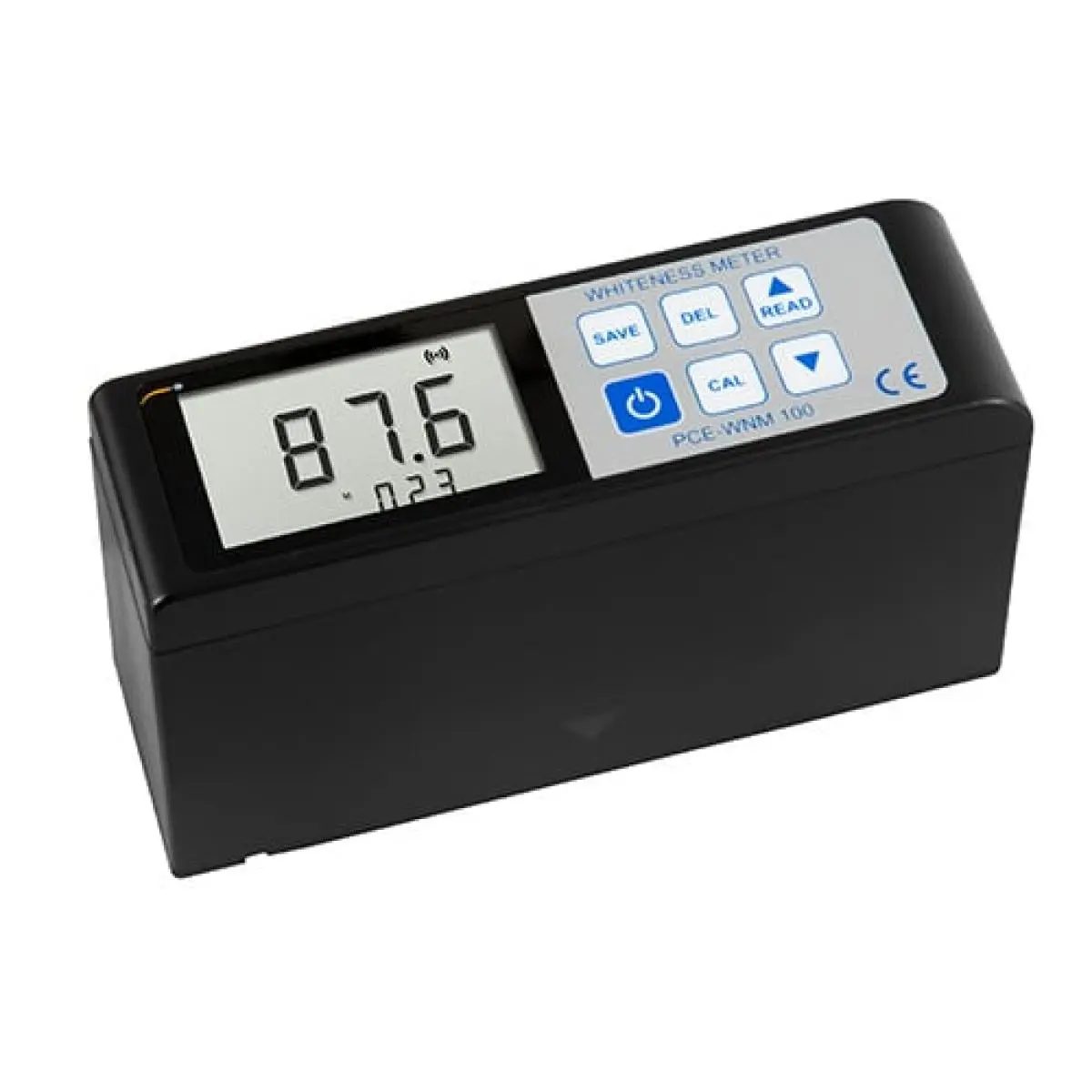

Luminance Tester PCE-WNM 100
Luminance Meter / Measurement Range up to 120 / LCD Screen / Interface / Li-Ion Battery
The PCE-WNM 100 whiteness tester is used to measure the whiteness of flat surfaces or powders. In particular, the whiteness meter can be used to measure the whiteness of textile prints, dyes, building materials, cardboard and paper, and plastics. It can also be used to measure any other surfaces. The whiteness measuring device consists of a light source and an optical measuring system that measures light reflectance and thereby determines the surface whiteness in accordance with ISO R457 (ISO 2469).
The whiteness meter can be used immediately after initial calibration with the included white standard. The memory, which can store up to 245 measurement data points, allows you to save the measured values. The meter can be connected to a computer via a serial interface. This allows you to log the whiteness meter’s measurement data in real time.
Highlights
– 457 nm LED illumination
– 45/0 measurement geometry
– For a wide range of surfaces and materials

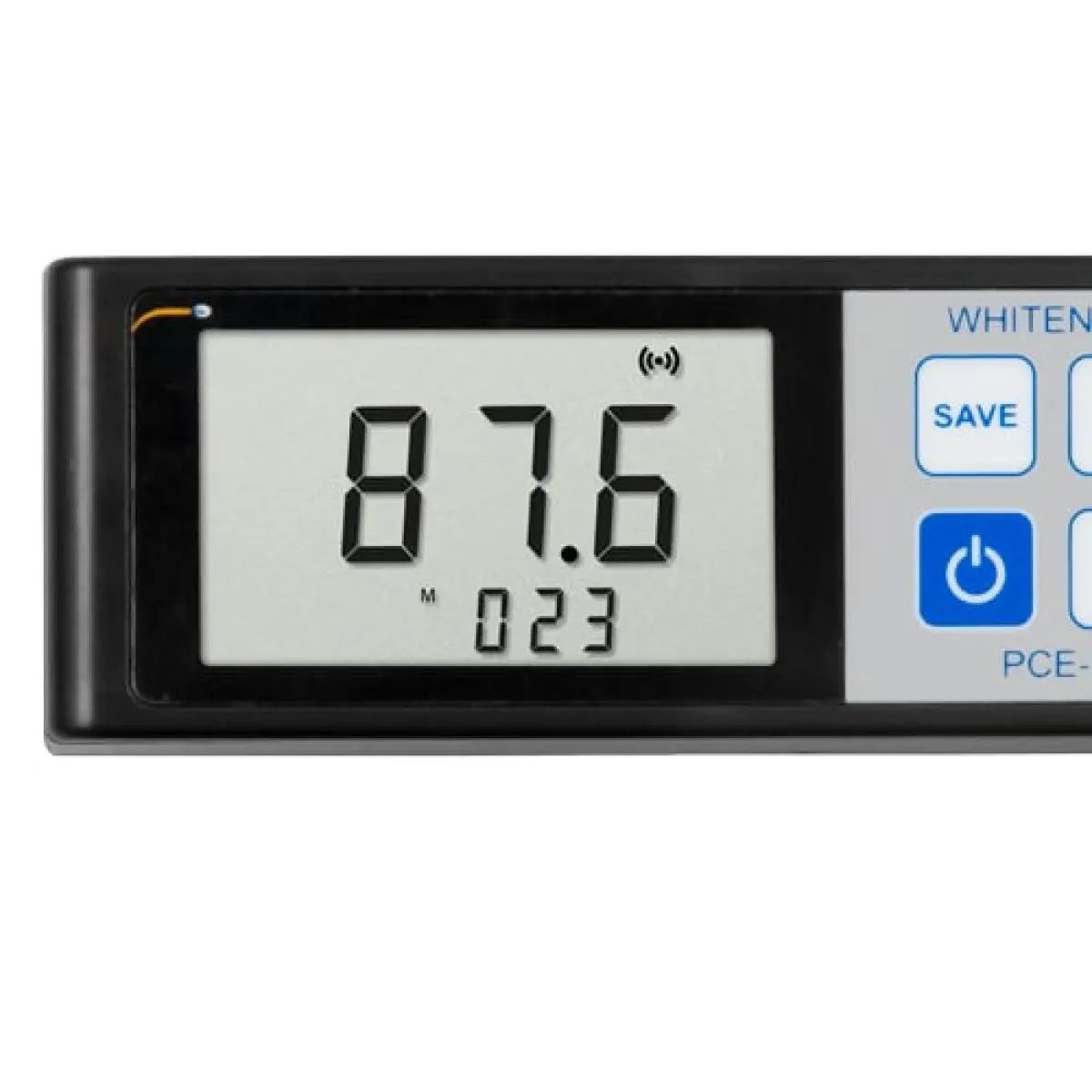

– LCD screen
– Lithium-ion battery
– Serial interface
Specifications
Measurement range 0…120
Resolution 0.1
Offset drift < 0.1
Repeatability < 0.5
Measurement geometry 45/0
Light source LED 457 nm
Whiteness calculation ISO R457 (blue light whiteness)
Measurement area 18 x 11 mm
Power source Lithium-ion battery
Operating conditions 0 … 40 °C / 32 … 104 °F; <85% relative humidity
Weight 305 g / < 1 pound
Dimensions 140 x 45 x 75 mm / 5.5 x 1.8 x 3 inches

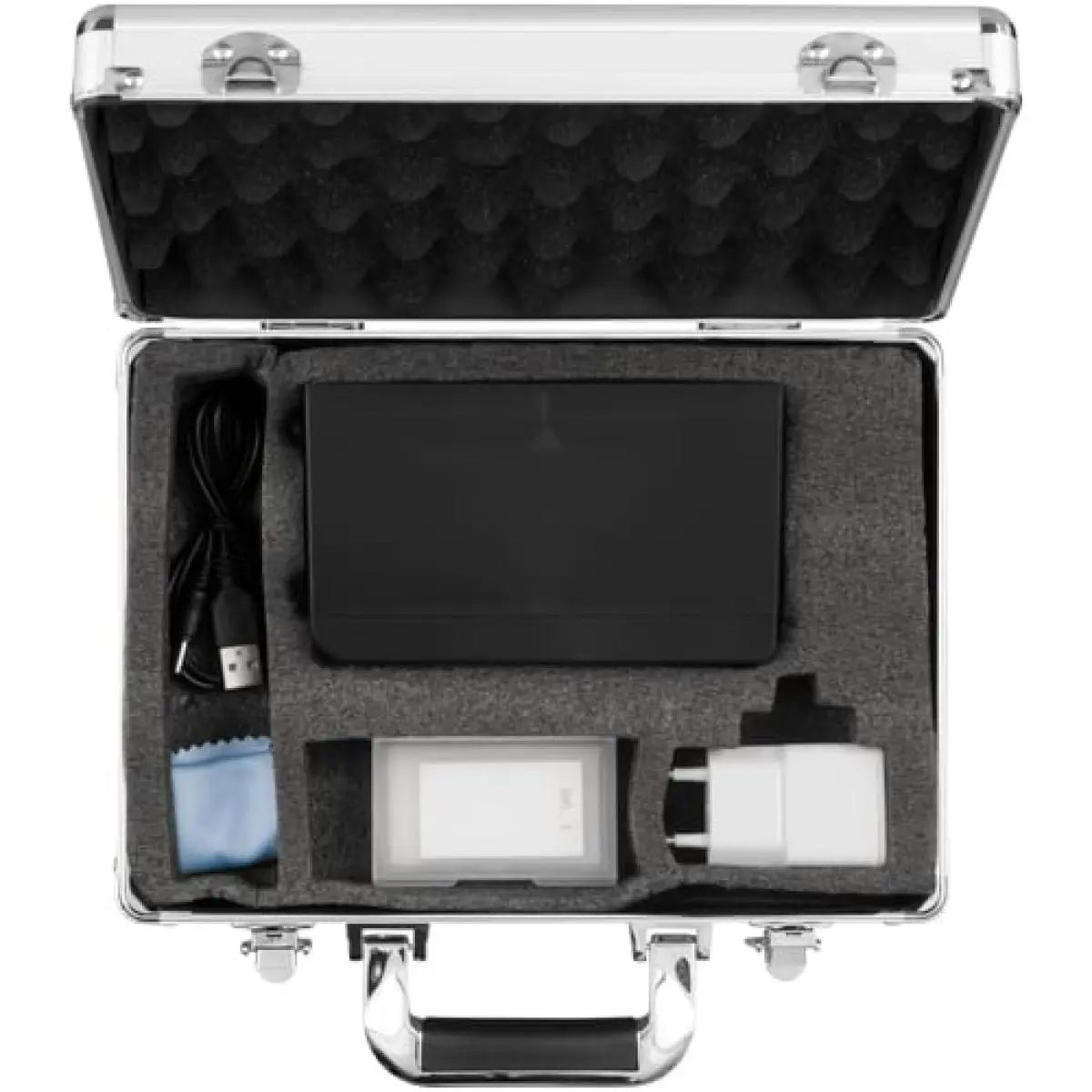

Scope of Delivery
1x brightness tester PCE-WNM 100
1 x calibration plate
1 x cleaning cloth
1 x power supply
1 x carrying case
1 x User Manual
A brightness tester can be used to measure the brightness, whiteness, and yellowness of paper, cellulose, and other materials, such as porcelain and plastic. Many brightness testers are also capable of measuring different colors. The portable devices offered by Pro Air OÜ, which are designed for professional use, are particularly well-suited for quality control and compliance with ISO standards.
PCE luminance tester products stand out for their high accuracy, ease of use, compact and ergonomic design, and high-resolution displays. Every luminance tester you purchase from PCE comes with a user manual and the necessary accessories. You can also order a variety of optional accessories to make your luminance testing even easier.
