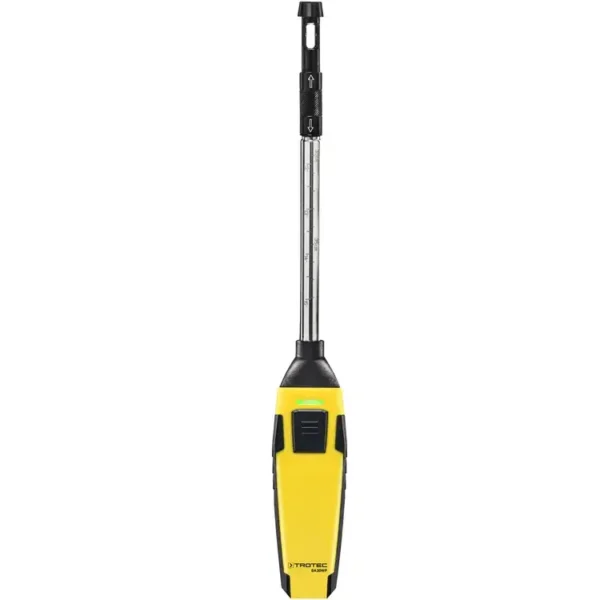

BA30WP – appSensoren – hot-wire anemometer with smartphone control
The AppSensor BA30WP is a hot-wire anemometer that, when used with the MultiMeasure mobile app, allows you to measure air velocity, airflow, air temperature, and relative humidity.
As a thermal anemometer, the BA30WP impresses with its high measurement sensitivity and is therefore particularly recommended for accurately measuring even low flow velocities.
The measuring device is ready to use right away, easily connects to the app, and then displays all measured values on the mobile device. Thanks to the smart combination of appSensor and the corresponding free app, Multimeasure Mobile, users benefit from numerous advantages in terms of flexibility, analysis functions, data management, and documentation.
Compare data entered directly on your mobile device or use the measured values in combination to perform differentiated analyses on-site. The infinitely adjustable probe length and numerous useful features make the BA30WP a versatile tool for a wide range of measurement tasks.
For example, you can take advantage of the long-term measurement logging feature, the ability to display measurement data in graphs or export it to further analysis software, as well as the option to generate reports. From managing the performance of home appliances to climate and ventilation systems and cooling fans in the IT sector — its flexibility and high measurement sensitivity make the BA30WP the ideal companion for measuring airflow, even in hard-to-reach places.
WHAT IS APPSENSOR?
Trotec appSensors are compact, high-precision measuring devices equipped with high-quality sensors, designed to save energy and space, and lacking evaluation electronics or a display module, since the devices are controlled and data is evaluated almost entirely via a connected smartphone. Combined with the free MultiMeasure mobile app, this measuring device concept offers many advantages.
All Trotec application sensors offer you the following benefits:
- Professional sensors for accurate measurement results
- Extremely simple app connection via Bluetooth, with confirmation of the optical connection via the device’s LED
- Wireless control of the measuring device and data display via the app
- Easy storage of measured values, even in remote locations, since the values do not need to be read directly from the measuring device
- Setting and Displaying Additional Minimum, Maximum, or Average Values
- Measured Value Monitoring, Logging, and Alarm Function
- Comes with a wrist strap for safe handling
- German industrial design optimized for practical use – registered design
WHY USE APP SENSORS? ARE THERE ALREADY MANY MEASUREMENT APPS AVAILABLE?
Of course, there are many apps that use electronic components built into smartphones—such as the built-in microphone, gyroscope, camera, or other components—for measurements or derived calculations. However, these components were not designed for precise measurement applications, but primarily for the optimal use of the mobile device.
On the one hand, the results obtained are therefore not comparable to those from sensors specifically designed for measurement applications. On the other hand, a standard smartphone does not contain electronic components suitable for every measurement task, such as measuring contact humidity or non-contact temperature.
Troteci’s app sensors, on the other hand, feature professional-grade sensors designed specifically to deliver accurate measurement results. That’s why you should use the smart combination of appSensor and MultiMeasure Mobile—a free app for iOS and Android—for professional measurements.
MULTIDIMENSIONAL MOBILE – ALL THE BENEFITS OF THE APP IN ONE PLACE
To use the Sensor feature of this app on your smartphone, you’ll need MultiMeasure Mobile—a free app for managing, evaluating, and displaying measurement data from sensors connected to all Trotec apps on your mobile device.
MultiMeasure Mobile offers you many benefits:
- Automatic Detection of App Sensors
- Parallel Operation of Multiple Application Sensors
- Fast and intuitive navigation
- Displaying the measured value numerically or as a chart/matrix
- Integrated reporting feature for on-site documentation
- Function of the Measurement Data and Documentation Manager
- Customer management is already integrated
- Various analysis options available directly within the app
- Storage space for measurements related to photos
- Matrix measurements, including those using a photoliner
- Full data synchronization with MultiMeasure Professional via the cloud
MultiMeasure Mobile turns your mobile device into a multifunctional measurement data manager.
MultiMeasure Mobile automatically detects all of the app’s sensors, which can be connected to the app via Bluetooth and read. Using it is just as simple and intuitive as installing it: simply download MultiMeasure Mobile for free onto your mobile device.
BA30WP – PRACTICAL BENEFITS:
- Quick and easy measurement of air velocity, air temperature, and air volume (CMM)
- Extendable, 375 mm long telescopic probe
- High-quality sensors and a wide range of measurement functions
- A smart combination of appSensor and the MultiMeasure mobile app
- automatic shut-off
| Airflow velocity [m/s] | ||
|---|---|---|
| Measurement range min [m/s] | 0 | |
| Measurement range, max [m/s] | 30 | |
| Resolution [m/s] | 0.01 | |
| Airflow velocity [mph] | ||
| Measurement range in [miles per hour] | 0 | |
| Maximum measurement range [miles per hour] | 67 | |
| Resolution [mph] | 0.1 | |
| Airflow velocity [km/h] | ||
| Measurement range in [km/h] | 0 | |
| Maximum measurement range [km/h] | 108 | |
| Resolution [km/h] | 0.1 | |
| airflow velocity [kn] | ||
| Measurement range min [kn] | 0 | |
| Maximum measurement range [kn] | 58 | |
| Resolution [kn] | 0.1 | |
| Airflow velocity [feet/min] | ||
| Measurement range min [feet/min] | 0 | |
| Maximum measurement range [feet/min] | 5,900 | |
| Resolution [ft/min] | 1 | |
| Air Temperature [°C] | ||
| Measurement range min [°C] | -20 | |
| Measuring range, max [°C] | 60 | |
| Accuracy – temperature | ±0.8 °C (at temperatures from -20 to 0 °C) ±0.5 °C (at temperatures from 0 to 60 °C) |
|
| Resolution [°C] | 0.1 | |
| Air Temperature [°F] | ||
| Measurement range min [°F] | -4 | |
| Maximum measurement range [°F] | 140 | |
| Resolution [ºF] | 0.1 | |
| relative humidity | ||
| Accuracy – Relative Humidity | ±3.5% RH (20% to 80% RH) ±5% RH (0% to 20% and 80% to 100% RH) |
|
| Resolution [%] | 0.1 | |
| Bluetooth | ||
| 4.0 (BLE) | ||
| Maximum transmission range | 10 m in open areas | |
| power source | ||
| 3 x 1.5 V AAA | ||
| Environmental Conditions | ||
| Operating – minimum temperature [°C] | -20 | |
| Operating – maximum temperature [°C] | 50 | |
| Operating conditions – min. Rel. Humidity [% RH] | 10 | |
| Operating conditions – max. relative humidity [% RH] | 90 | |
| Relative humidity during storage [%] | <80% relative humidity | |
| dimension | ||
| Length (without packaging) [mm] | 22 | |
| Width (without packaging) [mm] | 36 | |
| Height (without packaging) [mm] | 320 | |
| Length of the telescopic probe [mm] | 22 | |
| Width of the telescopic probe [mm] | 36 | |
| Telescopic probe height [mm] | 555 | |
| Diameter of the telescopic probe [mm] | 12 | |
| weight | ||
| (without packaging) [kg] | 0.122 | |
| STANDARD SCOPE OF DELIVERY | ||
|---|---|---|
| Standard Scope of Delivery | ||
| gauge | ||
| battery(ies) | ||
| wristband | ||
| user manual | ||
| MEASURABLE QUANTITIES AND FUNCTIONS | ||
|---|---|---|
| internal sensors | ||
| Temperature [°C] | ||
| temperature [°F] | ||
| relative humidity [%] | ||
| wind speed [m/s] | ||
| Features and Equipment | ||
| battery status indicator | ||
| Displaying the Minimum Value | ||
| Displaying the Maximum Value | ||
| Displaying the Average Value | ||
| Measured Value Hold Function | ||
| automatic shut-off | ||
| extendable telescopic probe | ||
| Display in units of m/s, km/h, m³/min, ft/min, mph, kn | ||
| alarm function | ||
| long-term measurement function | ||
| Measurement Data Chart/Table | ||
| data export | ||
| reporting function | ||
