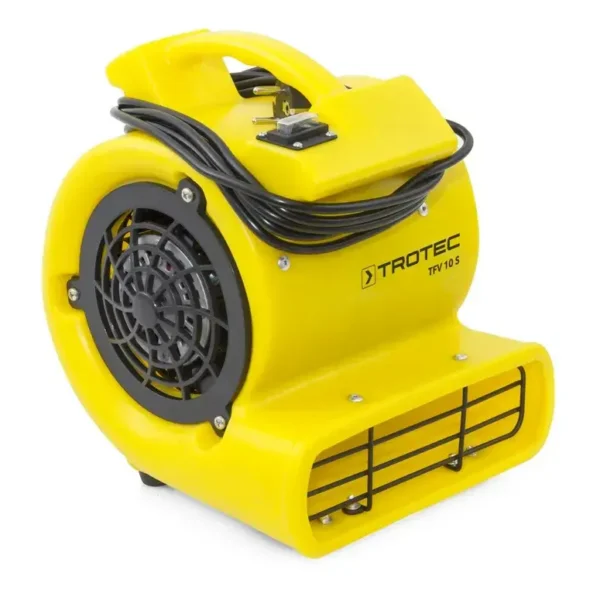

TFV 10S Turbo Fan – 355 m³/h
The TFV 10 S turbo fan generates a wide and even airflow, making it particularly suitable for drying floors or walls.
The TFV 10 S turbo fan can be used for a variety of purposes, such as drying walls and floors after water damage, accelerated drying of screed and construction materials, and faster drying of carpets after wet cleaning or shampooing. This fan is equipped with several features that make it convenient and effective to use in a variety of situations:
- Compact design: The TFV 10 S turbo fan has compact dimensions, making it ideal for use in smaller areas or hard-to-reach places.
- Multiple installation angles: The fan can be installed at three different angles (0°, 45°, and 90°), allowing for flexible use in various situations.
- Powerful Performance: The unit features dual-flow centrifugal fans that ensure a strong airflow and faster drying.
- High energy efficiency: The TFV 10 S turbo fan is energy-efficient, which means it can deliver powerful performance while consuming little energy.
- Sturdy Housing: The fan housing is made of durable polyethylene, ensuring the unit’s durability and long service life.
- Versatile Use: Its wide range of applications includes renovation, cleaning, and commercial businesses, making it a versatile tool for a variety of professional needs.
- Excellent value for the price: The description mentions that the device offers excellent value for the price, making it an attractive option for potential users.
All in all, the TFV 10 S turbo fan appears to be a versatile and efficient device that can be used in various situations where drying processes need to be accelerated. However, before purchasing or using it, I always recommend researching additional information, reading customer reviews, and, if possible, consulting with experts to ensure that it is suitable for your specific needs and circumstances.
| Airflow velocity | ||
|---|---|---|
| Level Max. [m³/h] | 355 | |
| Airflow | ||
| Speaking Out | ||
| Inhalation | – | |
| Fan | ||
| Stages | 1 | |
| Radial | ||
| axial | – | |
| Air discharge velocity | ||
| Air discharge velocity [m/s] | 8.6 | |
| Air discharge velocity [km/h] | 31 | |
| Air Pressure | ||
| Level Max. [Pa] | 90 | |
| Average temperature during transport | ||
| max. [°C] | 60 | |
| Electrical Values | ||
| Power Connection | 230 V, 50 Hz | |
| Rated Current [A] | 0.5 | |
| Input power [kW] | 0.075 | |
| Recommended Initial Protection [A] | 10 | |
| Electrical Connection | ||
| Connector | CEE 7/7 | |
| Cable length [m] | 3 | |
| Safety Feature | ||
| IP-type protection | 22 | |
| Sound Values | ||
| Level 1 – Distance 3 m [dB(A)] | 61.5 | |
| Hours Worked Counter | ||
| Hours Worked Counter | – | |
| Dual meter for operating hours and energy consumption (MID-compliant*) | – | |
| Dimensions | ||
| Length (without packaging) [mm] | 275 | |
| Width (excluding packaging) [mm] | 300 | |
| Height (excluding packaging) [mm] | 330 | |
| Weight | ||
| (excluding packaging) [kg] | 3.5 | |
| EQUIPMENT, FEATURES, AND FUNCTIONS | ||
|---|---|---|
| Mobility | ||
| Carrying/Transport Handles | ||
| portable | ||
