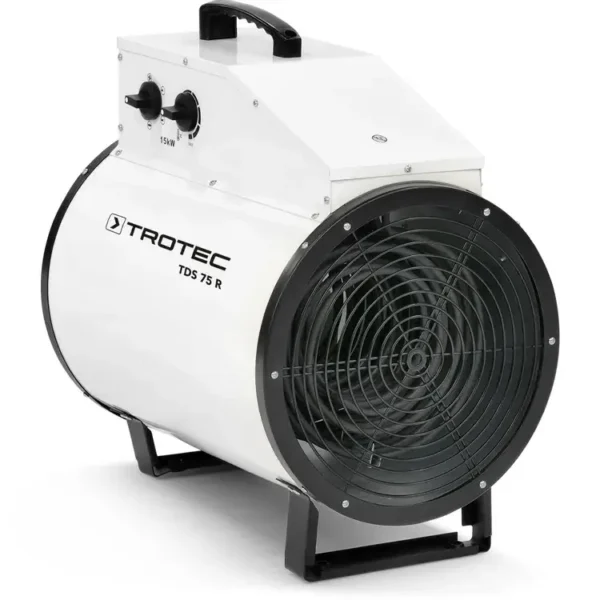

TDS 75 R 15 kW Electric Heater

TDS 75 R Electric Heater with Hot Air Blower

Thanks to the round hot-air outlet, the on-site direct heating system—which uses the powerful TDS 75 R electric heater—operates smoothly in every respect.

The combination of robust, simple heating technology and corrosion-resistant stainless steel heating elements ensures reliable and trouble-free continuous heating applications. With an easy-to-use stepless thermostat and a three-position switchable heat output controller, it offers you a budget-optimized, no-frills heating solution for a wide variety of applications – Fully galvanized, painted steel sheet housing with an ergonomic handle.

Since the TDS 75 R electric heater, unlike direct-fired gas or oil heaters, does not consume oxygen to generate hot air and does not produce combustion gases, it can be used flexibly in any location for large-scale heating applications—even in enclosed or poorly ventilated indoor spaces.

Thanks to its heating capacity—which can be adjusted to three heating levels up to 15 kW— and its high circulating air output, the TDS 75 R electric heater is ideal for heating larger workshops, warehouses, greenhouses, construction sites, or production environments in commercial and industrial facilities.

Here are a few practical benefits, in brief:

• Multi-level temperature control with 3 heat settings
• Integrated thermostat for a continuous flow of hot air
• Overheating Protection
• Fan motor with thermal protection
• Condensation-free heat—no oxygen consumption—making it ideal for heating the cabin
• Easy to transport and simple to use
• The fan can also be used without the heating function

Possible areas of application:

• Auto Repair Shops
• at construction sites
• Assembly Accessories
• gastronomy
• Warehouses and Work Areas
• Greenhouses
• and many others…

Some technical specifications for the TDS 75 R electric heater:

• Maximum heating capacity: 15 kW / 12,900 kcal
• Air volume: 1,100 m³/h
• Power consumption: 21.7 A.
• Line voltage: 400 V / 50 Hz
• Power connection: CEE 32 A, 5-pin
• Connection cable: accessories
• Thermostat: built-in
• Portability: portable
• Noise level: 57 dB (A)
• Overheating protection: yes
• Protection Class: IP44
• Dimensions L x W x H: 395 x 380 x 445 mm
• Weight: 19 kg
