Remko PWW EC Series Heat Pump 11.9–59.7 kW

Remko PWW EC Series Heat Pump 11.9–59.7 kW

Categories:
Heating Equipment for Commercial and Industrial UseHot-Water Radiator

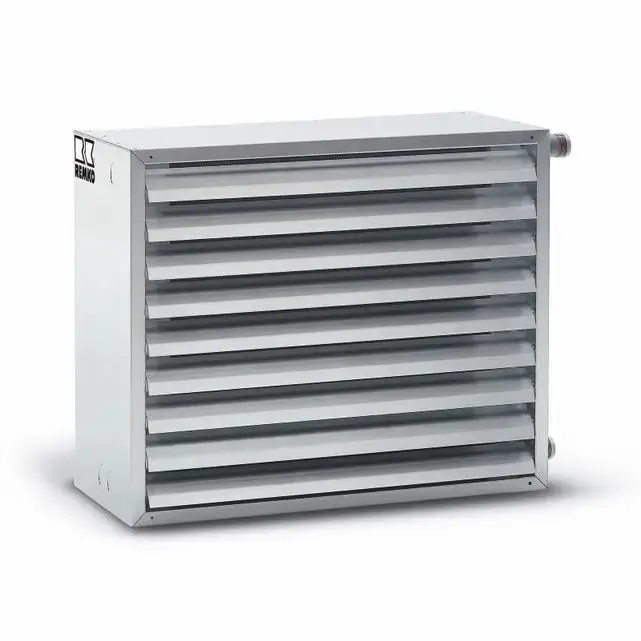

Remko PWW EC Series Heat Pump 11.9–59.7 kW

  • Ziehl-Abegg sickle-shaped axial fan included as standard equipment
  • 2- and 5-point speed range adjustment, optional
  • Minimal space requirements
  • Low noise level due to the use of optimally coordinated components
  • Easy to maintain and keep in good condition
  • Painted design, optional
  • In stock
Free shipping For orders over €250
14-Day Return Policy Worry-Free Right to Purchase
Safe Payment

Remko PWW EC Series Heat Pump 11.9–59.7 kW

Best suited for warehouses and supermarkets

The well-thought-out design is suitable for installation on both walls and ceilings. With a heating capacity ranging from 11.9 to 59.7 kW, it is possible to optimally expand existing or planned hot-water heating systems at any time.

The load-bearing, galvanized housings made of heavy-gauge steel sheet have already been delivered. The air outlet slats can be adjusted individually and continuously.

REMKO PWW pumps are suitable for pumping warm and hot water at temperatures up to 80 °C for the PWW 30-50 series and 110 °C for the PWW 80-100 series, with a maximum allowable operating pressure of 16 bar.

The PWW EC series comes standard with a highly efficient, single-phase Ziehl-Abegg EC fan.

  • Ziehl-Abegg sickle-shaped axial fan included as standard equipment
  • 2- and 5-point speed range adjustment, optional
  • Minimal space requirements
  • Low noise level due to the use of optimally coordinated components
  • Easy to maintain and keep in good condition
  • Painted design, optional
Technical SpecificationsPWW EC SERIES
Variant PWW 30 EC PWW 50 EC PWW 80 EC PWW 100 EC
Heating capacity at 70/50 and an air inlet temperature of 15 °C 15.1 / – kW 24.6 / – kW 44.2 / – kW 59.7 / – kW
Heating capacity at a temperature of 55/45 and an air inlet temperature of 15 °C 11.9 / – kW 19.4 / – kW 36.4 / – kW 46.6 / – kW
Maximum airflow rate 1,480 m³/h 2,480 m³/h 4,360 m³/h 5,750 m³/h
Air Blower 12 meters 16 meters 21 meters 24 meters
Working pressure 16 bar 16 bar 16 bar 16 bar
Heating system temperature Water up to 80°C Water up to 80°C Water up to 110°C Water up to 110°C
Connection 1 1/4 inches 1 1/4 inches 1 1/4 inches 1 1/2 inches
Power Source 230/1~/50 230/1~/50 230/1~/50 230/1~/50
Rated current consumption, max. 1.25 A 1.43 A 1.43 A 2.34 A
Rated power, max. 0.12 kW 0.19 kW 0.36 kW 0.41 kW
Dimensions H/W/D 440/560/403 mm 515/640/406 mm 630/800/412 mm 740/880/452 mm
Weight 28 kg 39 kg 56 kg 72 kg
Accessories:
https://www.remko.de/en/heating/stationary-hot-air-heating-systems/pww-ec/
  • 1611401Precise room temperature – For controlling one or more indoor units (up to 50). Programmable electronic controller with summer/winter modes
  • 1684402Room Temperature Control – For controlling one or more indoor units (up to 50). Programmable electronic controller with summer/winter modes…
  • 1686201Control Unit – 2-speed, 400 V, including freeze protection and air mixture valve control (open/closed)
  • 385219KO in parentheses – For wall and ceiling installation
  • 385372Wall Mount WFM – For use with a filter and air mixing box combination
  • 385377ALH Fresh Air Inlet
  • 385382Rain Gutter RK – With channel section, 1000 mm
  • 385387Duct Adapter KA 5 – 500 mm
  • 385392Duct Adapter KA 10 – 1000 mm
  • 385397Flexible Hose SG
  • 385402Filter Box FK
  • 385407EF Replacement Filter Mat
  • 385412MLK Mixed-Air Box Without a drive
  • 385417Compatibility of the air recirculation inlet.
  • 385422AG Fresh Air Intake Grille
  • 385195Air Release Valve B – Vertical fins
  • 385215Ceiling Air Outlet A
  • 385199HG Air Vent Cover, 4-Sided
  • 385290Valve Actuator KSH – Off/Pause/On
  • 2902463-position switch SK – Surface-mount
  • 385289KSP Valve Actuator – Infinitely adjustable
  • 385288Remote-controlled potentiometer FP – Surface-mount
  • 385305FS Freeze Protection Thermostat
  • 1085330Round Discharge System RF – For foil tube connector, d: 600 mm
  • 385352Injection Port IJ – Wall-mounted
  • 385362Injection port IJ – Ceiling-mounted
