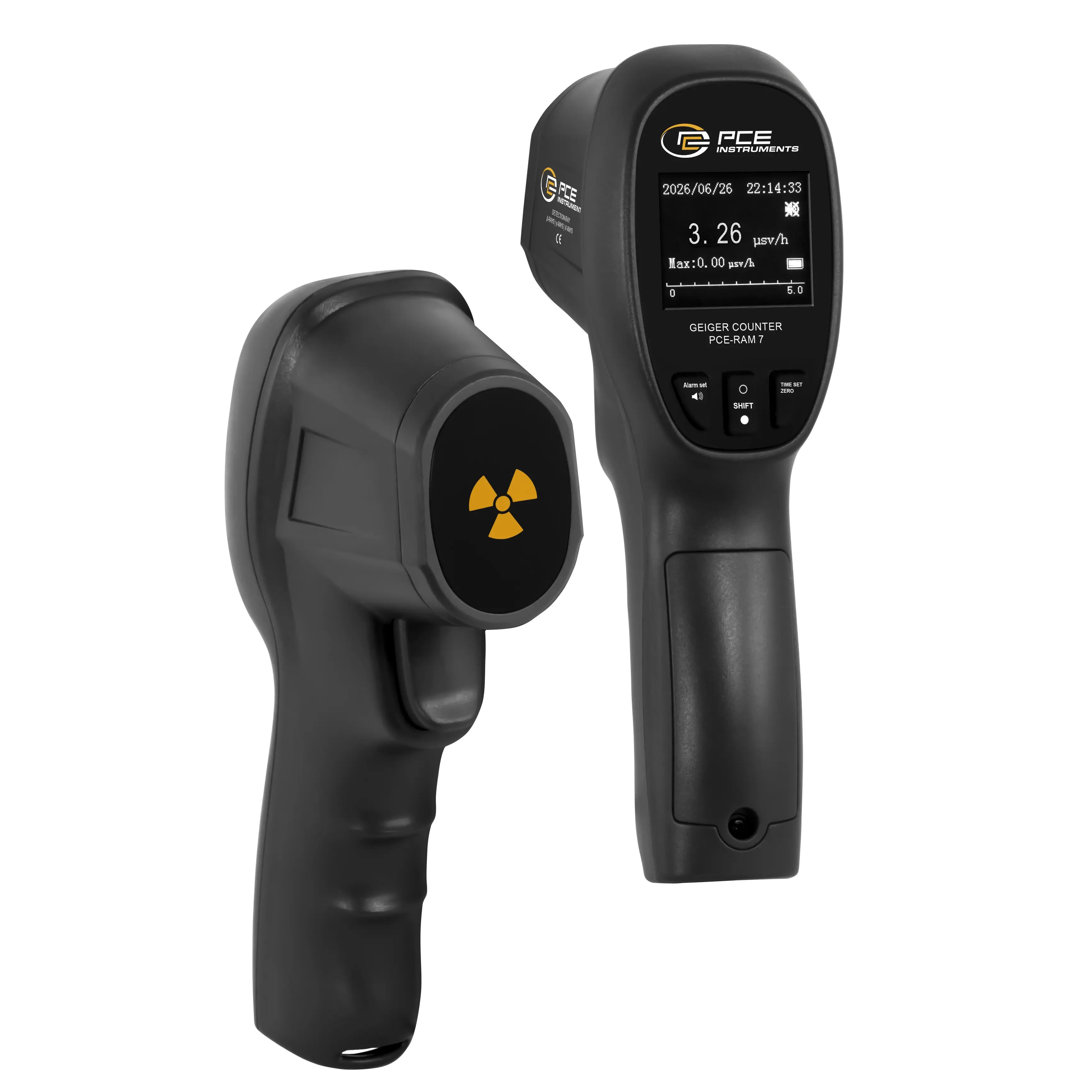

PCE-RAM 7 Radiation Measurement Device
This radiation measurement device, with a measurement range of 0 to 9999 μSv/h and a resolution of 0.01 μSv/h, is a powerful and accurate instrument for detecting beta (β), gamma (γ), and X-rays. Equipped with an energy-compensated Geiger-Müller tube, it offers high sensitivity of 80 cpm/μSv (for Co-60) and a flexible display in μSv/h, cpm, and cps.

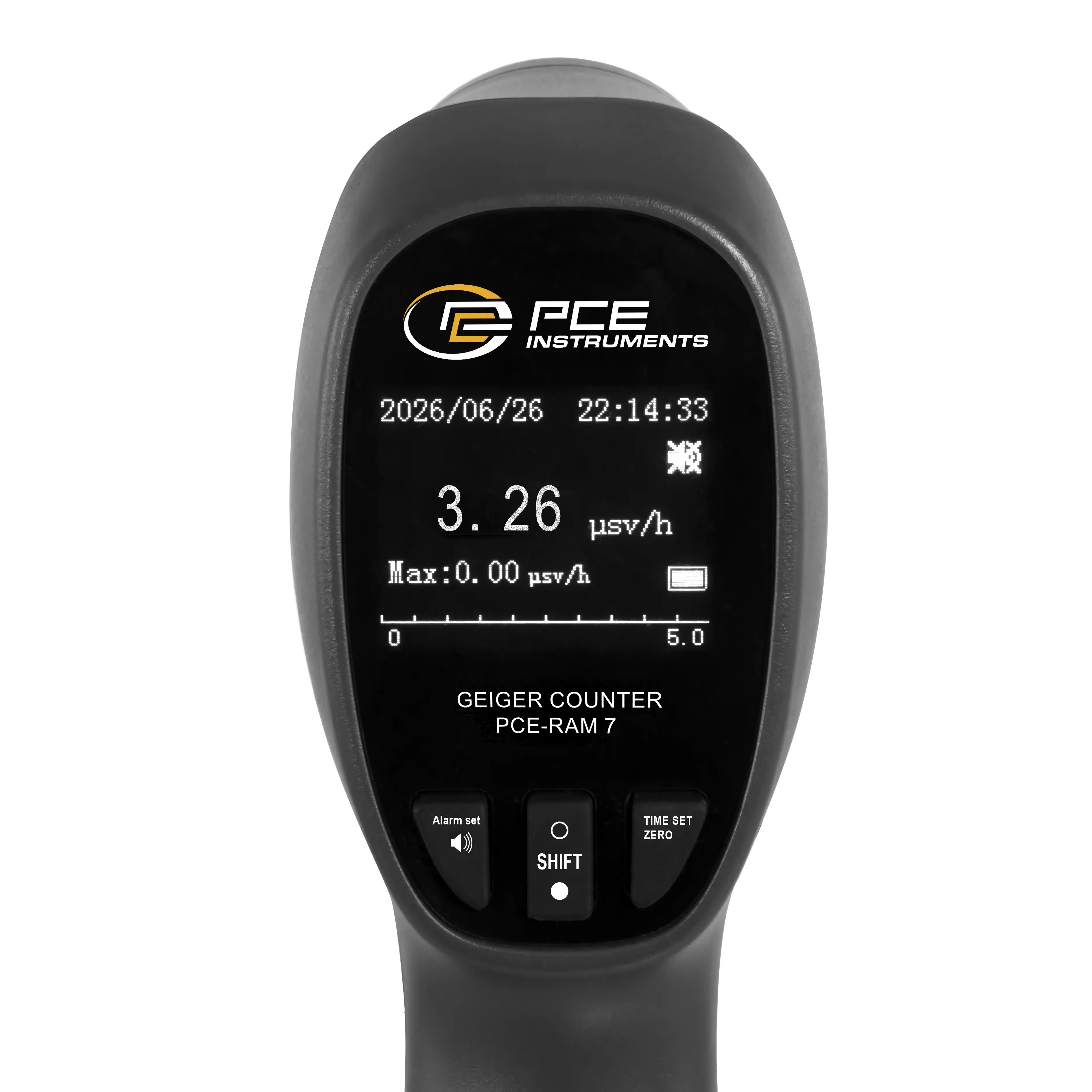

Thanks to its compact and portable design, this radiation meter is easy to use and is ideal for measuring small changes in radiation levels. Our radiation meter is equipped with a display that shows the date and time and allows you to switch the display from white to black to optimize readability in different lighting conditions. An adjustable audible alarm provides additional safety by alerting you to increased radiation levels. Battery operation allows for flexible use in various locations. The device takes only about 1–2 hours to charge.
Radiation meters are used, for example, by environmental protection agencies and security forces, as well as in the medical field; private individuals also use them to monitor their living environments.
features
specification
| radiation | |
| measurement range | 0 … 9999 µSv/h |
| resolution | 0.01 µSv/h |
| accuracy | ≤3% of the average value |
| radiation | |
| Measurement range | 0 … 9999 cps |
| resolution | 1 cps |
| accuracy | ≤3% of the average value |
| radiation | |
| Measurement range | 0 … 9999 cpm |
| resolution | 1 cpm |
| accuracy | ≤3% of the average value |
| General Technical Specifications | |
| Measurement Functions | Gamma radiation, X-rays, beta radiation |
| in the energy sector | 20 … 3,000 keV |
| Display Type | TFT color screen |
| screen size | 1.8 inches |

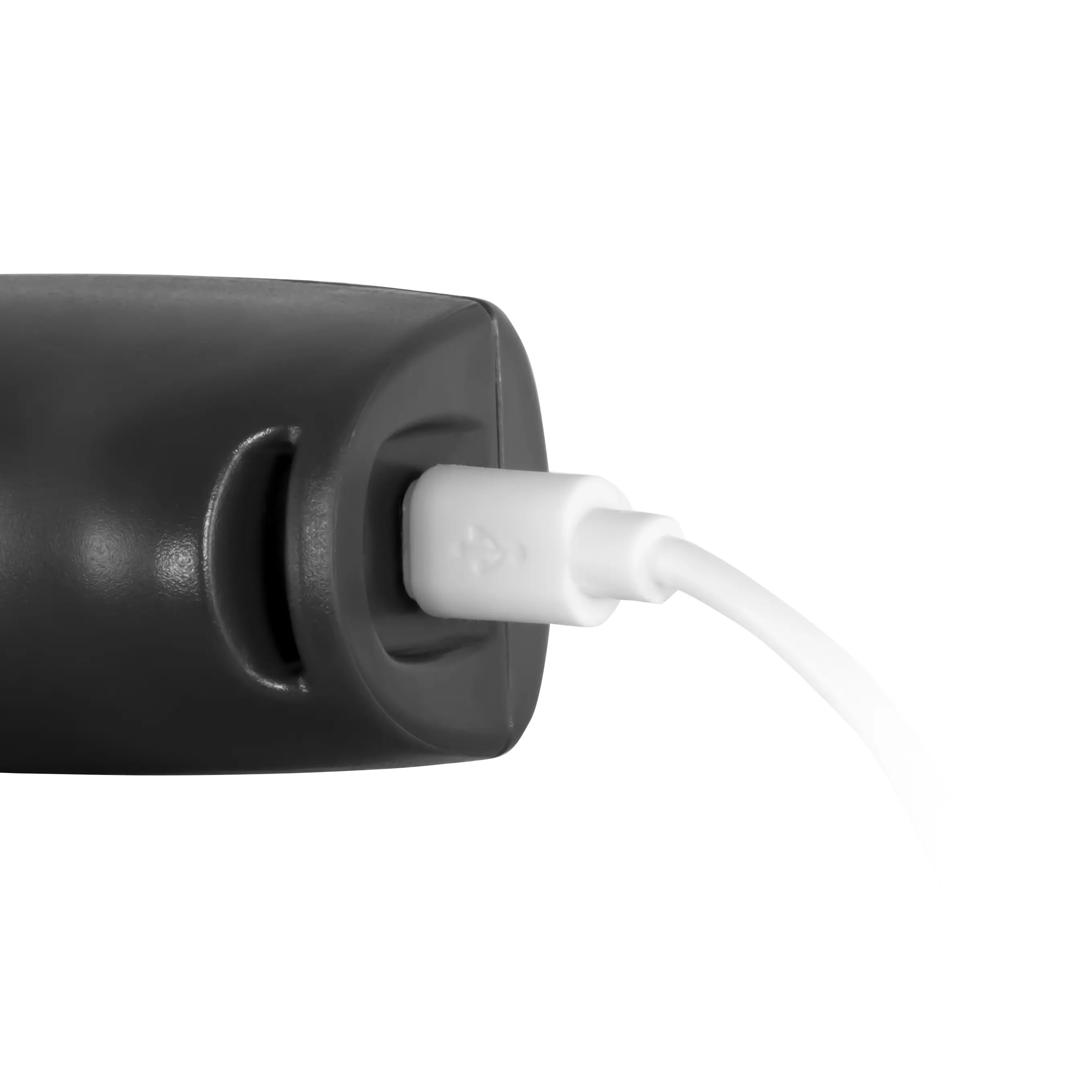

| interface | Micro-USB |
| sensor | Geiger-Müller counter tube |
| alarm | acoustic |
| sensitivity | 80 cpm/µsV (Co-60) |
| Menu Language | English (U.S.) |
| Protection Class (device) | IP54 |
| power source | 5 V |
| Weight | 170 g |
| Operating conditions | 0 … 50 °C, 10 … 90 % relative humidity |
| Storage conditions | -10 … 60 °C, 10 … 90% relative humidity |
| capacity | 1100 mAh |
| Dimensions (L x W x H) | 180 x 55 x 80 mm |
