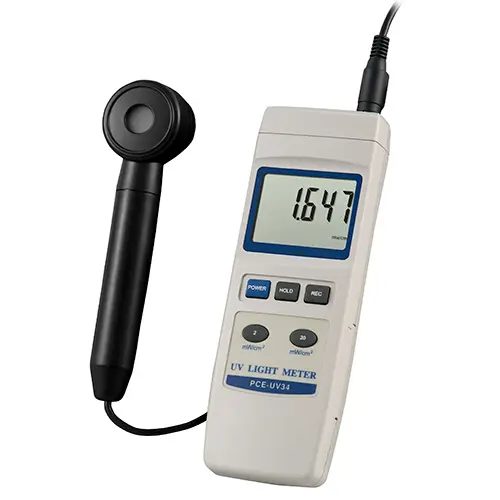

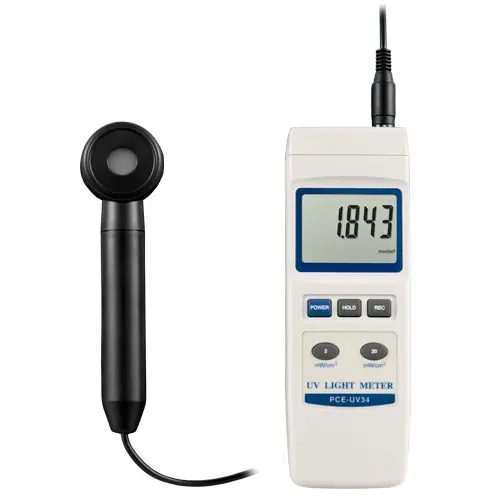

UV Meter / UV Tester PCE-UV34
The UV radiation meter measures UV radiation using an external sensor
A UV Meter / UV Tester is a device used to measure UVA and UVB radiation. This precise device operates at wavelengths between 290 and 390 nm. With this UV meter / UV tester, you can measure UVA radiation from the sun or in tanning beds to protect yourself from intense exposure and possible sunburn. In the industrial sector, we often encounter elevated levels of UVA radiation, such as the arc light used in welding. Thanks to its external sensor, the UV meter/UV tester is highly versatile. Other applications include UVA sterilization, photochemical compensation, and use in virology laboratories or DNA research.
Highlights
– Two measurement ranges:
– 0.000 to 1.999 mW/cm² or 0.000 to 19.9 W/m²
– 1.999 to 19.99 mW/cm² or 19.99 to 199.9 W/m²

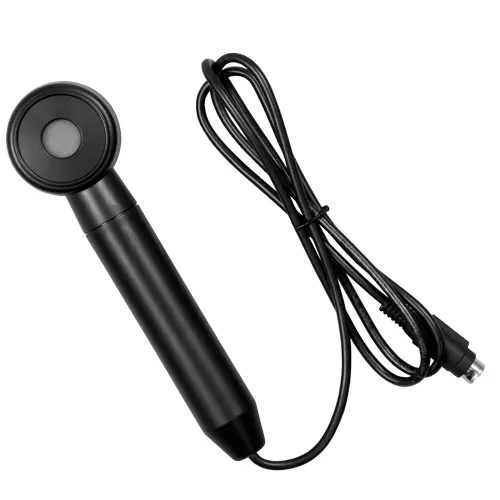

– External sensor with UV-correcting filter
– Automatic shut-off after 10 minutes to save energy.
Data Storage Features
– compact design
https://www.youtube.com/watch?v=gviSwlJQ420&t=40s
Specifications
| Ranges | 0.000–1.999 mW/cm² or 0.000–19.9 W/m² 1.999–19.99 mW/cm² or 19.99–199.9 W/m² |
| Resolution | 0.001 mW/cm² |
| Accuracy | ±4% + 2 positions |
| Response time | 0.4 s |
| Wavelength | Broadband 290 to 390 nm |
| Reset to Zero | By pressing a key |
| Light Sensor | Photodiode with a UV-correcting filter |
| Memory | Minimum, maximum, and hold values |
| Automatic Shut-Off | Automatic after 10 minutes of inactivity |
| Screen | 22 mm / 0.9-inch LCD |
| Out-of-range indicator | “—-“ |
| Operating Conditions | 0 to 50°C / 32 … 122°F, max. 80% relative humidity |
| Power | 9V battery |
| Dimensions | Device: 68 x 200 x 30 mm / 2.7 x 7.9 x 1.2 inches Light sensor: 68 x 60 x 27 mm / 2.7 x 2.4 x 1.1 inches |
| Weight | 220 g / < 1 pound (with battery) |

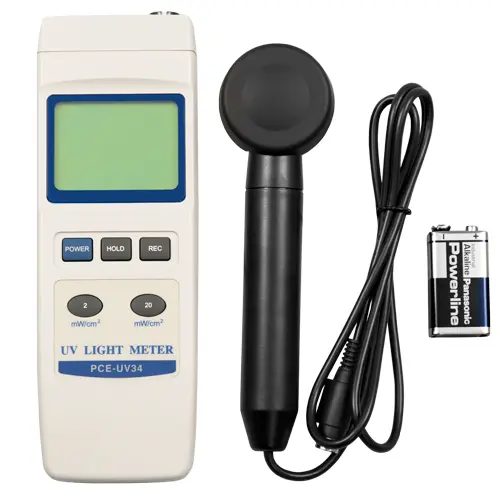

Scope of Delivery
1 x UV meter / UV tester PCE-UV34
1 x combined UV sensor
1 x 9V battery
1 x user manual
1 x combined UV sensor
1 x 9V battery
1 x user manual
