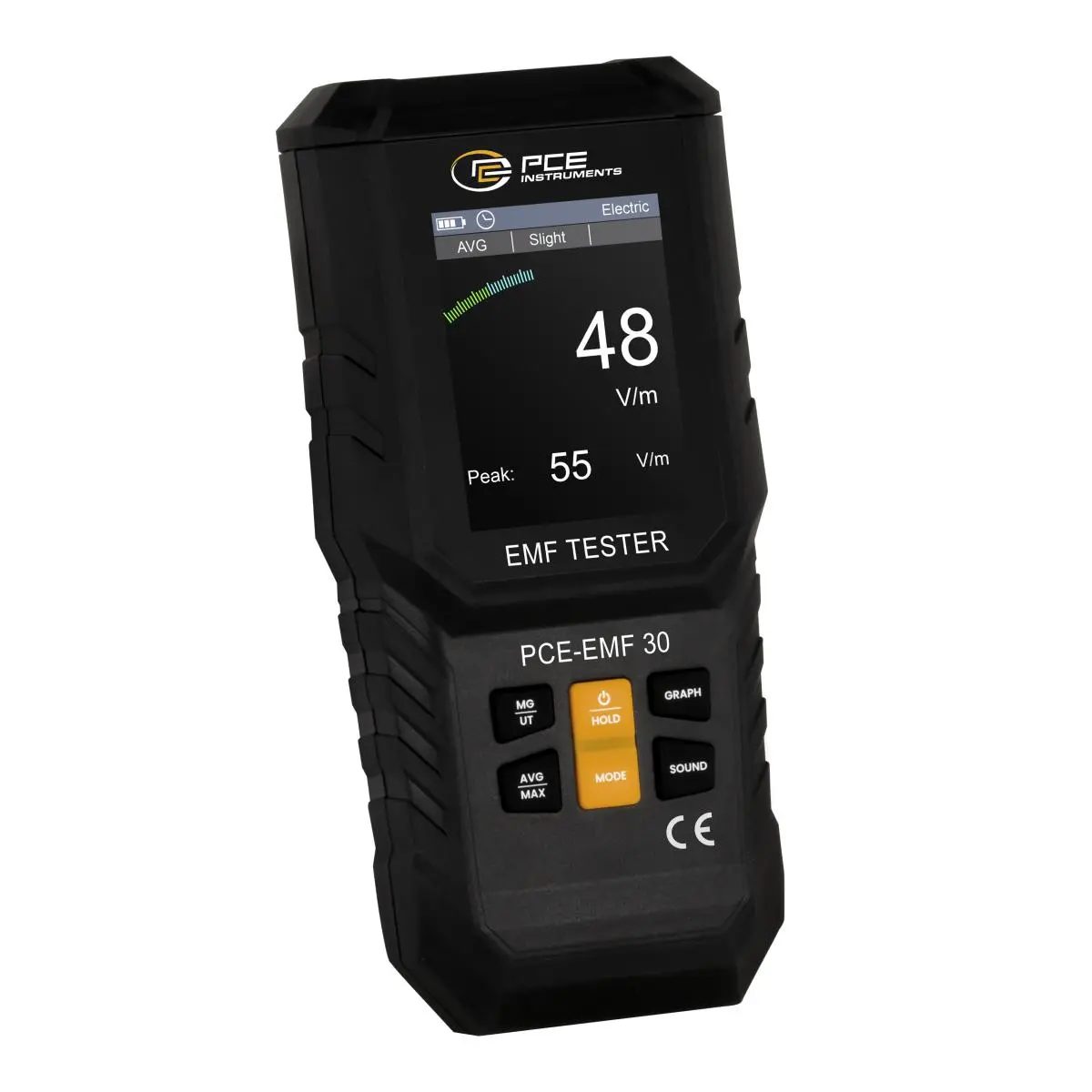

EMF measuring device with LCD display
Measuring range up to 1800 V/m / 3-axis measurement / for mobile and fast use
With this EMF measuring device it is possible to measure magnetic fields up to 999.9 mG directly. At the same time, the EMF measuring device displays the strength of the magnetic field numerically using an X, Y and Z axis. The EMF measuring device is a multifunctional 3-in-1 meter for electric fields (EF), magnetic fields (MF) and radio frequency fields (RF). The default mode is EF mode when the EMF measuring device is turned on. The measured value can be affected by the influence of the electric field of the environment.
The EMF measuring device is equipped with a built-in electromagnetic radiation sensor that displays the radiation value on the LCD screen. You can take appropriate precaution or take effective measures against the electromagnetic radiation according to the test result.
Highlights
- LCD screen
- Average/Peak mode
- Auto-Off
- EF/MF/RF test display
- Graphic display
Technical specifications
Radiation Measuring range 0,01 … 1800 mW/m² Resolution 0,01 mW/m² Accuracy±8 % of Rd Radiation Measuring range 1 … 1999 V/m Resolution 1 V/m Radiation Measuring range 0,1 … 999,9 mG Resolution 0,1 mG Radiation Measuring range 0,01 … 99,99 µT Resolution 0,01 µT General technical data Automatic power-off 15 min RF bandwidth from 1 MHz Bandwidth RF to 10 GHz Bandwidth MF from 5 Hz Bandwidth MF to 3,5 GHz Bandwidth EF from 5 Hz Bandwidth EF to 3,5 GHz Menu language English Protection class (device)IP20 Power supply 3.7 V Capacity 1000 mAh Operating conditions 0 … 50 °C , 0 … 80 % RH Storage conditions 0 … 50 °C , 0 … 80 % RH Dimensions ( L x W x H )147 x 70 x 31 mm Weight 150 g
Delivery scope
1 x EMF measuring device / EMF test device PCE-EMF 30 1 x instruction manual
