Torque Meter / data memory / adaptor for 1/2", 1/4" and 3/8" mount / real-time curve / data transfer / peak hold

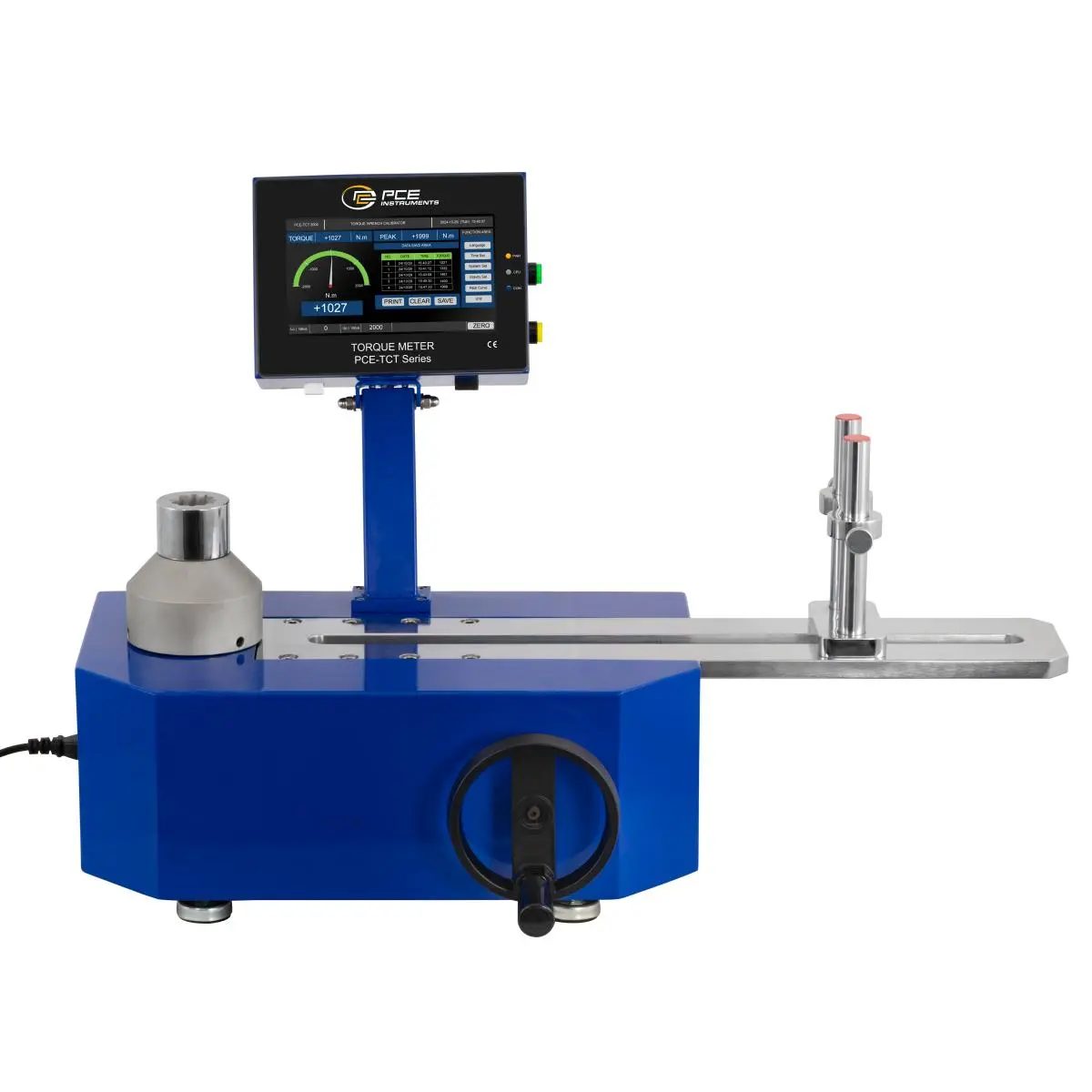

The Torque Meter is a special device for checking torque wrenches. A direction of rotation indicator also provides immediate feedback on the current direction of movement. The Torque Meter supports several units of measurement – including newton metres (Nm), kilogramme-force centimetres (kgf cm) and pound-force inches (lbf in) – and can therefore be flexibly adapted to a wide range of requirements.

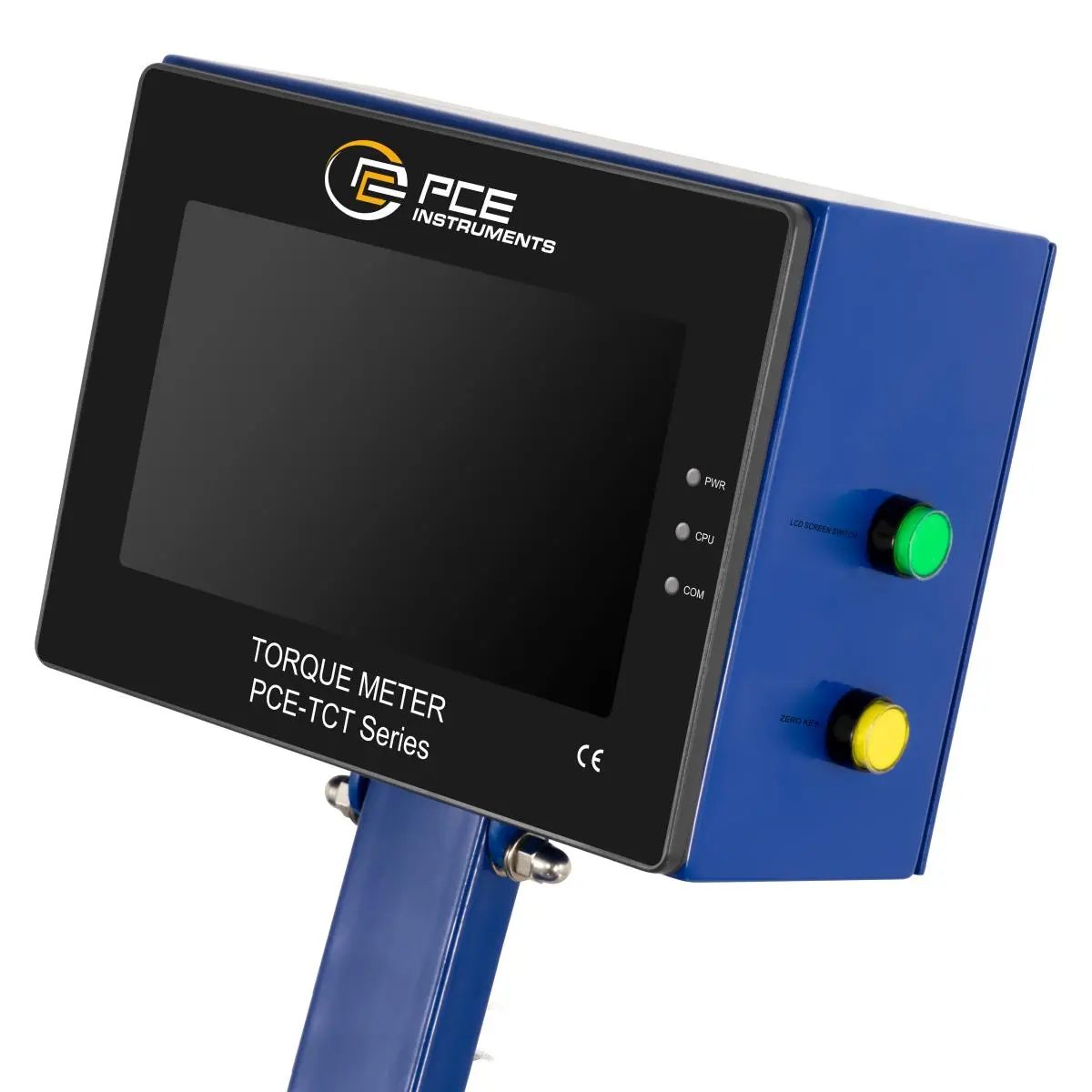

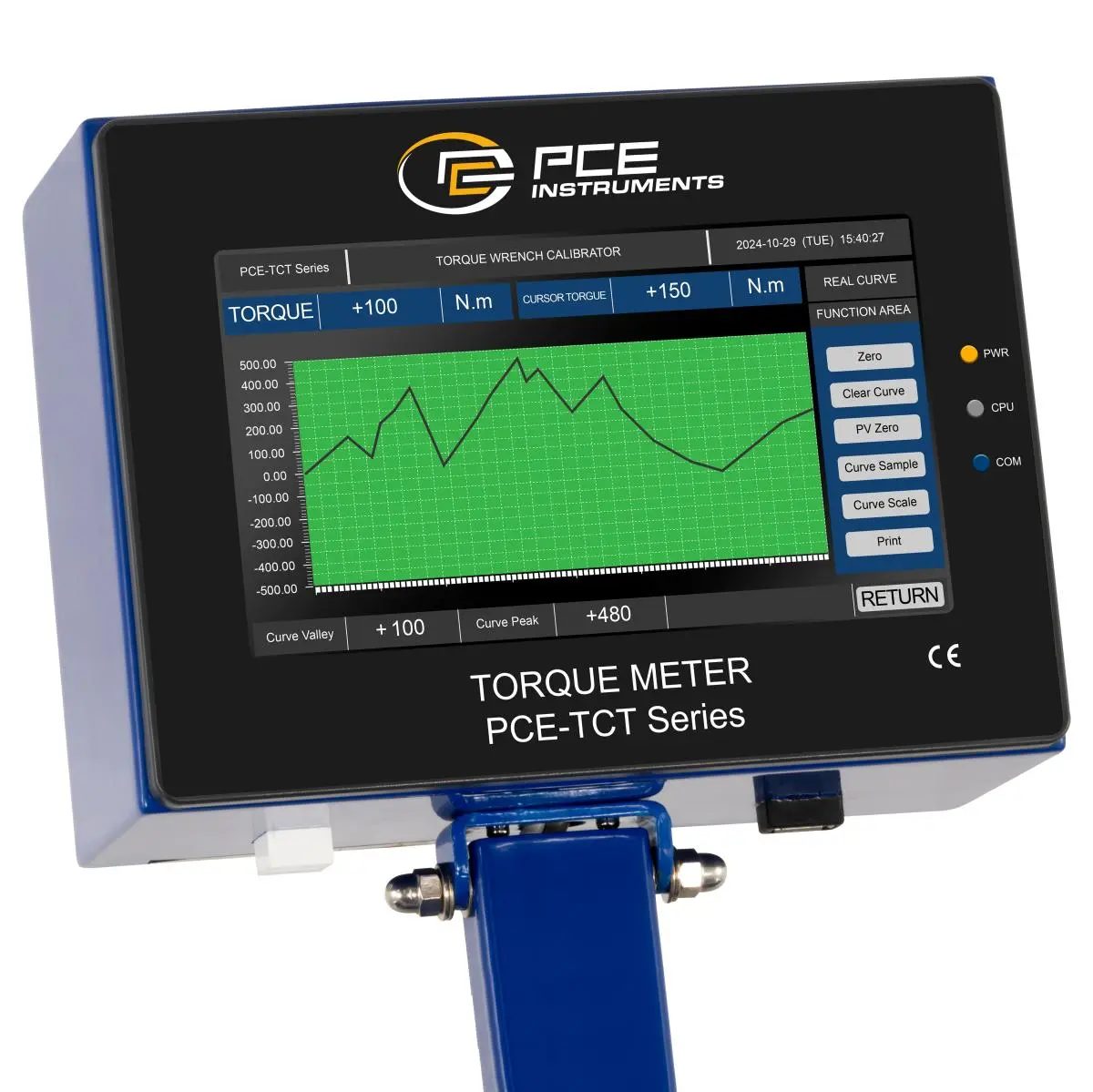

Equipped with a real-time curve function, the Torque Meter displays torque values directly on the 7-inch touchscreen, enabling visual monitoring of the measurement data in real time. The measurement data can be transferred to a USB pen drive in the form of a csv file via the USB interface. Adjustable limit values ensure increased control and safety during measurement. The practical peak hold function of the Torque Meter enables peak values to be recorded for precise analysis of maximum loads. The Torque Meter can be controlled by a computer via the Ethernet interface.
This Torque Meter is a versatile and efficient tool that easily fulfils the requirements for quality assurance and measurement accuracy in modern working environments. The Torque Meter is widely used in electrical manufacturing, mechanical engineering, the automotive industry and in professional research.
Highlights
- real-time curve
- display of the direction of rotation
- units Nm, kgf cm, lbf in
- USB interface
- adjustable limit values
- peak hold
- 7-inch touchscreen
Technical specifications
Torque Measuring range 0,1 … 2000 Nm Resolution 0,1 Nm Accuracy±1 % of Rd Torque Measuring range 1 … 20420 kgfcm Resolution 0,1 kgfcm Accuracy±1 % of Rd Torque Measuring range 1 … 17724 lbf-in Resolution 0,1 lbf-in Accuracy±1 % of Rd General technical data Storage medium Internal memory Storage capacity 999 Data records Interface USB, RJ45 Alarm optical, Acoustic Alarm modes Lower limit, Upper limit Dimensions Length range: 250 … 1800 mm Angle of rotation: 0 … 360 ° Max. lifting height: 150 mm Menu language English (GB), English, Chinese Protection class (device)IP20 Power supply 220 V AC | 50 Hz Connector type Schuko plug Operating conditions-10 … 40 °C , 0 … 90 % RH Storage conditions-10 … 40 °C , 0 … 90 % RH Dimensions ( L x W x H )1250 x 500 x 808 mm Weight 330000 g
Delivery scope

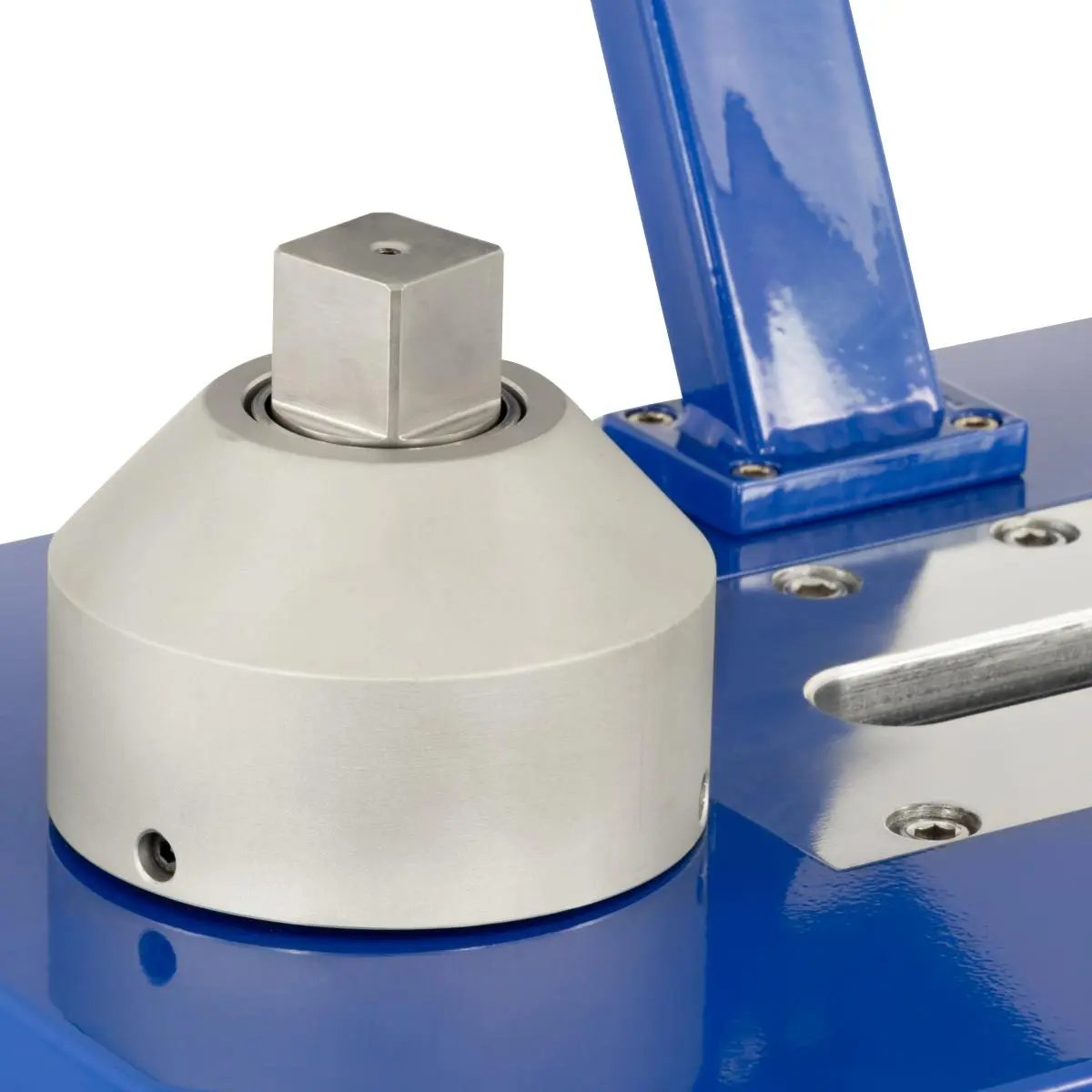

1 x Torque Meter / Torque Tester PCE-TCT 2000 1 x multi-tooth adaptor 1 x 1/4" adaptor 1 x 3/8" adaptor 1 x 1/2" adaptor 1 x open-end wrench 17/19 1 x Allen key 1 x IEC cable
