PCE-T236 Handheld Tachometer Digital rotation meter for both contact and non-contact measurement

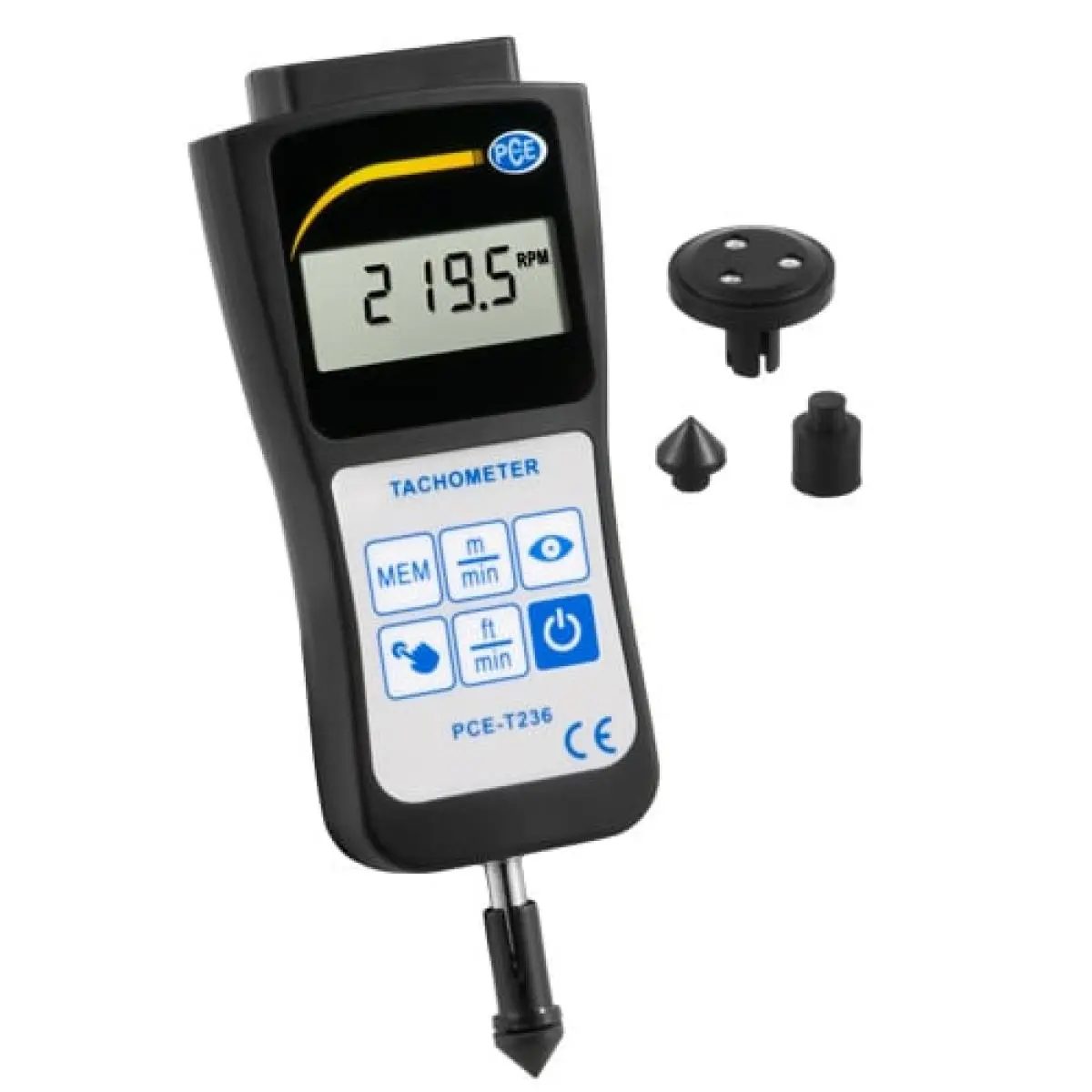

PCE-T236 is a digital handheld tachometer or rotation meter for both contact and non-contact measurement. This tachometer measures rotation speed as well as linear or surface speed, displaying units in rpm, m/min or ft/min.

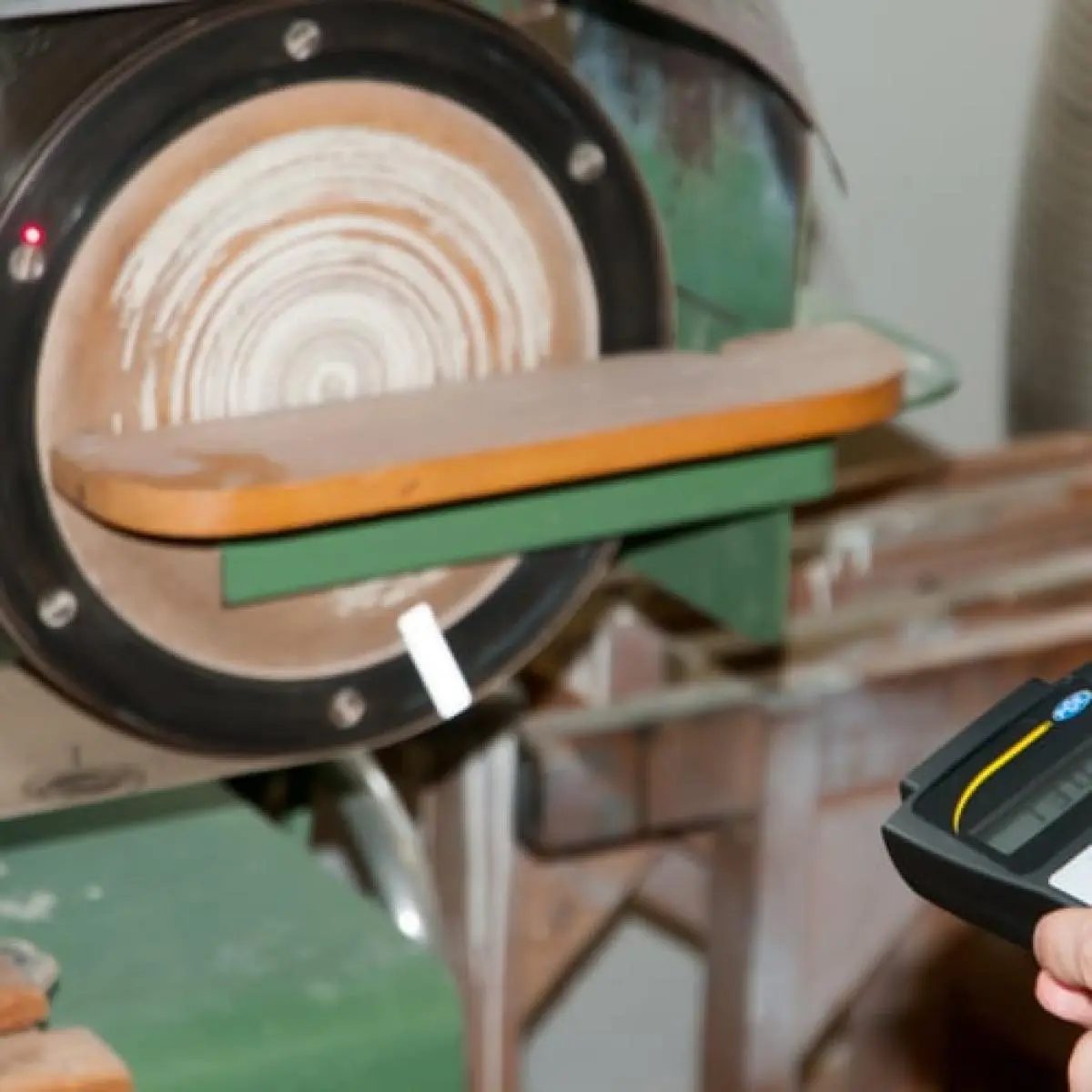

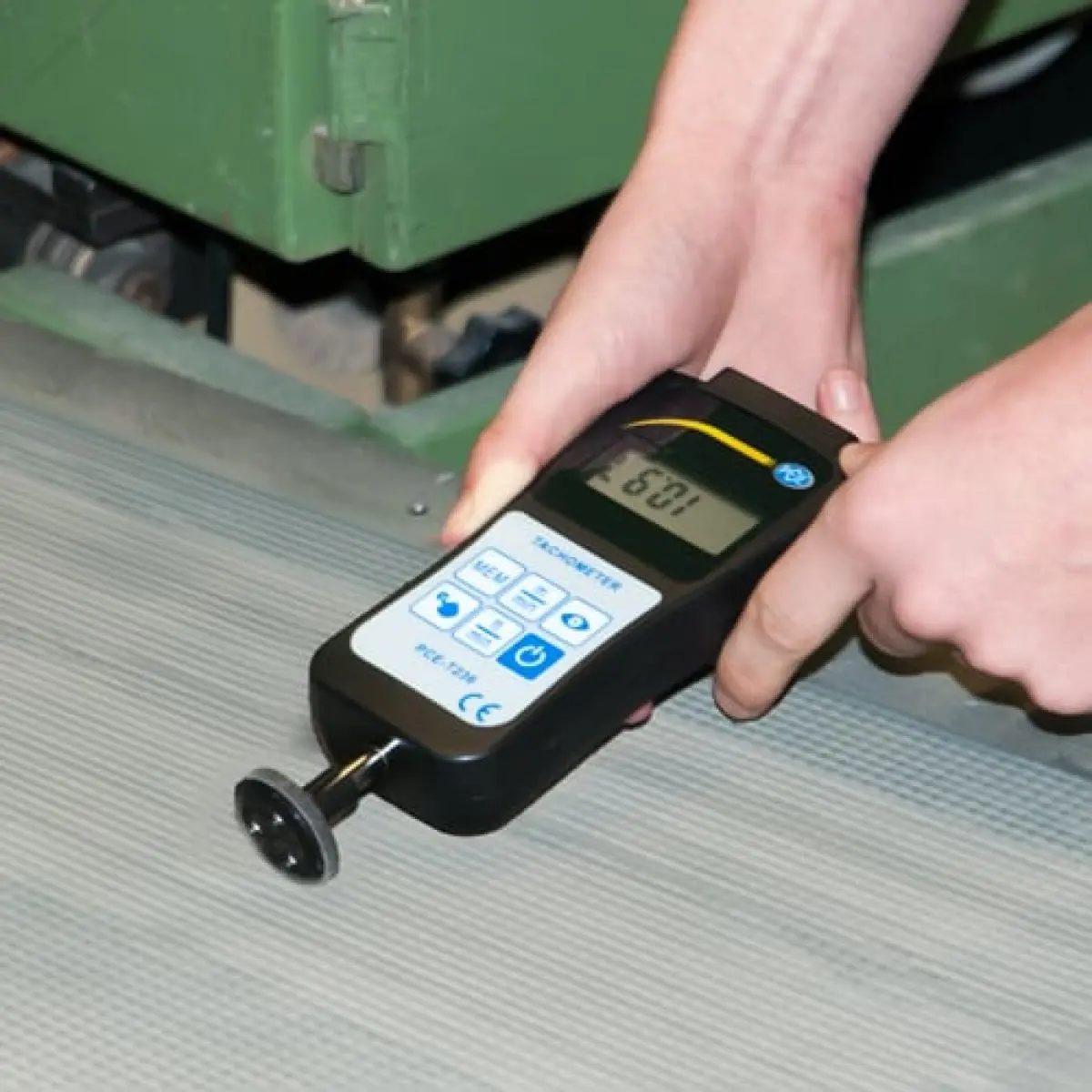

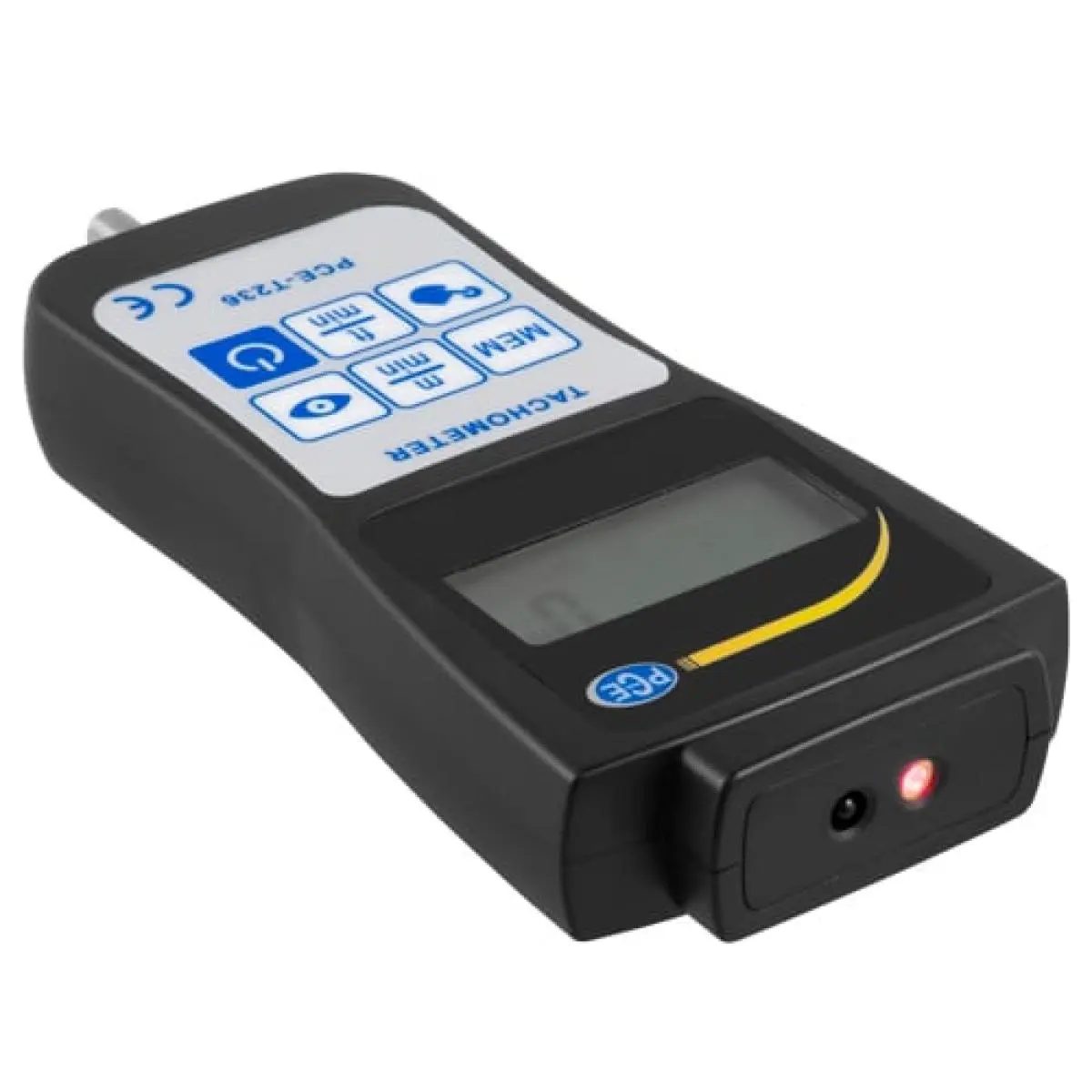

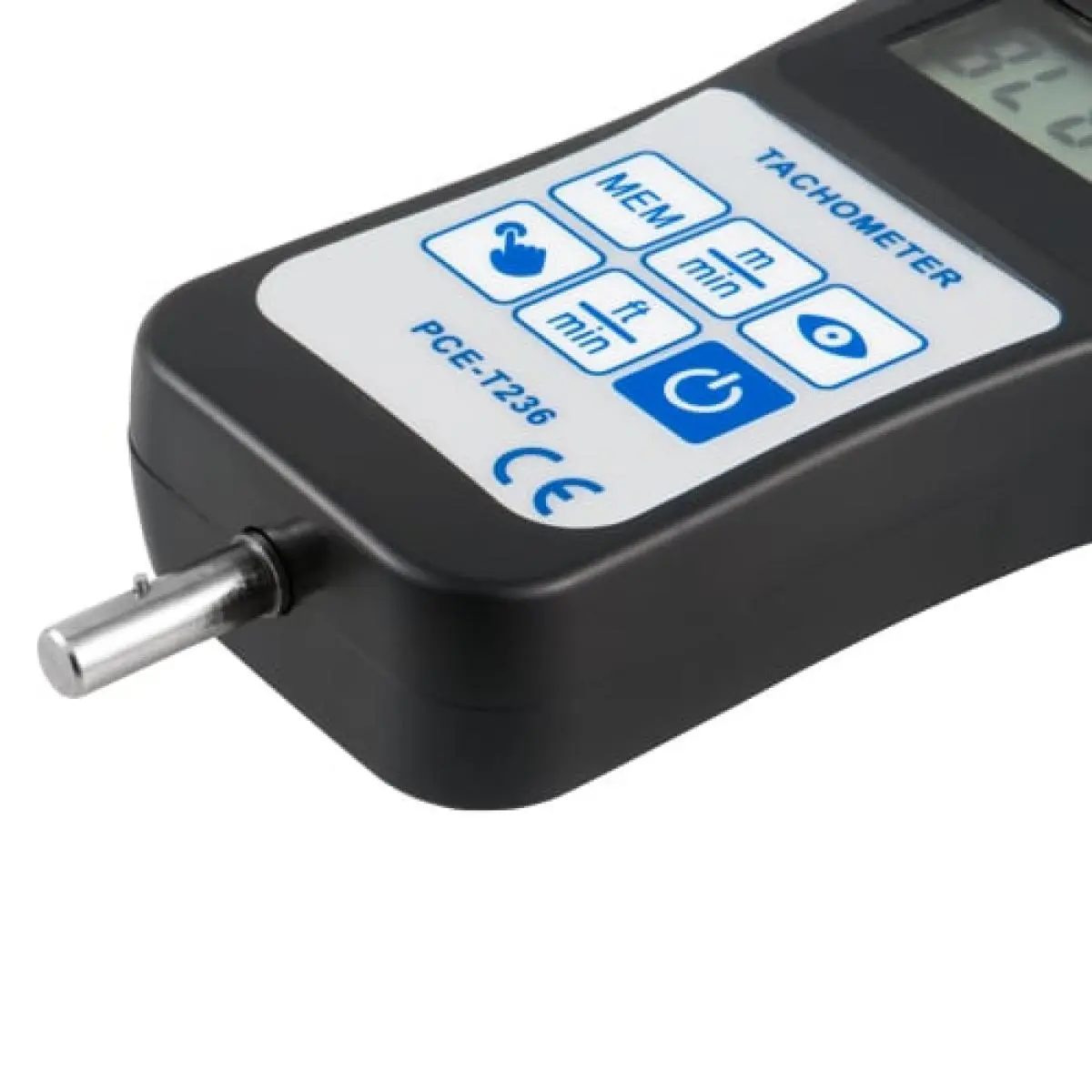

The tachometer features an integrated laser and includes a mechanical attachment with contact probes, making it the ideal measuring instrument for machines, motors, conveyor belts and other moving parts. Non-contact measurements are taken with the help of laser-reflective tape that is fixed on the moving part. Contact measurements are taken using the mechanical attachments.

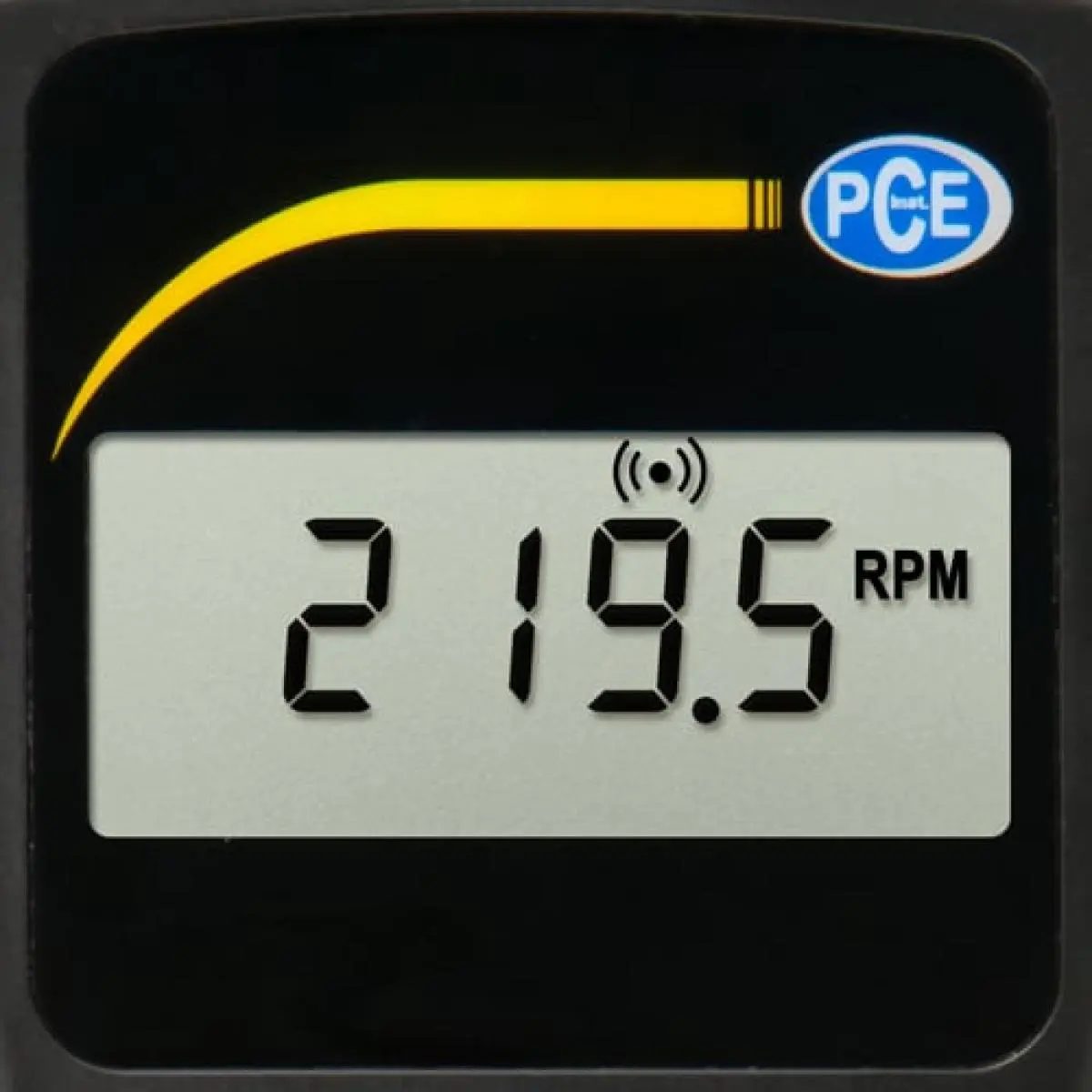

A unique feature of this tachometer is that the orientation of the 5-digit LCD screen automatically rotates 180° to accommodate either contact or non-contact measurement.
Highlights
- For both contact and non-contact measurement
- Automatic rotation of LCD screen orientation
- Displays units in rpm, m/min or ft/min
- Memory saves minimum, maximum and last values
- Rugged heavy-duty ABS plastic enclosure ensures longevity
Technical specifications
Mechanical speed Measuring range 0,5 … 999,9 rpm Resolution 0,1 rpm Accuracy±0.05% by weight Mechanical speed Measuring range 1000 … 99999 rpm Resolution 1 rpm Accuracy< 60,000 rpm ± 0.05% of the mean value / > 60,000 rpm ±0.15% of the mean value Optical speed Measuring range 0,5 … 999,9 rpm Resolution 0,1 rpm Accuracy±0.05% by weight Optical speed Measuring range 1000 … 99999 rpm Resolution 1 rpm Accuracy< 60,000 rpm ± 0.05% of the mean value / > 60,000 rpm ±0.15% of the mean value Speed Measuring range 0,05 … 99,99 m/min Resolution 0.01 m/min Accuracy±0.05% by weight Speed Measuring range 1000 … 1999 m/min Resolution 0.1 m/min Accuracy±0.05% by weight Speed Measuring range 0,2 … 999,9 ft/min Resolution 0.1 ft/min Accuracy±0.05% by weight Speed Measuring range 1000 … 6560 ft/min Resolution 1 ft/min Accuracy< 60,000 rpm ± 0.05% of the mean value / > 60,000 rpm ±0.15% of the mean value General technical data Display type LCD Memory information Saves the last reading, the minimum and the maximum. Housing ABS (acrylonitrile-butadiene-styrene copolymers) Measuring distance 50 … 300 mm Menu language English, English (GB) Protection class (device)IP20 Power supply batteries (Rechargeable) battery 4 x 1,5 V AAA battery , Alkali-manganese Capacity 1200 mAh Operating conditions 0 … 50 °C , 0 … 80 % RH Storage conditions-10 … 60 °C , 0 … 80 % RH Dimensions ( L x W x H )215 x 38 x 65 mm Weight 300 g
Delivery scope

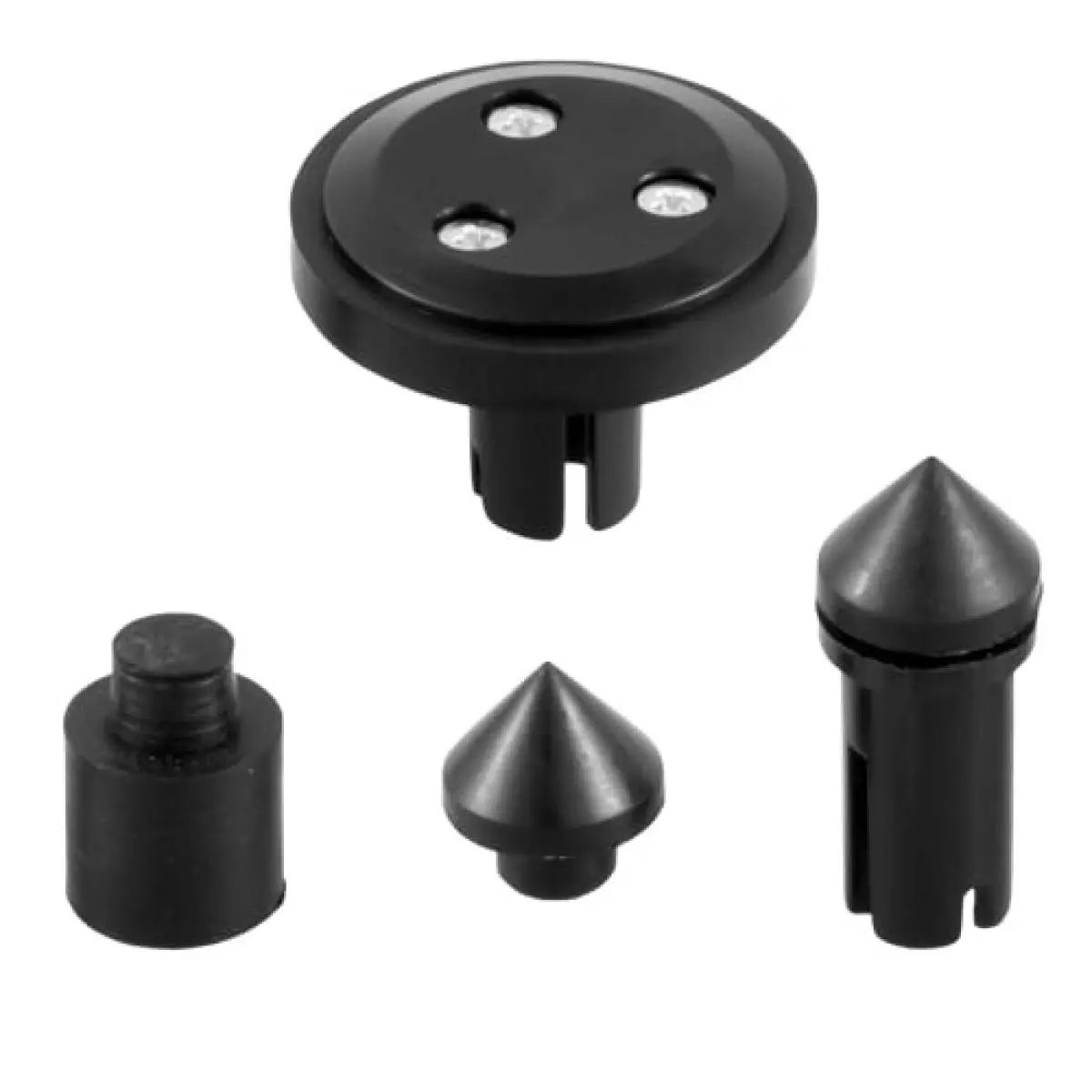

1 x PCE-T236 Handheld Tachometer 1 x conical mechanical attachment 1 x cylindrical mechanical attachment 1 x measuring wheel mechanical attachment 1 x roll of laser-reflective tape 1 x carrying case 1 x user manual
