PCE-PHD 1-O2Dissolved Oxygen Meter
**SD card memory (1 … 16 GB), stored data is stored as an Excel file / large, easy-to-read display / RS-232 interface and optional software for direct transfer to the PC / Includes an oxygen electrode**

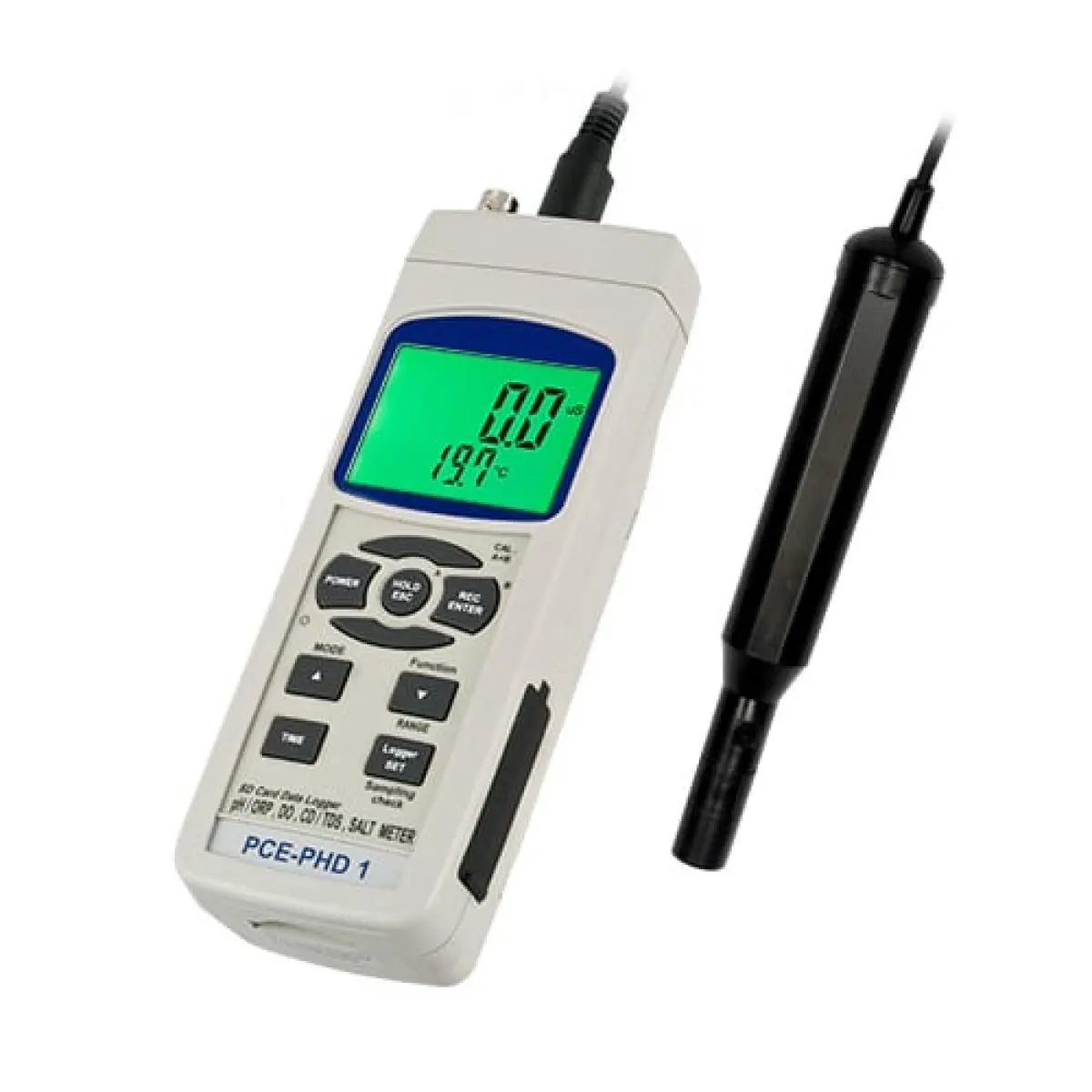

PCE-PHD 1-O2 Dissolved Oxygen Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Dissolved Oxygen Meter is used for laboratory and _in situ_ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water.

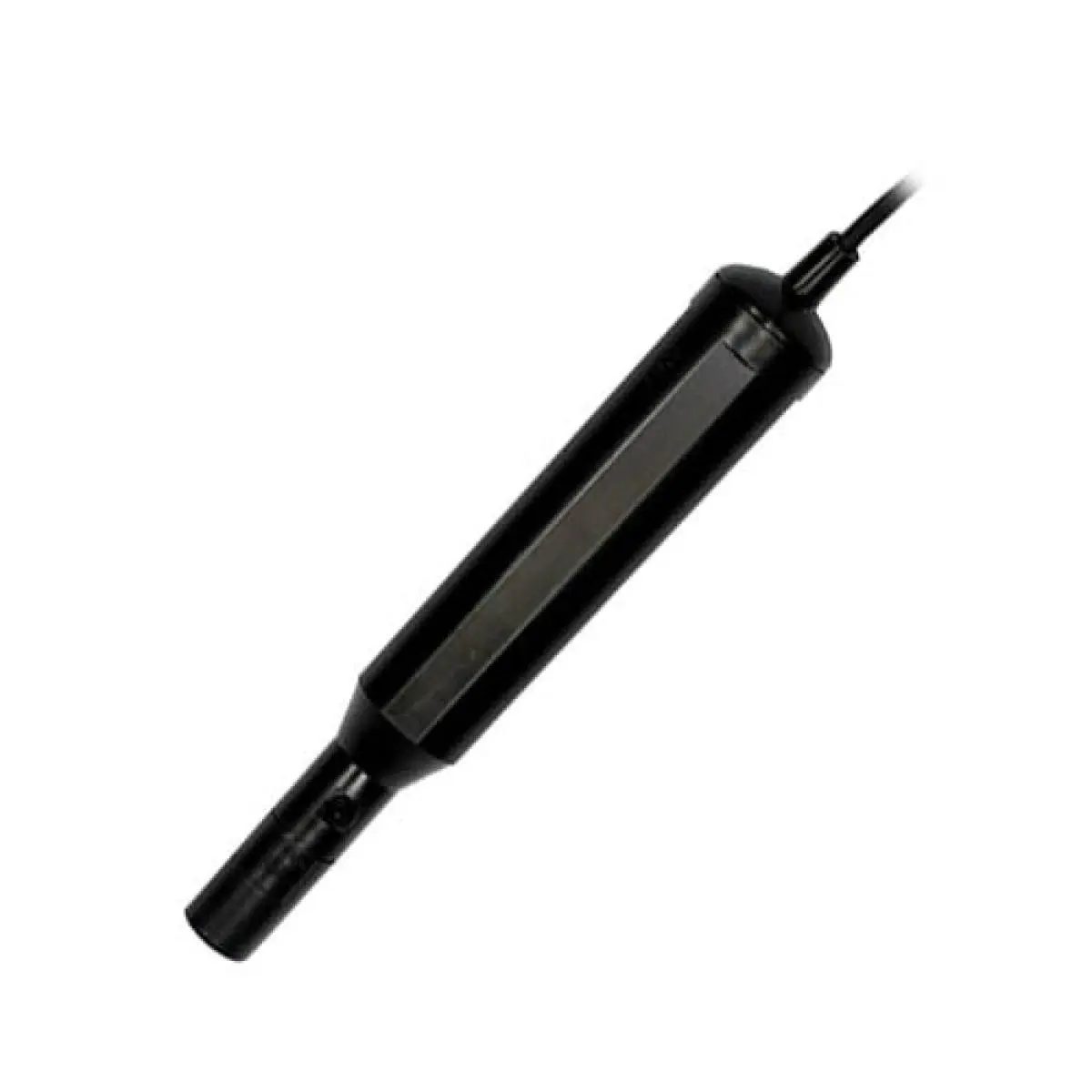

Temperature compensation guarantee a high level of accuracy even with variable temperature measurements. PCE-PHD 1-O2 is supplied with an oxygenelectrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. PCE-PHD 1-O2 acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.
Highlights
- Real-time data logger
- Compatibility with SD cards up to 16 GB
- The stored data is saved directly as an Excel file on the SD card (no
- software needed for evaluation)

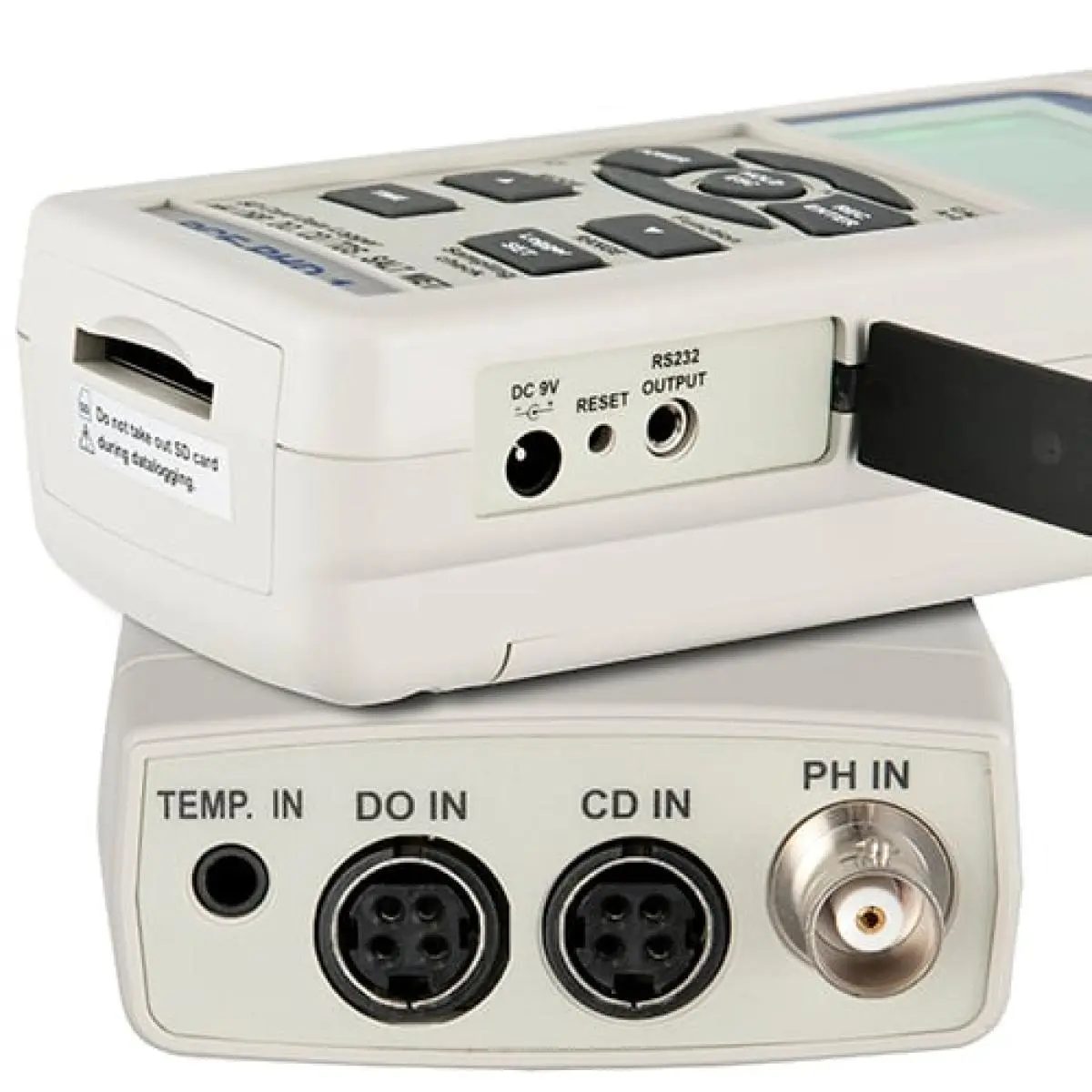

- RS-232 interface for online data transmission
- High precision
- Low battery indication
- Large LC display
- Adjustable measuring rate
- Easy to use
- Robust housing
- Automatic calibration
- Manual or automatic temperature compensation
- BNC connector
- Suitable for laboratory and suburban measurement
- Electrode for oxygen included
Technical specifications
Oxygen Measuring range 0 … 20 mg/L Resolution 0,1 mg/L Accuracy 0.4 mg/l Oxygen Measuring range 0 … 100 % Resolution 0,1 % Accuracy±0.7% Temperature Measuring range 0 … 50 °C Resolution 0,1 °C Accuracy±0.8 °C General technical data Temperature compensation automatic, 0 to 50°C / 32 to 122°F Display type LCD Display size 2,54 Inch Storage medium SD card Storage capacity 16 GB Memory capacity (additional information)SD card from 1 GB to 16 GB possible Storage interval from 1 s Storage interval to 9 h Interface RS232 Calibration in the open air Menu language English, English (GB) Protection class (device)IP20 (Rechargeable) battery 6 x 1,5 V AA battery , Alkali-manganese Capacity 3000 mAh Operating conditions 0 … 50 °C , 0 … 85 % RH Storage conditions 0 … 50 °C , 0 … 85 % RH Dimensions ( L x W x H )177 x 68 x 45 mm Weight 490 g
Delivery scope
1 x PCE-PHD 1-O2 Oxygen Meter 1 x oxygen electrode 1 x SD memory card 2GB 6 x 1.5 V AA batteries 1 x user manual
