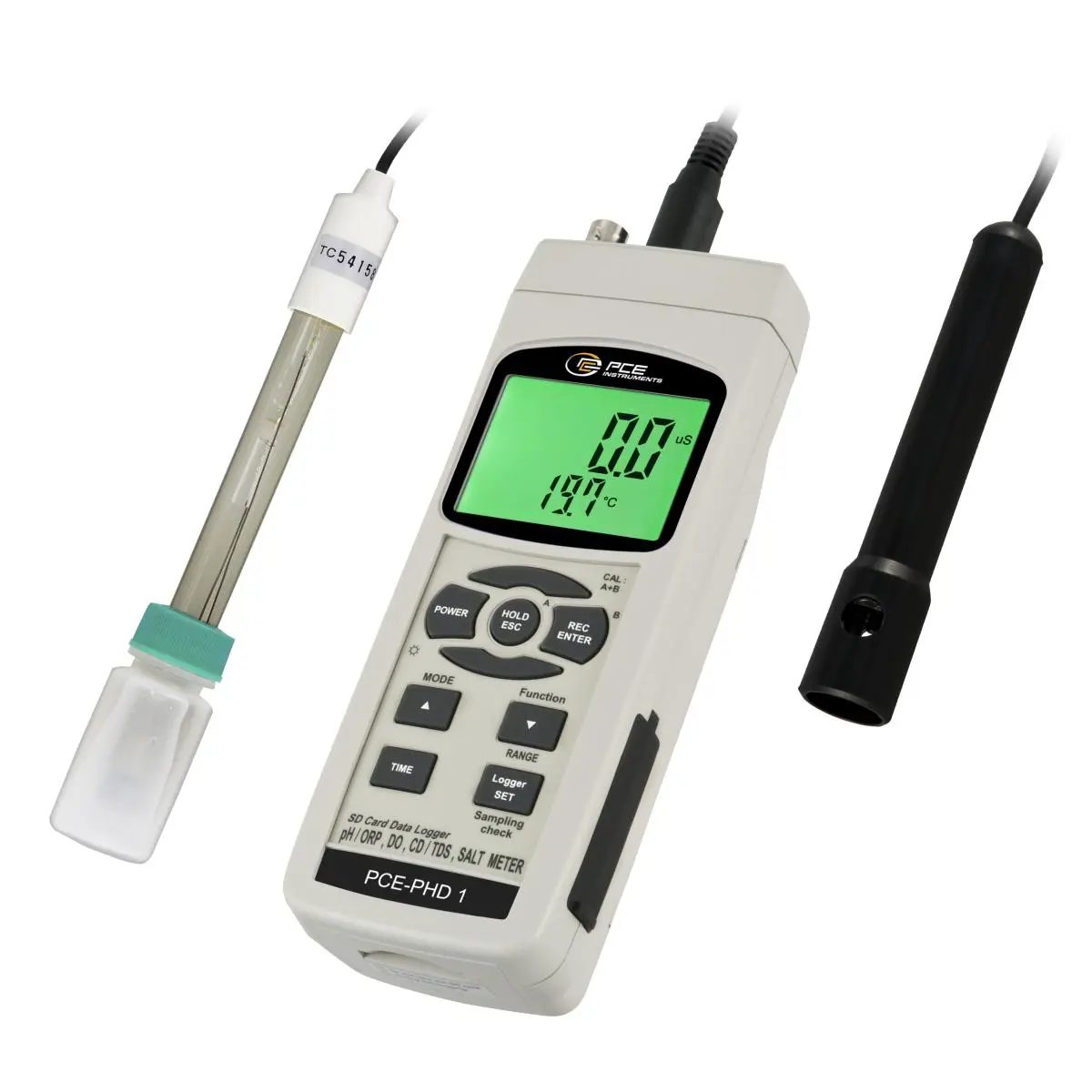

PCE-PHD 1 Multifunction Conductivity Meter pH value, redox, conductivity, salt, oxygen and temperature measuring device / SD card memory (1 … 16 GB), data is saved as an Excel file / large, easy-to-read display / RS-232 interface and optional software for direct transfer to the PC
This Multifunction Conductivity Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Multifunction Conductivity Meter is used for laboratory and _in situ_ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water.
Three-point calibration and automatic temperature compensation guarantee a high level of accuracy even with variable temperature measurements. This meter is supplied with both a pH electrode and a conductivity electrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. This meter acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.
Highlights
- Optimal price / performance ratio
- Real-time data logger
- SD card memory (1 … 16 GB)
- The saved data is saved directly as an Excel file on the SD card (for
- evaluation, no software is required)
- RS-232 interface for online data transfer
- Measures pH value, redox, conductivity, salt content, oxygen, and temperature
- High precision
- Low battery display
- Large LC display
- Adjustable measuring rate
- Easy to use
- Robust housing
- Includes pH and conductivity electrode
- Automatic calibration
- Manual or automatic temperature compensation
- BNC connector
- Suitable for laboratory and on-site measurements
- REDOX and oxygen electrode optionally available
Technical specifications
Conductivity Measuring range 0 … 200 µS/cm Resolution 0,1 µS/cm Accuracy±(2% FS +1 digit) Conductivity Measuring range 0,2 … 2 mS/cm Resolution 0,001 mS/cm Accuracy±(2% FS +1 digit) Conductivity Measuring range 2 … 20 mS/cm Resolution 0,01 mS/cm Accuracy±(2% FS +1 digit) Conductivity Measuring range 20 … 200 mS/cm Resolution 0,1 mS/cm Accuracy±(2% FS +1 digit) pH Measuring range 0 … 14 pH Resolution 0,01 pH Accuracy±0.02 pH +2 digits Redox Measuring range-1999 … +1999 mV Resolution 1 mV Accuracy±0.5% +2 Digits Salinity Measuring range 0 … 12 % Resolution 0,01 % Accuracy±0.5 % FS Oxygen Measuring range 0 … 20 mg/L Resolution 0,1 mg/L Accuracy±0.4% mg/l Oxygen Measuring range 0 … 100 % Resolution 0,1 % Accuracy±0.7% TDS Measuring range 0 … 132 ppm Resolution 0,1 ppm Accuracy±2% FS +1 digit TDS Measuring range 132 … 1320 ppm Resolution 1 ppm Accuracy±2% FS +1 digit TDS Measuring range 1320 … 13200 ppm Resolution 10 ppm Accuracy±2% FS +1 digit TDS Measuring range 12200 … 132000 ppm Resolution 100 ppm Accuracy±2% FS +1 digit Temperature Measuring range 0 … 60 °C Resolution 0,1 °C Accuracy±0.8 °C Electrode Designation CPC-EPS-1 Measuring range 0 … 14 pH Temperature range 0 … 60 °C Shank material Glass Cable length 1 m Electrode Designation CDPB-03 Measuring range 0 µS/cm … 200 mS/cm Temperature range 0 … 60 °C Shank length 120 mm Shank diameter 22 mm Cable length 1 m Connection BNC General technical data Temperature compensation automatic, 0 to 60°C / 32 to 140°F Display type LCD Display size 2,54 Inch Storage medium SD card Storage capacity 16 GB Memory capacity (additional information)SD card from 1 GB to 16 GB possible Storage interval from 1 s Storage interval to 9 h Interface RS232 Number of calibration points 3 Menu language English, English (GB) Protection class (device)IP20 (Rechargeable) battery 6 x 1,5 V AA battery , Alkali-manganese Capacity 3000 mAh Operating conditions 0 … 50 °C , 0 … 85 % RH Storage conditions 0 … 50 °C , 0 … 85 % RH Dimensions ( L x W x H )177 x 68 x 45 mm Weight 490 g
Delivery scope
1 x PCE-PHD 1 Conductivity Meter / Conductivity Tester 1 x pH electrode 1 x conductivity electrode 1 x SD memory card 6 x 1.5 V AA batteries 1 x user manual
