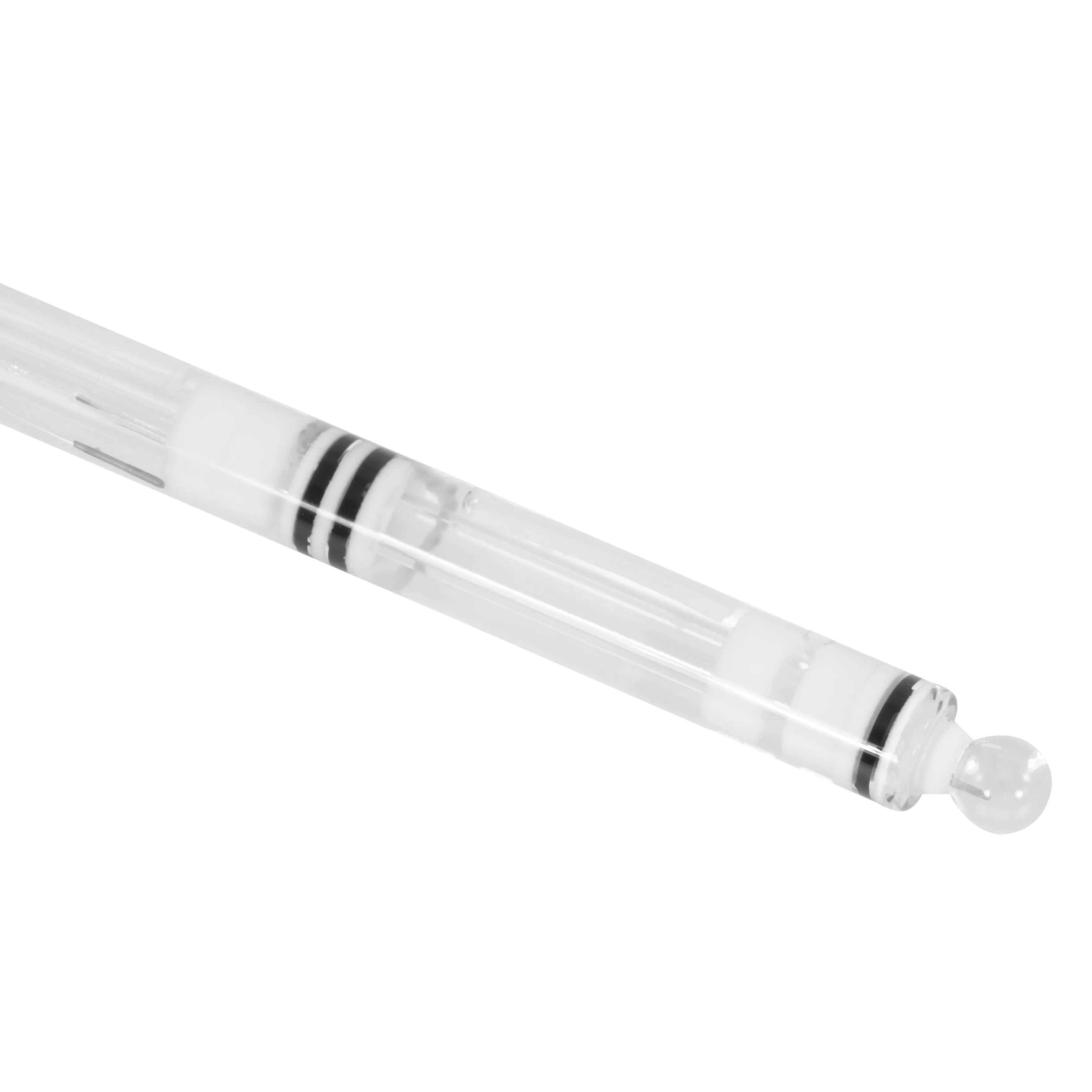

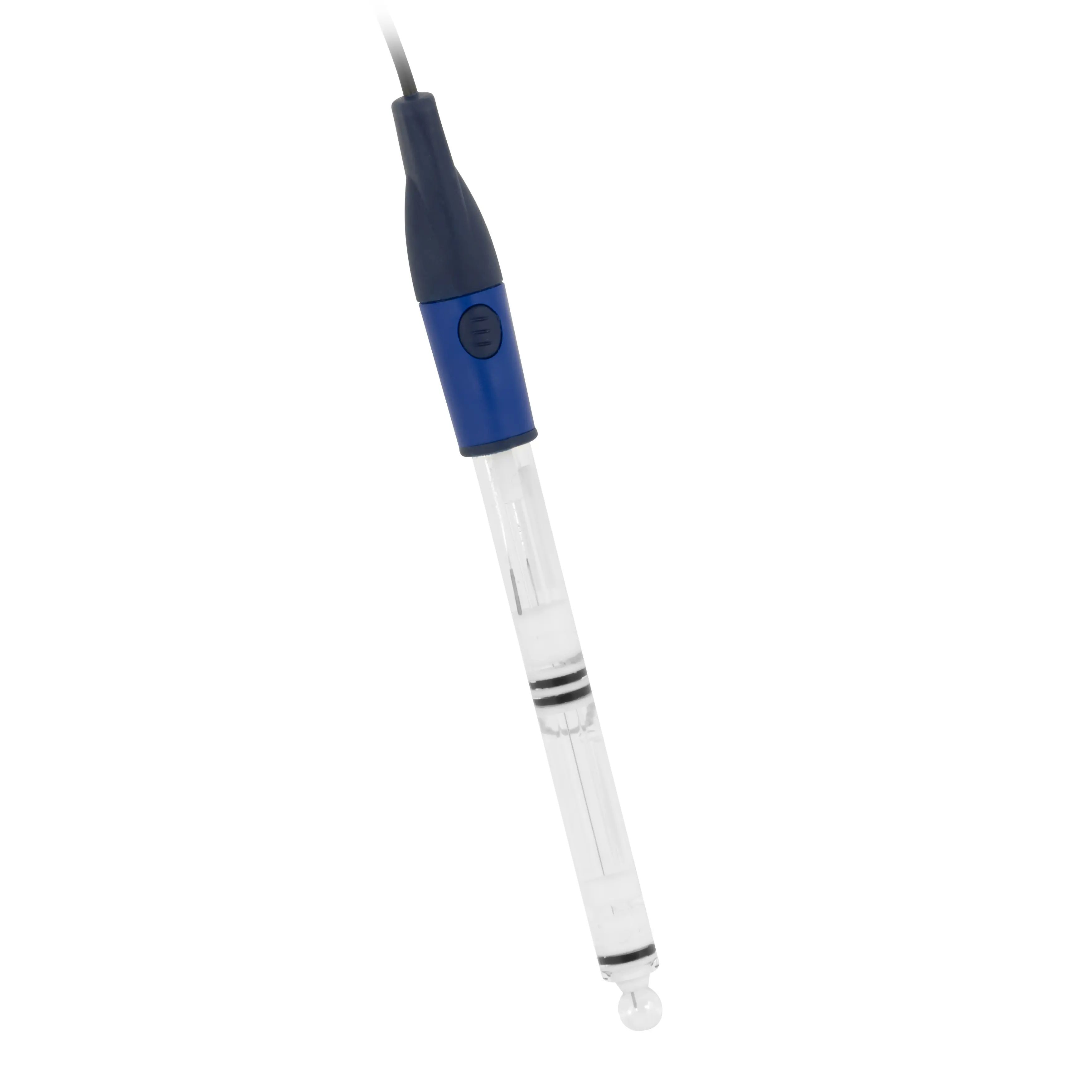

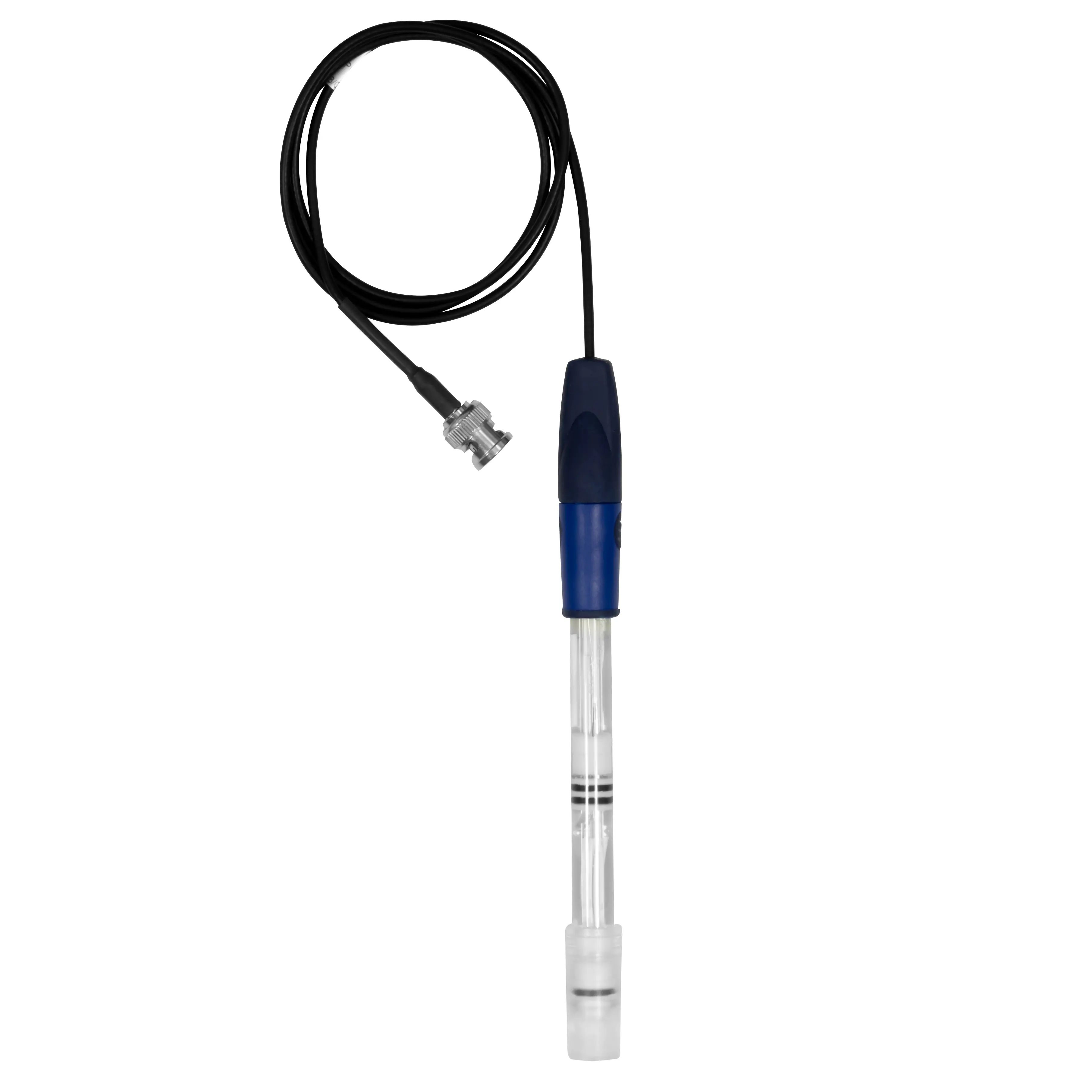

The laboratory pH electrode offers precise and reliable measurements in a wide range of applications. With its robust design and high-quality workmanship, it is ideal for laboratory environments. The electrode impresses with an exact pH measurement in the range of 0 …14 and can withstand temperatures of up to 130 °C (at the tip).
The porous Teflon connection ensures stability and a long service life, even in demanding samples. Thanks to the glass housing, the electrode is easy to clean and resistant to chemical influences. Applications for this electrode include biotechnology, water and wastewater treatment and general laboratory applications that require precise and reproducible results.
Highlights
- pH range:**
- Precise measurements from 0 …14 pH
- Temperature resistance:**
- Works reliably at temperatures of up to 130 °C (tip only)
- Diaphragm:**
- Porous Teflon for increased stability and longevity
- Housing material:**
- Robust and easy-to-clean glass
- Possible applications:**
- Versatile use in laboratories, biotechnology and water treatment
- Design:**
- Compact design for precise and easy handling
Technical specifications
pH electrode Measuring range 0 … 14 pH Temperature range 0 … 130 °C Application Agriculture, waste water, sludge Reference Ag/AgCl Electrolyte Gel filled, double junction Diaphragm Teflon Tip shape Ball Media Agressive liquids Shaft / sensor material Glass Shaft / sensor length Top: 108 mm, Bottom: 12 mm Shaft / sensor diameter Top: 12 mm, Bottom: 9 mm Cable length 1 m Connection BNC Operating pressure 0 … 10 bar Overall dimensions 190 x 15 x 15 mm Weight 70 g
Delivery scope
1 x High-temperature pH electrode PCE-PH-LAB-HTE
