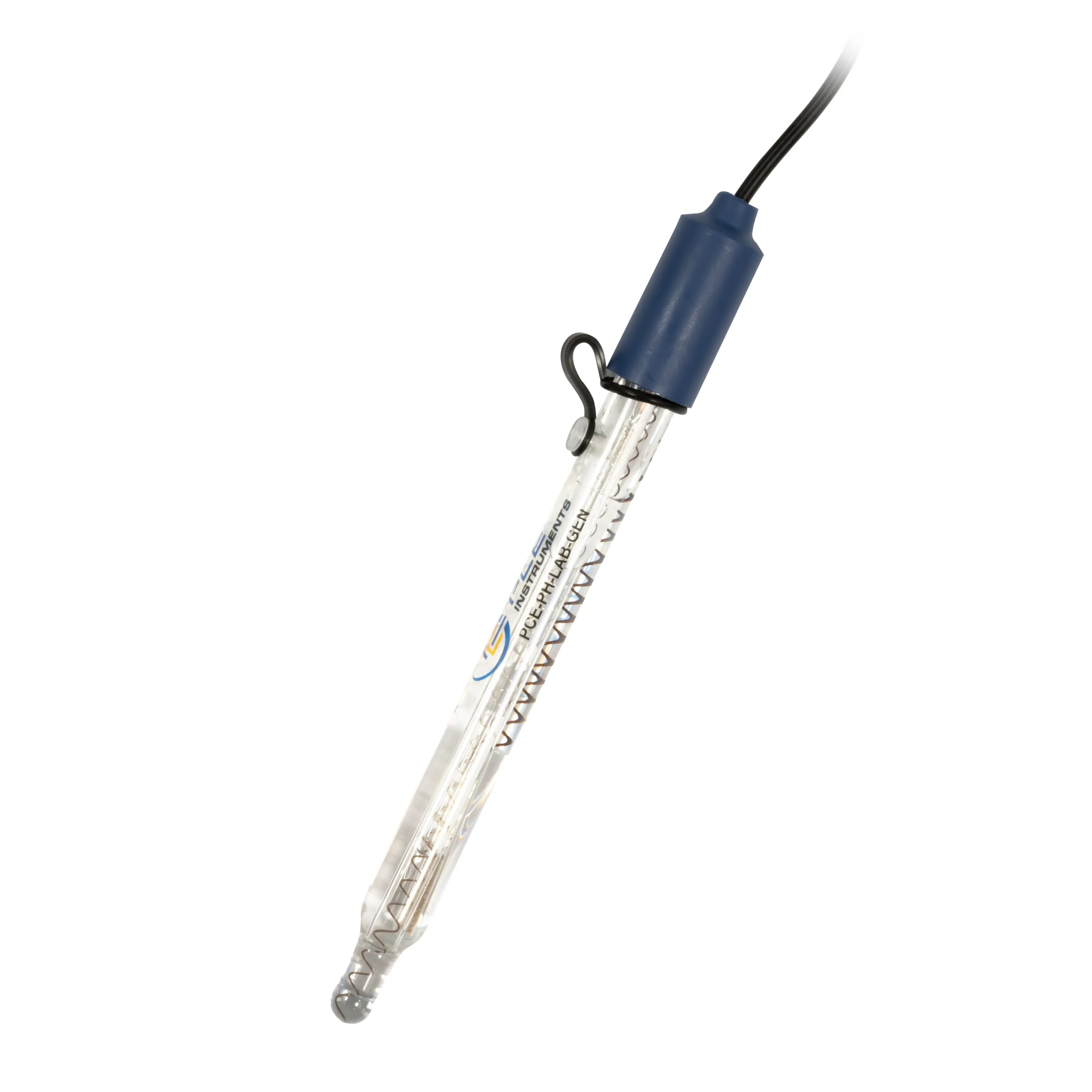

The pH electrode for general laboratory applications is a reliable choice for precise pH measurements in aqueous media. With its robust glass design and high-quality workmanship, this electrode offers a long service life and consistent measurement results. It is ideal for routine applications in chemical, biological and medical laboratories. Thanks to its universal compatibility with common pH measuring devices, it can be used for a wide range of applications.
Highlights
- Wide range of applications:**
- Precise pH measurements in aqueous media for routine applications
- Robust construction:**
- High-quality glass housing for chemical resistance and easy cleaning
- Refillable reference:**
- Extends service life and offers flexibility of use
- High accuracy:**
- Ag/AgCl reference with ion exchanger and 2 x ceramic diaphragm for consistent results
- User-friendly design:**
- Rounded tip for easy measurement and minimal sample damage
- Universal compatibility:**
- BNC connector for common pH meters
Technical specifications
pH electrode Measuring range 0 … 14 pH Temperature range 0 … 100 °C Application General laboratory applications Reference Ag/AgCl with ion exchanger Electrolyte 3M KCL, refillable Diaphragm 2 x ceramic Tip shape Rounded tip Media Aqueous media Shaft / sensor material Glass Shaft / sensor length 120 mm Shaft / sensor diameter 12 mm Min. immersion depth 22 mm Cable length 1 m Connection BNC Operating pressure atmospheric Overall dimensions 160 x 18 x 18 mm Weight 65 g
Delivery scope
1 x Laboratory pH electrode PCE-PH-LAB-GEN
