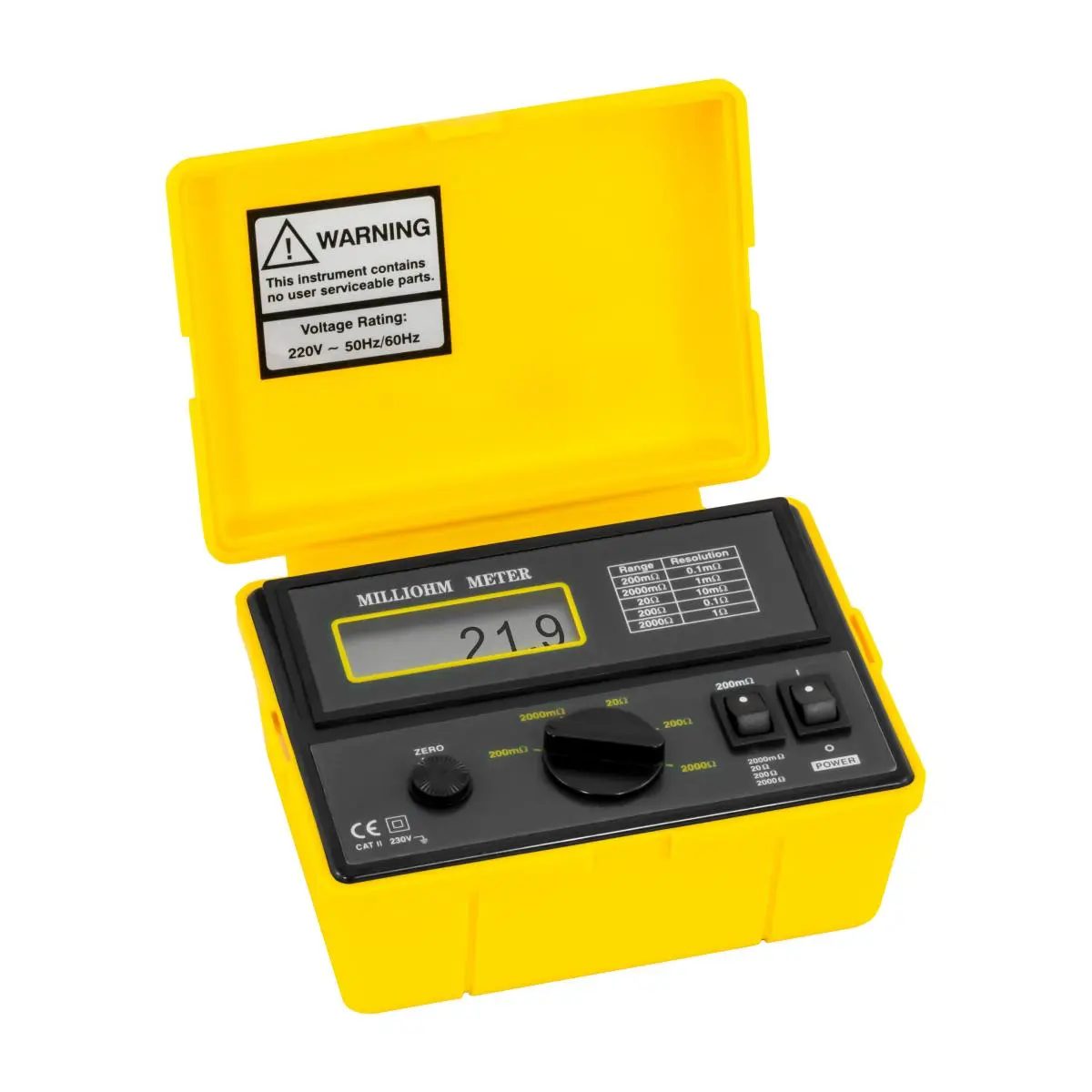

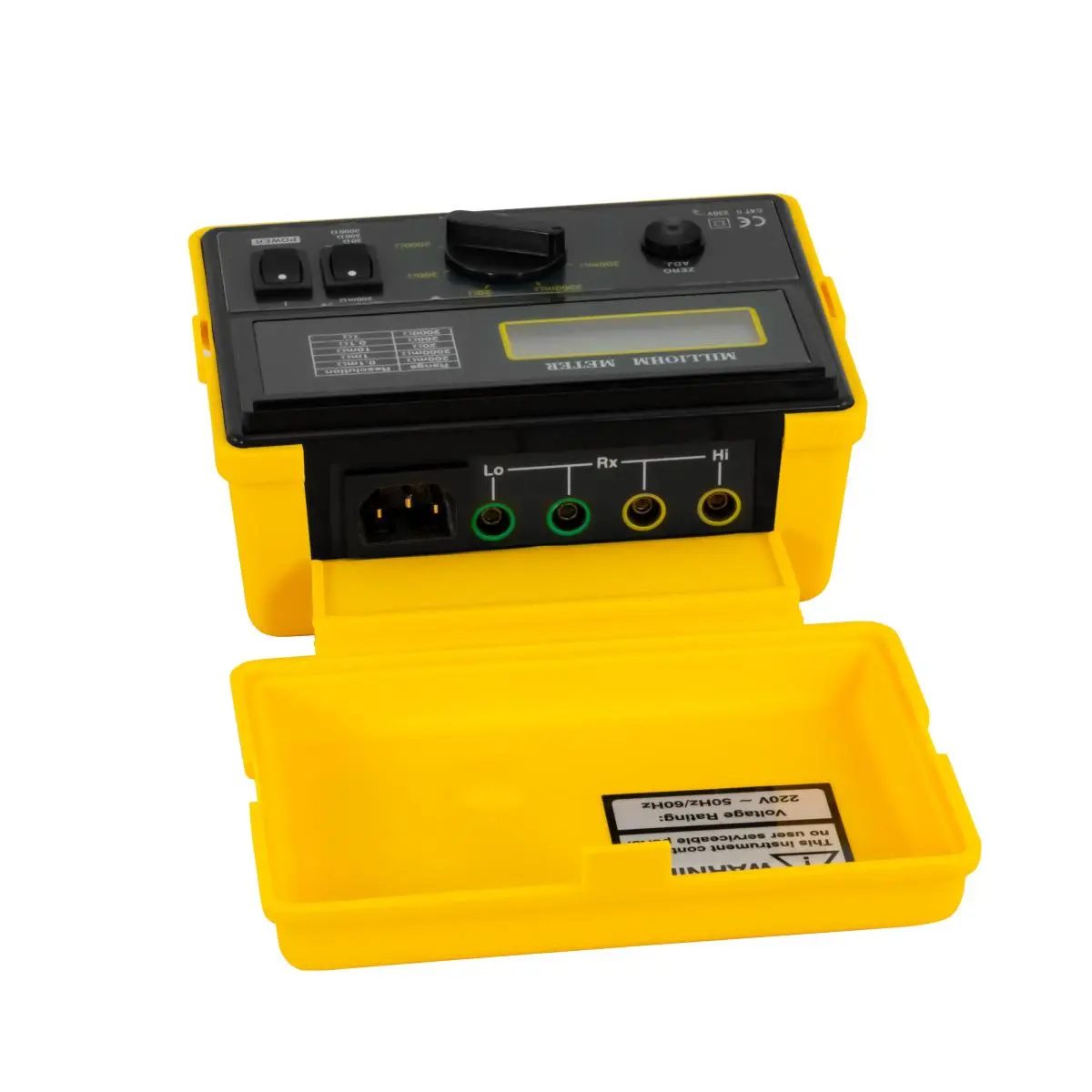

Milliohmmeter
(supplied with a water resistant brief-case, for measuring ranges from 100 μΩ to 2000 Ω)****
This Milliohmmeter is supplied with a large 3½ positions LCD display that shows the measurement values, which is very easy to read. With the Milliohmmeter you will be able to measure electric resistance from 100 μΩ to 2000 Ω.To obtain measurement values, a constant electric current is introduced inside an object to test the voltage drop in it. Milliohmmeter has a housing protected against water splash and also it is delivered calibrated. If you wish, an ISO calibration certificate can be requested.
Highlights
- It can be used to measure electric resistance in engine coils, generators,
- transformers, commutation circuits, for instance in parallel or adjoining
- commutation circuits, compressed commutation circuits or commutators and
- relays.
- To measure binding energy in mines, planes, boats and also for both
- industrial and home installations.
- Pitch control in cyclic systems (Ringbus) to be used in industry and home.
- To test and measure Read contacts.
- Compression elements control in over line current cables, for the control and
- maintenance of components such as connectors, contacts.
- Security: IEC-1010-1; CAT II 20 V
Technical specifications
Resistance Measuring range 0 … 200 mΩ Resolution 0,1 µΩ Accuracy±0.75 % of Rd +4 digits (range up to 20 Ω), ±0.75 % of Rd +2 digits (range over 20 Ω) Resistance Measuring range 0 … 2000 mΩ Resolution 1 mΩ Accuracy±0.75 % of Rd +4 digits (range up to 20 Ω), ±0.75 % of Rd +2 digits (range over 20 Ω) Resistance Measuring range 0 … 20 Ω Resolution 10 mΩ Accuracy±0.75 % of Rd +4 digits (range up to 20 Ω), ±0.75 % of Rd +2 digits (range over 20 Ω) Resistance Measuring range 0 … 200 Ω Resolution 0,1 Ω Accuracy±0.75 % of Rd +4 digits (range up to 20 Ω), ±0.75 % of Rd +2 digits (range over 20 Ω) Resistance Measuring range 0 … 2000 Ω Resolution 1 Ω Accuracy±0.75 % of Rd +4 digits (range up to 20 Ω), ±0.75 % of Rd +2 digits (range over 20 Ω) General technical data Cable length 50 cm Display type LCD Display size 0,7 Inch Measuring rate 0,4 s Standard(s)IEC 1010-1 Housing ABS (acrylonitrile-butadiene-styrene copolymers) Safety standard CAT II 20 V Measuring method 4-wire method for mΩ measurement Test current 1 mA: 2000 Ω / 200 Ω 10 mA: 20 Ω / 2 Ω 100 mA: 200 mΩ Accuracy: ±0.1 % Fuse(s)100 mA / 250 V Performance 2,5 W Protection class (device)IP20 Power supply 230 V AC, 50/60 Hz Connector type Schuko plug Operating conditions 0 … 40 °C , 0 … 80 % RH Storage conditions 0 … 40 °C , 0 … 80 % RH Dimensions ( L x W x H )170 x 120 x 90 mm Weight 680 g
Delivery scope

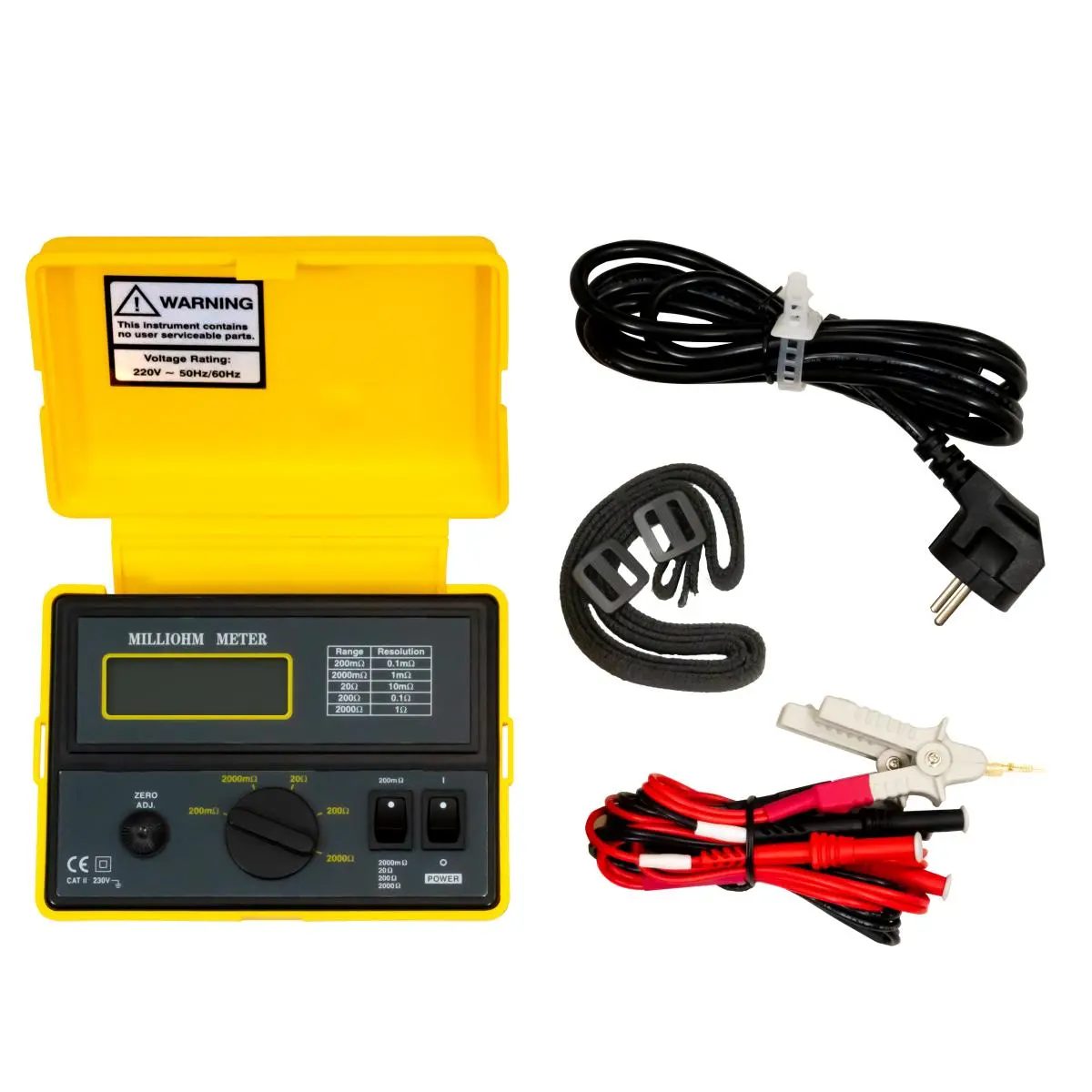

1x Micro-, milli-, megohmmeter PCE-MO 2001 1x testing cables, 1x AC cable 1x user's manual
