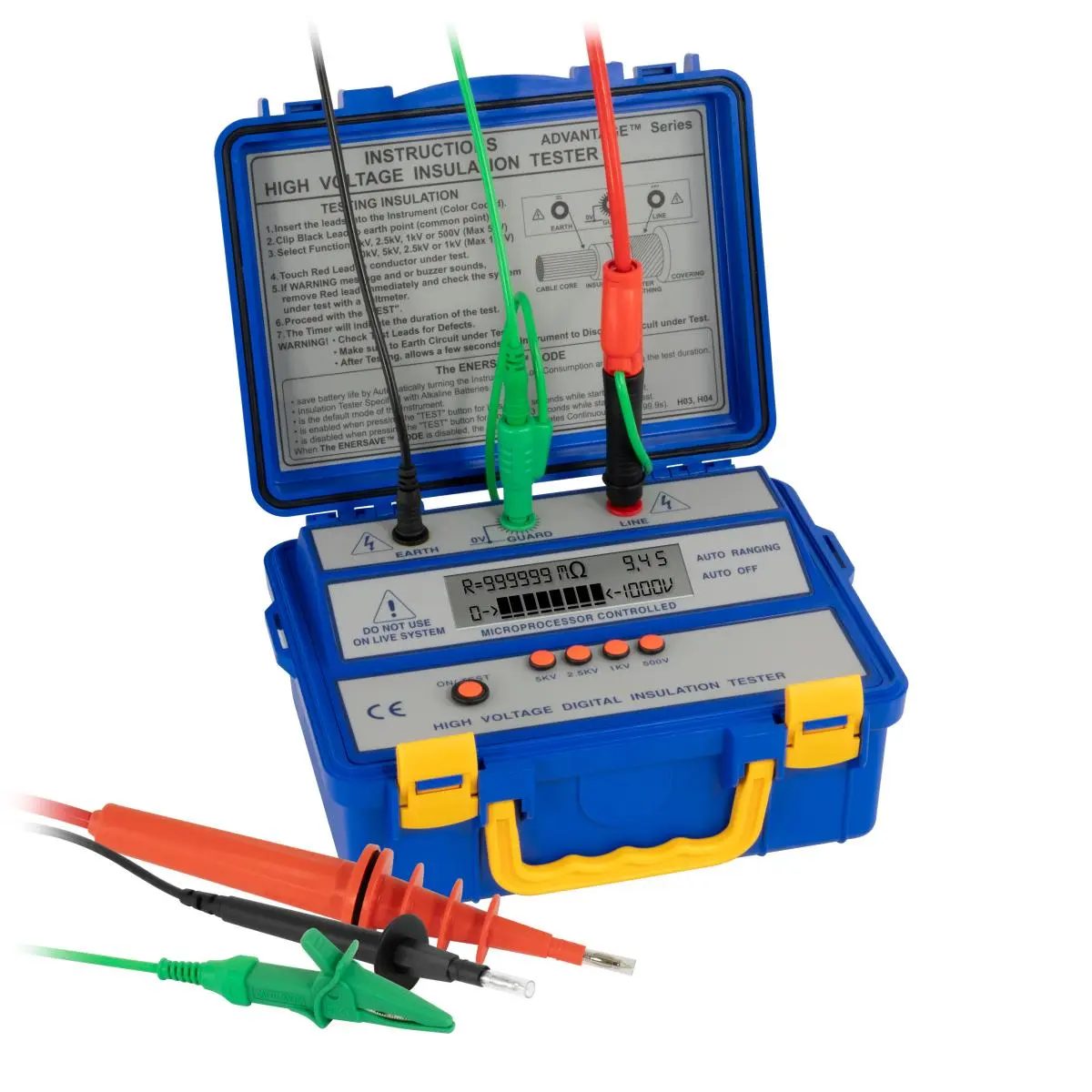

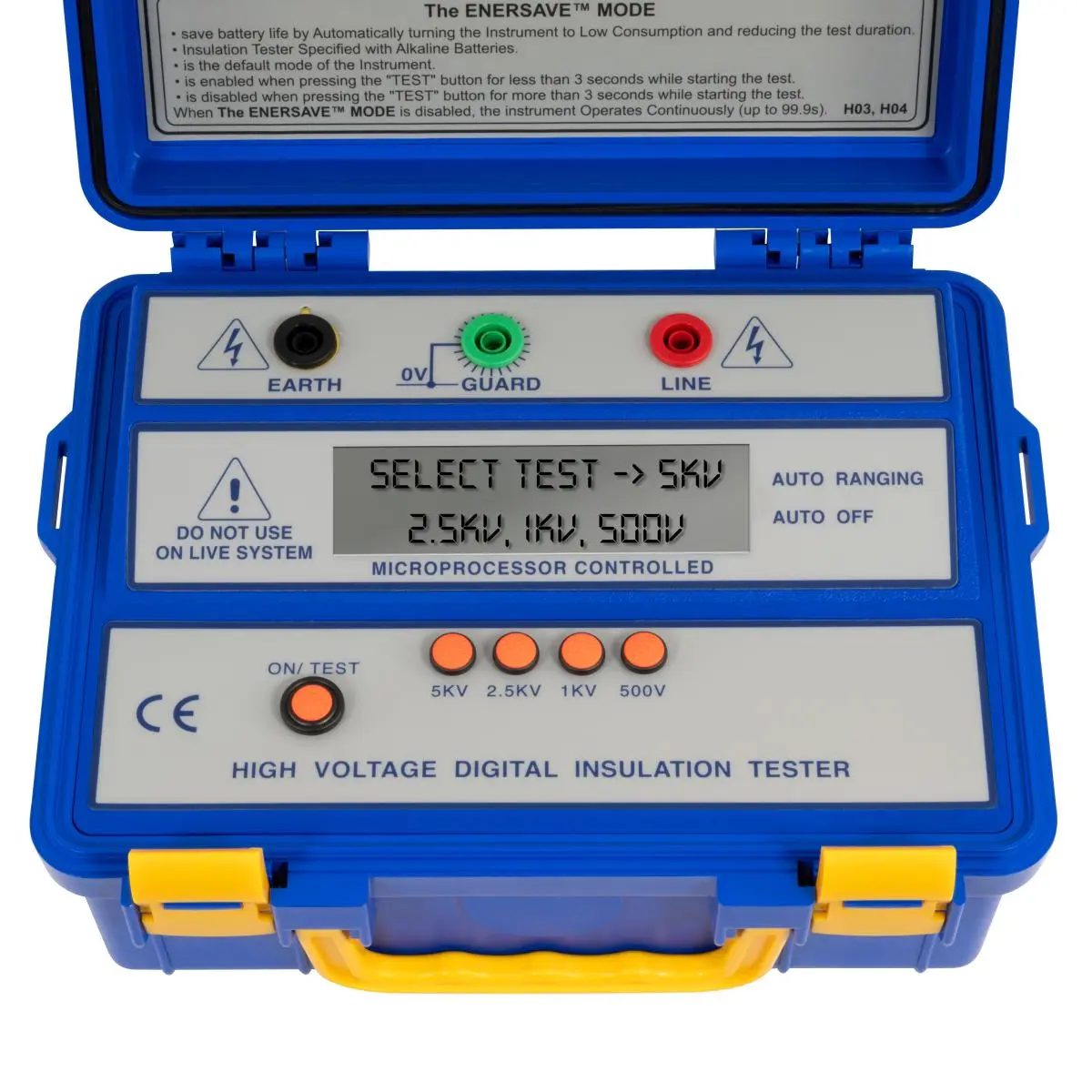

Isolation Meter
**For high tension up to 5,000**
The Isolation Meter belongs to a series of highly accurate resistance devices that have a 6 digit display. These Isolation Meters have been developed specifically for technical service and for difficult measurement conditions.
One of the advantages is the built in protection to avoid errors originating from loss of current. The Isolation Meter contains a microprocessor and both optical and visual alarms. Factory calibration ensures the most accurate measurements with this series of Isolation Meters.
Highlights
- For professionals
- 6 digit LCD
- Measurements according to VDE 0413 part 1
- Test tension up to 5,000V
- 3 year warranty
- Safety standards:
- IEC-1010-1; CAT III
- IEC- 1010- 1
- EN 61010- 1
- EMV
- EN 50081- 1
- EN 50082- 1
- Very good price / quality relationship
Technical specifications
Insulation resistance Test voltage DC 500V Measuring range 0 … 30 GΩ Resolution 0,1 GΩ Accuracy±5% Insulation resistance Test voltage DC 1000V Measuring range 0 … 60 GΩ Resolution 0,1 GΩ Accuracy±5% M Ω Insulation resistance Test voltage DC 2500V Measuring range 0 … 150 GΩ Resolution 0,1 GΩ Accuracy±5% Insulation resistance Test voltage DC 5000V Measuring range 0 … 300 GΩ Resolution 0,1 GΩ Accuracy±5% General technical data Performance 1 W Menu language English, English (GB) Protection class (device)IP20 (Rechargeable) battery 8 x 1,5 V AA battery , Alkali-manganese Capacity 3000 mAh Operating conditions 0 … 40 °C , 0 … 80 % RH Storage conditions 0 … 40 °C , 0 … 80 % RH Dimensions ( L x W x H )250 x 110 x 190 mm Weight 1500 g
Delivery scope
1 x Insulation Tester / Isolation Meter PCE-IT413 1 x Color coded silicon test cable 1 x Protective cover for coaxial conductors 8 x AAA batteries 1 x User's manual
