NDT Test Instruments / image and video recording functions / 400 … 800x magnification / can be connected to PC via USB-C interface / single and time-controlled continuous recording / for indoor and outdoor use / small and portable

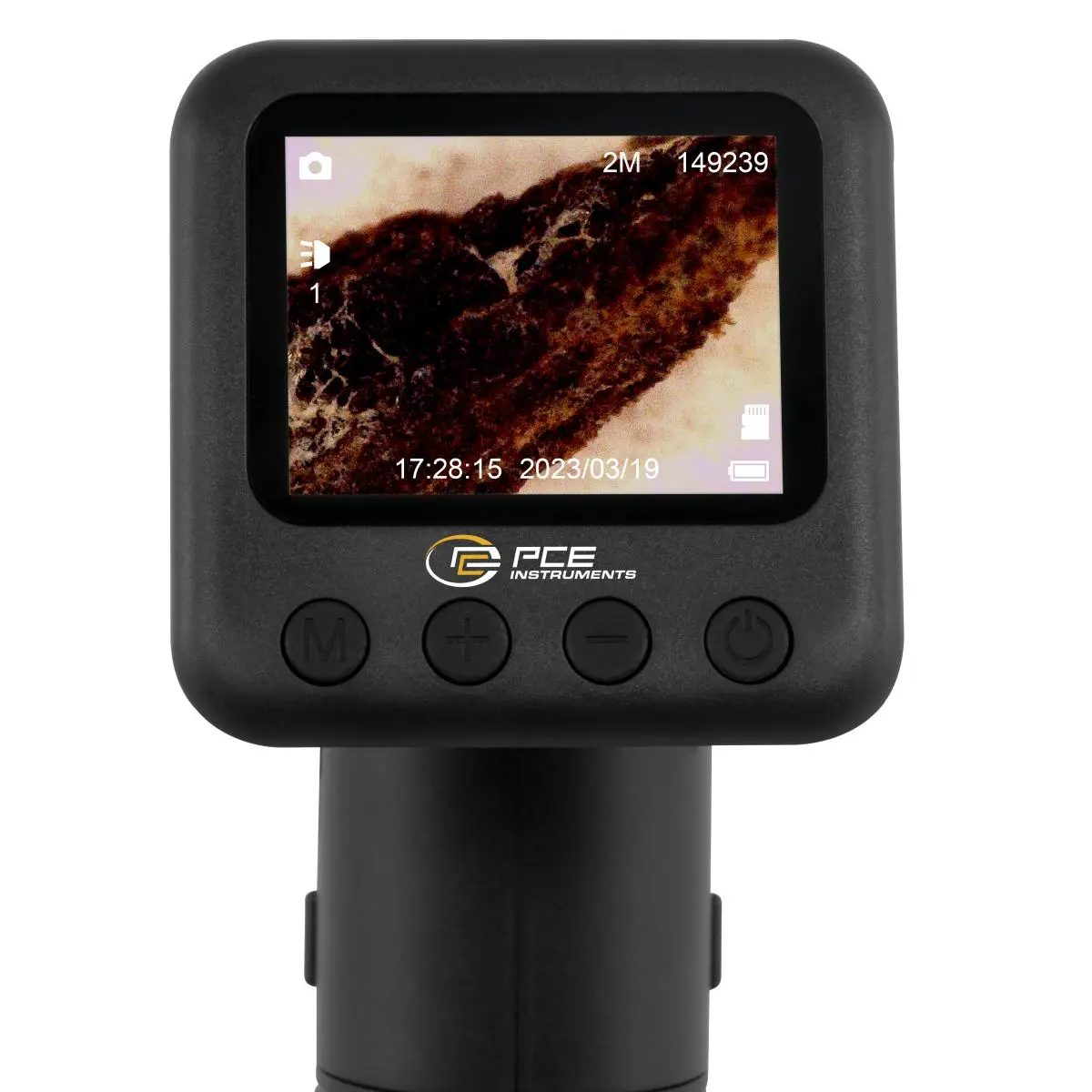

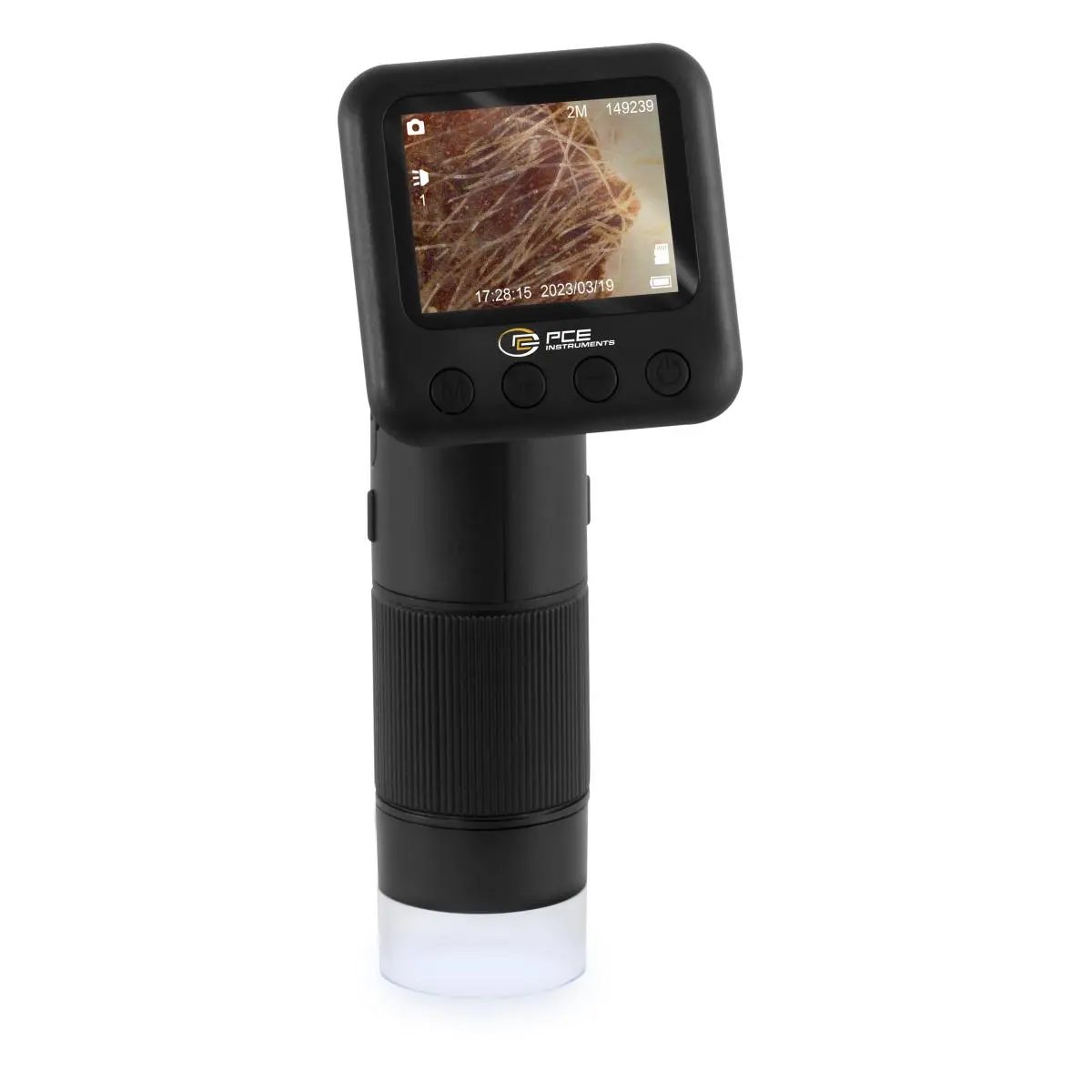

Our NDT Test Instruments offers 400 … 800x magnification and a 2-inch IPS HD screen to capture images and videos. Six dimmable LEDs ensure optimum illumination and thanks to the two brightness levels, objects can also be recognised in dark environments. The NDT Test Instruments supports image and video recording functions, images can be captured during observation and saved on a micro SD memory card (not included, max. 32 GB). The NDT Test Instruments can also be connected to a PC via a USB cable to display objects on a larger screen.
Various recording modes are available, including single recording and timed continuous recording (2, 3, 5 or 10 seconds). Our NDT Test Instruments enables automatic image capture at set time intervals with the continuous capture function and is ideal for long-term observations and time-lapse studies. Loop recording offers adjustable intervals from 5 seconds to 30 minutes. Focus and exposure can be adjusted as required. Various colour effects such as black and white and reminiscence are available. The auxiliary line function includes options such as core and cross and enables precise positioning and measurement of samples. Our NDT Test Instruments supports 22 menu languages, displays the date and time on screen and has a memory card formatting function.
Furthermore, the loop recording function enables continuous video recordings, whereby older recordings are automatically overwritten when the memory is full. This is particularly useful for longer monitoring sessions. With a compact size of 165 x 60 x 60 mm and an integrated, rechargeable lithium battery with an operating time of up to 3 hours, it is suitable for mobile use. The microscope switches to standby mode after 30 seconds, 1 minute or 2 minutes of inactivity to save energy. When connected to a PC, the image can be transferred to the computer monitor or the memory can be read out directly.

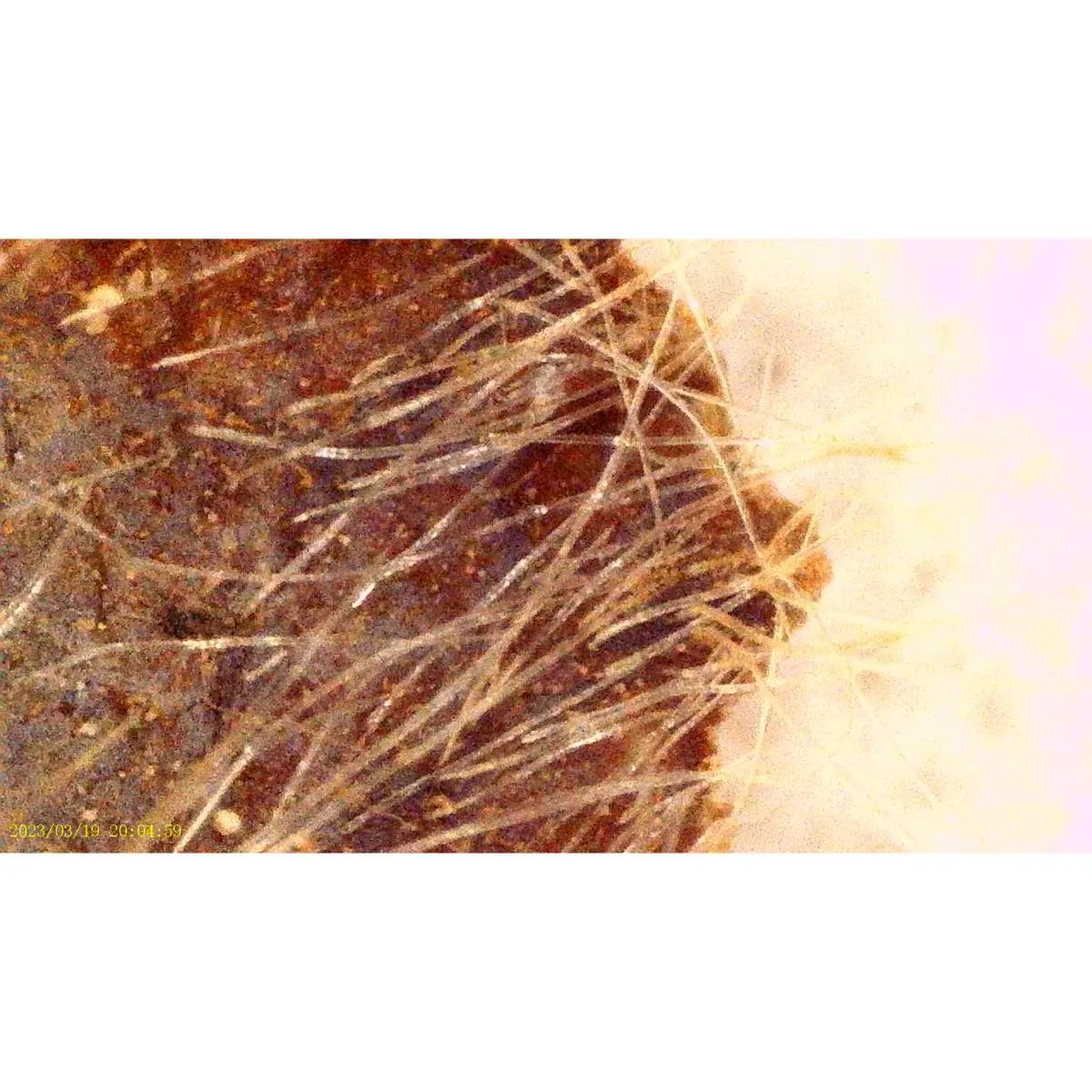

The NDT Test Instruments is a widely used instrument for various purposes. It is used for inspecting printed circuit boards, observing plant roots and checking the quality of textiles, among other things. This microscope could therefore be suitable for teachers, students, adults, craftsmen, parents of young children, farmers or simply for beginners in the world of microscopy.
Highlights
- 2-inch HD LCD screen
- image and video recording functions
- resolution: image: JPG 2 MP / video: 720Pixel 30fps
- 400 … 800x magnification
- single and time-controlled continuous recording

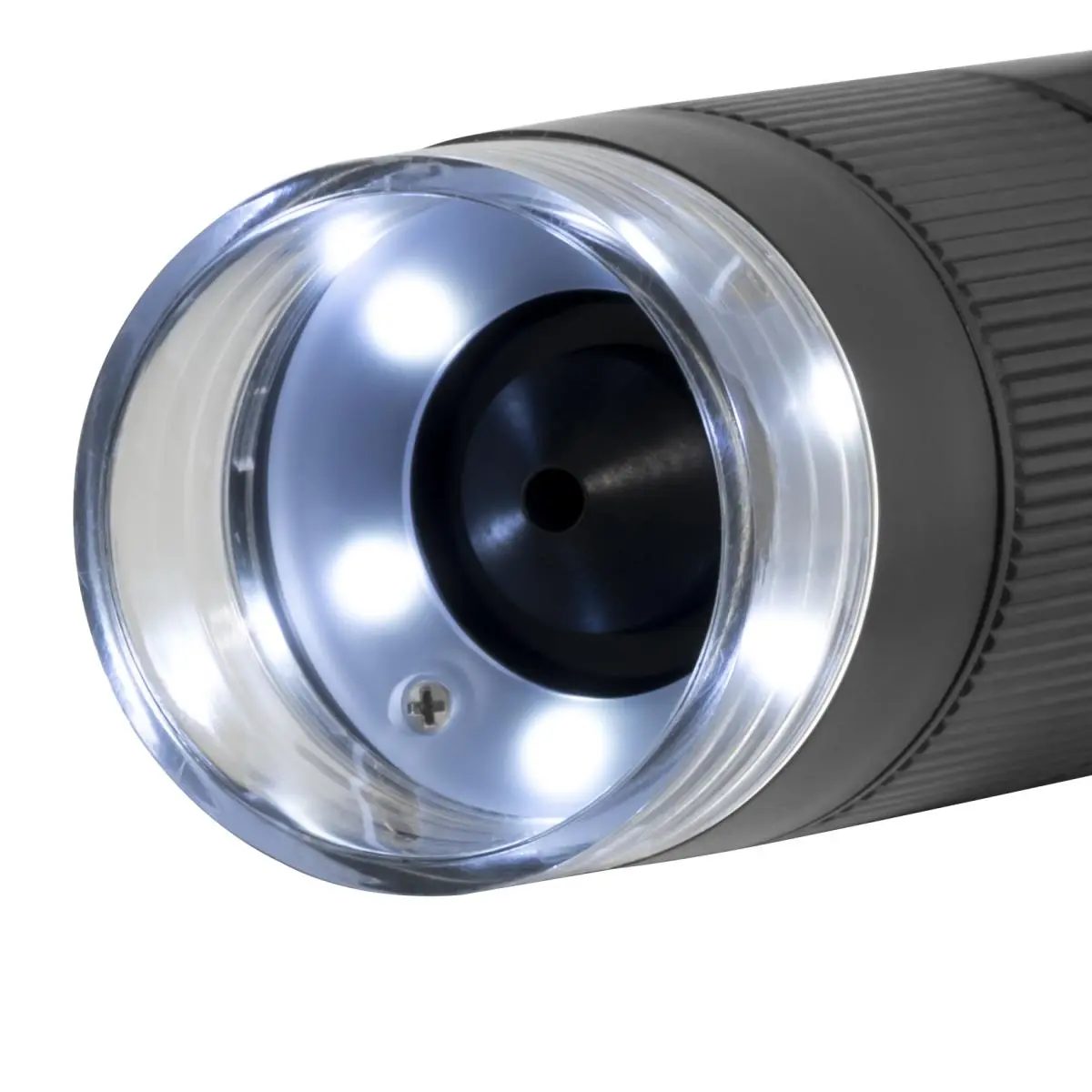

- 6 dimmable LEDs
- 22 menu languages

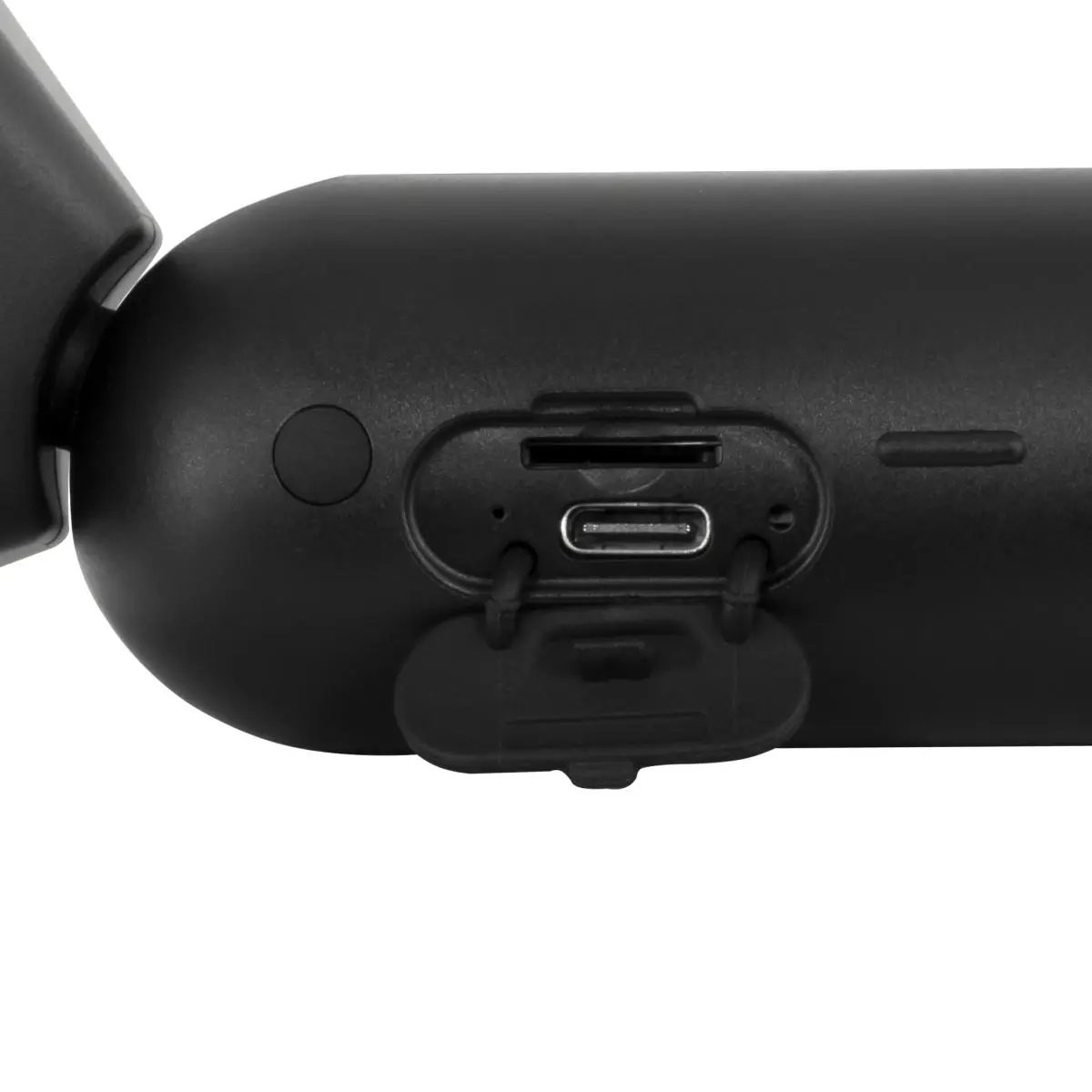

- USB-C interface
- for indoor and outdoor use
- date and time display
- automatic power off
- standby function
Technical specifications
General technical data Resolution Video: 720 pixels, 1080 pixels (adjustable) Image: JPG 2 megapixels Display type IPS Display size 2 Inch Display resolution 320 x 240 Storage medium Micro SD card Storage capacity 32 GB Interface USB-C Operating time 3 h Automatic power-off from…to 3 … 10 min. Light source 6 dimmbare LED's Magnification 400 … 800 x Menu language English, German, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese, Korean, Czech, Hebrew, Hungarian, Arabic, Thai, Romanian, Swedish Protection class (device)IP20 Power supply 5 V, 1 A Capacity 700 mAh Operating conditions 10 … 50 °C , 0 … 85 % RH Storage conditions 10 … 50 °C , 0 … 85 % RH Dimensions ( L x W x H )165 x 60 x 60 mm Weight 131 g

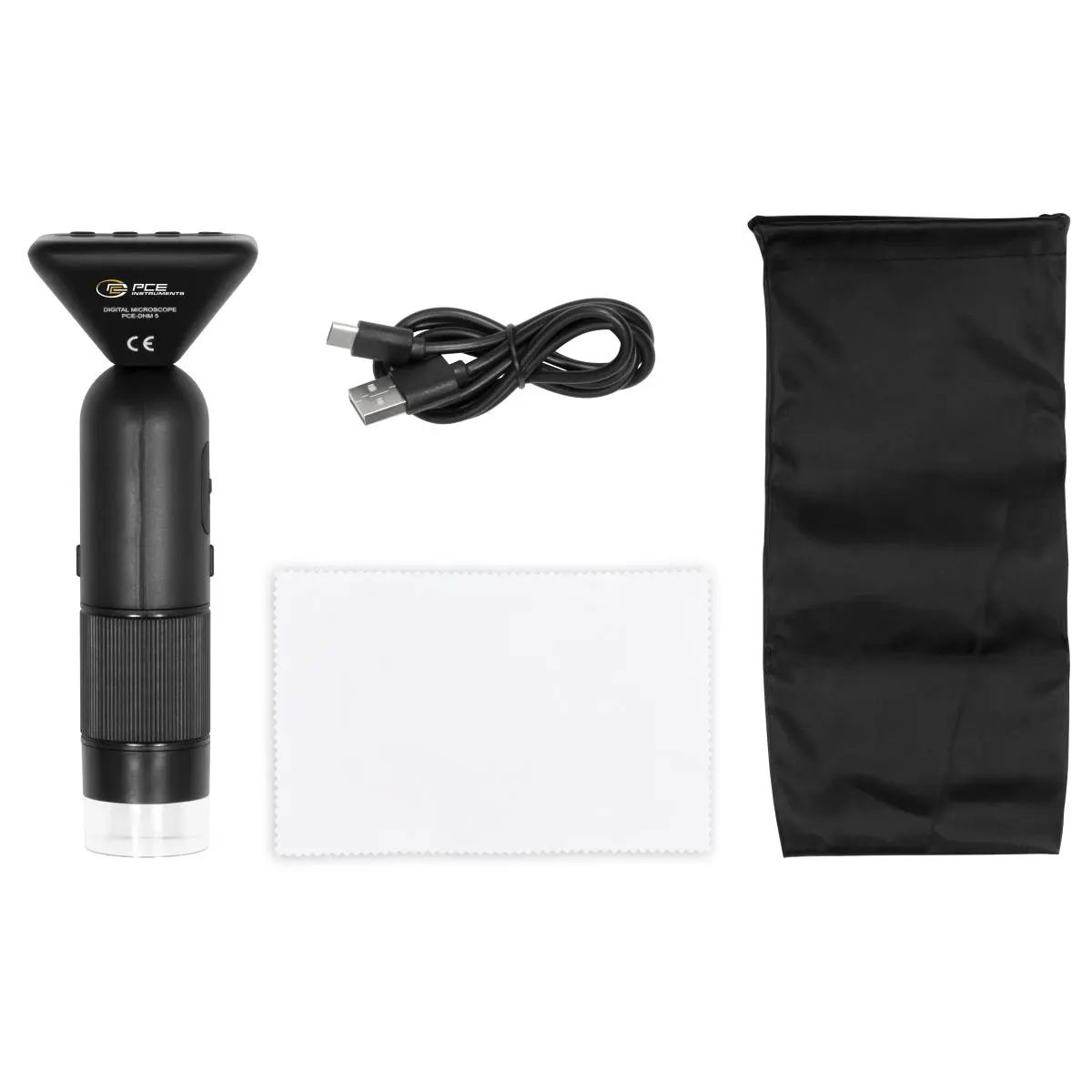

Delivery scope
1 x NDT Test Instruments PCE-DHM 5 1 x USB-C cable 1 x user manual 1 x storage bag 1 x cleaning cloth Note: Micro SD card not included!
