Spectrophotometer
High-quality spectrophotometer /
Powerful lithium-ion battery / Single or average value measurement /
Evaluation via software / 4 color LED as light source

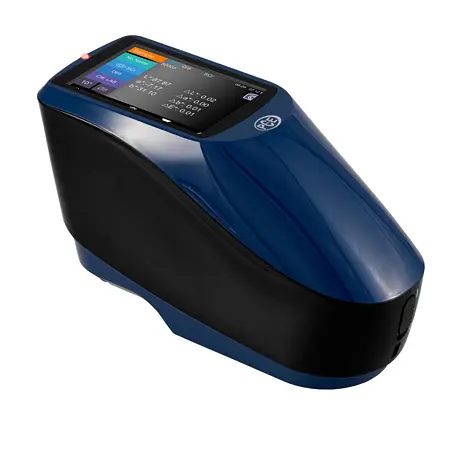

PCE-CSM 20 is a handheld spectrophotometer used for high-quality color measurement. Featuring a single 8 mm aperture and including SCI and SCE specular modes for industrial color measuring applications, the PCE-CSM 20 offers a long battery life, a long life 4-color lamp and an easy-to-use portable design. Camera/illumination locating for small samples.
The high-quality processing of the spectrophotometer is very fast. Whilst working with the spectrometer the high measuring accuracy of the device is important. In production grade and quality assurance, a spectrophotometer is often used. Here it is important that a constant quality is always produced and that individual parts not only look similar, but look identical. For this, a high measurement quality is of great importance. Depending on the model, the measured data can be transmitted to a computer via included USB. Appropriate software is also included in the delivery contents.
Highlights
- Long battery life
- USB cable for data transfer to included software
- Portable for ease of use
- Reference memory of 2000 colors, storage for 20,000 samples
- Includes white and black calibration standards
- High measuring accuracy and stability with 4 illumination choices
- Single and average measurements with delta pass/fail display
- Spectrophotometer measures from 400 to 700 nm in 10 nm increments
- Conforms with CIE No. 15, GB/T 3978, GB2893, GB/T 18833, ISO7724/1, ASTM
- E1164, DIN5033 Teil
Technical specifications
General technical data Display type TFT colour display Display size 3,5 Inch Storage medium Internal memory Storage capacity 20000 Values Memory capacity (additional information)2000 standard values, 25000 samples Interface Mini-USB Sensor CMOS Light source LED lighting system, UV light Illuminant: D65, A, C, D50 Measurement time 2,6 s Colour spaces XYZ, Yxy, LCh, CIEL u* v* Colour difference ΔE*ab ΔE*uv ΔE*94 ΔE*cmc(2:1) ΔE*cmc(1:1) ΔE*00v ΔE(Hunter) Measuring aperature Ø 8 mm Measuring geometry 8°/d Gloss component SCI (Specular Component Included), SCE (Specular Component Excluded) Wavelength range 400 … 700 Nm Observer 2°, 10° Calibration White or black calibration selectable Menu language English, Chinese, English (GB) Protection class (device)IP20 Power supply 5 V DC, 2 A Connector type Device-europlug (Rechargeable) battery 1 x 3,7 V internal , Lithium-ion battery Capacity 3200 mAh Operating conditions 0 … 40 °C , 0 … 85 % RH Storage conditions-20 … 50 °C , 0 … 85 % RH Dimensions ( L x W x H )184 x 77 x 105 mm Weight 600 g
Delivery scope
1 x Spectrophotometer PCE-CSM 20 1 x Li-Ion battery (installed) 1 x Calibration standard (white and black) 1 x Charging adapter 1 x Dust cover 1 x USB cable 1 x Factory calibration certificate 1 x CD-Rom with software 1 x Cleaning cloth 1 x User manual 1 x aluminum carry case
