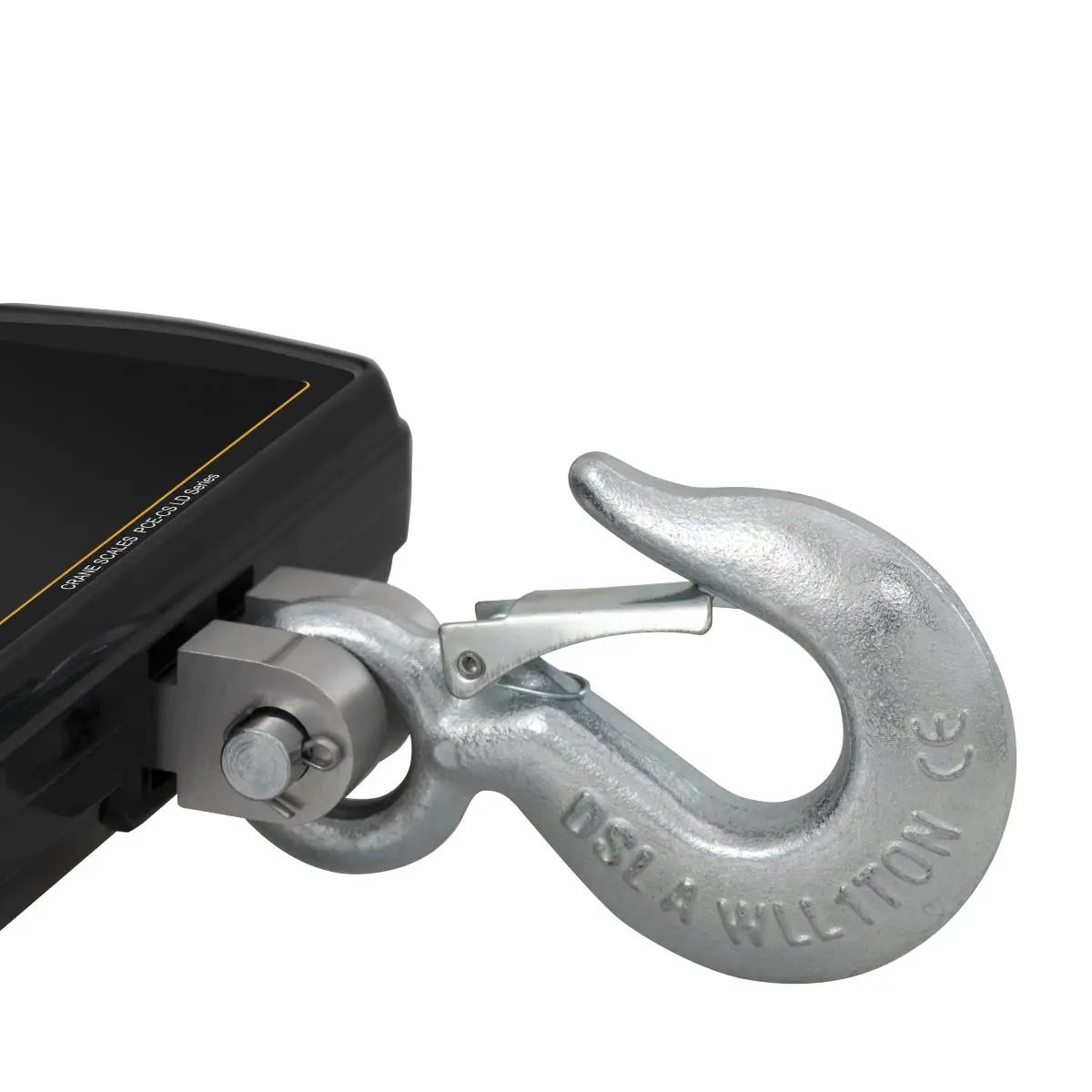

Force gage with remote control / Measuring ranges 0 … 500 kg (0 … 1102 lbs) / Metal housing / Various units of mass / With hook and shackle / Large LCD display / Battery operation / Shackle opening 23 mm / Summing function / Optionally with ISO calibration certificate

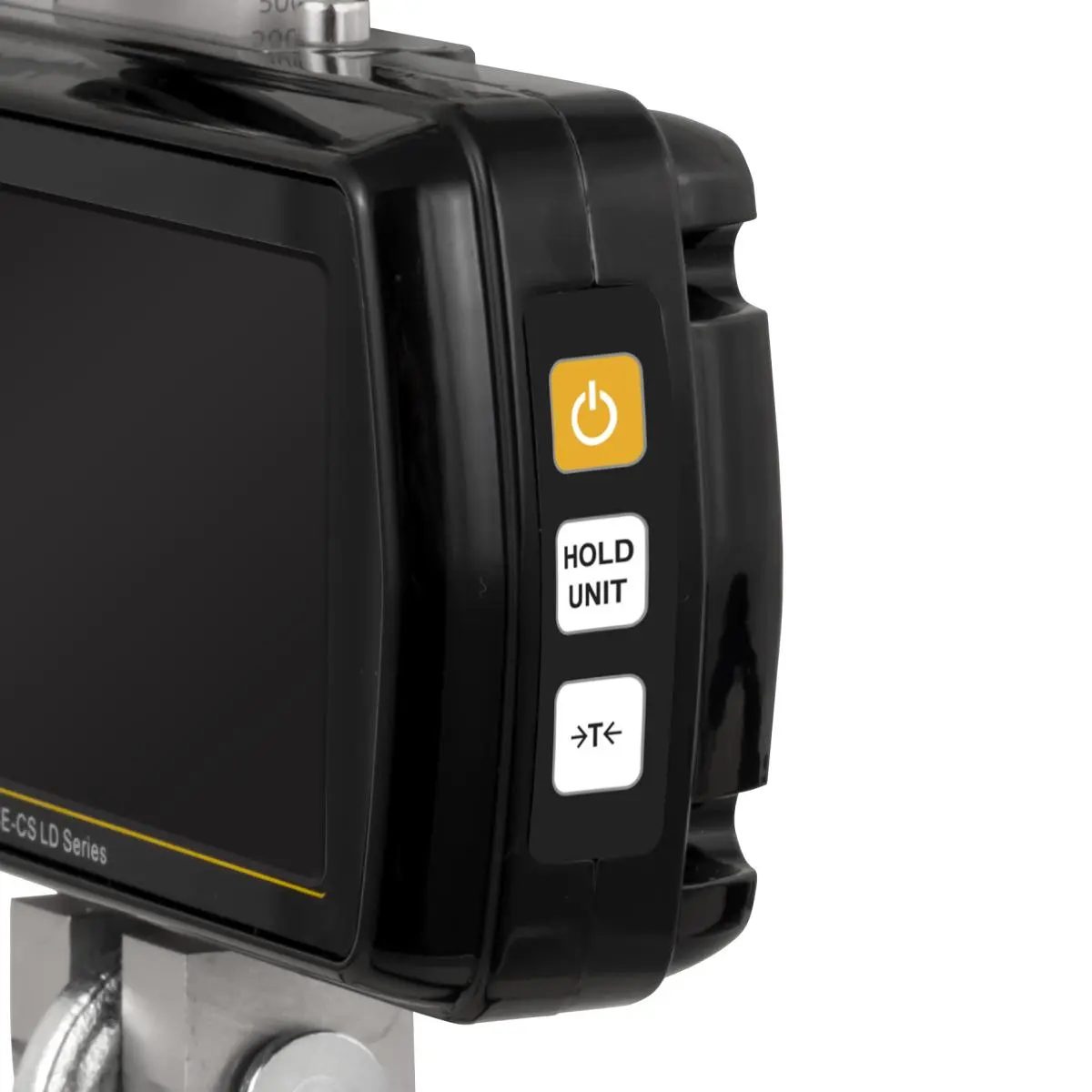

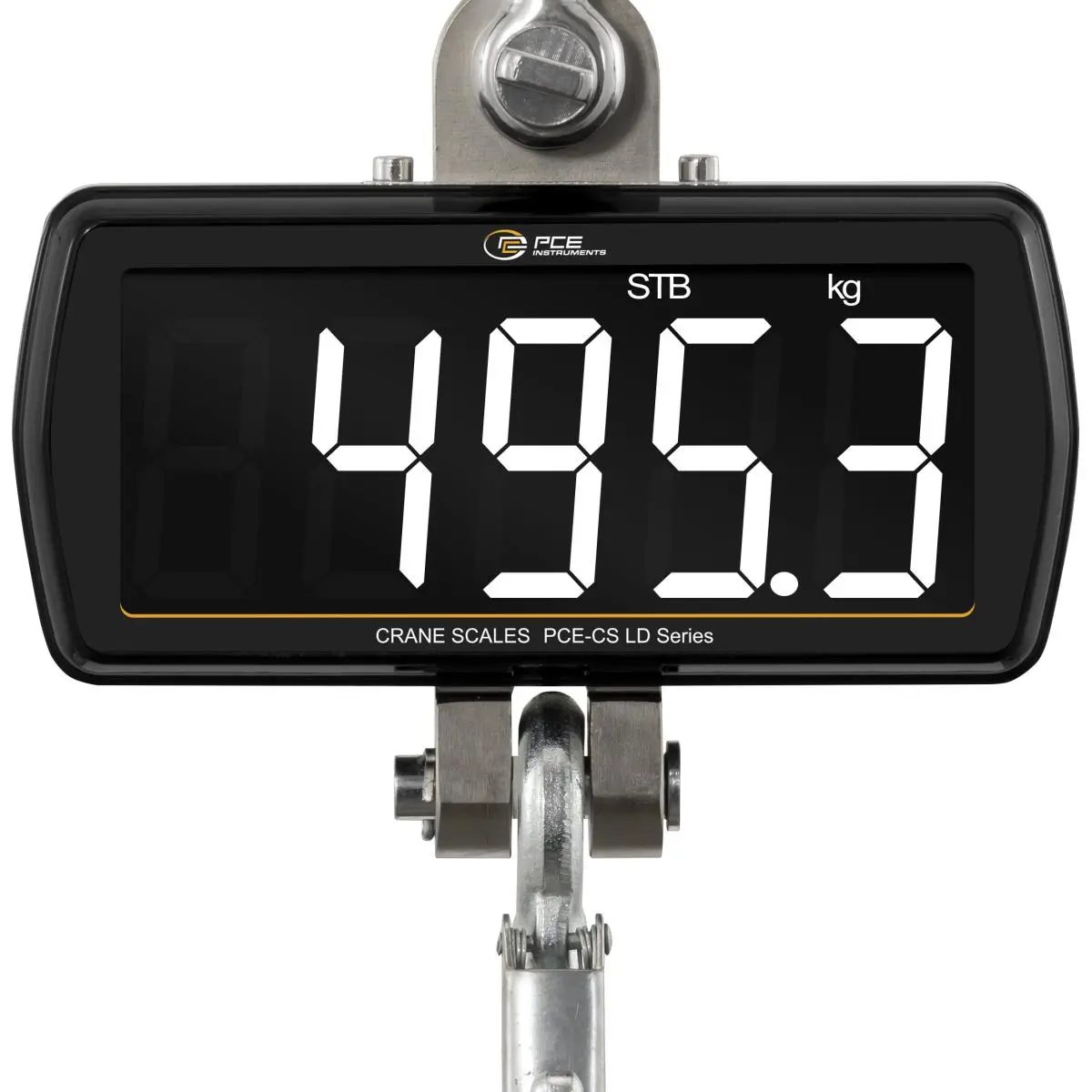

The force gage is available with a measuring range of 0 … 500 kg / 0 … 1102 lbs. With an accuracy of 1% of the measuring range, the dynamometer is a particularly precise measuring device. The housing of the dynamometer is made of robust metal. This means that the dynamometer can be used in a harsh environment. It is operated on the side of the dynamometer via the control panel. For example, the unit can be set or the zero point can be reset using the keypad. With a digit height of 41 mm and the adjustable background lighting, the dynamometer can be read easily from a great distance and in a dark environment.

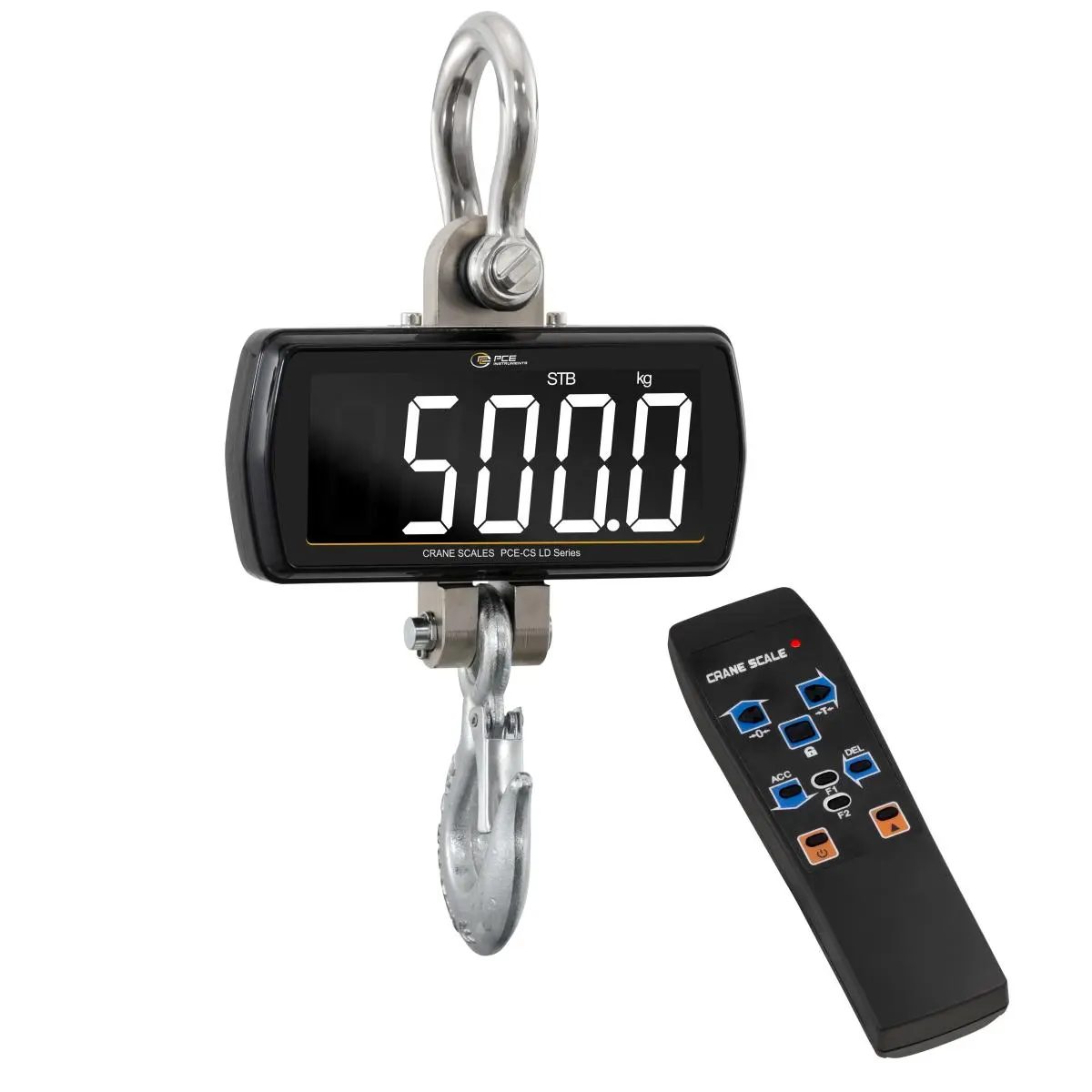

A remote control is included as an extension so that the dynamometer can be operated from a great distance. Additional settings such as the background lighting, the totalizing function or the automatic switch-off of the dynamometer can be made via the remote control.
With the additional totalizing function, weights attached one after the other can be displayed totaled by the force meter. In addition to the mass units kg and lb, a user-specific unit can be set for the dynamometer. This is done by entering a multiplier based on the kg value measured by the force meter. The energy-saving electronics in the dynamometer enable continuous measurement for approx. 45 hours. The force gauge can optionally be equipped with an ISO calibration certificate.
Highlights
- Measuring ranges 0 … 500 kg / 0 … 1102 lbs
- Remote control included
- Various functions and units of mass
- Metal case
- Digit height of 41 mm
- Optionally with ISO calibration certificate
Technical specifications
Weighing range Measurement range up to [Max]500 kg Resolution [d]0,1 kg Accuracy±1% of range General technical data Measuring functions (additional information)Totalising function, user-defined unit Units kg, lb Digit size [WxH]Height: 41 mm Operating time 45 h Operating time additional information with an always active backlight of level 3 Automatic power-off from…to 5 … 60 min. Housing Metal Minimum load [min]4 kg Tare range 0 … 100% of range Dimensions Shackle opening: 21 mm Hook opening: 23 mm Protection class (device)IP43 (Rechargeable) battery 6 x 1,5 V AA battery , Alkali-manganese Capacity 3000 mAh Operating conditions 5 … 35 °C , 0 … 90 % RH Storage conditions 5 … 35 °C , 0 … 90 % RH Dimensions ( L x W x H )290 x 160 x 37 mm Weight 995 g
Delivery scope
1 x Force Gage PCE-CS 500LD 1 x Remote control 6 x 1.5V AA batteries 1 x Instruction manual
