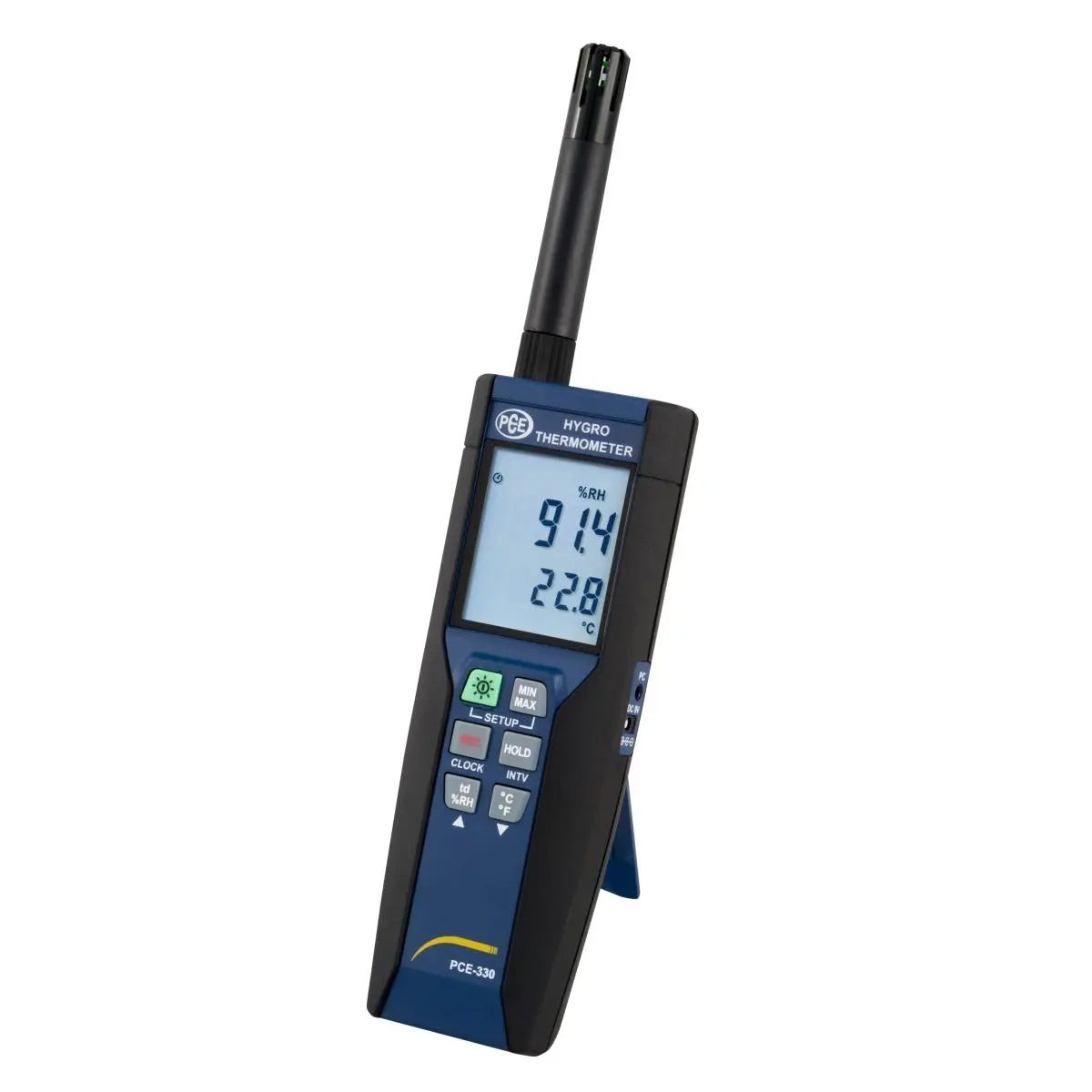

PCE-330 Heat Stress Meter For determining ambient temperature, relative humidity and dew point temperature

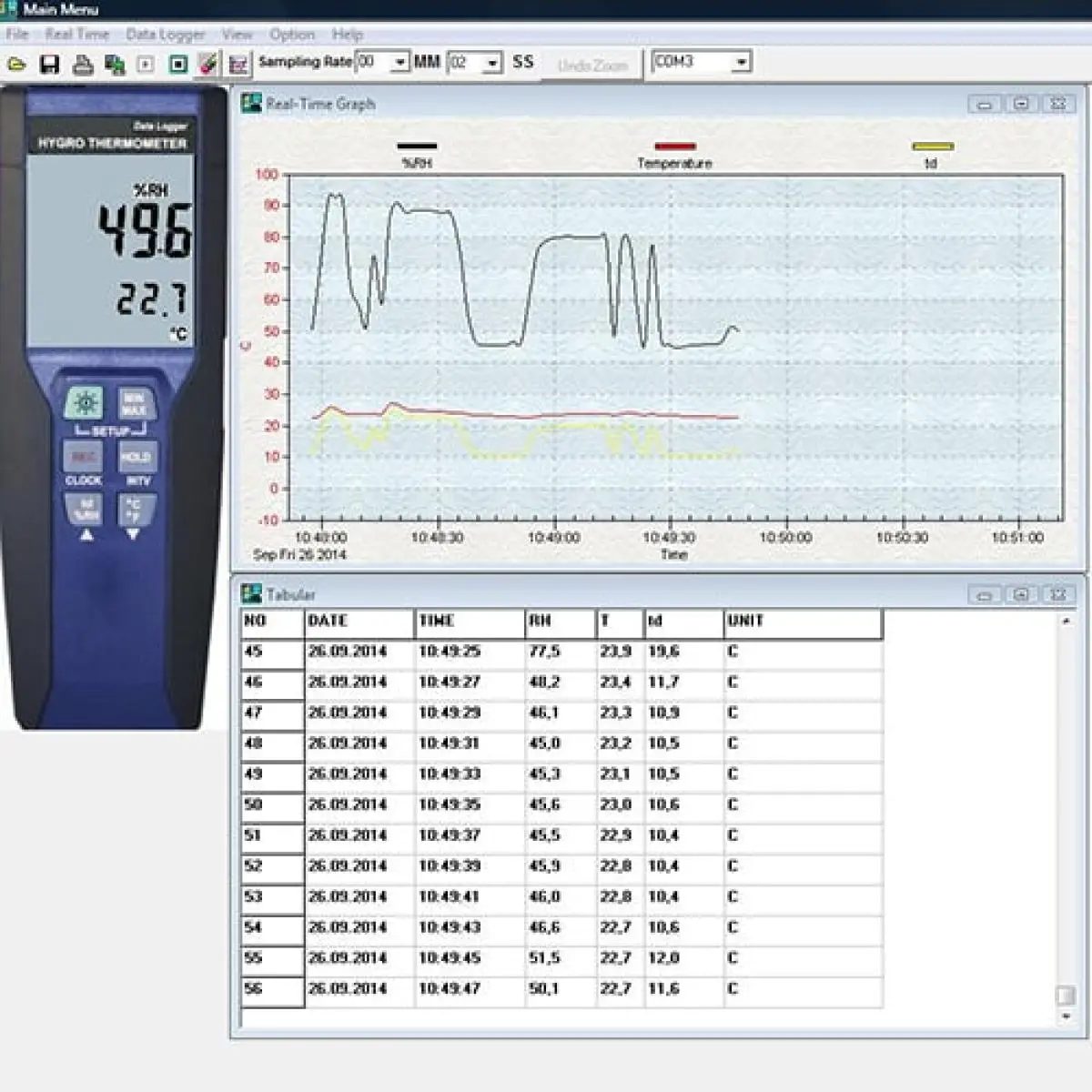

PCE-330 is a multifunction heat stress meter or humidity test instrument with a quick-response sensor for measuring ambient temperature and relative humidity. This multipurpose handheld device also determines dew point temperature. Equipped with an easy-to-read dual display, this data-logging indoor air quality (IAQ) meter features a large internal memory with storage for up to 16,000 recorded values. Using the included Windows-compatible software and USB cable, the recorded data can be transferred to a PC for further analysis.
PCE-330 is well suited for long-term IAQ monitoring and environmental data acquisition. This combination hygrometer / thermometer can be used to verify the integrity of the cold chain during the transport and warehousing of refrigerated food and pharmaceutical products. Compact and portable, this versatile meter is also ideal for evaluating the performance of heating, ventilation and air conditioning (HVAC) systems in industrial, commercial and residential properties.
Highlights
- Quick-response sensor measures temperature and relative humidity
- Adjustable temperature measuring units (°C / °F)
- Minimum, maximum, data hold, recording data logger and automatic power off
- functions
- Internal memory saves up to 16,000 date- and time-stamped readings
- Windows-compatible software and USB cable included in delivery contents for
- data transfer to PC
- Battery powered (optional AC power adapter available as an accessory)
- An ISO calibration certificate can be obtained for an additional fee (see
- accessories for details)
Technical specifications
- Dew point — Measuring range: -20 … +60 °C
- Dew point — Resolution: 0,1 °C
- Dew point — Accuracy: ±0.8°C
- Relative humidity — Measuring range: 0 … 9 % RH
- Relative humidity — Resolution: 0,1 % RH
- Relative humidity — Accuracy: ±4 % RH
- Relative humidity — Measuring range: 10 … 90 % RH
- Relative humidity — Resolution: 0,1 % RH
- Relative humidity — Accuracy: ±2.0 % RH
- Relative humidity — Measuring range: 91 … 100 % RH
- Relative humidity — Resolution: 0,1 % RH
- Relative humidity — Accuracy: ±4 % RH
- Temperature — Measuring range: -20 … +60 °C
- Temperature — Resolution: 0,1 °C
- Temperature — Accuracy: ±0.8 °C
- General technical data — Measuring functions: MIN, MAX, HOLD
- General technical data — Display type: LCD with backlight
- General technical data — Display size: 2,5 Inch
- General technical data: Measuring rate 2 x per second
- Storage medium Internal memory — Storage capacity: 16000 Values
- Storage medium Internal memory — Sensor: NTC
- Storage medium Internal memory — Response time: Additional information Humidity: 60 s
- Storage medium Internal memory: Temperature: 10 s
- Storage medium Internal memory: Operating time 80 h
- Storage medium Internal memory: Automatic power-off 30 min
- Storage medium Internal memory — Other dimensions: Sensor 15 x 82 mm
- Storage medium Internal memory — Menu language: English, English (GB)
- Storage medium Internal memory — Protection class (device): IP20
- Storage medium Internal memory — Power supply: 9 V DC
- Storage medium Internal memory — (Rechargeable) battery: 1 x 9 V 9V block , Zinc carbon
- Storage medium Internal memory — Capacity: 400 mAh
- Storage medium Internal memory — Operating conditions: 0 … 40 °C , 10 … 90 % RH
- Storage medium Internal memory — Storage conditions: -10 … 60 °C , 10 … 75 % RH
- Storage medium Internal memory — Dimensions: ( L x W x H )185 x 65 x 36 mm
- Storage medium Internal memory — Weight: 285 g

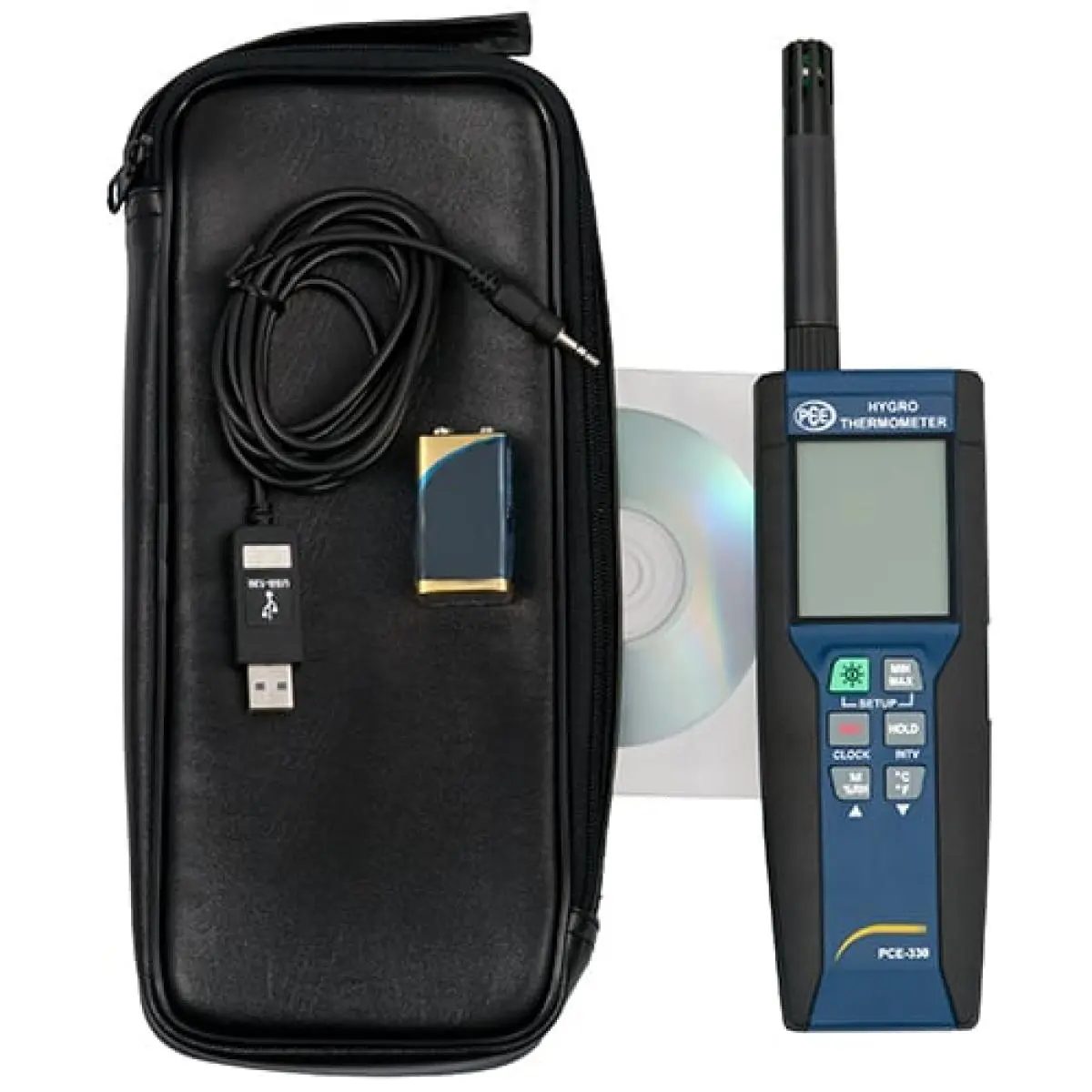

Delivery scope
- 1 x PCE-330 Thermo Hygrometer with sensor
- 1 x Battery
- 1 x USB cable
- 1 x CD-ROM with Windows-compatible software
- 1 x User manual
