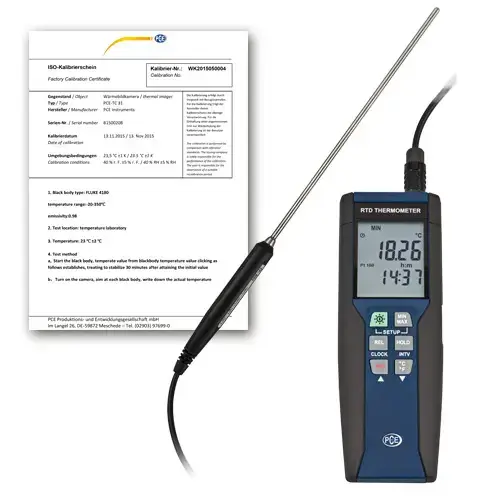

PCE-HPT 1-ICA Rod Thermometer with ISO Calibration Certificate
High-precision probe thermometer PCE-HPT 1-ICA with an ISO calibration certificate, featuring a 4-wire PT 100 Class A sensor / along with software for data transmission and evaluation of measured data / internal data logger
The microprocessor-based thermometer is a highly accurate 1-channel temperature measurement device. The microprocessor thermometer is ideally suited for use with various PT-100 sensors. Thanks to 4-wire technology, the response time is exceptionally fast and accurate. This makes the microprocessor thermometer’s sensors suitable for all high-precision and high-speed processes.
The temperature measurement range of the microprocessor thermometer is -100 to +400 °C. The microprocessor thermometer’s intuitive and user-friendly software enables easy evaluation and allows for real-time display of measured values and measurement data. An internal clock with date and time allows the user to precisely record events. The microprocessor thermometer features an internal data logger with an adjustable measurement interval.
– 1-channel data logger for temperature
– automatic shut-off
– high accuracy
– backlight
– software included
– internal data storage device
– internal clock
– 4-wire Pt-100 sensor, Class A
– data storage function
– switchable units (°C / °F)
– Comes with an ISO calibration certificate
| Technical Specifications | |
| Measurement range | -100 … +400 °C |
| accuracy | only ±0.05% + 0.1 °C (at temperatures between 18 °C and 28 °C) device |
| resolution | 0.01 °C |
| sensor | 4-wire Pt-100 Class A |
| Display | 5-digit LCD display |
| Data Transmission | USB |
| Data storage | up to 5,000 measurement points |
| Repeated measurement | Measured value at 0.5 s |
| Batteries | 1 x 9 V battery or 9 V power adapter (optional) |
| Phone dimensions | 185 x 65 x 36 mm |
| Sensor dimensions | 235 x 5 mm 123 mm handle 1.5 m connection cable |
| Weight | 360 g |
| Operating Conditions | 0 … +50 °C, 80% relative humidity |
| Storage Conditions | -10 … +60 °C, 80% RH |
1 x PCE-HPT 1-ICA probe thermometer
1 x Pt 100 sensor
1 USB cable
1 x software
1 x 9 V block battery
1 x storage box
1 x user manual
1 ISO calibration certificate
