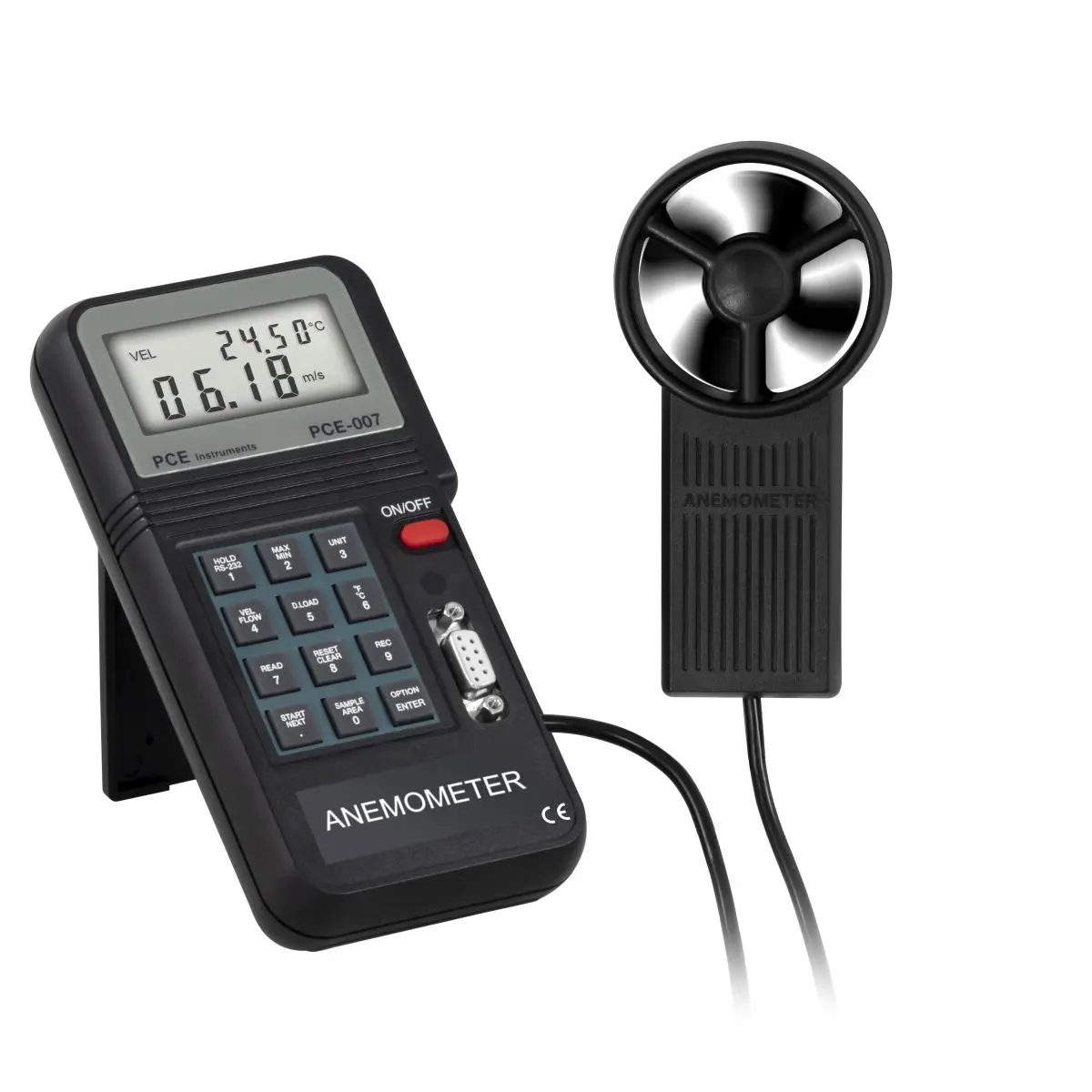

Accurate airwheel wind measurer meter with connection port, memory,
**software for measuring wind speed, temperature and airwheel wind measurer**
This airwheel wind measurer meter is very economical. With this airwheel wind measurer meter you can measure wind speed and air temperature.Once you have the right cross section, the airwheel wind measurer meter will show the air volume flow. The readings can be stored in the device and then transferred to a computer for further analysis. As such, you can take a series of measurements with the airwheel wind measurer meter off-site, then look closely at the data once back at the office. In this way, you save time and maintain a high level of accuracy in readings.

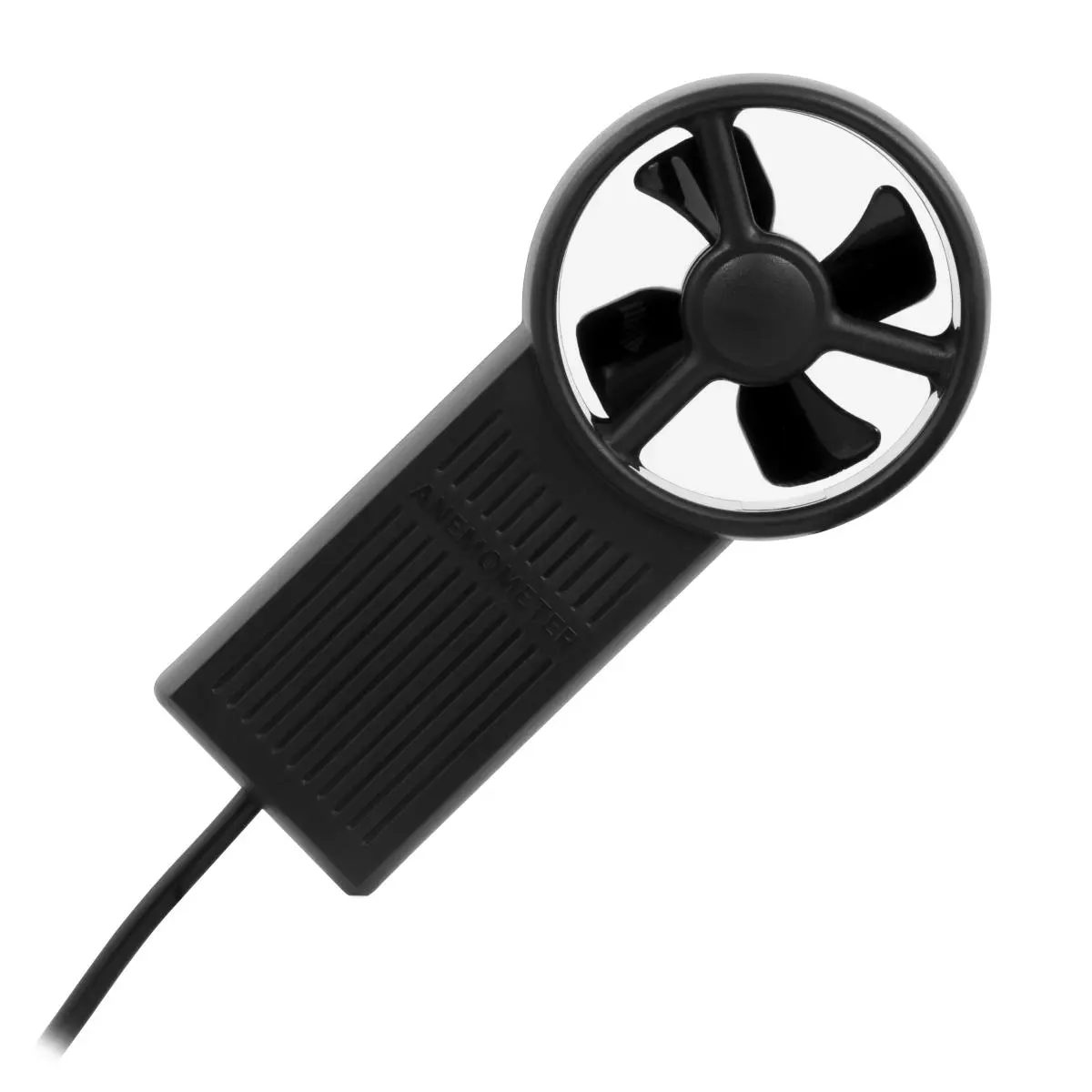

The external impeller, connected by a 1.5 m / 4.9 ft long cable, increases the mobility and flexibility of measurements of wind speed. These airwheel wind measurer meters form a part of the basic equipment of an installation technician for ventilation systems. The useful life of the battery is approx. 50 hours with a current of 300-mA/h. If you wish to take timed measurements over a period of time longer than 2 days, you will need to use a battery pack, or a power adapter.
Highlights
- Measures wind speed and air temperature
- Calculate and shows Data logger
- Stores up to 2000 readings
- Comes with an RS-232 interface
- Has software to transfer data
- Shows distinct units of measurement
- Has a dual display
- Is easy to use
- Max/Min/Hold functions
- Auto-Power off
Technical specifications
- Speed — Measuring range: 0,3 … 45 m/s
- Speed — Resolution: 0.01 m/s
- Speed — Accuracy: ±3 % ±0.1 (equal for all units)
- Speed — Measuring range: 0,3 … 8800 ft/min
- Speed — Resolution: 0.01 ft/min
- Speed — Accuracy: ±3 % ±0.1
- Speed — Measuring range: 0,3 … 88 knots
- Speed — Resolution: 0.01 knots
- Speed — Accuracy: ±3 % ±0.1
- Speed — Measuring range: 0,3 … 140 km/h
- Speed — Resolution: 0.01 km/h
- Speed — Accuracy: ±3 % ±0.1
- Speed — Measuring range: 0,3 … 100 mph
- Speed — Resolution: 0.01 mph
- Speed — Accuracy: ±3 % ±0.1
- Volume flow — Measuring range: 0 … 99,95 m³/min
- Volume flow — Resolution: 0,05 m³/min
- Volume flow — Accuracy: calculated from wind speed and area
- Volume flow — Measuring range: 100 … 999,9 m³/min
- Volume flow — Resolution: 0,1 m³/min
- Volume flow — Accuracy: calculated from wind speed and area
- Volume flow — Measuring range: 1000 … 9999 m³/min
- Volume flow — Resolution: 1 m³/min
- Volume flow — Accuracy: calculated from wind speed and area
- Volume flow — Measuring range: 10000 … 99990 m³/min
- Volume flow — Resolution: 10 m³/min
- Volume flow — Accuracy: calculated from wind speed and area
- Volume flow — Measuring range: 100000 … 999900 m³/min
- Volume flow — Resolution: 100 m³/min
- Volume flow — Accuracy: calculated from wind speed and area
- Temperature — Measuring range: 0 … 45 °C
- Temperature — Resolution: 0,01 °C
- Temperature — Accuracy: ±1 °C
- General technical data — Measuring functions: HOLD, MAX, MIN
- General technical data — Display type: LCD
- General technical data — Display size: 2,5 Inch
- General technical data — Display refresh rate: 2 x per second
- General technical data — Storage capacity: 2000 Data records
- General technical data — Storage interval from: 1 s
- General technical data — Storage interval to: 4 min.
- General technical data — Interface: RS232
- General technical data — Housing: ABS (acrylonitrile-butadiene-styrene copolymers)
- General technical data — Menu language: English
- General technical data — Protection class (device): IP20
- General technical data — (Rechargeable) battery: 1 x 9 V 9V block , Alkali-manganese
- General technical data — Capacity: 640 mAh
- General technical data — Operating conditions: 0 … 50 °C , 0 … 80 % RH
- General technical data — Storage conditions: 0 … 50 °C , 0 … 80 % RH
- General technical data — Dimensions: ( L x W x H )170 x 90 x 34 mm
- General technical data — Other dimensions: Sensor 132 x 64 x 32 mm
- General technical data — Weight: 337 g
Delivery scope
- 1 x PCE-007 Wind Measurer meter with impeller and 1.5 m / 4.9 ft long cable
- 1 x Interface
- 1 x Software
- 1 x Battery
- 1 x Bag
- 1 x User’s manual
