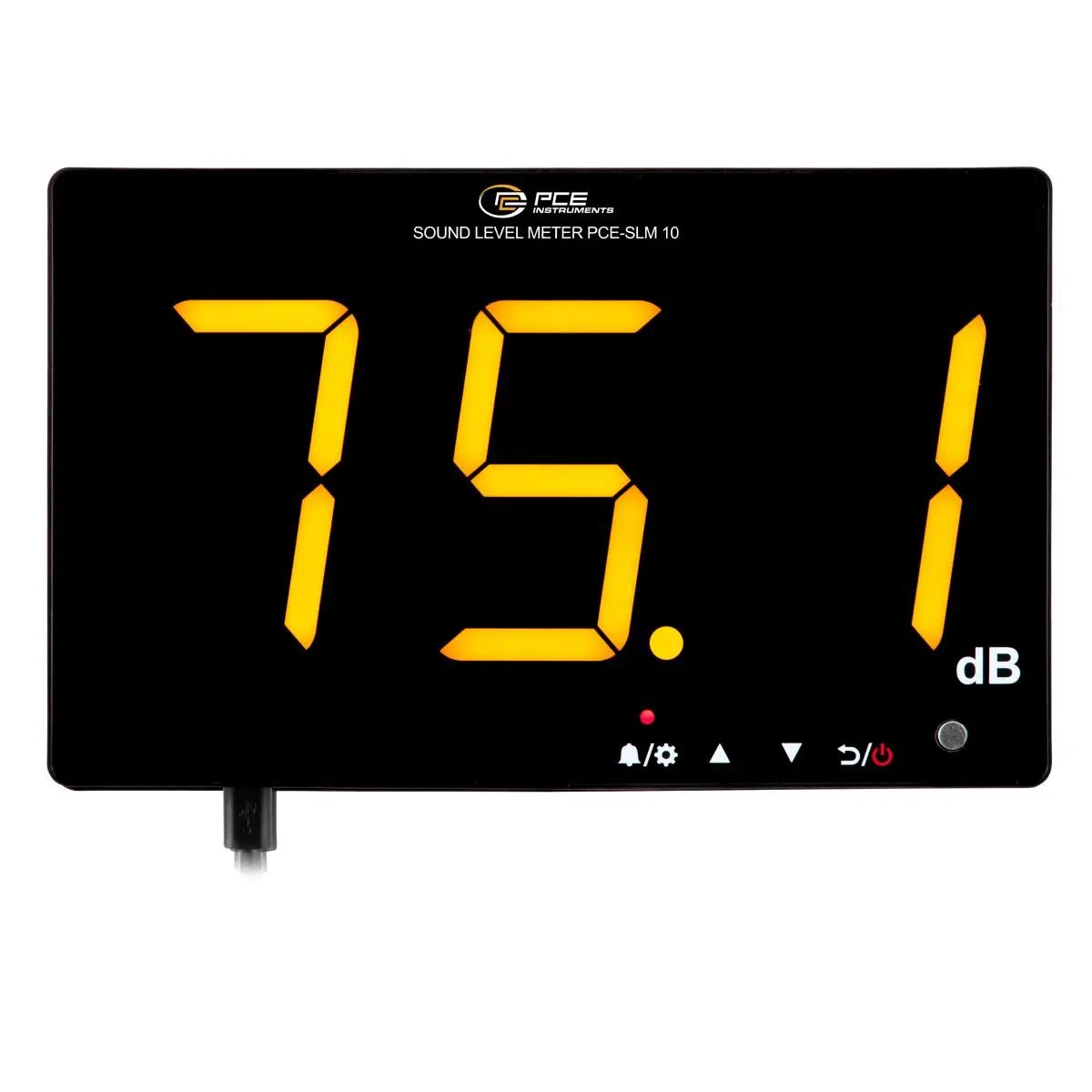

Large displayPCE-SLM 10 dB display with 75 mm digit height / 30 … 130 dBA measuring range / LED display / Wall mounting / Integrated condenser microphone
The dB display PCE-SLM 10 is suitable for the continuous measurement and visualization of the sound pressure level. The PCE-SLM 10 dB display is used in schools, open-plan offices, bars, clubs and other event venues. Due to the large digits of the dB display, the measured value is always easy to read. Due to the LED display, this is also possible in dark environments without any problems. The dB display is powered by USB with the optional AC adapter or external battery pack.

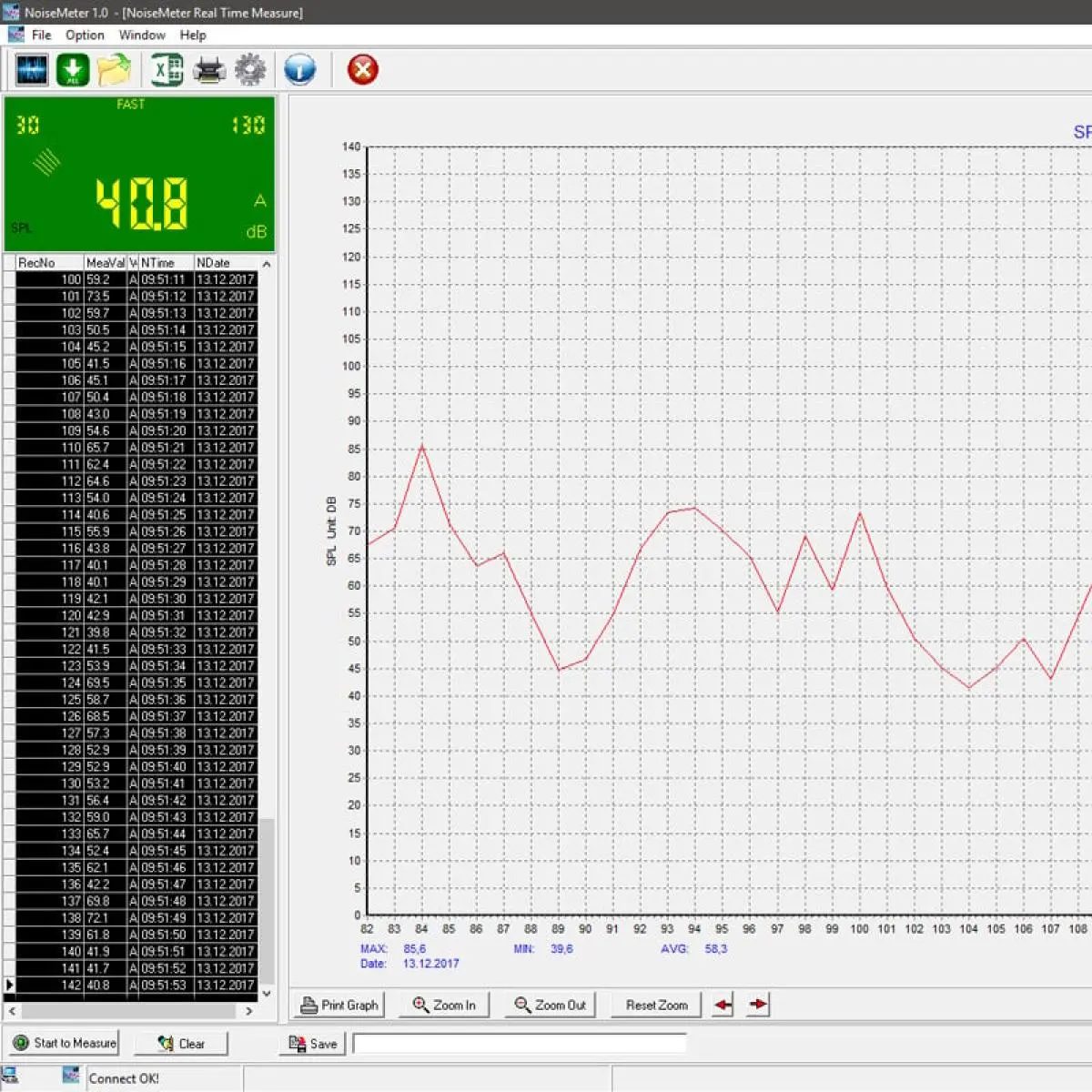

The measuring range of the dB display ranges from 30 … 130 dB. The sound level meter displays the measured value A weighted. The time weighting of the dB display is always Fast. The frequency range of the 6 mm condenser microphone ranges from 31.5 Hz to 8.5 kHz. The dB interface can be connected to the PC via the USB interface. The software can be used to transmit live measurements to a computer. The dB display also has an internal memory, which can be read out with the software.
Highlights
- 75 mm / 3 in digit height
- 30 … 130 dBA measuring range
- 0.1 dB or 1 dB resolution

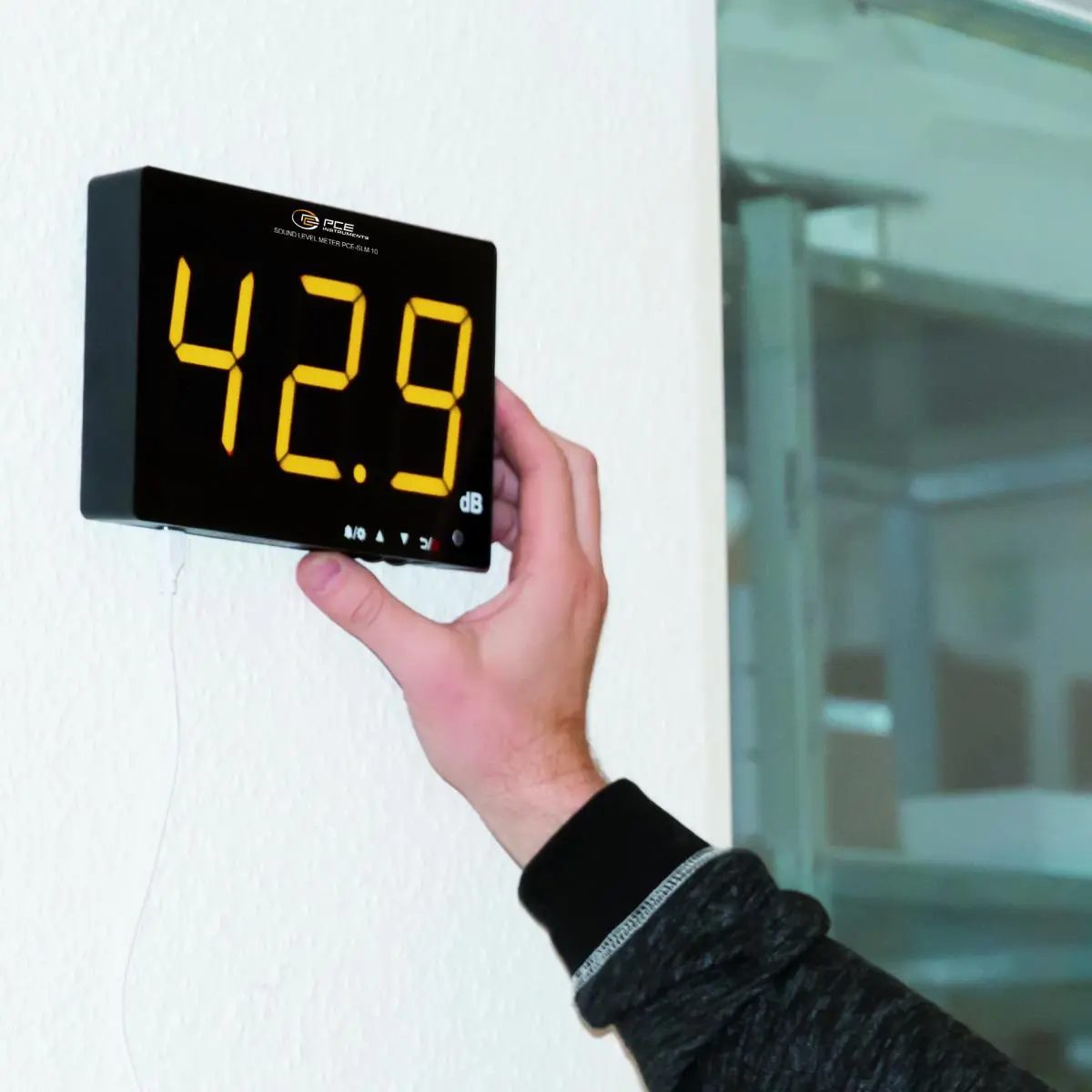

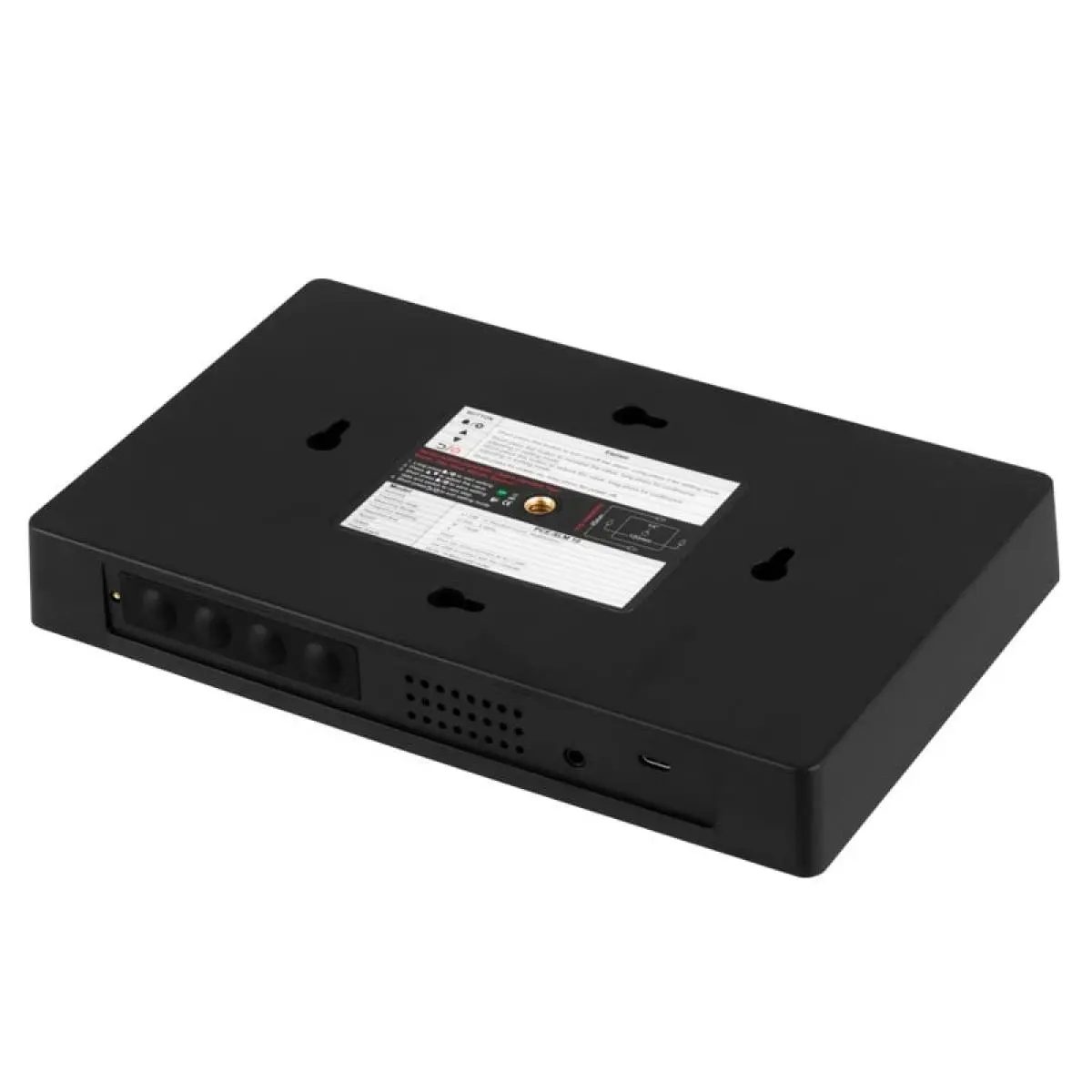

- Wall mounting
- Operation via micro USB charger or external battery
- Alarm function
- For offices, schools, event rooms
- Memory for 657,000 readings
Technical specifications
- Sound level — Measuring range: 30 … 130 dB
- Sound level — Resolution: 0,1 dB
- Sound level — Accuracy: ±1.5 dB at 94 dB @ 1 kHz
- General technical data — Measuring functions: ALARM
- General technical data: Time weighting fast (125 ms)
- General technical data — Frequency: weighting A
- General technical data — Frequency: 31.5 … 8500 Hz
- General technical data — Display type: LED
- General technical data: Digit size [WxH]H: 75 mm
- General technical data — Storage capacity: 657000 Values
- General technical data — Storage interval from: 2 s
- General technical data — Storage interval to: 2 s
- Microphone type Electret capacitor — Interface: Micro-USB
- Microphone type Electret capacitor: Tripod thread 1/4 inch
- Microphone type Electret capacitor — Menu language: English, English (GB)
- Microphone type Electret capacitor — Protection class (device): IP20
- Microphone type Electret capacitor — Power supply: 5 V / 1 A
- Microphone type Electret capacitor — Operating conditions: 0 … 40 °C , 10 … 80 % RH
- Microphone type Electret capacitor — Storage conditions: -10 … 60 °C , 10 … 70 % RH
- Microphone type Electret capacitor — Dimensions: ( L x W x H )210 x 130 x 28 mm
- Microphone type Electret capacitor — Weight: 435 g

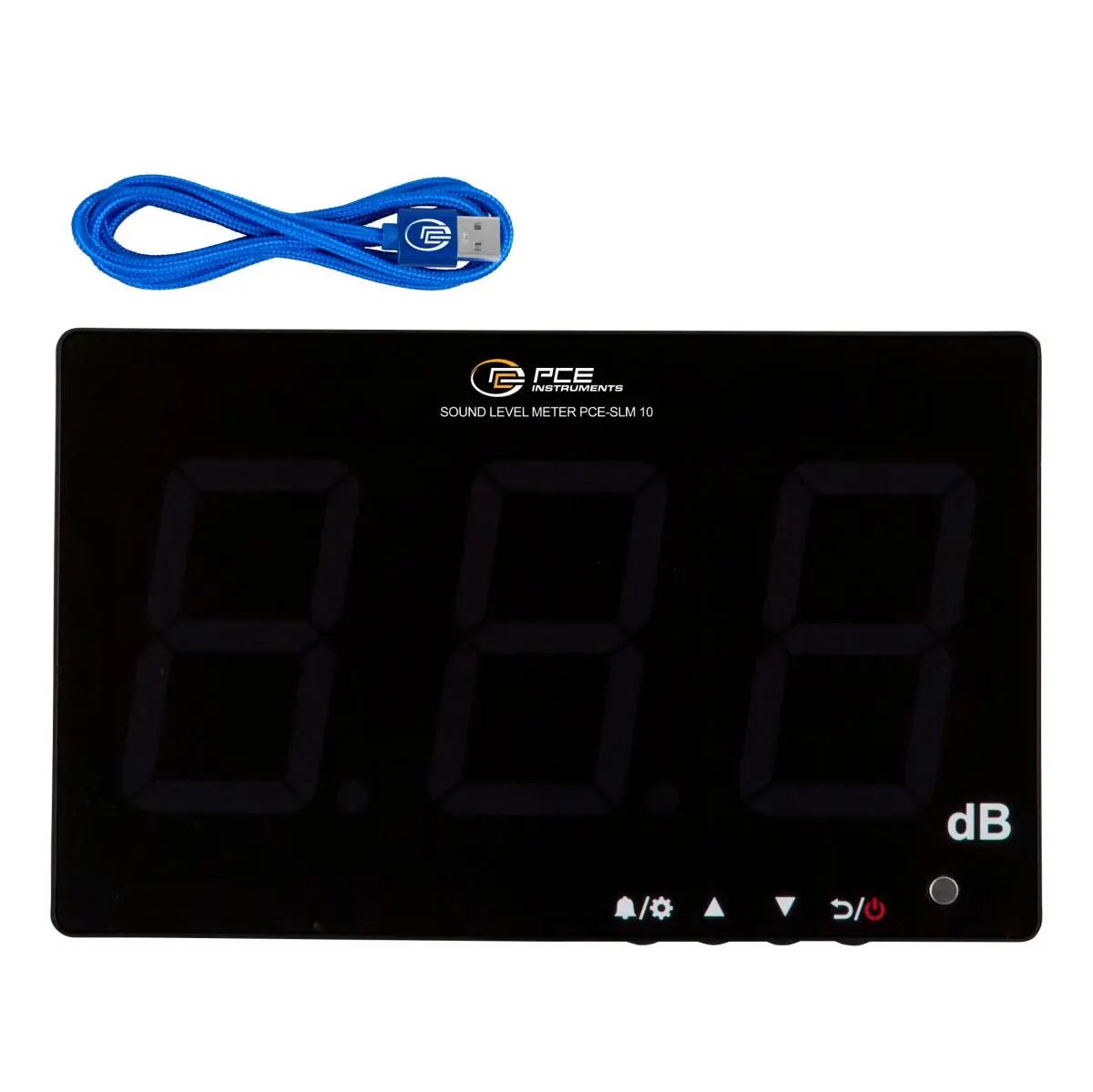

Delivery scope
- 1 x Noise meter PCE-SLM 10
- 1 x Micro USB cable
- 1 x User manual
