Infrared Heating Panel / Infrared Heater TIH 900 S
The TIH 900 S infrared heating panel is our top recommendation for use you need to equip previously unheated rooms with an efficient heat source, or if you want to create cozy, targeted, and cost-effective additional warmth within your own four walls.
Whereas conventional heaters operate using convective heat, in which the surrounding air is used as a heat carrier, which is then heated and distributed throughout the room, the TIH 900 S heating panel generates direct heat without the convective losses caused by infrared radiation, following the same natural principle as the sun.
Here are some possible uses for the TIH 900 S infrared heating panel:
- Heating for Living Spaces — Whether it’s a living room, sunroom, or bathroom, infrared panel heating provides targeted supplemental heat exactly where residents need it. To save space, it can be mounted on the wall, and all you need to heat the room is a standard electrical outlet.
- Applications in Gastronomy – Whether used as a freestanding or wall-mounted unit, the TIH 900 S infrared heating panel is the ideal solution for selectively heating sales booths or patio areas and is much more efficient than conventional gas-firedheaters.
- Faster drying of wall surfaces – When drying or renovating buildings, infrared heating of suitable wall construction materials causes capillary moisture transport toward the heated wall surface due to the temperature gradient; unlike diffusion, this process can move moisture significantly farther. More moisture is drawn out of the wall in less time
- Workplace heating —simply by adjusting it to a standing position with your feet, the TIH 900 S infrared spot heater offers many advantages even in drafty or chilly workplaces, such as warehouses, behind refrigerated display cases, and in workshops or large halls.
Benefits of exercise:
- An efficient heating process using environmentally friendly IR-C radiation
- Heat transfer via light waves—direct heating of an object without convective heat loss
- Maximum efficiency: 100% of the electrical energy used is converted into heat output
- Pure heat—no noise, no odor, no condensation, no oxygen consumption, and no unpleasant dust formation
- Integrated mounting bracket for attaching to a wall or mounting clamps
- It can also be used as a stationary device
- Ready to use right away—no additional installation or costly modifications required
You can find the ErP table for this heater in the download section…
Please note: This device is intended for use only in well-insulated rooms or for occasional use.
| Calculating the heating capacity required for rooms with ceiling heights of up to 2.5 m | Quality of room heating | ||
|---|---|---|---|
| Good to Very Good | Average | uninsulated/old building | |
| 1 exterior wall | 50 W/m² | 70 W/m² | 90 W/m² |
| each additional exterior wall | +10 W/m² | +10 W/m² | +10 W/m² |
| The required infrared heat output is calculated as follows: Room area in m² × W/m² = required heat output in watts. Calculation example: For a 10 m² room with very good insulation and two exterior walls (50 + 10 W/m²), the recommended power requirement is 10 m² × 60 W/m² = 600 W. | |||
Please note that the legs, telescopic poles, and extension cords shown in the product images are not included in the package!
- An efficient heating process using environmentally friendly IR-C radiation
- Heat transfer via light waves—direct heating of an object without convective heat loss
- Maximum efficiency: 100% of the electrical energy used is converted into heat output
- Pure heat—no noise, no odor, no condensation, no oxygen consumption, and no unpleasant dust formation
- Integrated mounting bracket for attaching to a wall or mounting clamps
- It can also be used as a stationary device
- Ready to use right away—no additional installation or costly modifications required
TIH 900 S – effective heat with infrared radiation similar to that of the sun

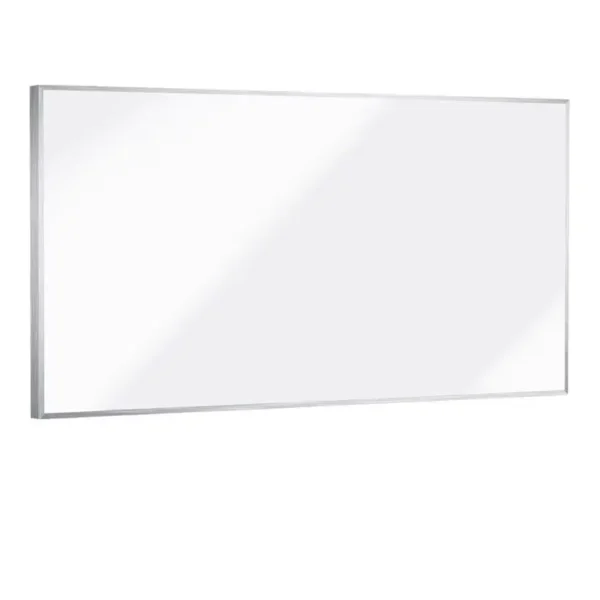

Behind the timelessly elegant heating panel—featuring an anodized aluminum frame and a white powder-coated metal surface—lies a well-thought-out design that allows for a wide range of assembly options.
The mounting bracket integrated into the back makes mounting on the wall—whether horizontally or vertically—a breeze, optional legs allow for floor installation, and the mounting clamps available as an accessory enable attachment to commercially available mounting brackets.
