Heylo HEYWALL plus – dust barrier

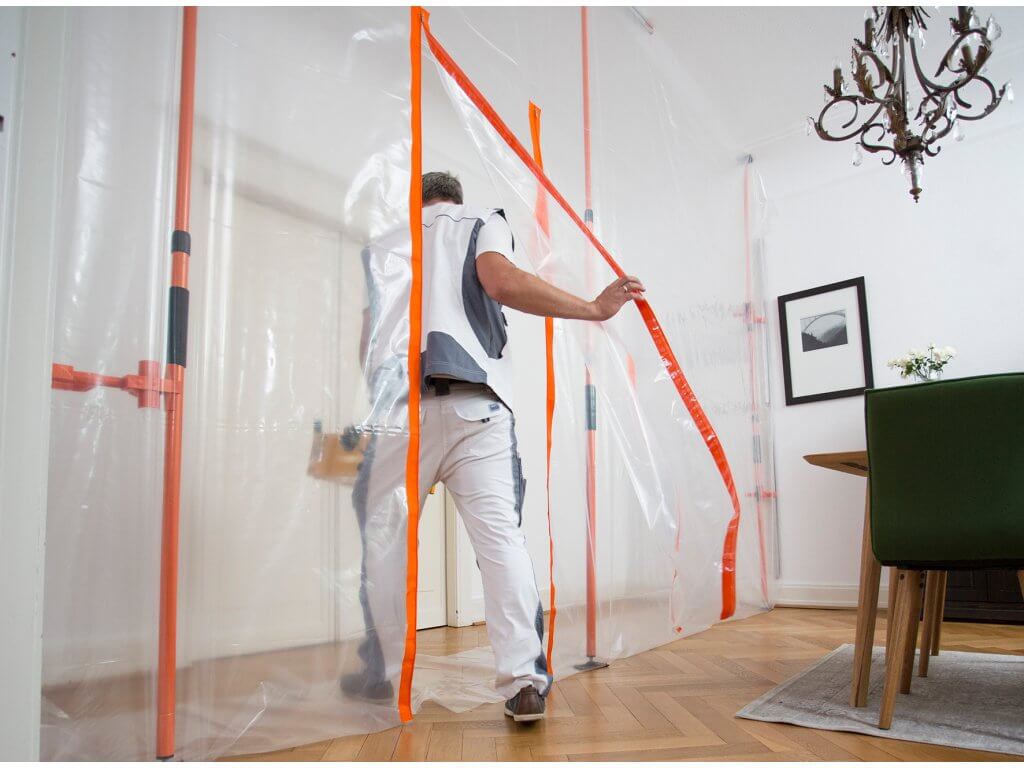

Do you need quick and flexible protection from dust during renovation work? Without the time-consuming task of masking and covering doors, windows, and furniture? The HEYWALL dust barrier ensures that rooms stay clean during renovation or remodeling work and prevents the hassle of cleaning up afterward. A smart dust protection system for individual rooms.
The HEYWALL modular system consists of aluminum posts up to 5 m high, which—together with foil and a practical self-adhesive zipper for entry or exit—create a dust-proof barrier. It can be configured as a room divider, in an L- or U-shape, or as a polygon. Any configuration is possible.
Installation procedure:
1. Install the system rails
2. Seal the sides
3. Seal the top
4. Secure the zipper
Professional Content Package:
6 system poles (up to 3.60 m in height)
6 corner adapters
2 zippers
6 side clips
8 sealing strips/roof clips
3 carrying bags
HEYWALL Modules
- Extendable aluminum system rails, including the top and bottom plates: Attach the top and bottom plates to the system rail. Attach the foil to the top plate. Then extend the system rod to the desired length between the floor and the ceiling by pulling it out.
- Sealing strips, including ceiling clips: Use sealing strips and ceiling clips for installation on ceilings; use sealing strips with side clips to seal walls.
- Side clamps: Together with the sealing strips, these form the wall seal. First, connect the side clamp to the sealing strip. Then, at the appropriate height, connect the sealing strip and the side clamp to the system rail.
- Corner Adapter: For attaching the system rails to sloped walls. Screw the corner adapter to the system rail, and then screw the head plate onto the corner adapter. Next, secure the system rail between the floor and the slope.
- Self-adhesive zippers: for attaching to plastic sheeting. For easy entry to and exit from the construction site. Stick the zipper in place and cut a hole in the sheeting for access.
- Carry Bag: A bag with a sturdy zipper for stable transport and handling, as well as an integrated pocket for accessories. Washable inside and out.
- Quick-mount adapter for system posts: The spring adapter is screwed onto the system post and is used to make it easier to mount the posts between the floor and the ceiling.
- System pole extension, 140 cm, to be screwed onto the extendable system pole.
Key Features
-
Fast and flexible protection against dust
-
For separating walls, ceilings, and partition surfaces
-
Modular system – individual modules for various applications
-
There is no covering or taping of doors, windows, or furniture
-
For open areas up to 5 m high
-
Tool-free operation and easy to set up in just a few minutes without a ladder
-
There will be no subsequent cleaning
-
There are no disposal costs
Product
| Technical Specifications | Units | Plus Package |
|---|---|---|
| System rails (3.6 m) |
to count
|
4
|
| Corner adapter |
to count
|
4
|
| Sealing Strips |
to count
|
4
|
| Ceiling lamps |
to count
|
4
|
| Side Clamps |
to count
|
4
|
| Zippers |
to count
|
2
|
| Carry Bag |
to count
|
1
|
| Box dimensions (L x W x H) |
mm
|
1700 x 300 x 150
|
| Net weight |
kg
|
10
|
Suitable
-
Buildings and Commercial Spaces
-
Construction
-
Disinfection and Pest Control
-
General Industry and Manufacturing
-
Free time and free time
