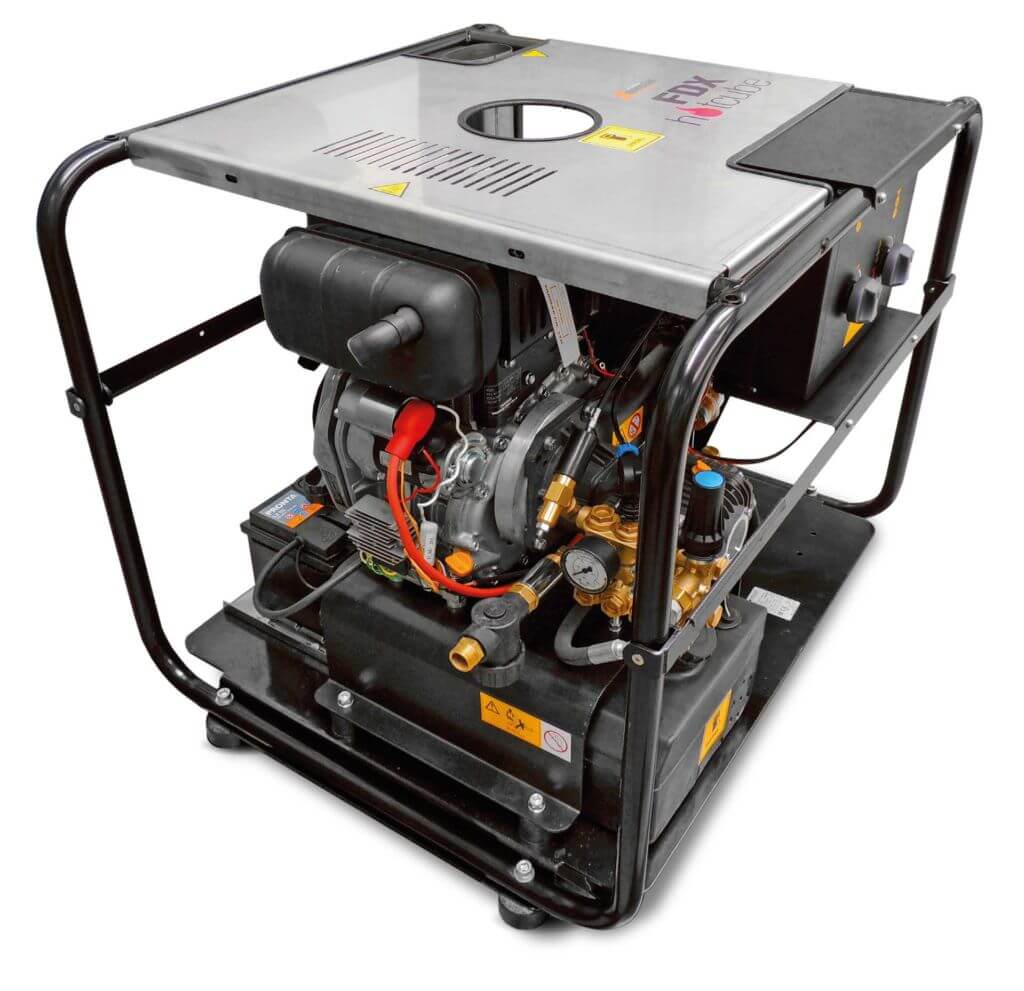

Comet FDX Compact Cube – Diesel Pressure Washer
2 versions:
FDX Compact Cube 15/160 D Yanmar L 70 V
FDX Compact Cube 13/180 D Yanmar L 70 V
The Comet FDX Compact Cube is a compact, open-type high-pressure washer equipped with a self-priming pump.
The diesel-powered FDX Compact Cube is a professional high-pressure hot water machine featuring a high-efficiency vertical boiler and a stainless steel outer casing. The FDX Compact Cube boiler is thermally protected. Comet FDX Compact Cube vertical boiler
The FDX Compact Cube pressure washer is designed for transport using a forklift.
This professional machine is electrically powered and features an electronic temperature control system that maintains a constant water temperature. With its professional control panel, the Comet FDX Compact Cube is simple and intuitive to use, making it suitable for both industrial and construction applications.
FDX Compact Cube Pressure Washer
Comet FDX Compact Cube Shock Absorber This forklift pressure washer is equipped with a motor speed reduction kit that reduces the number of revolutions in bypass mode.
The fuel tank has a capacity of 20 liters and is equipped with a flat float and a fuel filter.
In the FDX Compact Cube, the burner is controlled by a power switch.
The safety systems installed on this device include:
Safety Valve
Boiler Thermal Protection
ZWD Comet Self-Priming Triplex Pump
The FDX Compact Cube uses a ZWD Comet self-priming Triplex pump, which features ceramic pistons, a brass head, bronze connecting rods, and a flanged valve.
Technical Specifications: The
FDX Compact Cube 15/160 D Yanmar L 70 V is a 160-bar high-pressure washer with a maximum flow rate of 900 l/h and a hot water temperature of up to 140°C.
The FDX Compact Cube 13/180 D Yanmar L 70 V has a pressure of 180 bar and is a pressure washer with a maximum flow rate of 780 L/h and a maximum temperature of 140°.
Both of these compact Comet pressure washer models are equipped with a 7.5 hj Yanmar L 70 V engine.
This pressure washer measures 94 x 78 x 82 cm and weighs 199 kg.
Examples of Use:
Comet FDX Compact Cube Pressure Washer Using the Comet FDX Compact Cube Pressure Washer 3
Technical Specifications and Standard Equipment
