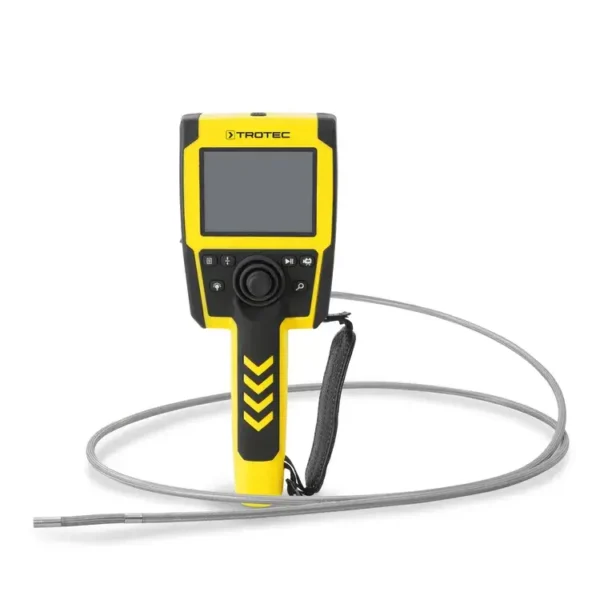

VSC206 Professional Videoscope

VSC206 Professional Videoscope

The VSC206 professional videoscope is particularly impressive for its light weight; its handheld control unit weighs only 300 g, making it easy to use for extended periods without fatigue.

The probe, which can be positioned at any angle, can be controlled in increments using the control lever, and the titanium-coated camera head provides excellent all-around views of the inspection area.

The VSC206 camera probe, with its powerful multi-LED light source and brilliant VGA LCD screen, delivers the crisp, detailed images you need to perform your work accurately.

Individual photos or entire videos can be easily saved to the included SD card.

The sturdy ABS housing easily withstands even the harshest industrial conditions. Shock-absorbing materials at critical points prevent impact damage and keep dust and splashing water out—the best conditions for reliable everyday use.

Advantages of an endoscope:

• Portable, lightweight, and durable compact systems
• Easy to use
• Taking Photos and Videos
• The camera heads can be rotated in any direction at any angle
• LED technology – lower energy consumption and heat generation than conventional lighting systems
• VGA LCD screen for excellent image quality
• A sturdy, multi-walled probe ensures both maximum flexibility and high torsional strength
• High-speed USB connection and analog video output

Technical details:

• Lighting type: 6 white LEDs (color temperature 5,000 to 65,000 K)
• Brightness: 40,000 lux
• White Balance: Factory Default
• Brightness control: manually adjustable
• LCD screen: 3.5-inch TFT LCD (640 x 480 px – VGA)
• Joystick Controls: Probe Deviation, Menu Access, and Navigation
• Buttons: access to user functions, lighting, and video
• Interfaces: USB, analog video (PAL / NTSC)
• Data storage: removable SD card slot (up to 32 GB)
• File formats: JPEG image format, AVI video format
• Power supply: 4 x LR6 AAA batteries, 1.5 V; 4 x Ni-MH rechargeable batteries, 1.2 V; or power adapter
• Working time: ≤ 2 h
• Dimensions: length 2 m, Ø 6 mm
• Construction: outer layer of stainless steel wire mesh to ensure high torsional strength; inner layer of polyurethane on a steel spiral
• Field of view: up / down / left / right ≈ 120°
• Probe protection: IP67 (waterproof up to 1 m / 30 min), oil-resistant
• Image sensor: CMOS
• Resolution: 350,000 pixels
• Field of view: 90°
• Camera head: stainless steel with a titanium coating
• Zoom: 5x digital
• Software features: system settings, video settings, recording features
• Ambient temperature: -10 °C to +50 °C
• Environmental Conditions Humidity: <90% relative humidity
• Enclosure protection rating: IP54
• Construction: ABS housing with integrated shock absorbers
• Dimensions: 265 x 100 x 125 mm
• Weight: 590 g (including batteries)

Optional :

First, use the software included in the delivery package to import the data stored on the device, such as images, Excel spreadsheets, or graphs. Now, copy and paste the results into one of the ready-made report templates in the MultiMeasure Studio PRO software (download MultiMeasure Studio STD), which allows you to quickly and easily create professional measurement reports. The pre-included text modules (currently available only in the German version) and sample reports can be edited as needed and combined at any time to create new, user-defined templates.
