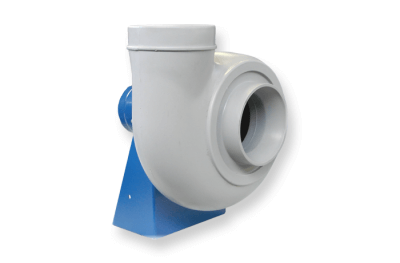

QPX Aerauliqa Acid-Resistant Centrifugal Fans QPX564-3AC 9100 m³/h
A backward-curved centrifugal fan impeller made of plastic. Suitable for transporting corrosive vapors with high humidity levels (acids, salts, etc.).
CONSTRUCTION
- Complex polyethylene (PE) housing
- A highly efficient, backward-curved inlet vane made of polypropylene (PP).
- Asynchronous single- or three-phase motor, efficiency class IE1/IE2, CE marked,
- IP55, Class F, S1
- N.B. IE2 motors with a rated power between 0.75 kW and 375 kW must be used with a speed controller.
- Engine mount made of epoxy-coated sheet steel
- Stainless steel screws (AISI 304).
FEATURES AND BENEFITS •
- Highly durable construction
- Quiet operation and high efficiency thanks to the backward-curved impeller
- Made entirely from recyclable materials
- These fans are suitable for operation at temperatures ranging from -10°C to +60°C
- Tested according to the latest standards, ensuring accurate and up-to-date information on electrical safety, performance, and noise levels that you can rely on. • Designed and manufactured in accordance with the Machinery Directive (MD), the Low Voltage Directive (LVD), the Electromagnetic Compatibility Directive (EMC), and Regulation 327/2011 (ErP Directive).
UPON REQUEST • IE3 motor or motors with other specific characteristics. • Spiral-casing models made of polypropylene (PP). • Spiral housing models made of conductive polypropylene (PE-EL). • Stainless steel motor mount (AISI 304).
ACCESSORIES • Flexible connector. • Made of stainless steel inlet or outlet guard (free inlet or outlet opening). • Gravity valve. • Manual valve.
PRODUCT PAGE AND TECHNICAL SPECIFICATIONS
