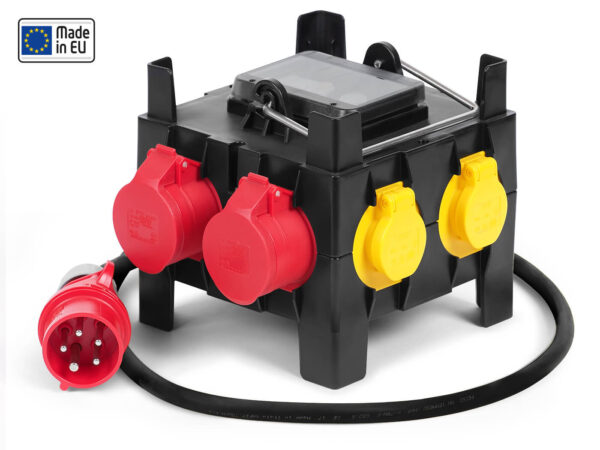

PV16 MOBILE POWER DISTRIBUTION UNIT
The PV16, a sturdy plastic portable power distribution unit with an IP44 protection rating, is equally suitable for use in harsh environments, both indoors and outdoors, and can be used in a variety of ways thanks to its two CEE receptacles (16 A, 400 V) and four grounded outlets (16). A, 250 V). For example, it can be used as a power or lighting distribution unit on construction sites, in agriculture, at events, as well as in industry and commerce, or for camping and leisure activities.
Easy to transport, space-saving storage
The PV16 power distributor is equipped with a collapsible V2A carrying handle for easy transport and features a reel for a 2-meter-long connection cable. In storage, the power distributors can be stacked on top of each other to save space.
Special safety features are provided by the standard FI circuit breaker (RCD), which is well protected beneath a hinged viewing window in the housing cover. In addition, all outlets have self-closing covers with spring-loaded hinges.
Troteci’s Original Quality
With the PV16 mobile distributor, you benefit from the quality of the Trotec brand. Even if some competing models may seem similar at first glance, significant differences in quality only become apparent in the details: for example, the PV16’s sturdy, high-quality housing is made of a special plastic that is characterized not only by high durability but also by excellent impact resistance, thermal stability, dielectric strength, UV, chemical, and weather resistance—the material used is also free of cadmium, red phosphorus, and halogens such as fluorine, chlorine, bromine, iodine, or astatine.
Plug configuration:
- 2 x CEE receptacle, 16 A, 5-pin, 400 V
- 4 x 16 A, 250 V outlets with ground fault circuit interrupters
Residual Current Circuit Breaker:
- 1 x 40 A, 4-pole, 0.03 A (Type A 25AT)
Power connection:
- 2-meter-long connection cable, H07RN-F 5G2.5, with a CEE plug, 16 A, 5-pin, 400
Advantages:
- Combination outlet in accordance with standard EN 61439,
, equipped with 2 CEE outlets rated at 16 A, 5-pole, 400 V, and 4 grounded outlets rated at 16 A, 250 V
- Under the hinged viewing window on the housing cover of the ground-fault circuit interrupter
- Protection Class IP44
- A spooling device for connecting cables
- Collapsible V2A Carrying Strap
- Stackable structure
- All outlets with covers featuring self-closing spring-loaded hinges
| Electrical Connection | ||
|---|---|---|
| Connector | 2 x 16A, 5-pin, 400V | |
| Number of sockets with ground contacts | 4 | |
| Residual Current Circuit Breaker | 1 x 40 A, 4-pole, 30 mA (Type A, 25 A (T)) | |
| Connection Cable | H07RN-F-5G2.5 | |
| Cable length [m] | 2 | |
| Cable cross-sectional area [mm²] | 2.5 | |
| Rated voltage [V] | 400 | |
| Security Feature | ||
| Protection Class | IP44 | |
| Environmental Conditions | ||
| Operating – minimum temperature [°C] | -25 | |
| Operating – maximum temperature [°C] | 35 | |
| Storage – minimum temperature [°C] | -25 | |
| Storage – maximum temperature [°C] | 35 | |
| Features and Equipment | ||
| Viewing window with hinges for automatic devices on the housing cover | ||
| Collapsible V2A Carrying Strap | ||
| A spooling device for connecting cables | ||
| Contact Protection | ||
| mobility | ||
| Carrying/transport handle(s) | ||
| stackable | ||
| Housing Design | ||
| plastic | ||
| dimension | ||
| Length (without packaging) [mm] | 250 | |
| Width (without packaging) [mm] | 230 | |
| Height (without packaging) [mm] | 210 | |
| Weight | ||
| (without packaging) [kg] | 2.8 | |
