PCE-MMK 1 Multifunctional Wood and Material Moisture Meter
Multifunctional Wood Moisture Meter
Measures the moisture content of wood, paper, textiles, concrete, and other building materials—also measures the ambient air temperature and relative humidity
The PCE-MMK 1 is a portable, handheld digital moisture meter used to measure the moisture content of wood, paper, textiles, concrete, and other building materials. This multifunctional wood moisture meter also measures ambient air temperature and relative humidity.
This multipurpose moisture analyzer is ideal for quality control and inspecting incoming goods; it features short and long insertion needles and three different external electrodes (rammed, penetration, and paper electrodes). Material-type-based self-test or preset measurement modes are available via a user-friendly navigation menu, as are temperature compensation, maximum/minimum values, LCD backlight, and dry-moist-wet indicator settings. The easy-to-read display shows both digital and bar graph values. The displayed moisture percentage represents the material’s moisture content relative to its dry weight (e.g., 100% material moisture in 1 kg of wet wood = 500 g of water).Highlights
– Also measures the temperature and relative humidity of the surrounding air
– Measurement principle: Electrical resistance
Specifications
| Measurement Ranges | Wood, paper, textiles: 1 … 75% moisture content Concrete, building materials: 0.1 … 2.4% moisture Ambient air temperature: -40 … 70 °C / -40 … 158 °F Ambient relative humidity (RH): 0 … 100% relative humidity |
| Resolution | 0.1 |
| Accuracy | Wood, paper, textiles: 1 … 30% / ±1%, 31 … 60% / ±2%, 61 … 75% / ±4% Concrete, building materials: ±0.5% Ambient temperature: -40 … -10 °C and 40 … 70 °C / ±2 °C, -10 … 40 °C / ±1 °C Ambient relative humidity (RH): 0 … 20% and 80 … 100% / ±5%, 20 … 80% / ±3.5% |
| Automatic Shut-Off | After 3 minutes of inactivity, the meter turns off to conserve battery power. After 10 seconds of inactivity, the LCD backlight turns off to conserve battery power. |
| Housing | Impact-resistant plastic housing |
| Battery | 3 x Cr 2032, replaceable |
| Operating Conditions | 0 … 40 °C / 32 … 104 °F, 0 … 85% relative humidity |
| Dimensions | 139 x 47 x 25 mm / 5.5 x 1.9 x 1.0 inches |
| Weight | 100 g / < 1 pound (without electrodes) |

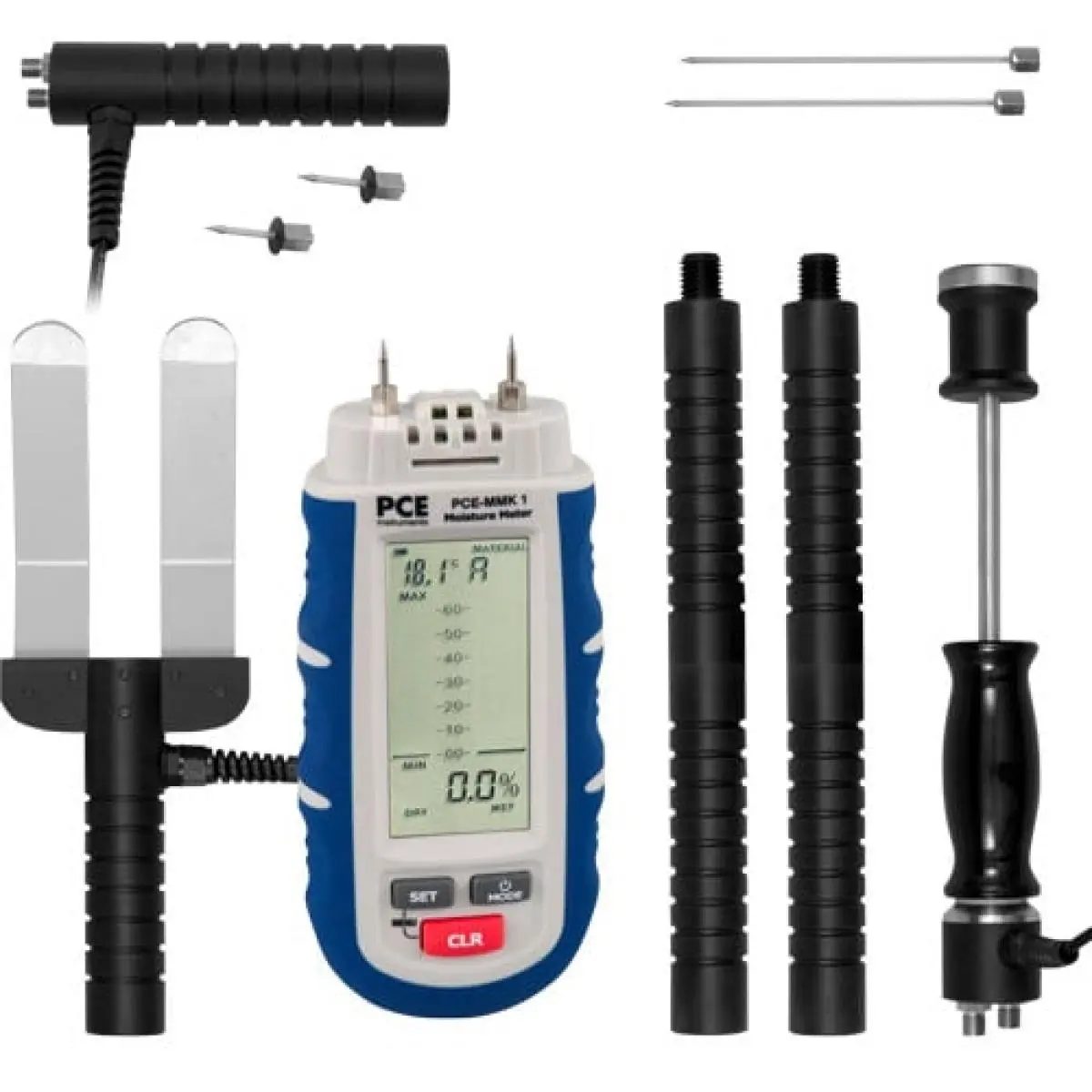

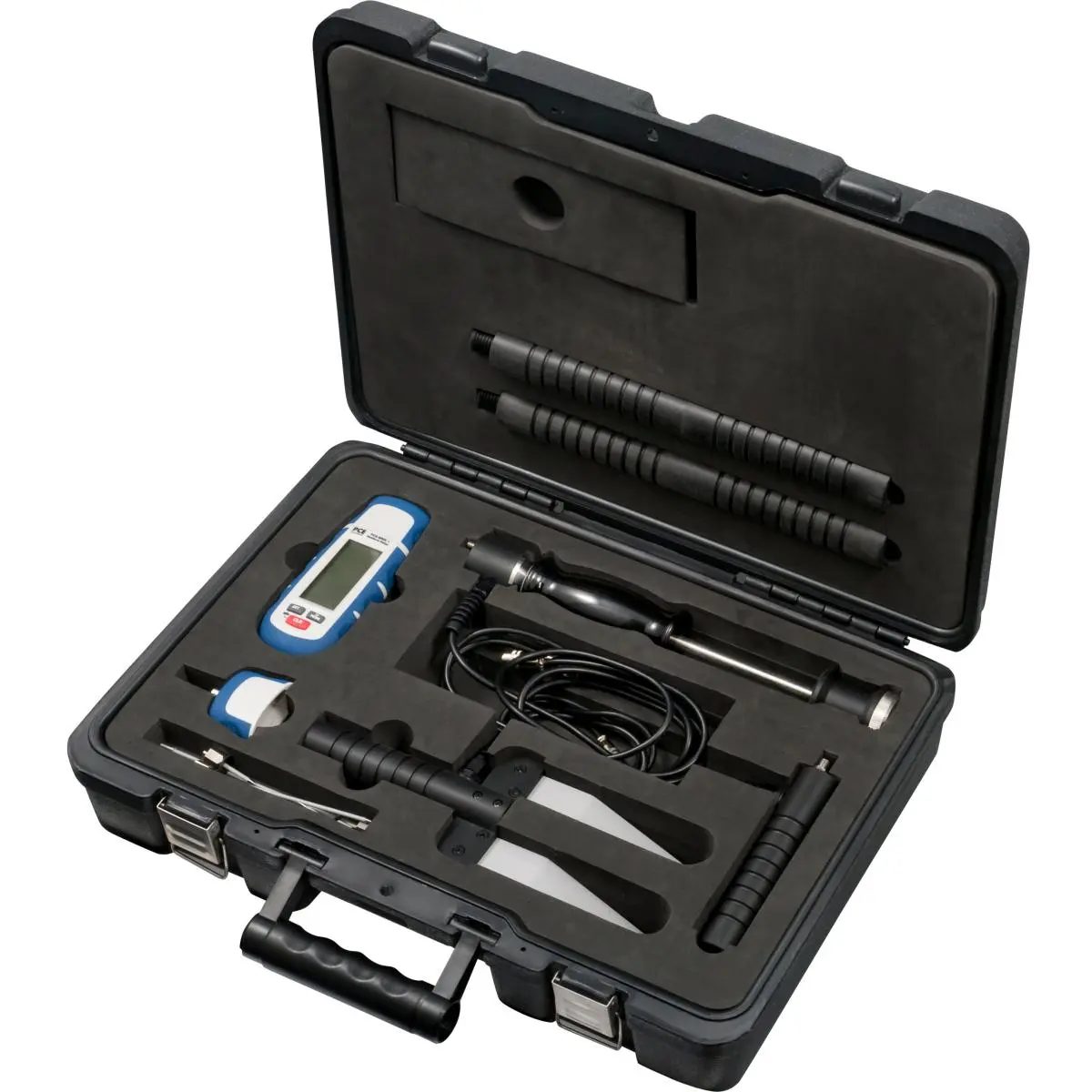

Package contents:
2 x 30 mm / 1.18 insertion needles
2 x 150 mm / 5.91 insertion needles
1 x connector for connecting external electrodes
1 x ram electrode
1 x through-hole electrode
1 paper electrode
1 x self-test probe
2 x 300 mm / 11.81 extensions
1 x User Manual
