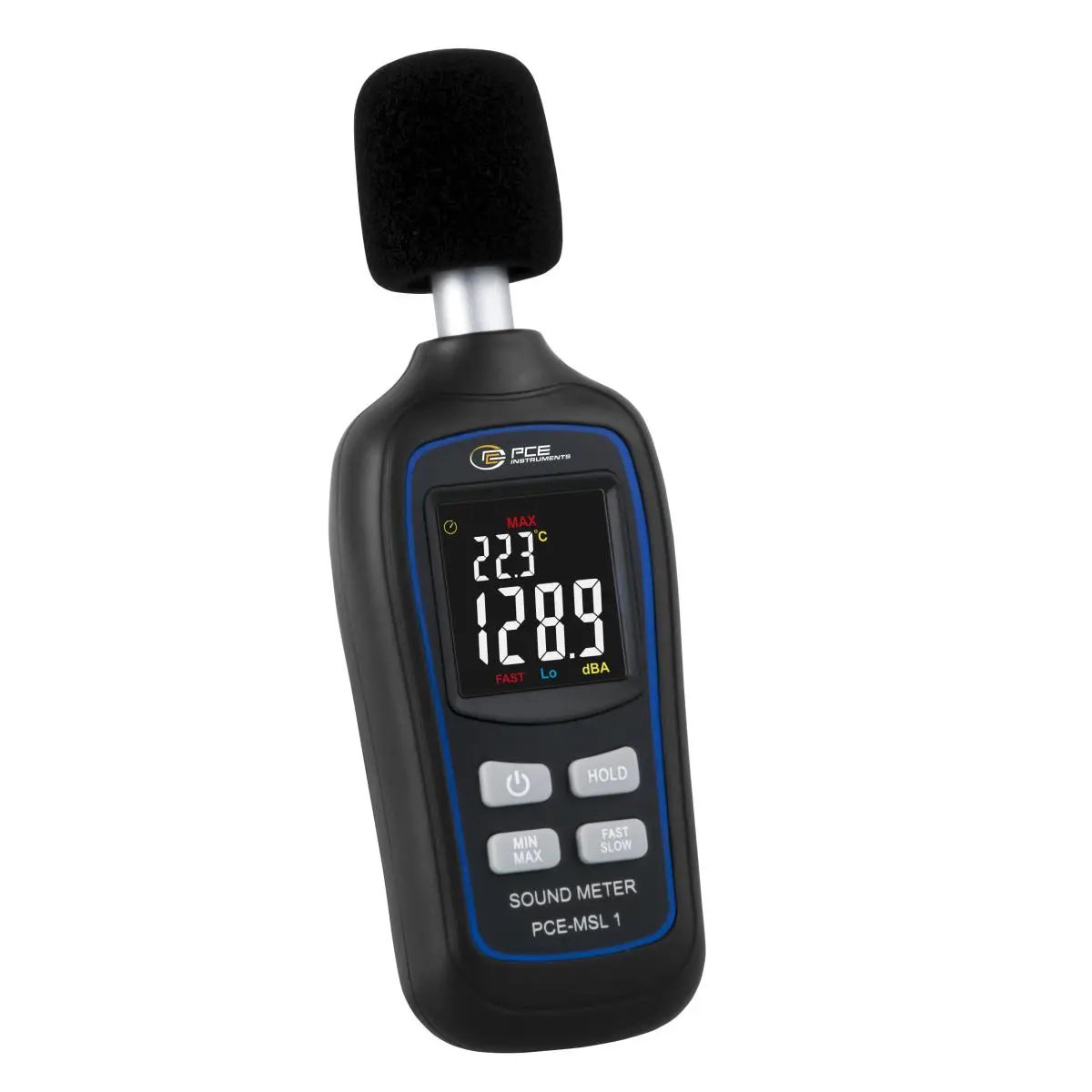

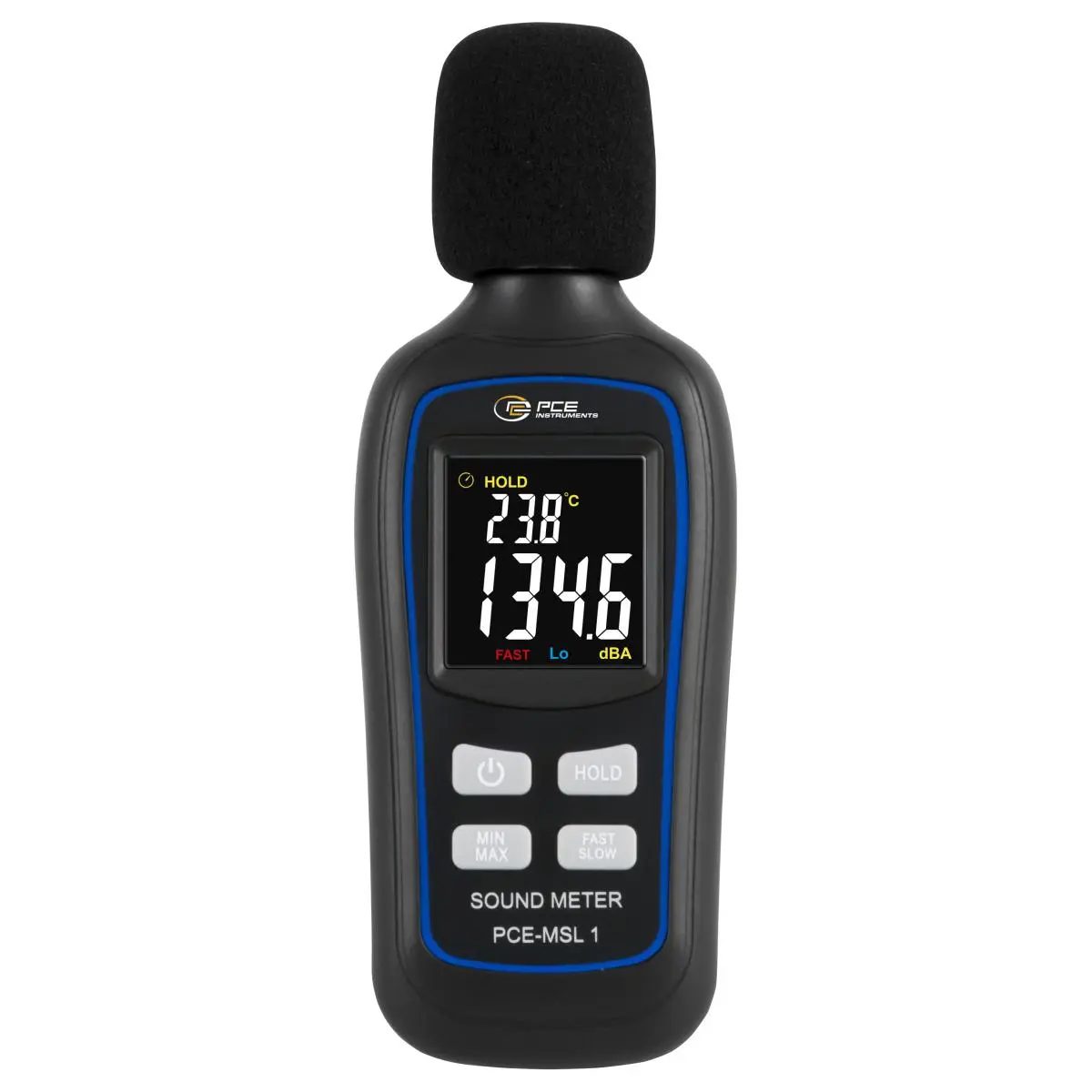

Noise Meter / Sound MeterPCE-MSL 1
Sound level meter with A-frequency weighting / simultaneous temperature measurement /0.1 dB resolution / HOLD function / extreme value measurement / large frequency range /backlit colour LCD

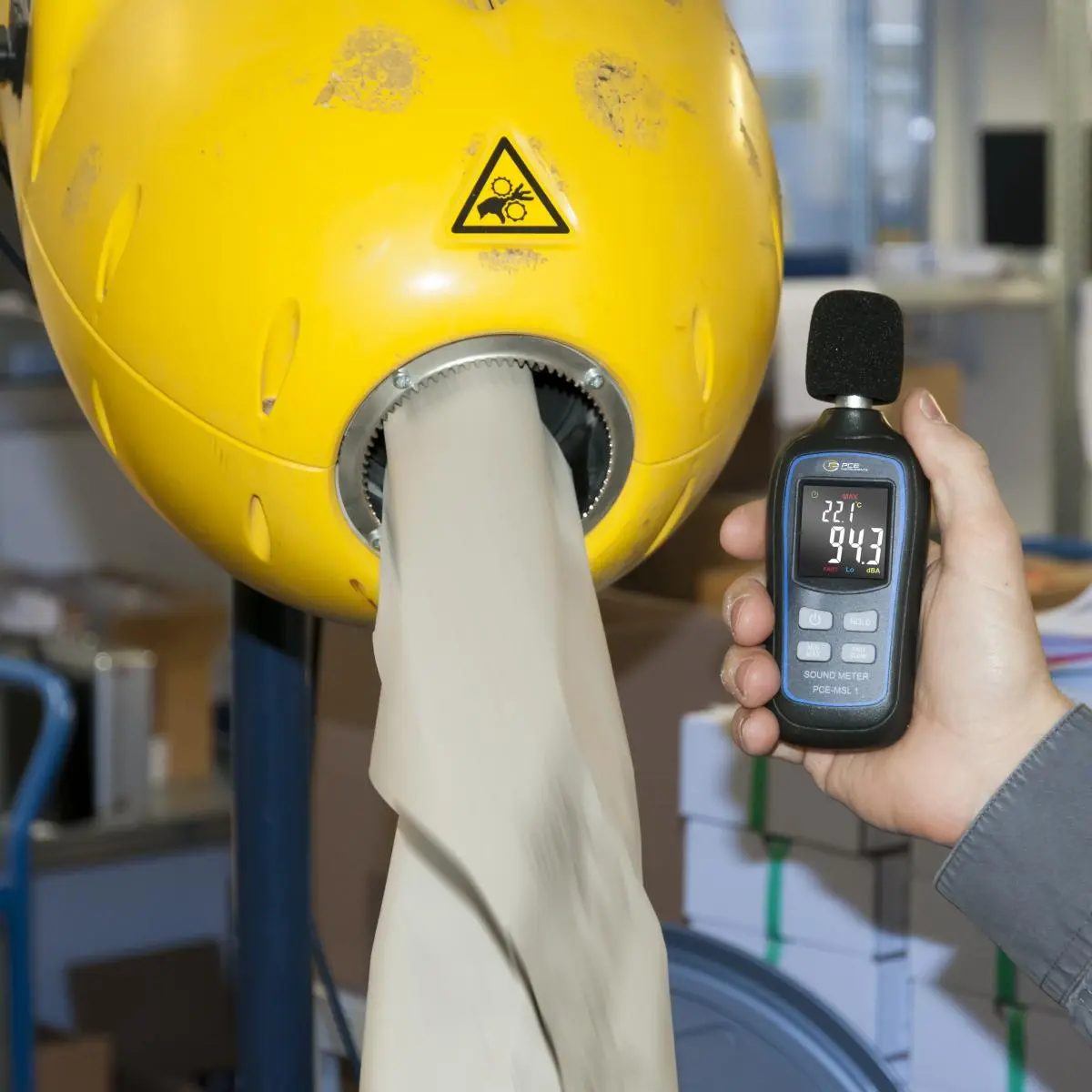

The Noise Meter / Sound Meter PCE-MSL 1 is a simple sound measuring device. The noise meter / sound meter PCE-MSL 1 is used to quickly determine the ambient volume. In addition to the volume measurement, the decibel meter also has the facility to determine the ambient temperature. The measurement of background noise is important in almost every situation today. For this purpose it is helpful to use a simple decibel meter that gives the user an initial idea about the possible noise level.

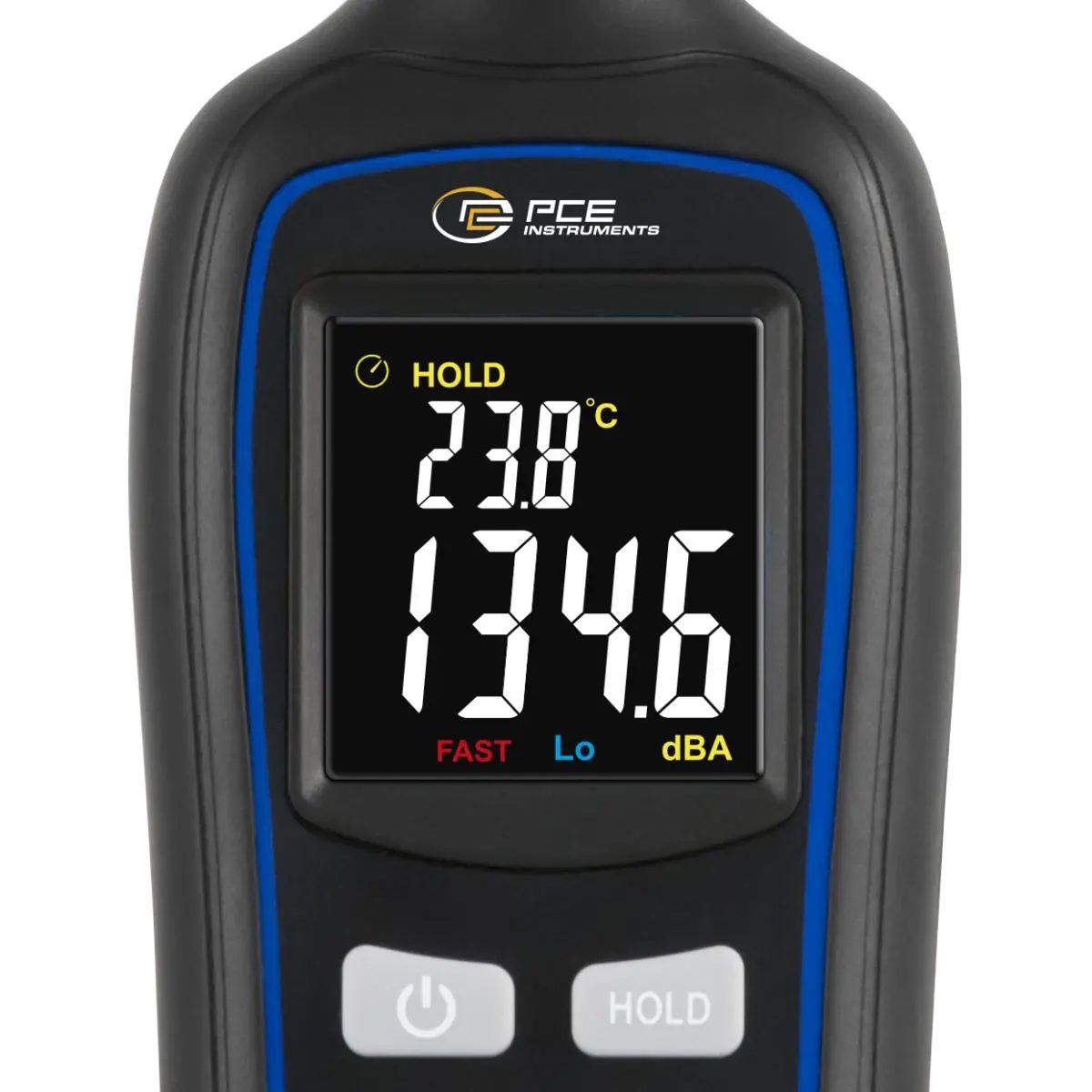

The LC display gives clear results of the measurements made by the sound level meter. A backlight is also integrated into the display. The sound level meter is especially ideal for measurements that need to be non-stationary.
Highlights
- extreme value measurement
- high precision
- fast volume measurements
- backlit colour LCD
- simultaneous temperature measurement
- HOLD function
- large frequency range
- A-frequency weighting
- robust ABS plastic housing

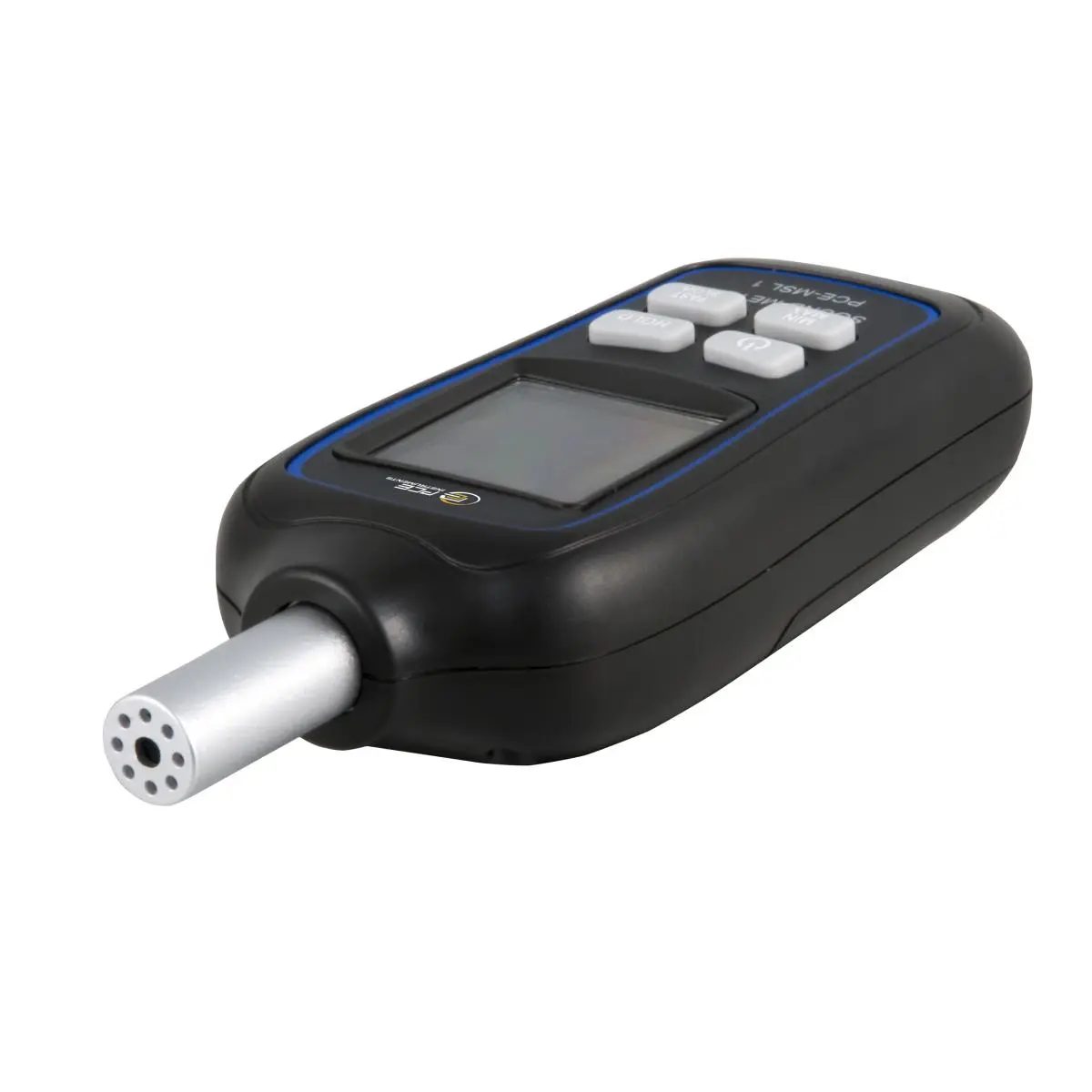

- 1/2″ electret condenser microphone
- slow/fast time rating
- alarm at frequency exceeded
- resolution 0.1dB
- display update every 300 ms
Technical specifications
- Sound level — Measuring range: 35 … 135 dB
- Sound level — Resolution: 0,1 dB
- Sound level — Accuracy: ±2 dB
- Temperature — Measuring range: -20 … +70 °C
- Temperature — Resolution: 0,1 °C
- Temperature — Accuracy: ±1.5 °C
- General technical data — Measuring functions: HOLD, MAX, MIN
- General technical data: Time weighting slow (1 s), fast (125 ms)
- General technical data — Frequency: weighting A
- General technical data — Frequency: 31.5 … 8000 Hz
- General technical data — Display type: LCD with backlight
- General technical data: Measuring rate 3,33 Hz
- Microphone type Electret capacitor: Operating time 60 h
- Microphone type Electret capacitor: Automatic power-off 15 min
- Microphone type Electret capacitor — Dimensions: Microphone diameter 1/2 inch
- Microphone type Electret capacitor — Menu language: English, English (GB)
- Microphone type Electret capacitor — Protection class (device): IP20
- Microphone type Electret capacitor — (Rechargeable) battery: 3 x 1,5 V AAA battery , Zinc-manganese dioxide
- Microphone type Electret capacitor — Capacity: 1200 mAh
- Microphone type Electret capacitor — Operating conditions: -20 … 60 °C , 10 … 90 % RH
- Microphone type Electret capacitor — Storage conditions: -20 … 60 °C , 10 … 75 % RH
- Microphone type Electret capacitor — Dimensions: ( L x W x H )144 x 56 x 31 mm
- Microphone type Electret capacitor — Weight: 75 g
Delivery scope
- 1 x Noise Meter / Sound Meter PCE-MSL 1
- 1 x Wind noise suppressor
- 3 x 1.5 V AAA batteries
- 1 x User manual
