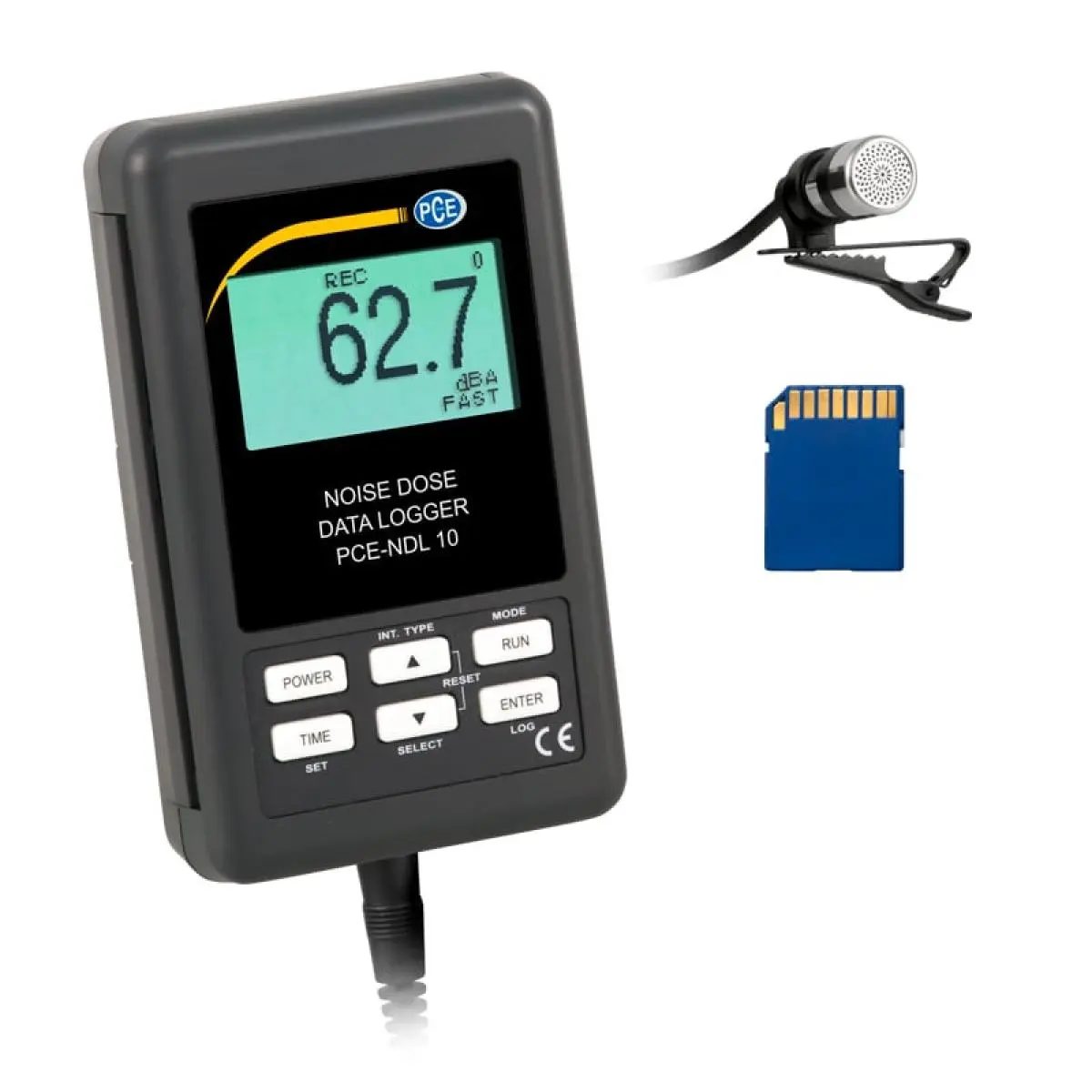

PCE-NDL 10 is a high-quality noise meter or sound level meter with data logging capabilities. This noise dosimeter records sound pressure level (SPL) measurements as well as dosimetry (dose) measurements in decibels (dB) and saves the measurement data to the internal memory, which can then be transferred to an SD card.
Note: To set up the SD card for the first time, the PCE-NDL 10 must be connected to AC power adapter (AC power supply NET-LUT or NET-LUT-US sold separately – see accessories tab).
Highlights
- Measures SPL and dose in dB
- Manual or adjustable automatic data logging
- Data hold, min / max, date / time, auto shutdown (on / off) and audible alarm (on / off) functionality
- Internal memory and SD card slot (SD card included)
- RS-232 and USB interface
- Backlit LCD screen
- Portable
Technical specifications
- Sound level — Measuring range: 30 … 130 dB
- Sound level — Resolution: 0,1 dB
- Sound level — Accuracy: ±1 dB at 1 kHz
- Sound level — Measuring range: 70 … 130 dB
- Sound level — Resolution: 0,1 dB
- Sound level — Accuracy: ±1 dB at 1 kHz
- General technical data — Measuring functions: HOLD, MAX, MIN, Average value
- General technical data: Time weighting slow (1 s), fast (125 ms)
- General technical data — Frequency: weighting C, A
- General technical data — Frequency: 31.5 … 8000 Hz
- General technical data — Display type: LCD with backlight
- General technical data — Display size: 2,3 Inch
- General technical data: Measuring rate 1 x per second
- Storage medium SD card, Internal memory — Storage capacity: 16000 Data records
- Storage medium SD card, Internal memory: Memory capacity (additional information)additional memory SD card 1 … 16 GB
- Storage medium SD card, Internal memory — Storage interval from: 1 s
- Storage medium SD card, Internal memory — Storage interval to: 60 min.
- Microphone type Electret capacitor — Interface: RS232, USB
- Microphone type Electret capacitor: Standard(s)IEC 61672-1 (Class II)
- Microphone type Electret capacitor: Automatic power-off 10 min
- Microphone type Electret capacitor — Dimensions: Microphone: Ø12.7 mm
- Microphone type Electret capacitor: Measurement error≤0.1% of the total stored data
- Microphone type Electret capacitor — Menu language: English, English (GB)
- Microphone type Electret capacitor — Protection class (device): IP20
- Microphone type Electret capacitor — Power supply: 9 V/DC 0.8 A
- Connector type Device-europlug — (Rechargeable) battery: 6 x 1,5 V AAA battery , Alkali-manganese
- Connector type Device-europlug — Capacity: 1200 mAh
- Connector type Device-europlug — Operating conditions: 0 … 50 °C , 0 … 85 % RH
- Connector type Device-europlug — Storage conditions: 0 … 50 °C , 0 … 85 % RH
- Connector type Device-europlug — Dimensions: ( L x W x H )130 x 80 x 33 mm
- Connector type Device-europlug — Weight: 200 g

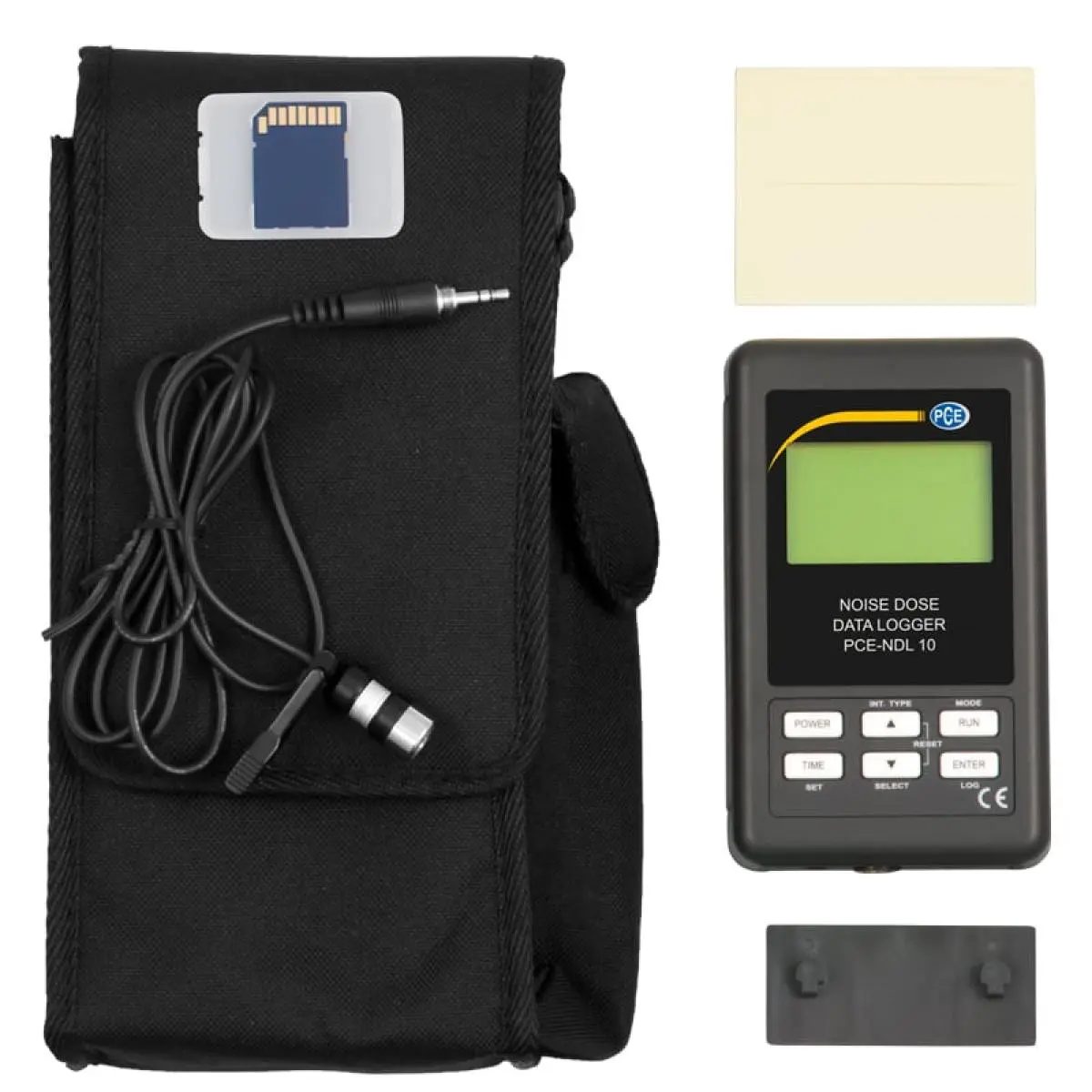

Delivery scope
- 1 x Noise Meter / Sound Meter PCE-NDL 10

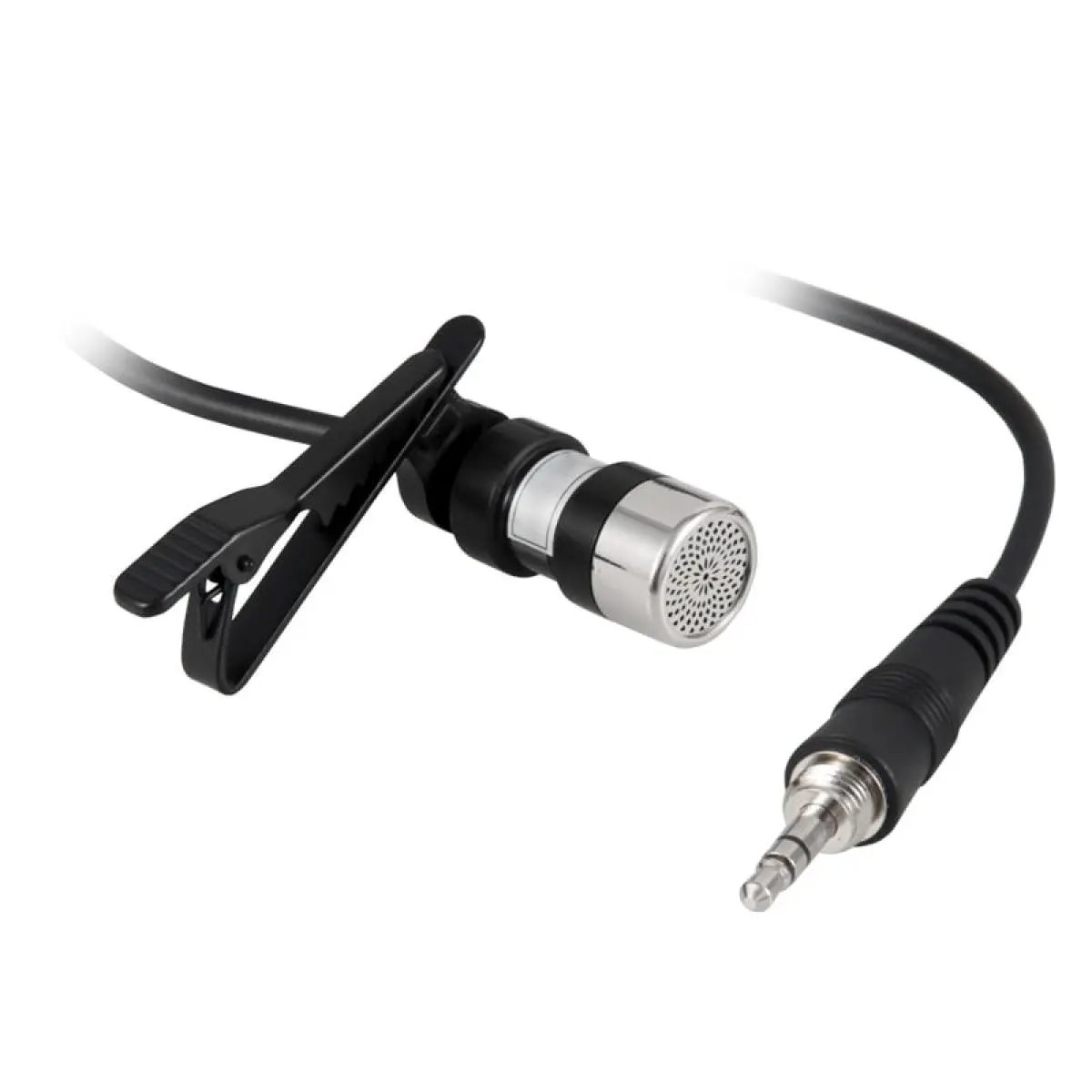

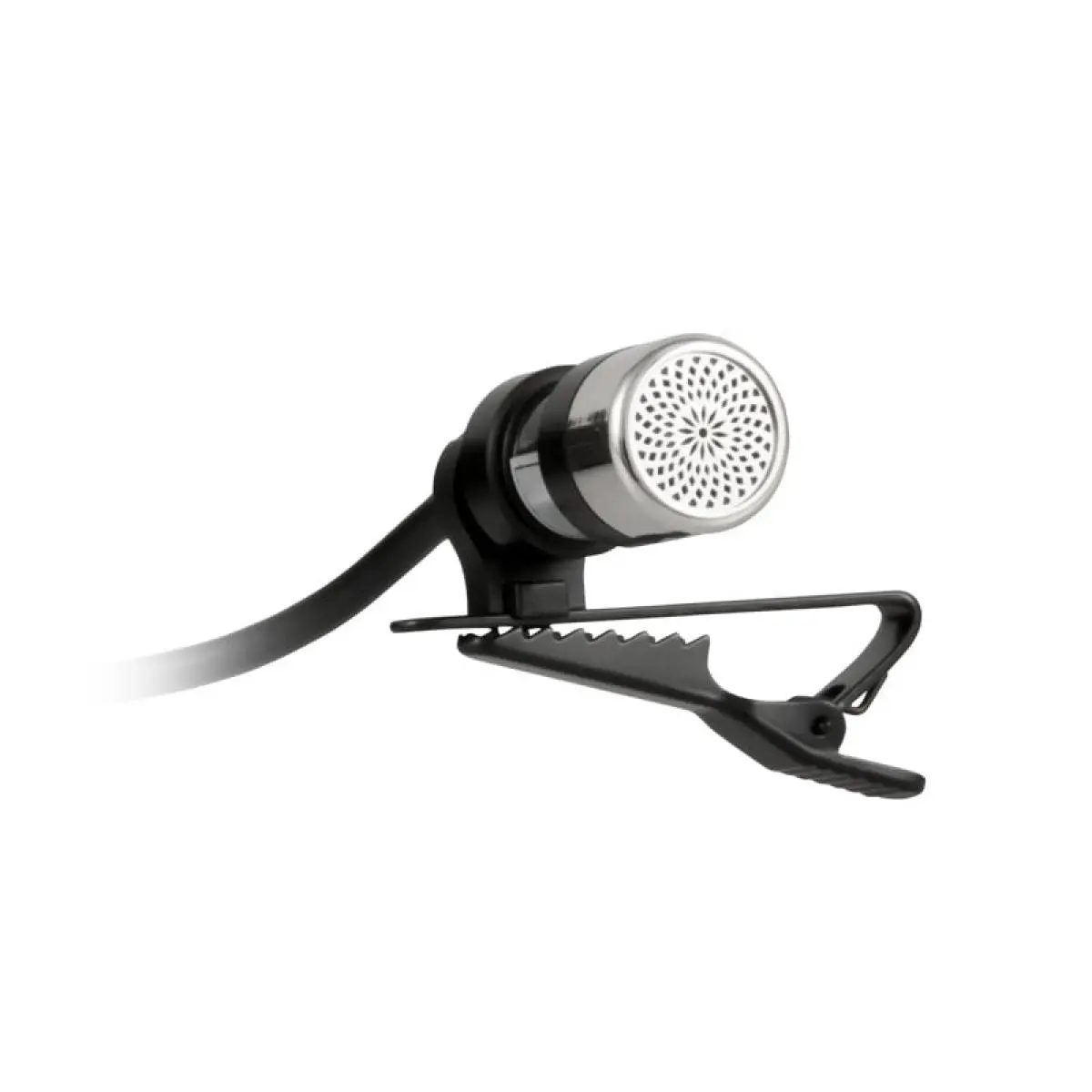

- 1 x microphone with clip
- 1 x SD card
- 1 x carrying case
- 1 x carrying strap
- 1 x user manual
