PCE-DD-A Durometer To measure Shore A hardness in soft gums, rubber and elastomers / Easy-to-read digital display / Resolution of 0.5 degrees of hardness

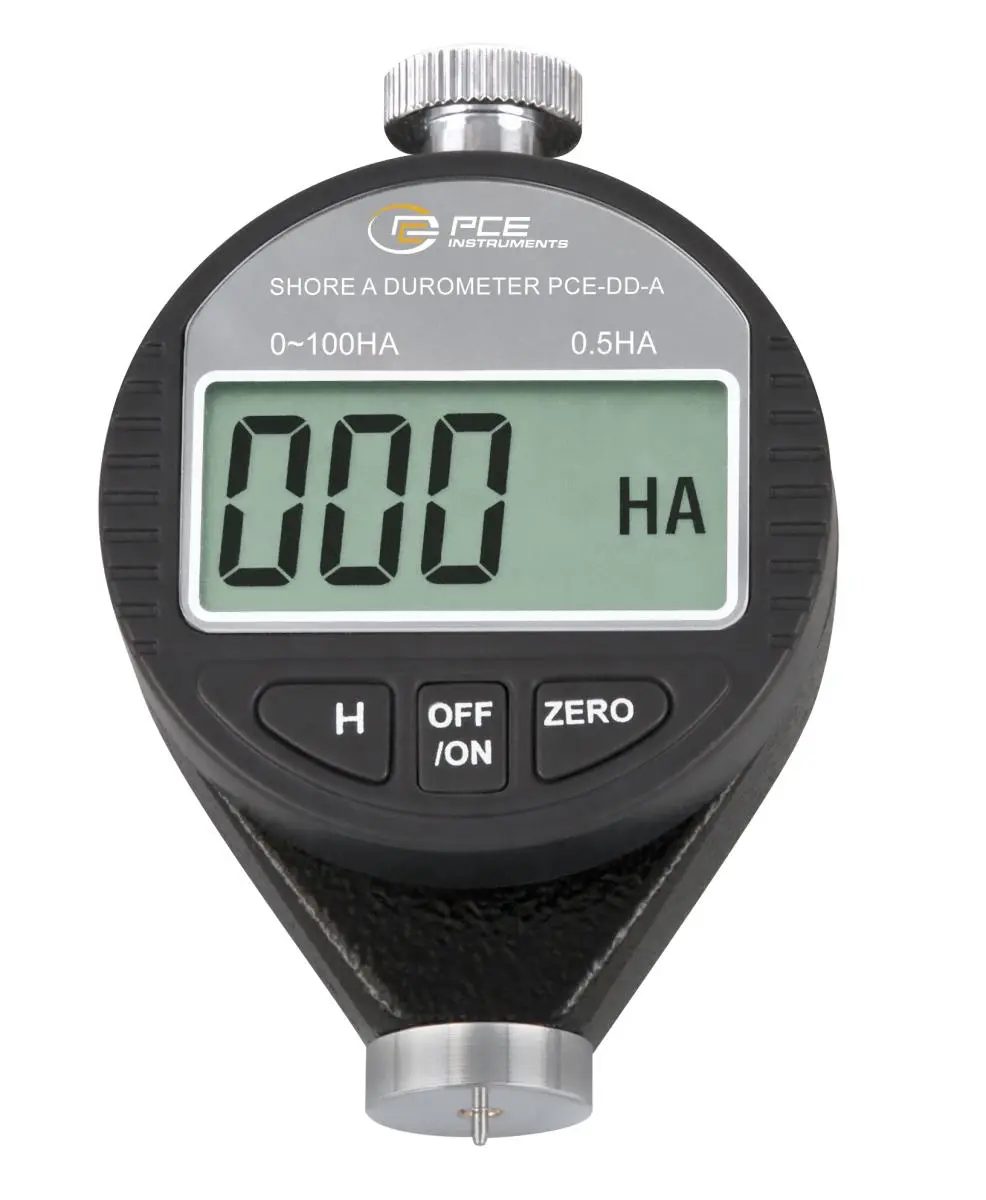

The PCE-DD-A Durometer is an ergonomic device that checks Shore hardness in gum, plastic and other non-metallic materials. The PCE-DD-A Durometer is used primarily for soft gums, elastomers, natural rubber, neoprenes, casting resin, white PVC, leather, etc. If the material thickness is not enough, it should be tightened on the back with the same material to increase its thickness. Calibration is not an option.
Highlights
- Handheld device
- Large digital display
- Plastic case included
- For Shore A measurements
- Easy to use
Technical specifications
Hardness Measuring range 0 … 100 Shore A Resolution 0,5 Shore A Accuracy±2 Shore A General technical data Measuring functions HOLD Display type LCD Indenter 35° Impact device D-type Measuring depth 0 … 2.5 mm Sample thickness min. 6 mm Test force 12,5 N Menu language English, English (GB) Protection class (device)IP20 Power supply batteries (Rechargeable) battery 1 x 1,5 V LR44 , Alkali-manganese Capacity 140 mAh Operating conditions 0 … 50 °C , 0 … 90 % RH Storage conditions 0 … 50 °C , 0 … 90 % RH Dimensions ( L x W x H )115 x 60 x 25 mm Weight 300 g
Delivery scope

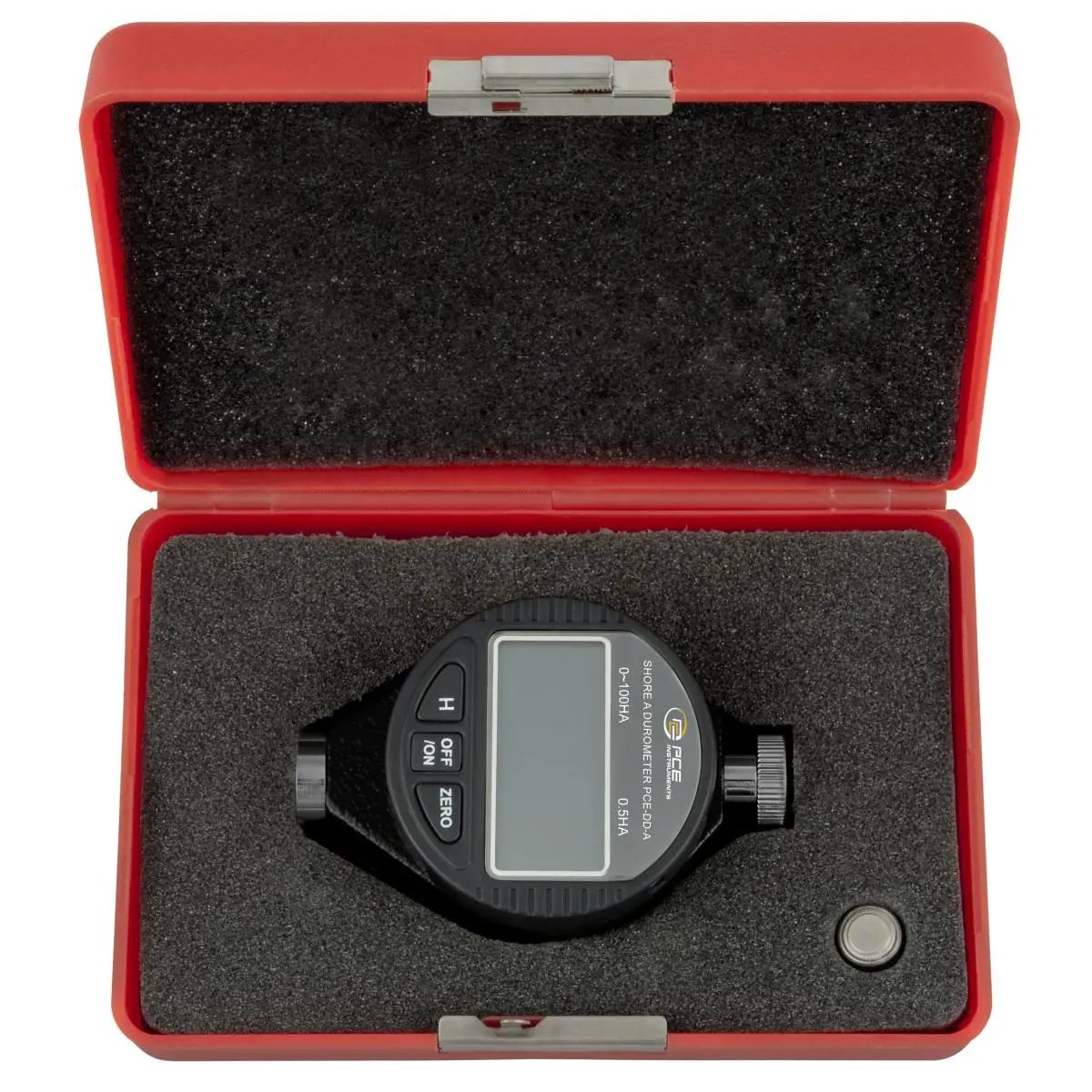

1 x PCE-DD-A Durometer 1 x Case 1 x Battery 1 x User's manual
