PCE-AC 2000 Air Quality Monitor (CO2, RH%, Temp)

PCE-AC 2000 Air Quality Monitor (CO2, RH%, Temp)

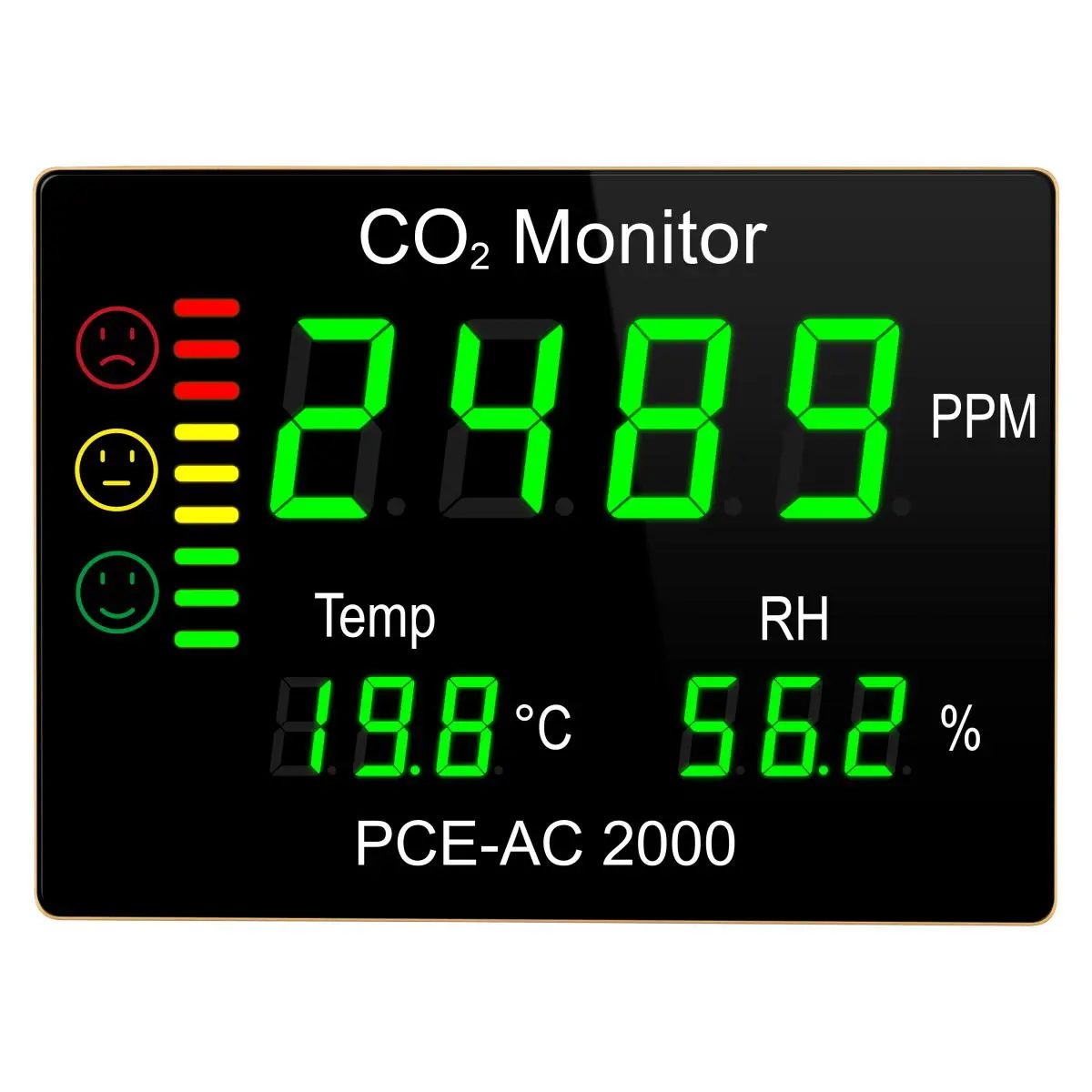

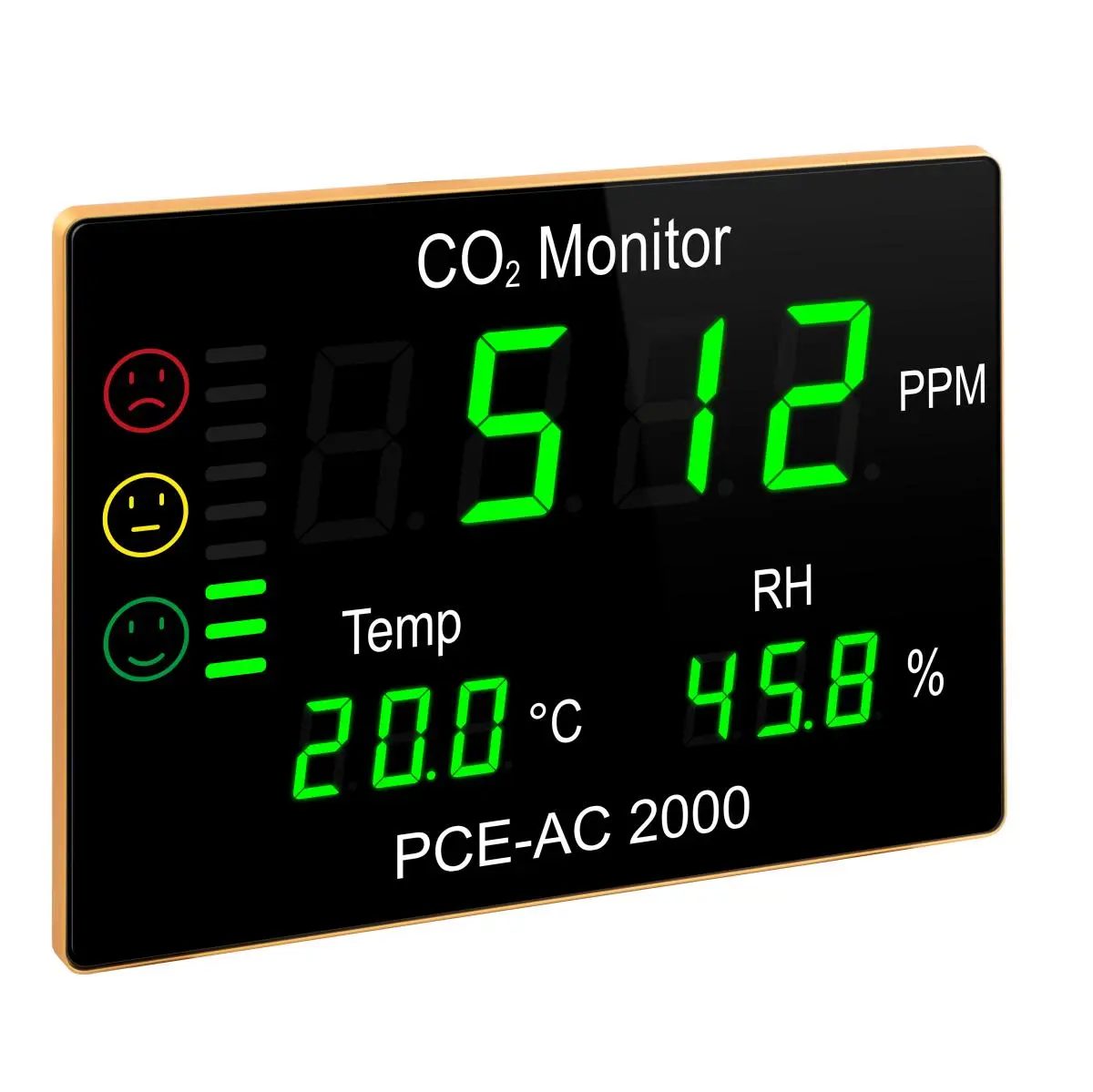

This innovative air quality monitor features a large screen for monitoring indoor air quality. This CO2 monitor is specifically designed for monitoring indoor air quality in large spaces. These include, for example, meeting rooms, break rooms, or public spaces such as classrooms and daycare centers. Thanks to its large dimensions of 388 x 288 x 43 mm, the CO2 monitor is easy to read even from a distance. With the CO2 monitor’s wall mount, the large display can be installed on any wall.

The built-in NDIR CO2 sensor has a measurement range of 9999 ppm. In addition to the built-in NDIR CO2 sensor’s wide measurement range, a unique feature of the CO2 monitor is that the CO2 sensor requires no maintenance. To monitor environmental conditions, the CO2 meter also features integrated temperature and humidity sensors.

The CO2 meter also features a bar graph that displays the measured CO2 concentration graphically. The CO2 indicator’s bar chart is divided into green, yellow, and red sections, which light up at predetermined measured values depending on the CO2 concentration. This makes it easier to assess the carbon dioxide levels in the environment so that ventilation measures can be implemented if necessary. To warn of excessively high CO2 concentrations, the CO2 meter features an adjustable audible alarm that is factory-set to trigger at a concentration of 1,200 ppm CO2.

Advantages of a Carbon Dioxide Meter

– For wall mounting in large rooms
– Acoustic, adjustable alarm system
– Maintenance-free NDIR CO2 sensor
– With temperature and humidity sensors
– Large LED screen with a bar chart
– Fixed power supply

Specifications

CO2

Measurement range 0…9999 ppm
Measurement accuracy
±70 ppm ±5 % of the measurement range
Resolution 1 ppm
Temperature

Measuring range -10 … 100 °C / 14 … 212 °F
Resolution 0.1 °C
Accuracy ±1.5 °C
rel. Humidity

Measuring range 0…99.9% rH
Resolution 0.1% relative humidity
Accuracy ±3%
General

Traffic Light Function Green: 0 … 599 ppm
Yellow: 600 … 1199 ppm
Red: 1200 … 9999 ppm
Repeatability <±0.5%
Response time 10 seconds
Operating conditions 0 … 50 °C, 32 … 122 °F, 0 … 90 % rH, non-condensing
Storage conditions -30 … 70 °C, -22 … 158 °F, 0 … 90 % rH, non-condensing
Power supply via power supply unit 9 VDC, 350 mA
Dimensions 388 x 288 x 43 mm / 15.2 x 11.3 x 1.7 inches
Weight approx. 2420 g / 85 ounces
