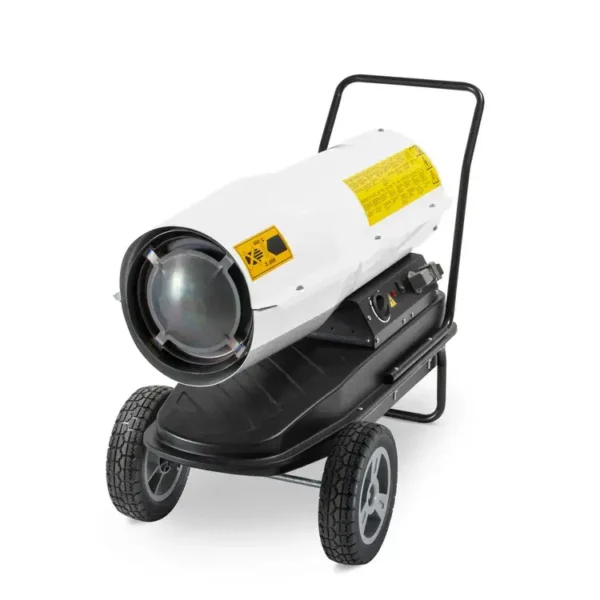

IDE 30 D 30 kW Diesel-Fueled Hot Air Blower
The diesel-powered heat blower features a durable housing made of double-layered material. It is supported by a smooth-running sled-type frame equipped with cable connectors and a built-in fuel tank — ideal for reliable, continuous heating, for example, on a cold construction site, in agriculture, or in a well. -ventilated storage areas.
A thermostat is permanently installed to regulate the temperature; An external thermostat with a 25-meter connection cable is available as an optional accessory if the oil-fired fan must be installed away from the area to be heated.
You can easily check the current fuel level at any time using the built-in fuel gauge.
If you are looking for a reliable and cost-effective solution for typical, long-term heating applications involving on-site direct heating, the IDE 30 D oil-fired heater is the ideal choice.
If you are looking for a reliable and cost-effective solution for typical, long-term heating applications involving on-site direct heating, the IDE 30 D oil-fired heater is the ideal choice.
IDE Direct Oil-Fired Heater – 100% Heating Capacity for Outdoor Areas
The IDE series of direct-fired diesel heaters are ideal for outdoor use, for heating construction sites, agricultural areas, or well-ventilated indoor spaces, as they make all the heat available. That is why direct-fired heaters do not have a chimney. This process is therefore also referred to as 100% output, since the heating efficiency is 100%.
In a direct-heating system, the fan that blows out the heated air also expels combustion byproducts.
First, the fuel is atomized, ignited, and burned in the combustion chamber. The hot gases are then mixed in a precise ratio with the primary airflow from the blower.
In addition to heat, direct-heating stoves also release combustion gases directly into the room. Therefore, they are not suitable for enclosed spaces that lack proper ventilation when people or animals are present.
Because combustion releases a great deal of moisture, direct heating devices must never be used to dry out buildings.
Here are a few practical advantages of a direct-fired diesel blower, in brief:
- A particularly economical solution for standard oil heating
- Integrated fuel tank with a fuel level indicator
- Electronic flame protection
- Overheating Protection
- Stainless steel combustion chamber
- Connection for an external thermostat
- Chassis for easy repositioning
Here are some technical specifications for the IDE 30 D:
- Heating type: direct heating
- Air volume: 720 m³/h
- Nominal heat output: 30 kW (25,800 kcal)
- Temperature rise ∆T: 210 °C
- Mains voltage: 230 V / 50 Hz
- Current consumption: 1.25 A.
- Max. fuel consumption per hour: 2.8 l
- Thermostat: built-in
- Fuel supply: compressor
- Sound level (at a distance of 1 m): 76 dB (A)
- Tank capacity: 19 l
- Dimensions (W x L x H): 430 x 830 x 560 mm
- Weight: 18 kg
Also available as an option:
- External thermostat for fully automatic operation
- Tank level indicator (optional)
- Oil filter with a fill neck (optional)
