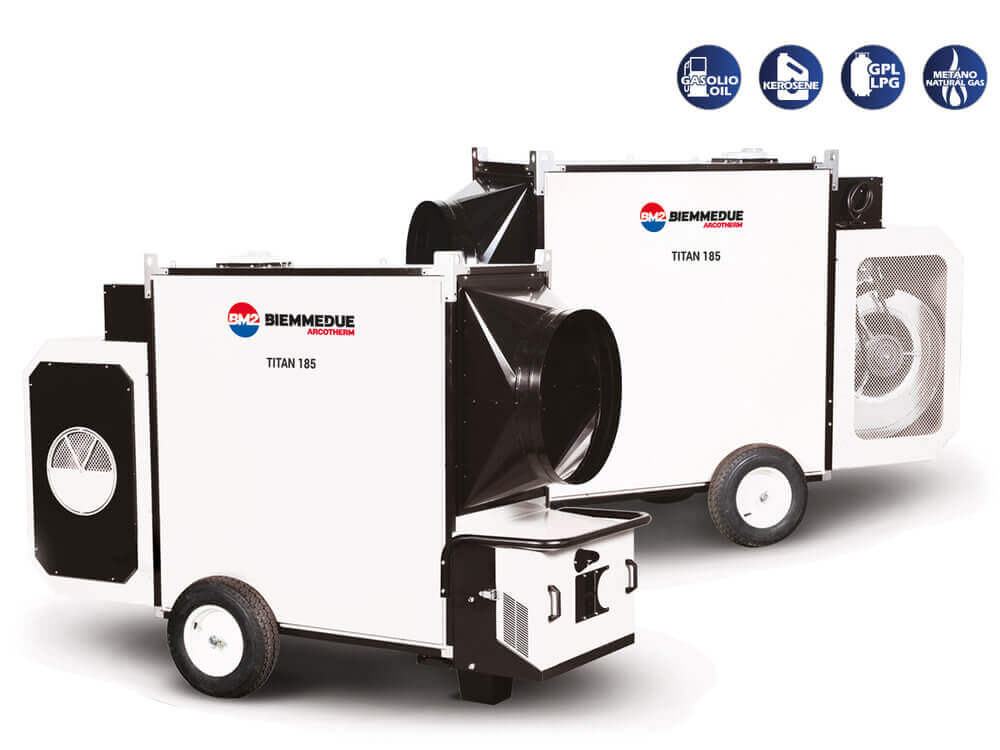

Biemmedue TITAN – Industrial Hot Air Generator
The Biemmedue Titan high-airflow indirect-combustion hot-air generator, available in diesel, LPG, and natural gas versions, is designed with a new heat exchanger that, combined with new high-performance fans, delivers 96% thermal efficiency. It is ideal for heating large industrial warehouses.
- The burner cover protects against impacts, dust, water, and the elements
- a burner equipped with a snorkel to ensure a clean supply of combustion air, connected to the intake pipe from the outside
- A new heat exchanger and ventilation system with 96% efficiency
- Better anchoring of the machine’s support structure thanks to sturdy mounting clamps, which allow the machine to be moved on any surface
- Support structure with removable panels for internal maintenance (even with a suspended generator)
- Secure the panels with cross-braced bolts to increase rigidity and strength
- Use only metric screws and inserts (self-tapping screws are not used)
- Plastic combustion chamber smoke exhaust guard with retaining chains
- Fan with IP55 protection
- Very quiet; noise level <= 69 dB at a distance of 2 meters
- High elevation and performance with high airflow at static pressure (500 Pa) for uniform diffusion even over long distances through ducts and ducts
- a fan that is attached to the structure using sturdy longitudinal components and mounting clamps
- adjustable fresh air damper
- Rear electrical control panel with IP65 protection
- Placed at the back, it prevents it from coming into contact with dust, water, snow, etc.
- equipped with a metal cover that also allows you to store tools and documents
- Front panel with IP65 protection
- It is located in the front of the generator, inside the burner cover compartment, to prevent exposure to dust, water, and snow and to facilitate maintenance
- Each main component is equipped with quick-connect terminals for electrical connections to speed up and facilitate technical intervention
Diesel-fired heater with a chimney
