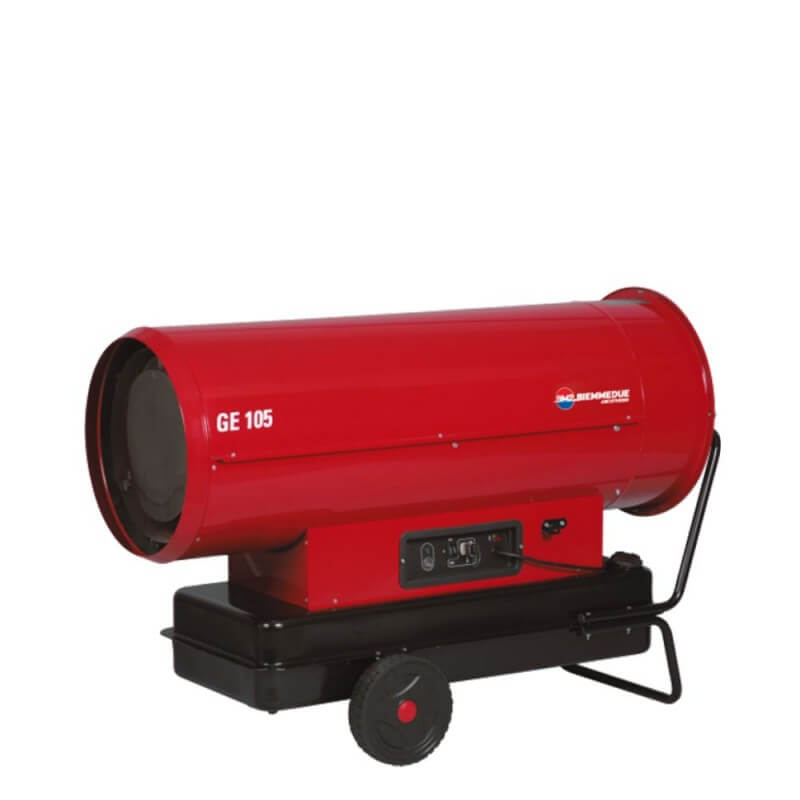

Biemmedue GE 105 Professional Direct-Fired Diesel Hot Air Blower, 111.1 kW, 4,600 m³/h
Diesel-powered heat blower

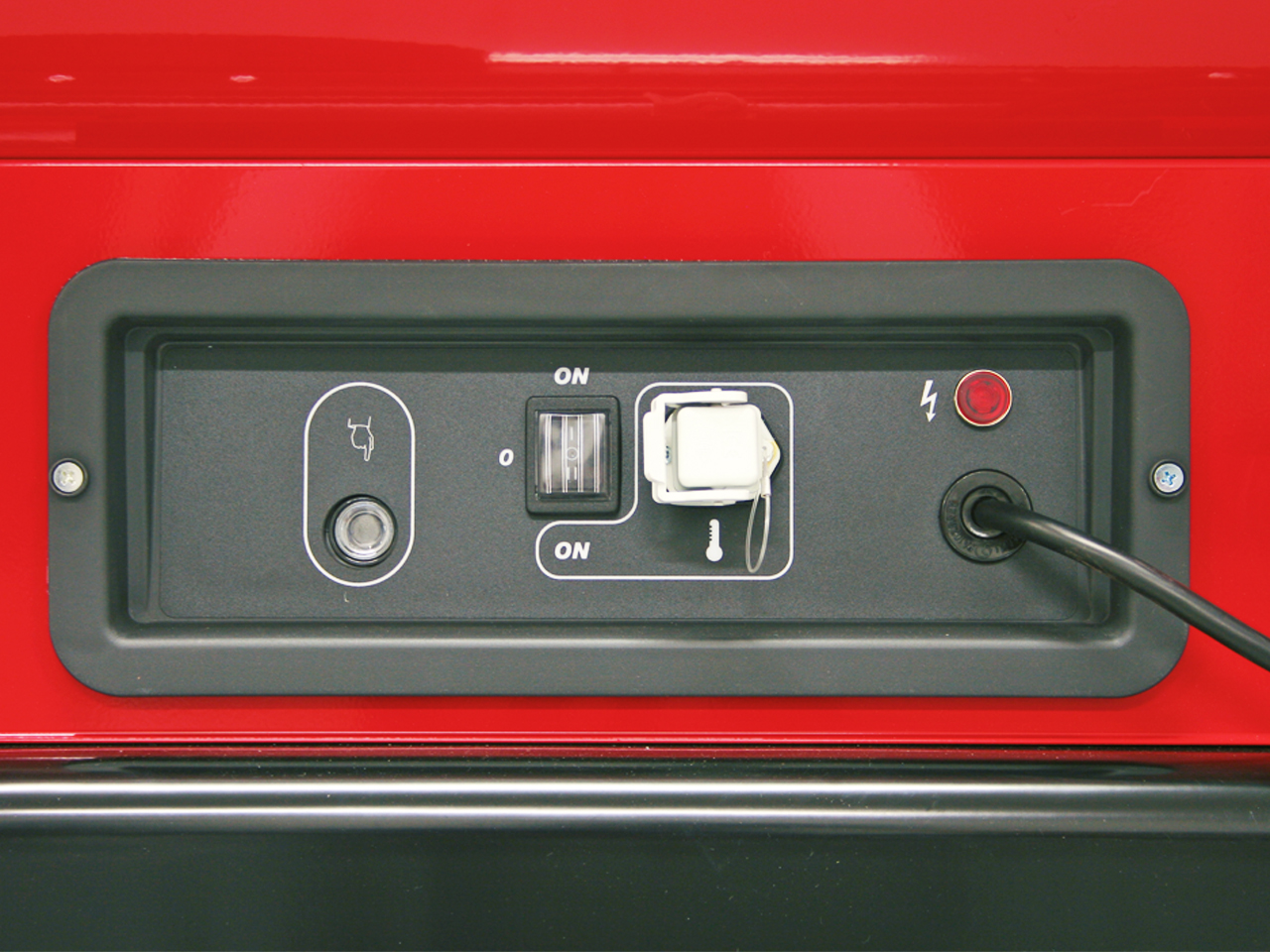

- A control unit with a self-diagnostic function;
- Combustion chamber made of AISI 430 stainless steel, 1.2 mm thick;
- Safety thermostat;
- Comes with a wheeled cart;
- A steel shut-off valve at the combustion chamber outlet;
- Fuel hoses woven from textile;
- Electronic flame control (photocell);
- Connection to a remote thermostat, humidistat, or timer;
- Pump fuel supply system;
- Automatic cooling of the combustion chamber;
- Convenient drain for low-quality fuel.

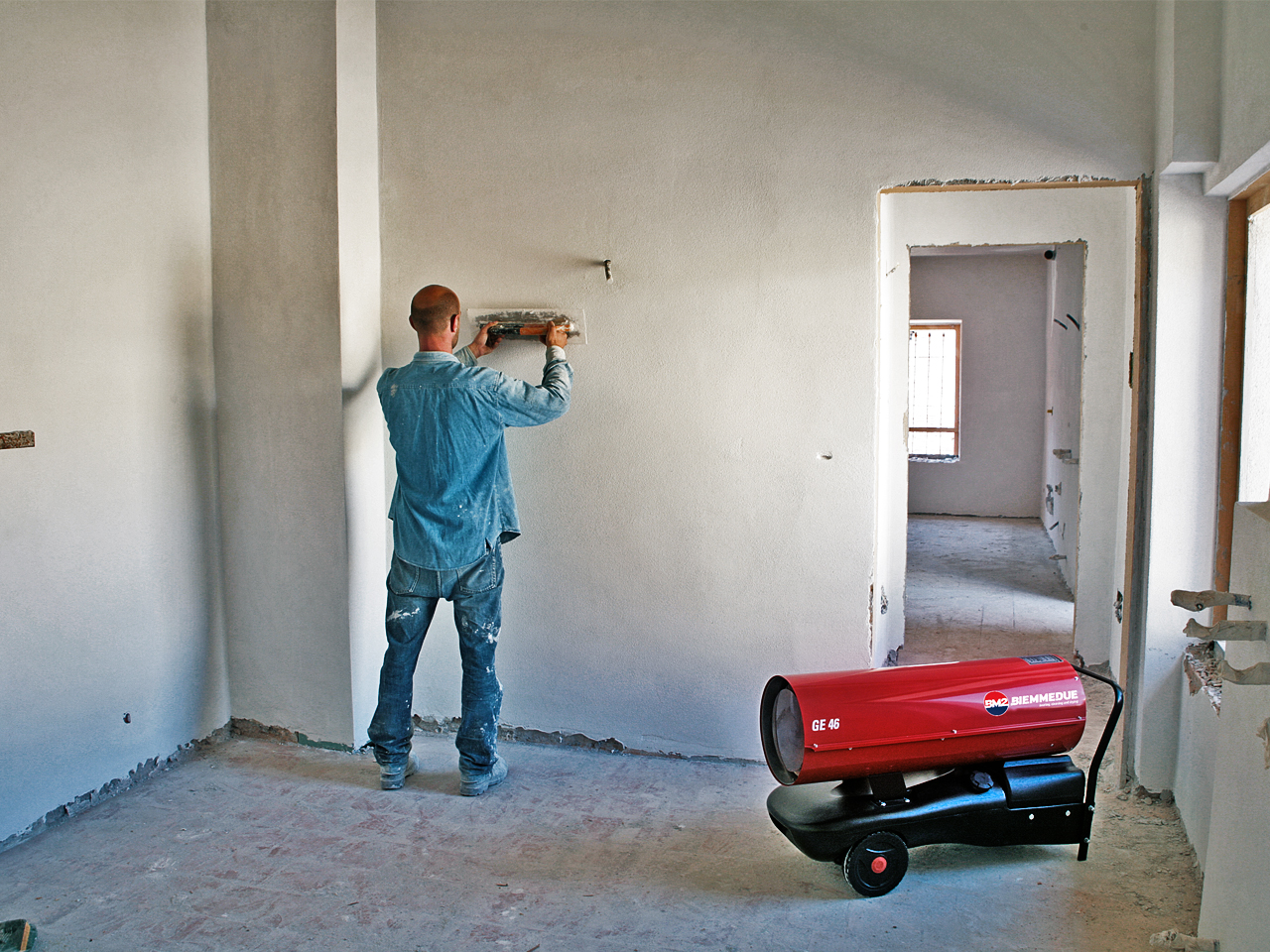

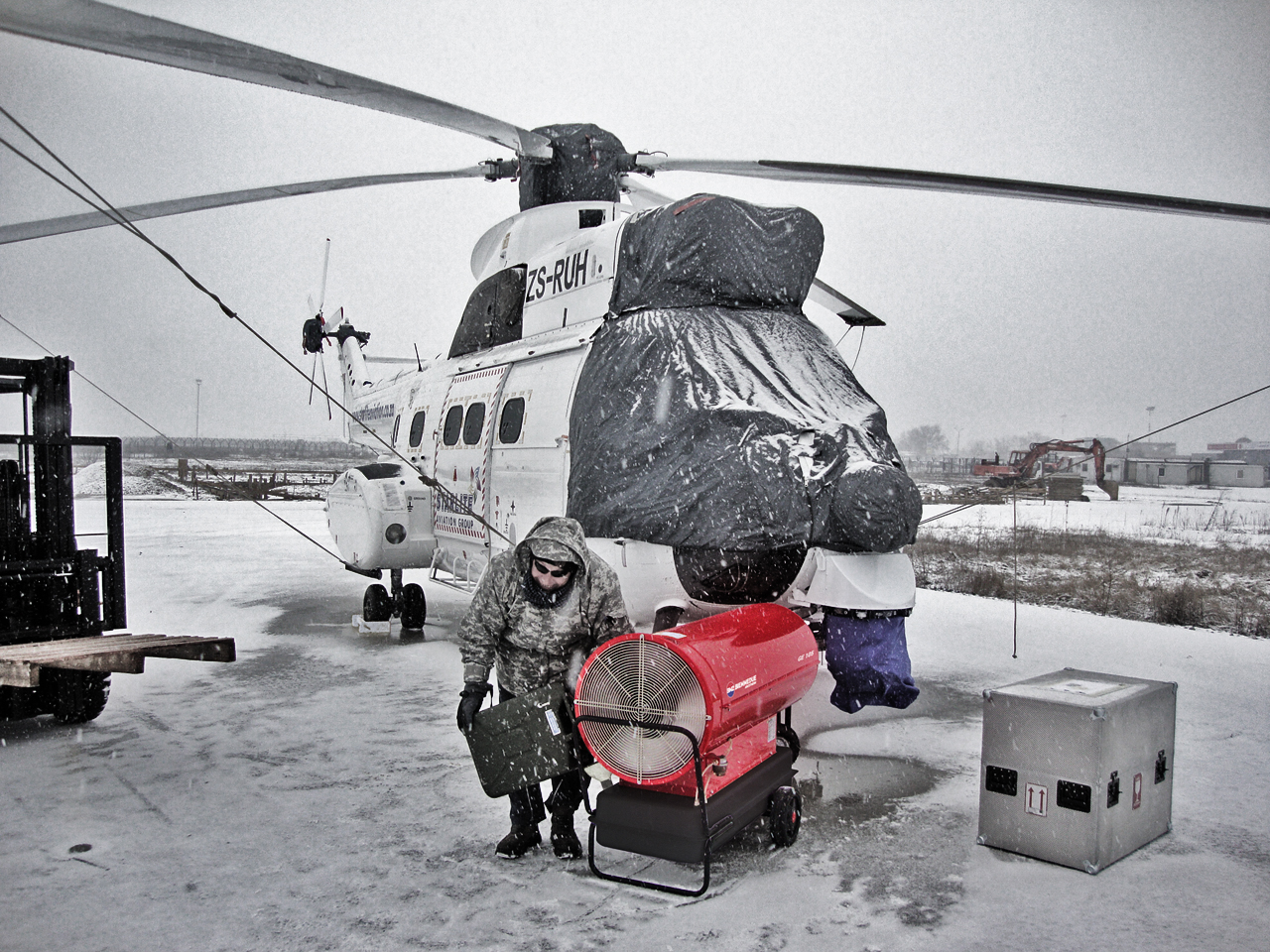

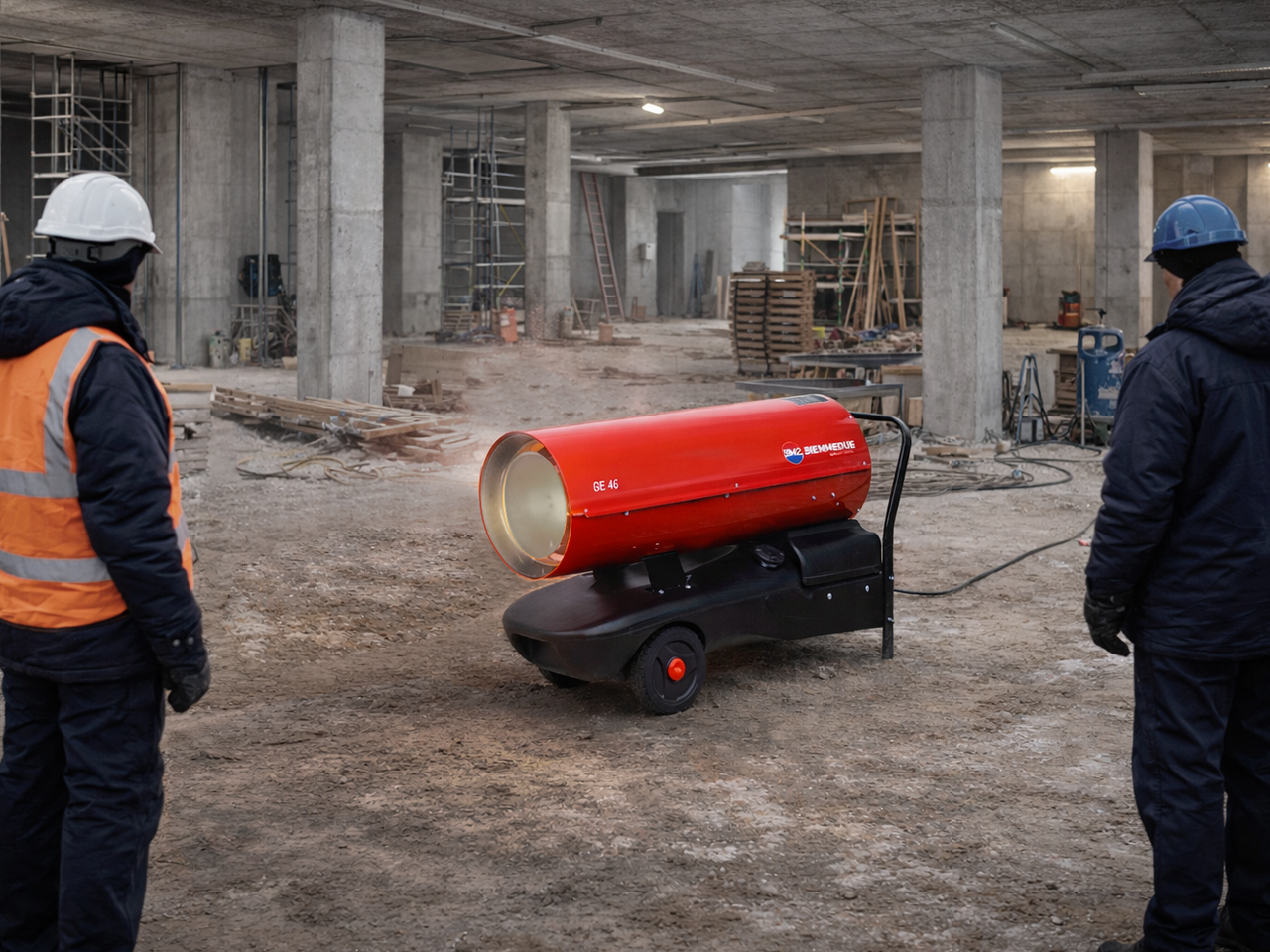

| The Arcotherm GE series of mobile and wall-mounted direct-fired heat generators from Biemmedue are professional air heaters that run on liquid fuel and have 100% efficiency. The heated air is directed into the combustion chamber and enters the heated space together with the exhaust gases. The combustion chamber, made of 1.2 mm thick AISI 430 stainless steel, has a longer service life, and the pump-fed fuel system makes heating more stable (compared to a compressor-based fuel supply system). | The control unit with a self-diagnostic function allows the device to be operated in automatic mode (connection of a remote thermostat, connection of an overheat protection thermostat, automatic post-ventilation of the combustion chamber, electronic flame control, etc.). The Arcotherm GE series of mobile heaters includes 5 models with a nominal heat output ranging from 21.4 to 111.1 kW. Their primary applications include drying and heating non-residential spaces, infrastructure, vehicles, and machinery. |

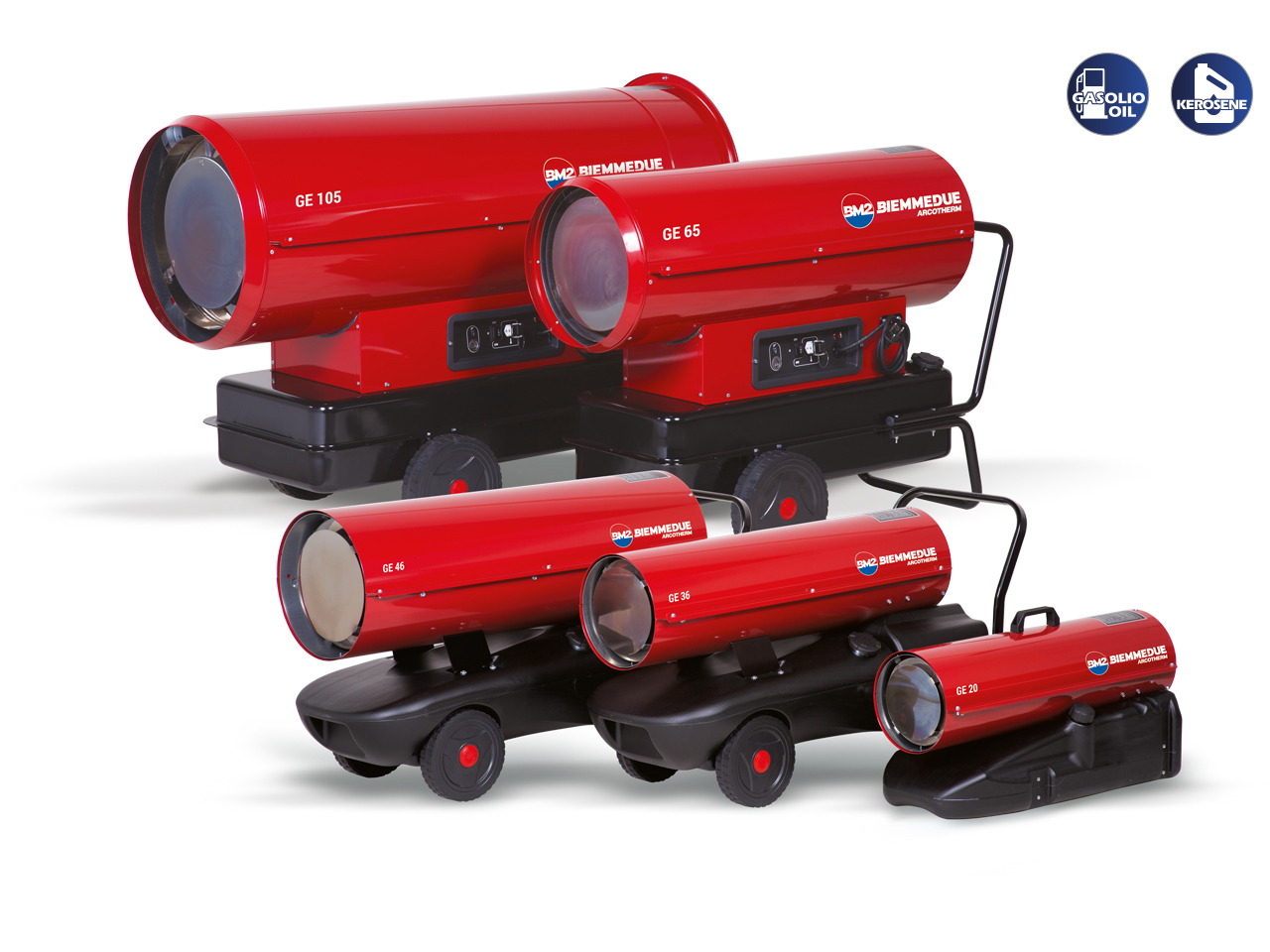

Biemmedue Arcotherm GE Series Diesel-Fired Heaters:
 |

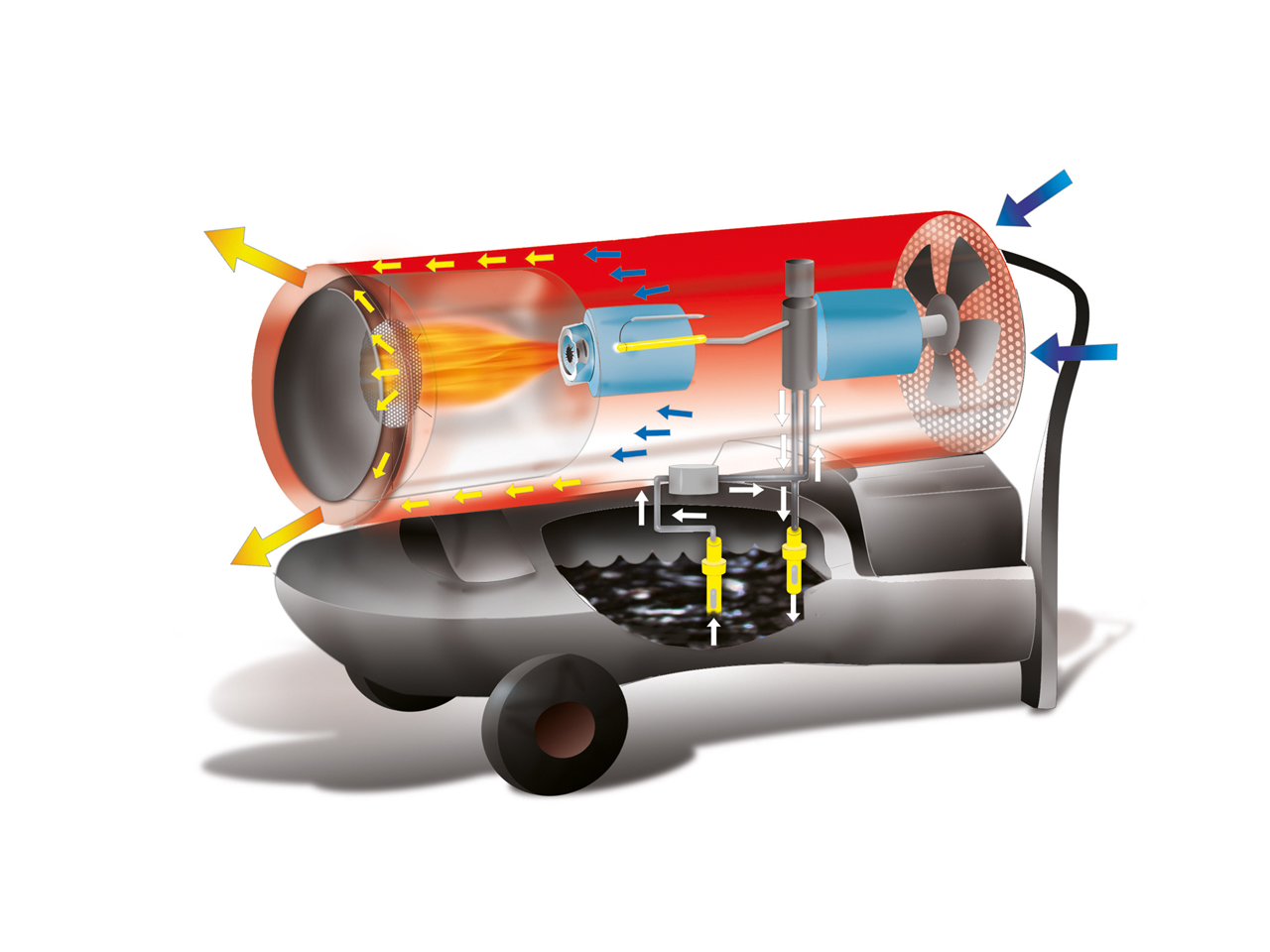

Schematic diagram of a diesel fuel heat gun:
|
||

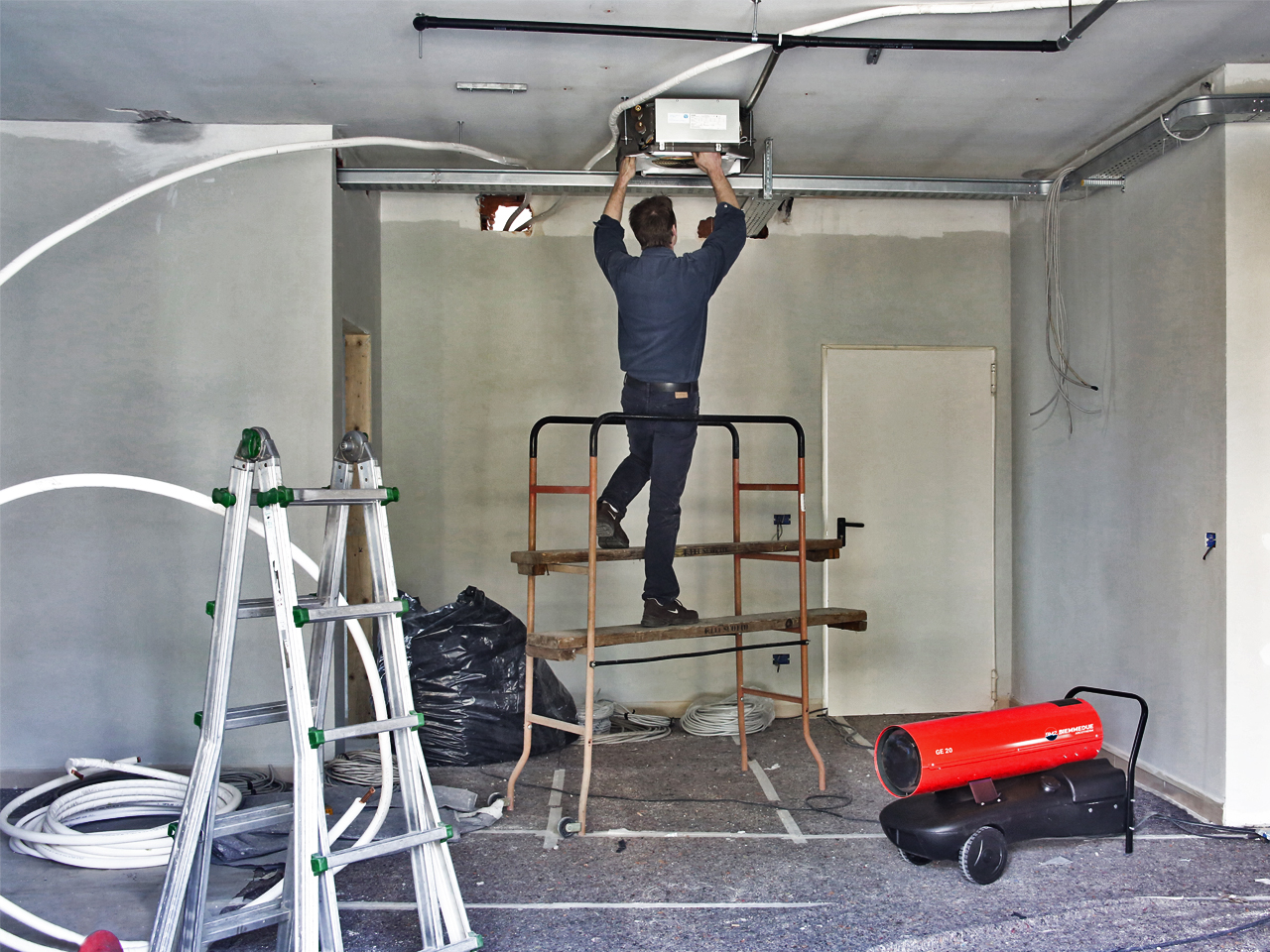

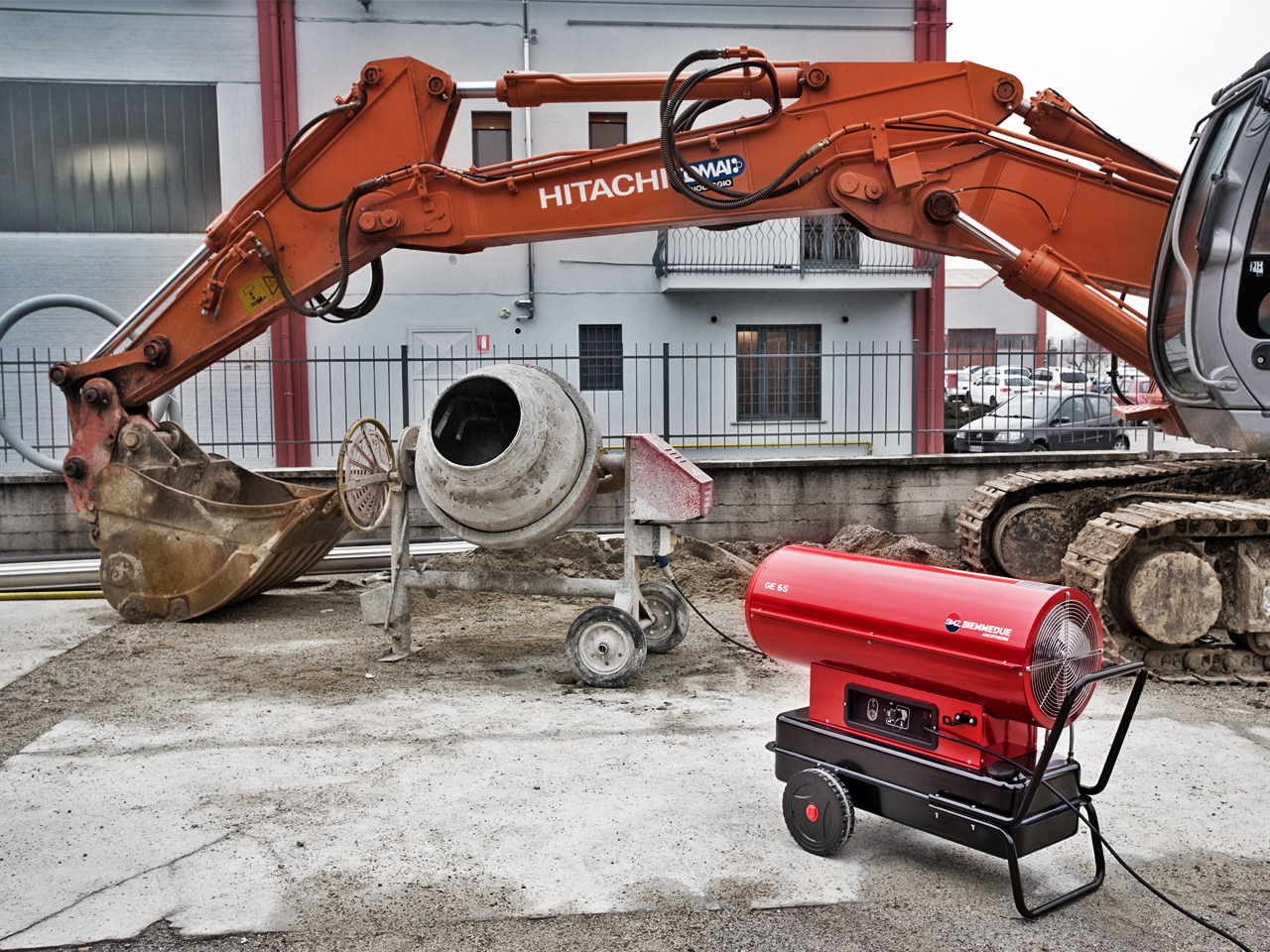

Distinctive features and applications of the Arcotherm GE series Ballu-Biemmedue diesel spray gun:
|
|
| capacity, kWt | 111.1 |
|---|---|
| Fuel Type | Diesel |
| Heating Type | Direct |
| Fuel tank capacity, l | 105 |
| Weight, kg | 86 |
BM2 GE 105 HOT AIR GENERATOR
The BM2 GE 105 is a hot-air generator characterized by the absence of a chimney designed to remove smoke. It achieves 100% thermal efficiency.
The BM2 GE105 hot air generator runs on diesel or kerosene; it is easy to use and safe thanks to control systems that shut down the machine in the event of a malfunction.
Thanks to its perfect combustion and the absence of a chimney, the thermal efficiency is 100 %. The BM2 is easy to transport to wherever it is needed; it starts up instantly, as do heat production and the delivery of maximum heat output.

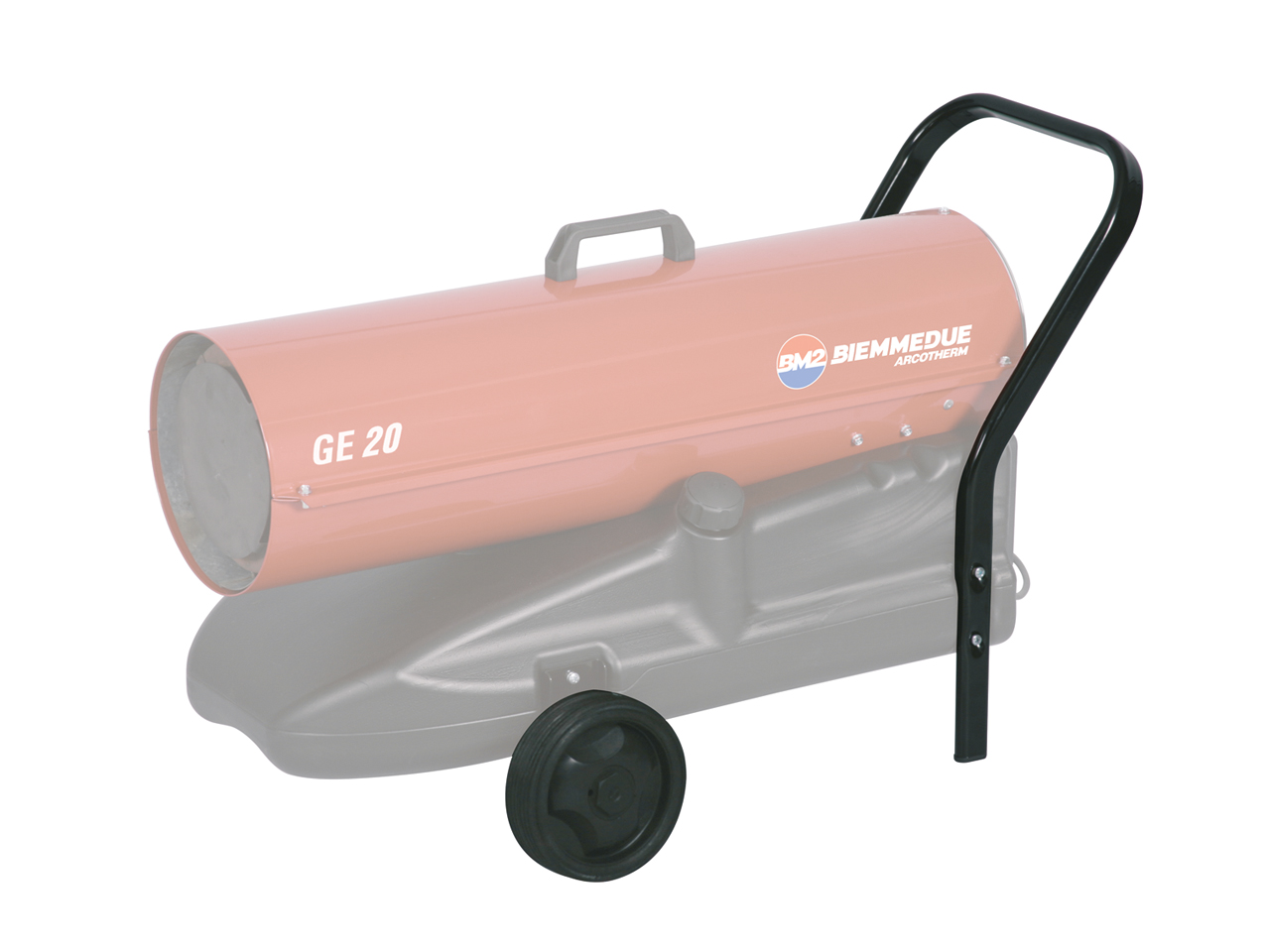

All BM2 hot-air generators are lightweight and compact, equipped with a handle, a cart, and wheels (optional on the GE 20 model), and feature an intuitive, user-friendly control panel. Thanks to the nozzle’s unique design, refueling is extremely easy.
The BM2 GE105 hot air generator is supplied with:
– Integrated oil burner
– Electronic flame control
– Overheating thermostat
– Power cord (1.5 m) with plug
– AISI 430 stainless steel combustion chamber
– Timed after-ventilation for cooling the combustion chamber
– Hydrocarbon-resistant rubber oil supply hoses with metal mesh reinforcement
– Steel tank
– Fuel drain plug for the tank
TECHNICAL SPECIFICATIONS BM2 GE105
Phase type: Single-phase
Power source: diesel
Frequency (Hz): 50
Voltage (V): 230
Rated thermal output: 111. 1 kW – 95,507 kcal/h – 380,331 BTU/h
Thermal efficiency (%): 100
Airflow (m³/K): 4,600
Air temperature at 20°C (°C): 68
Fuel consumption (kg/h): 8. 85
Electrical power (W): 1170
Fuel tank capacity (P): 105
Length (mm): 1492
Width (mm): 670
Height (mm): 1005
Dry weight (kg): 86
