Biemmedue EC32 District Heating Diesel Blower, 34.1 kW, 1,150 m²/h

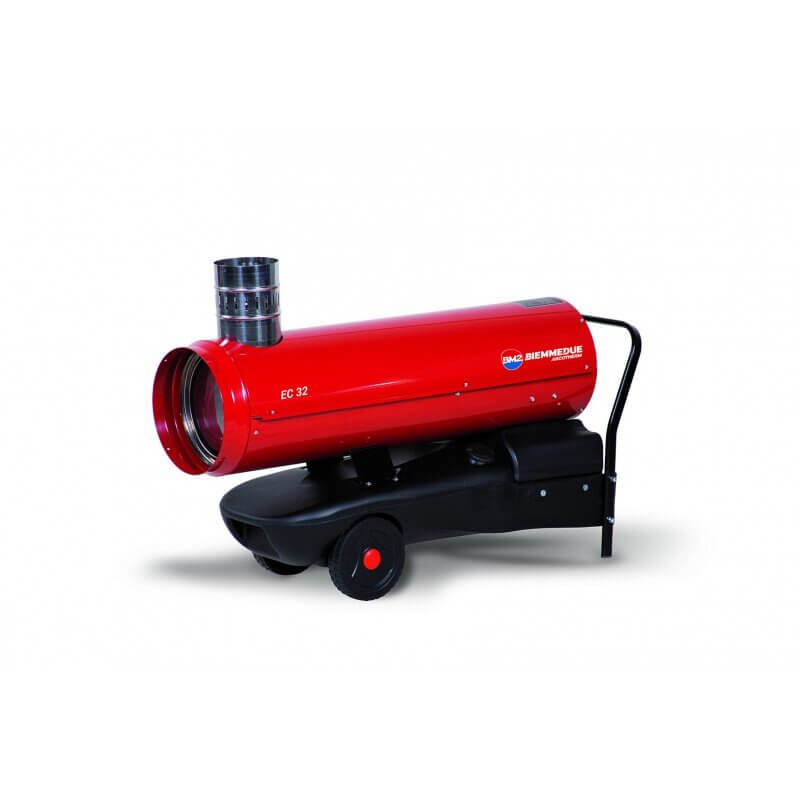

Biemmedue EC 32 – Diesel Heater
The heaters are manufactured by the renowned Italian company Biemmedue, ensuring quality and reliability.
The Biemmedue EC 32 diesel heater, featuring an integrated stainless steel burner separated from the fan, district heating version, uses a heat exchanger that allows vapors to be vented to the outside through a connected chimney; therefore, it can be installed in enclosed spaces.
The Biemmedue EC 32 diesel heater is suitable for indirect heating of tents, construction sites, warehouses, and sheds.
- The device is not working, but the indicators for “connected to the power supply” (red), “operating” (green), and “standby” (orange) are lit.
- Three-position control switch:
- Position 0 to stop the machine
- Position 1 for a machine operating in continuous mode
- Position 2: For a machine with a room thermostat, humidity controller, and timer
- Outlet for a room thermostat, humidifier, or timer
- Power indicator light
| The Arcotherm EC series of mobile and suspended indirect-heating heat generators are professional liquid-fuel-fired air heaters with an efficiency of up to 89.5%. Air blown by a powerful fan passes through the entire surface area of the heat exchanger, is heated, and enters the space to be heated. Exhaust gases from the combustion chamber are vented outside the building through a specially designed chimney. Arcotherm EC series heaters feature a three-pass (models EC 22 and EC 32) and four-pass (models EC 55 and EC 85) heat exchangers, which significantly reduce heat loss during the removal of combustion products. | The 1.2 mm-thick combustion chamber, made of AISI 430 stainless steel, has a longer service life, and the pump-fed fuel system makes heating more stable (compared to a compressor-based fuel supply system). A large fuel tank and a control unit with self-diagnostic functions allow the unit to operate in automatic mode (connection to a remote thermostat, an overheat protection thermostat, automatic combustion chamber ventilation, electronic flame control, etc.). The EC series of mobile heaters includes 4 models with nominal heat outputs ranging from 23.4 to 90.6 kW. Suspended versions of the EC-series heaters are also available for order. |
FEATURES
Automatic diesel heater
Socket for connecting a thermostat, humidity controller, or timer
Power cord 1,5 m
AISI 430 stainless steel combustion chamber with 3 flue channels
Timed post-ventilation to cool the combustion chamber
Electronic flame control
Overheating thermostat
Diesel fuel supply hoses made of hydrocarbonrubber reinforced with a textile mesh
Impact-resistant polyethylene tank
Tank cap with a spike
Fuel tank drain plug
Electrical control panel
APPLICATIONS
Biemmedue EC 32 – Diesel-Fired Heating System
Phase type: Single-phase
fuel: diesel
Frequency (Hz): 50
Voltage (V): 230
Rated thermal output: 34.1 kW – 28,349 kcal/h – 116,803 BTU/h
Output power: 28.9 kW – 24,828 kcal/h – 98,815 BTU/h
Thermal efficiency (%): 84.6
Airflow Rate (m³/h): 1150
Heat gain at 20°C (°C): 75
Fuel consumption (kg/h): 2.7
Power (W): 370
Fuel type: district heating
diameter (mm): 150
Air exhaust pipe diameter (mm): 300
Fuel tank capacity (P): 42
Length (mm): 1215
Width (mm): 440
Height (mm): 670
Dry weight (kg): 48
