Biemmedue EC22 District Heating Diesel Blower, 23.4 kW, 550 m²/h
Biemmedue EC 22 – Diesel Heater
The heaters are manufactured by the renowned Biemmedue company—Made in Italy—ensuring quality and reliability for a comfortable and efficient environment.

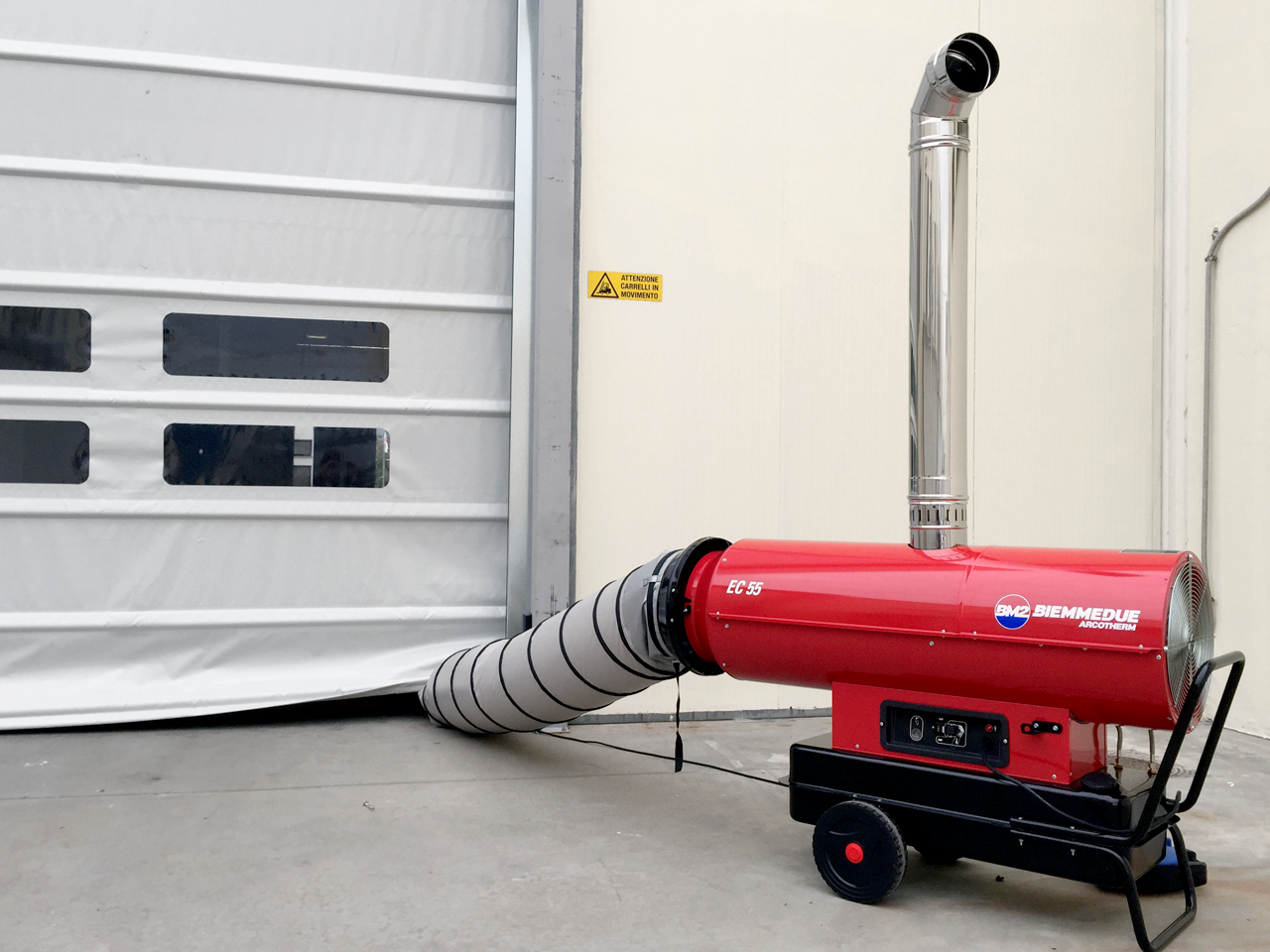

The Biemmedue EC 22 diesel heater, featuring an integrated stainless steel burner separated from the fan, with indirect combustion, uses a heat exchanger that allows fumes to be vented to the outside through a connected chimney; therefore, it can be installed in enclosed spaces.

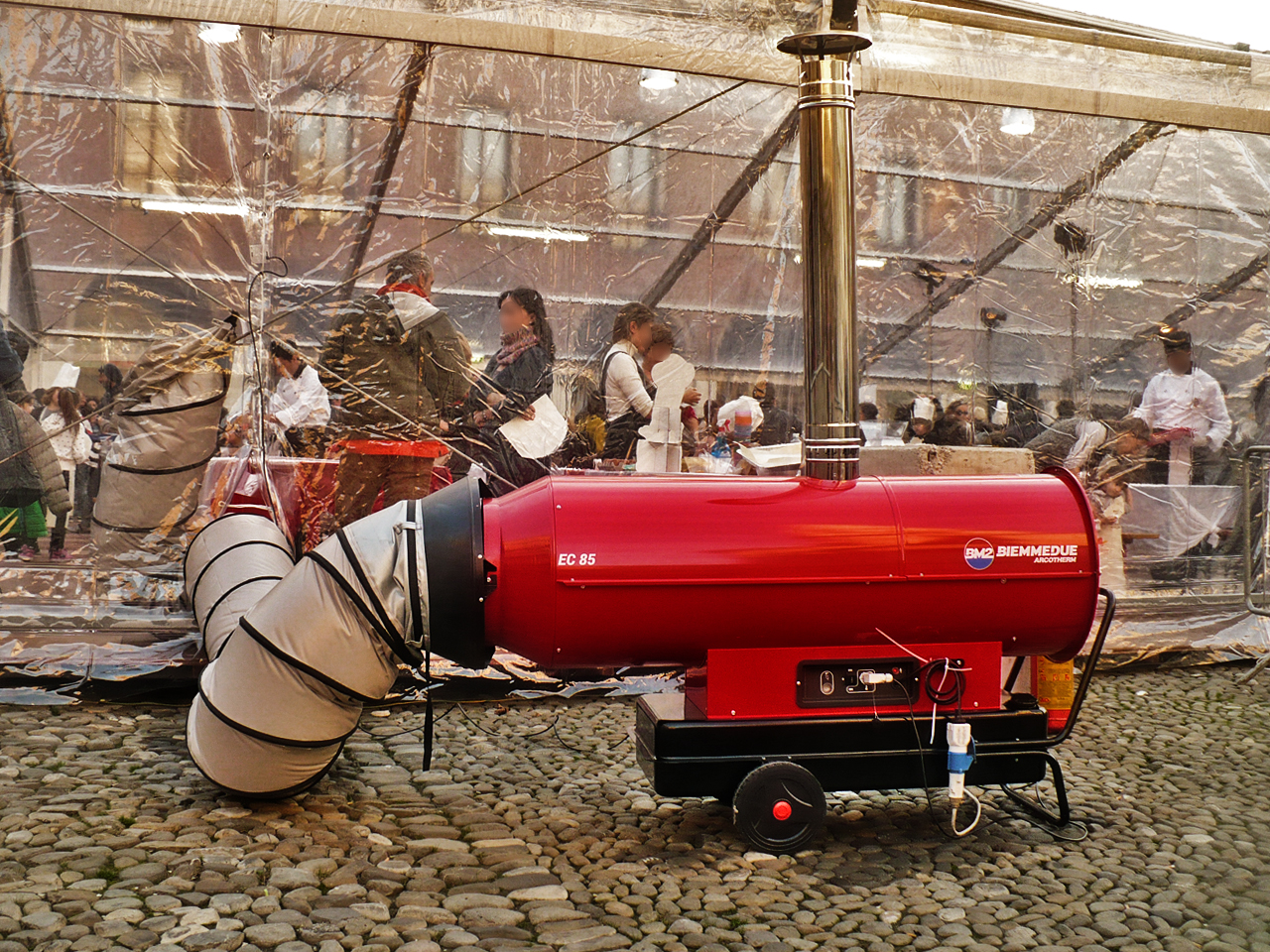

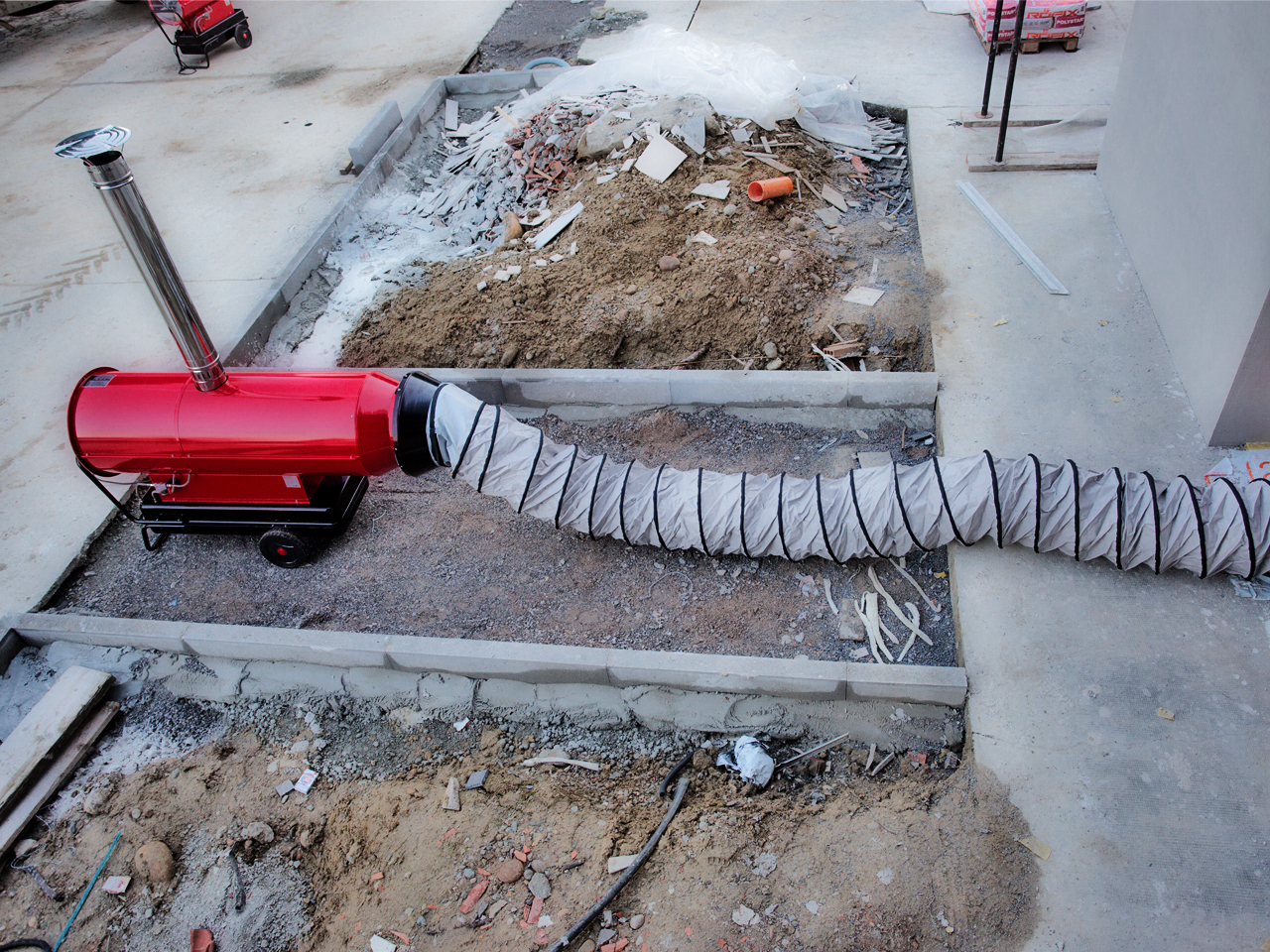

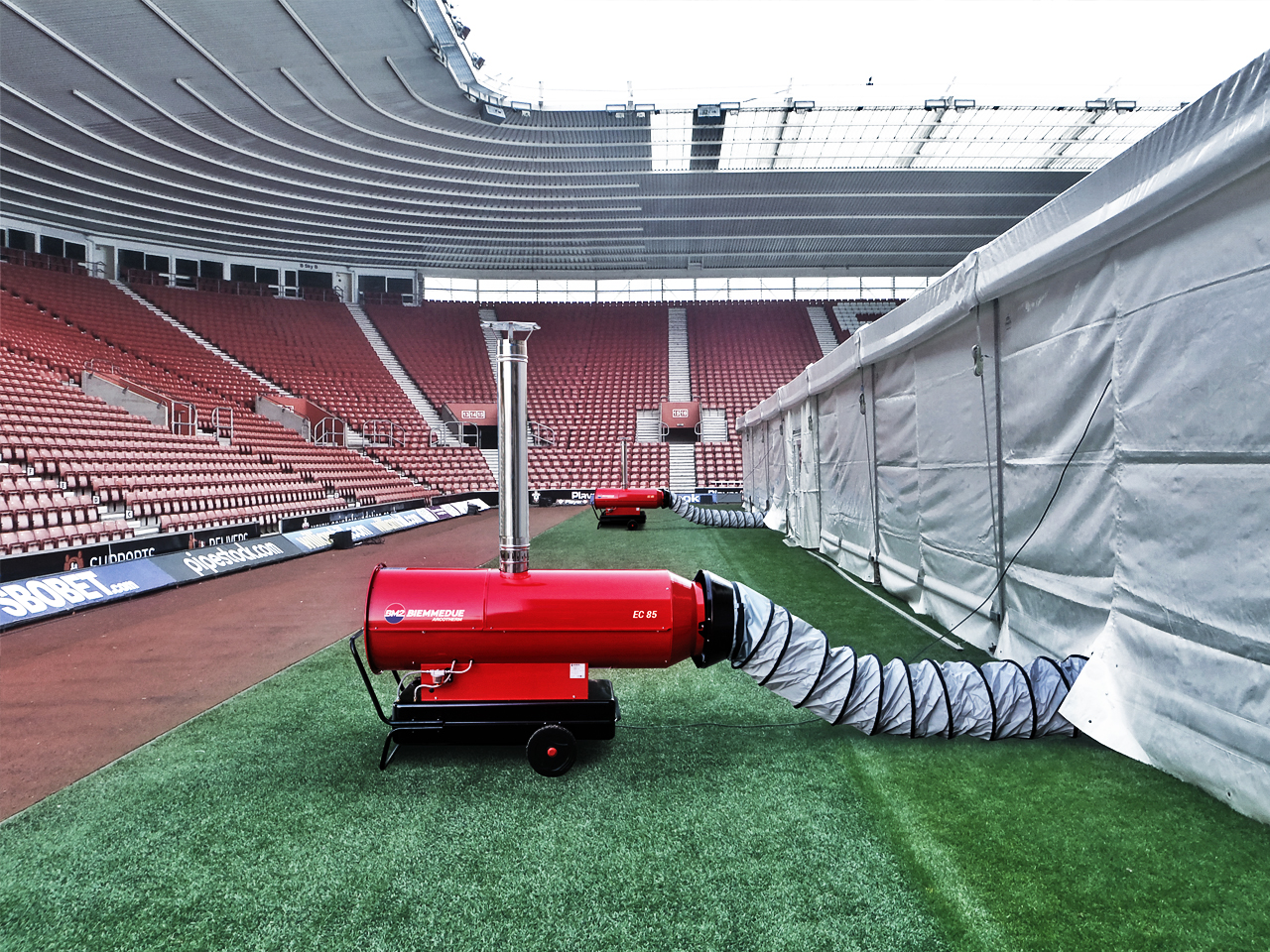

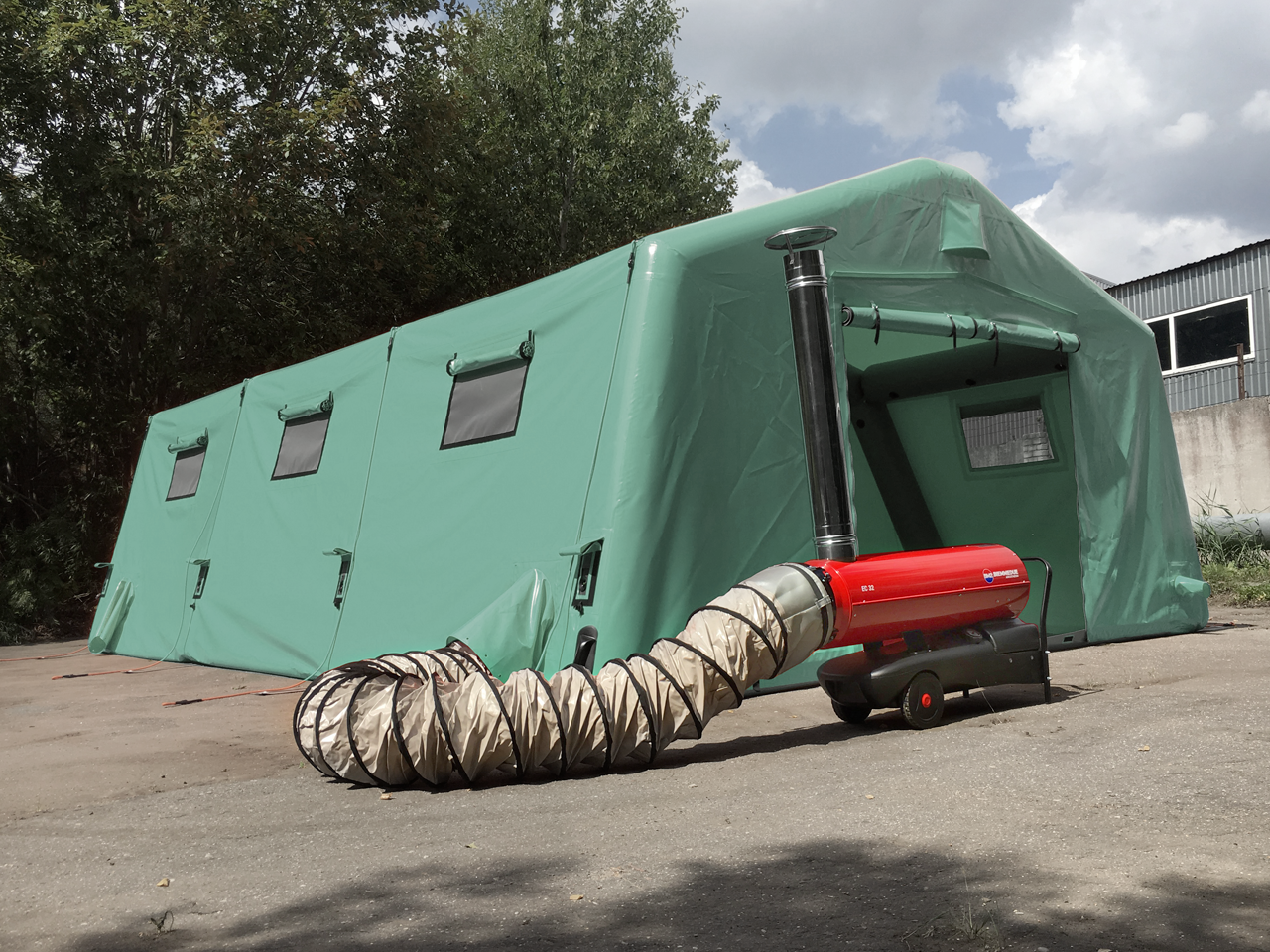

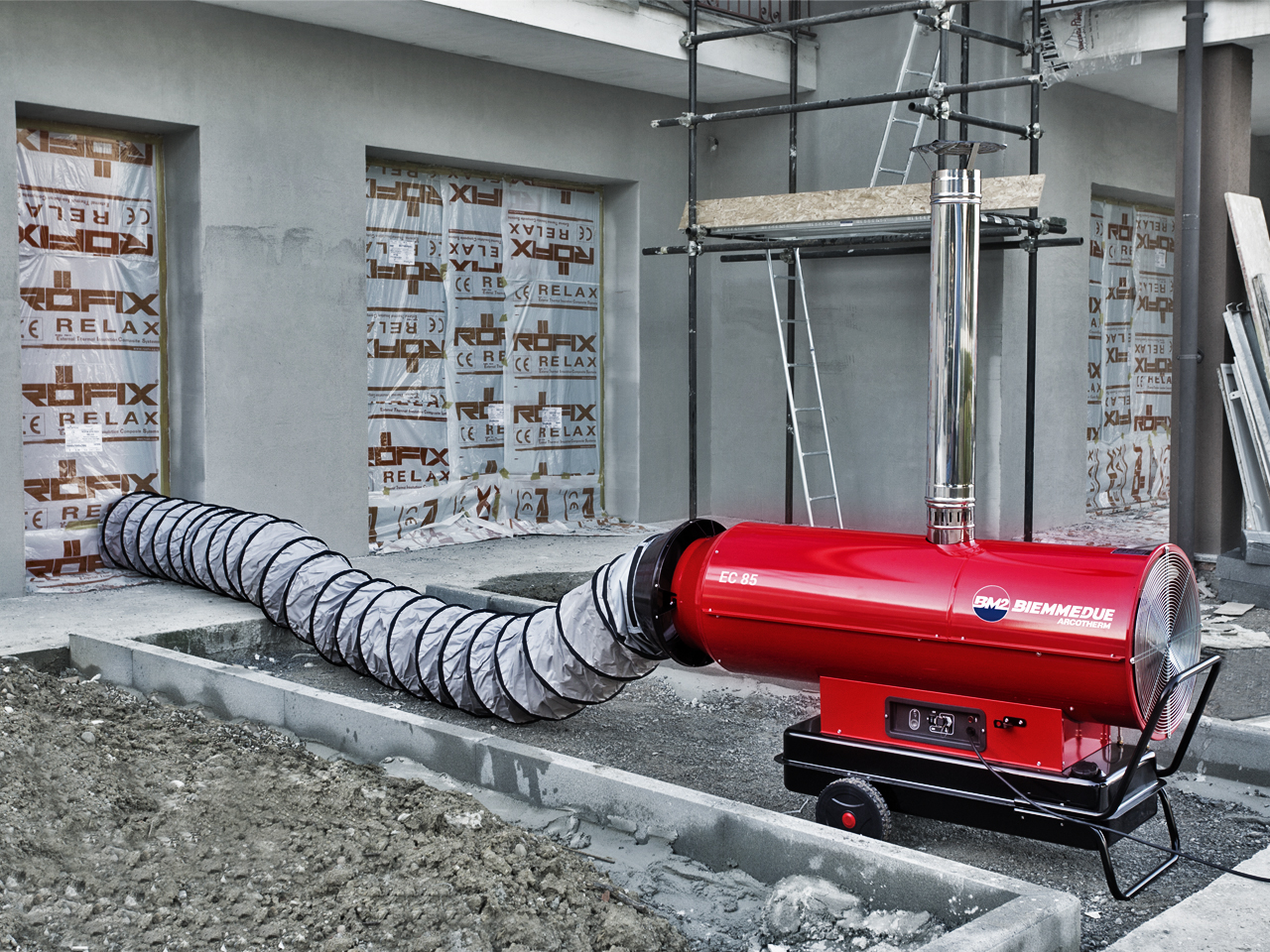

The Biemmedue EC 22 diesel heater is suitable for indirect heating of tents, construction sites, warehouses, and sheds.
- Reset button with indicators for “not working” (red), “working” (green), and “standby” (orange)
- Three-position control switch:
- Position 0 to stop the machine
- Position 1 for a machine operating in continuous mode
- Position 2: For a machine with a room thermostat, humidity controller, and timer
- Outlet for a room thermostat, humidifier, or timer
- Power indicator light

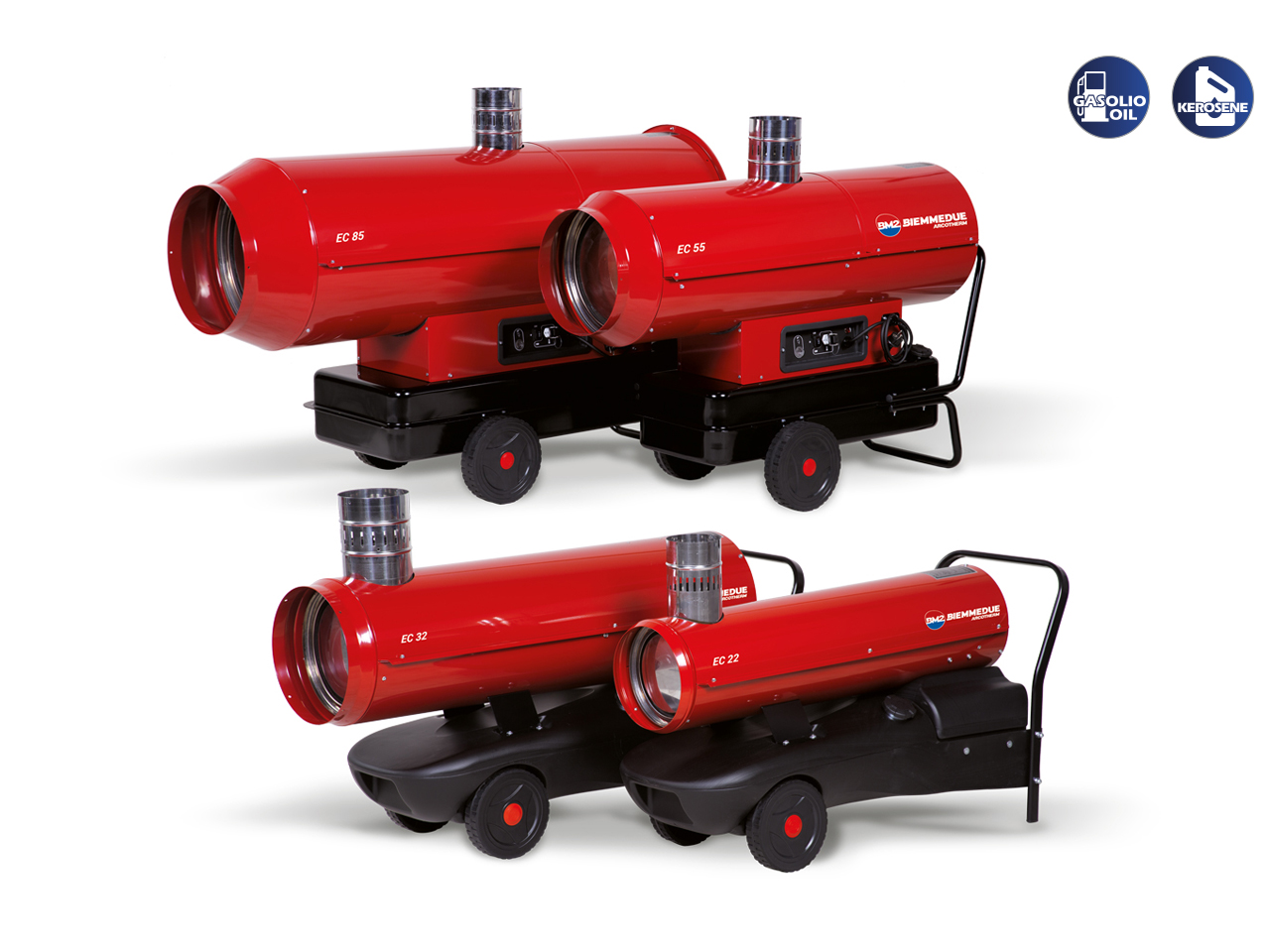

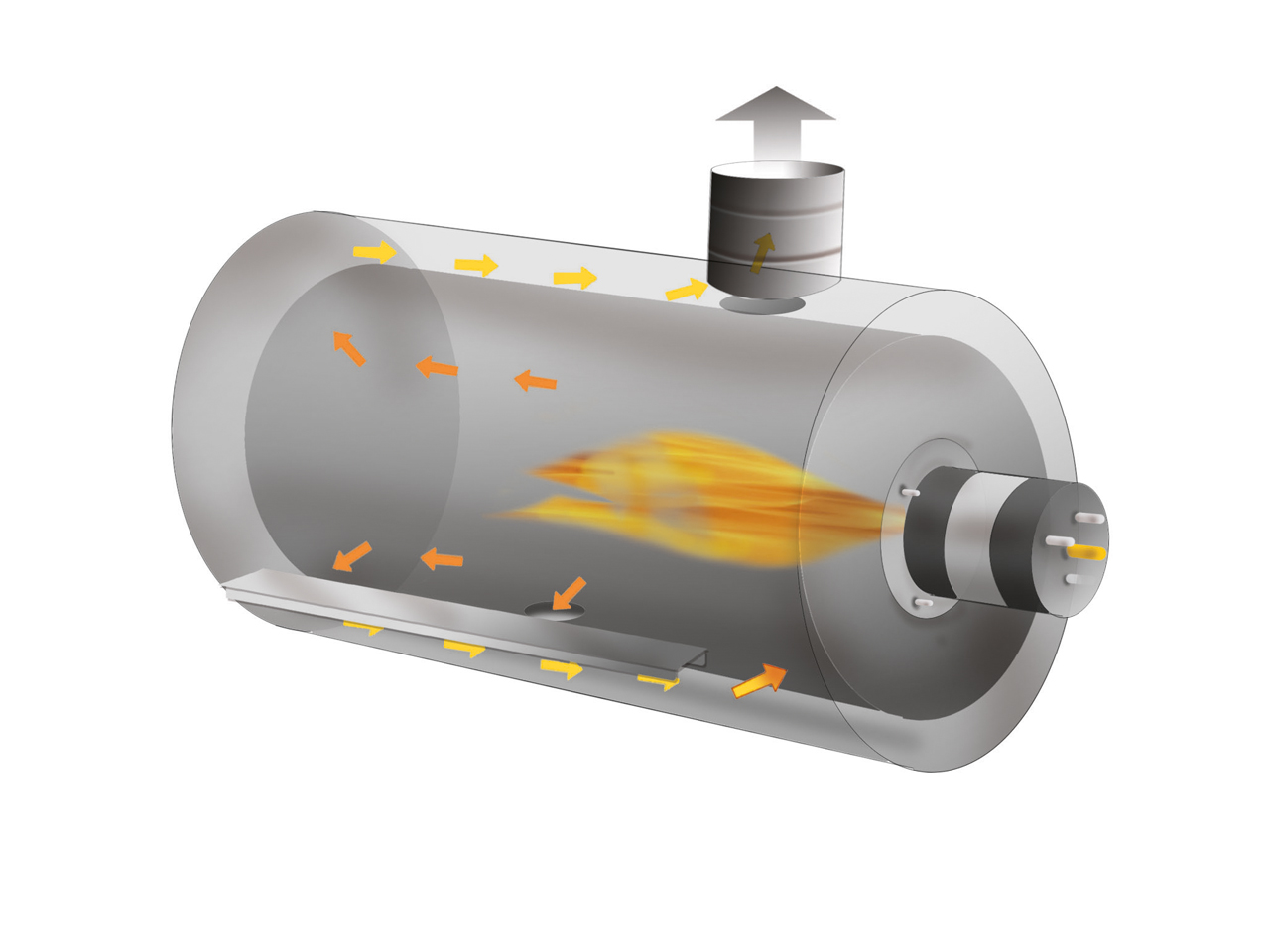

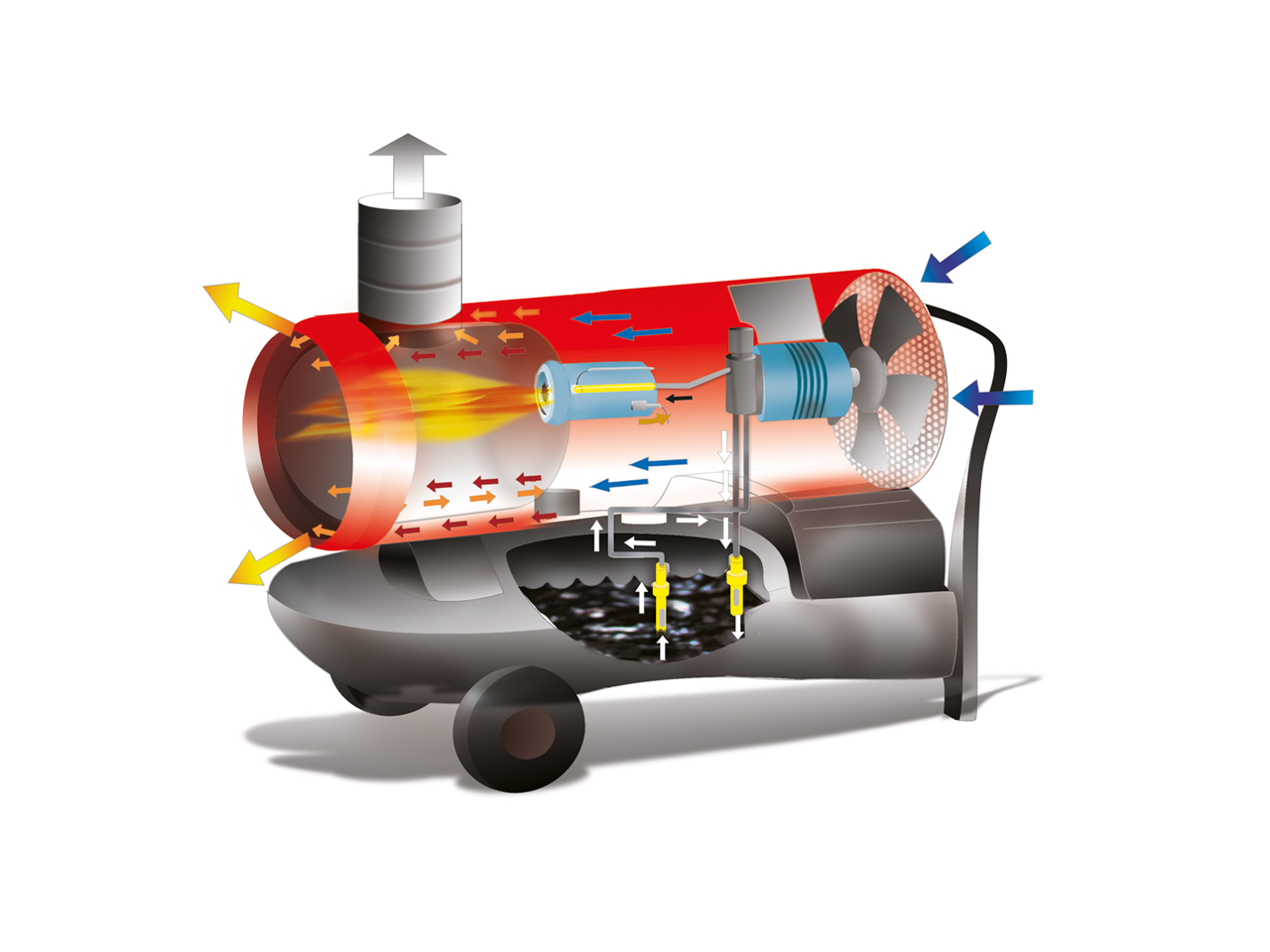

| The Arcotherm EC series of mobile and suspended indirect-heating heat generators are professional liquid-fuel-fired air heaters with an efficiency of up to 89.5%. Air blown by a powerful fan passes through the entire surface area of the heat exchanger, is heated, and enters the space to be heated. Exhaust gases from the combustion chamber are vented outside the building through a specially designed chimney. Arcotherm EC series heaters feature a three-pass (models EC 22 and EC 32) and four-pass (models EC 55 and EC 85) heat exchangers, which significantly reduce heat loss during the removal of combustion products. | The 1.2 mm-thick combustion chamber, made of AISI 430 stainless steel, has a longer service life, and the pump-fed fuel system makes heating more stable (compared to a compressor-based fuel supply system). A large fuel tank and a control unit with self-diagnostic functions allow the unit to operate in automatic mode (connection to a remote thermostat, an overheat protection thermostat, automatic combustion chamber ventilation, electronic flame control, etc.). The EC series of mobile heaters includes 4 models with nominal heat outputs ranging from 23.4 to 90.6 kW. Suspended versions of the EC-series heaters are also available for order. |
FEATURES
Automatic diesel heater
Socket for connecting a thermostat, humidity controller, or timer
Power cord 1,5 m
AISI 430 stainless steel combustion chamber with 3 flue channels
Timed post-ventilation to cool the combustion chamber
Electronic flame control
Overheating thermostat
Diesel fuel supply hoses made of hydrocarbon-resistant rubber with a reinforcing textile mesh lining
Impact-resistant polyethylene tank
Tank cap with a spike
Fuel tank drain plug
Electrical control panel
APPLICATIONS
Biemmedue EC 22 – Diesel Heater Biemmedue EC 22 – Diesel Heater
TECHNICAL SPECIFICATIONS
Power supply 230V
Rated capacity 23.4 kW, 20,108 kcal/h – 80,032 BTU/h
Electrical power 0.3 kW
Heating efficiency 19,6 kW
Thermostat Thermostat preparation
Airflow 550 m³/h
Fuel Kerosene / diesel
Tank capacity 42 L
Fuel consumption 1.85 kg/h
Efficiency 84%
Temperature rise 95°C
Flue 120 mm
Dimensions 108 x 44 x 62 cm
Weight 40 kg
