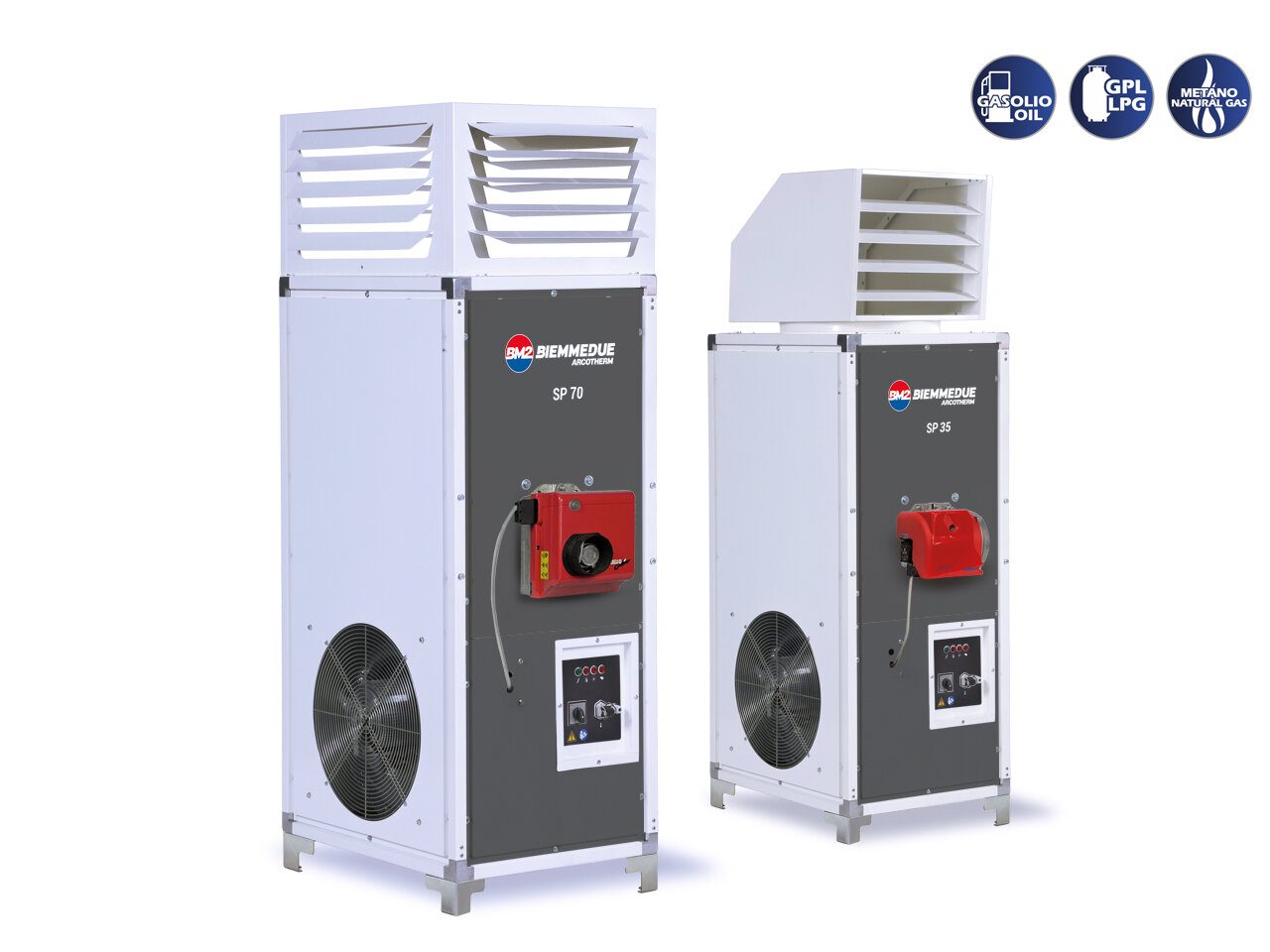

Industrial cabinet heaters
-

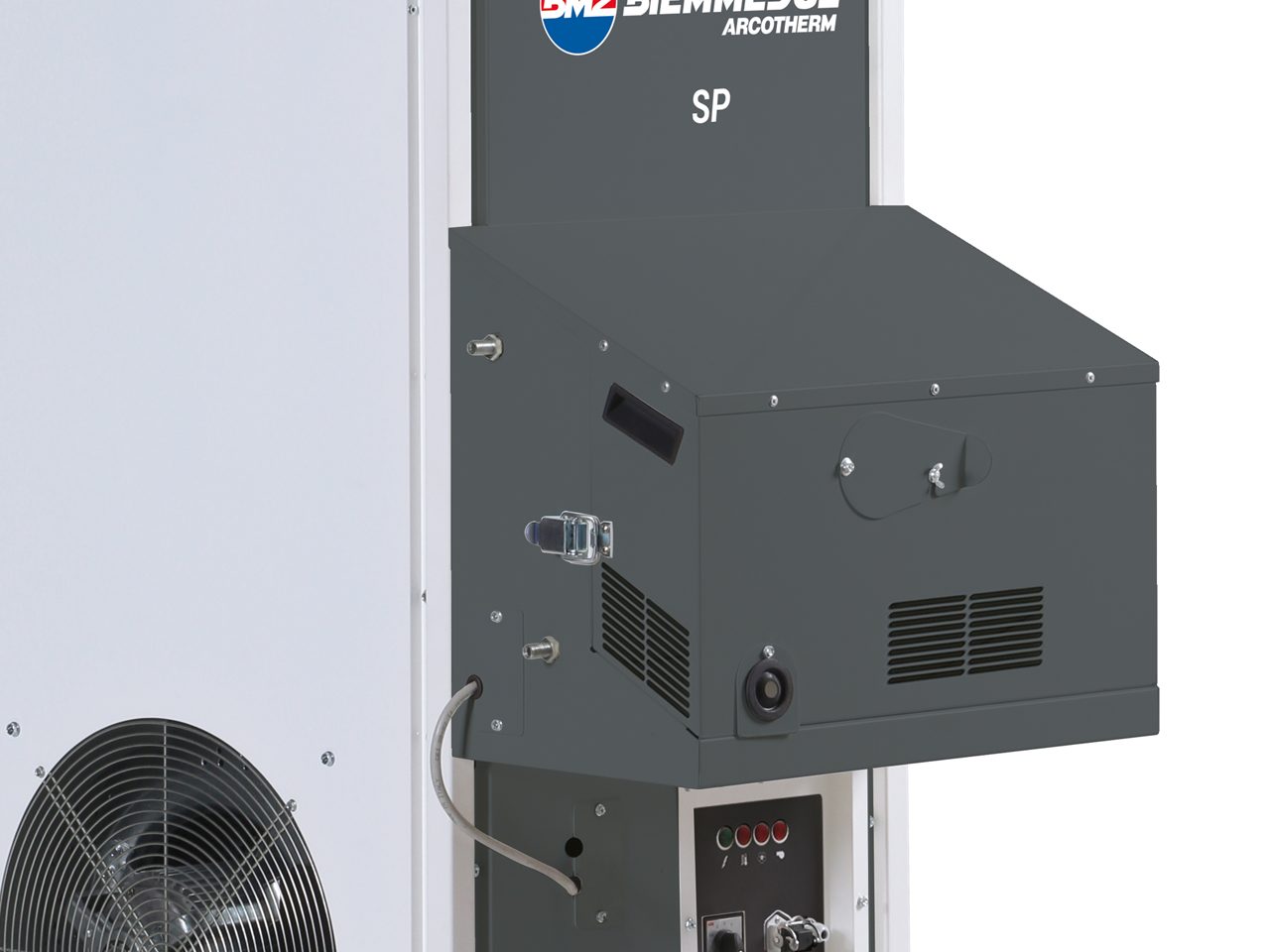

Burner is supplied with snorkel outlet to ensure clean combustion air through connection with external air aspiration duct
-

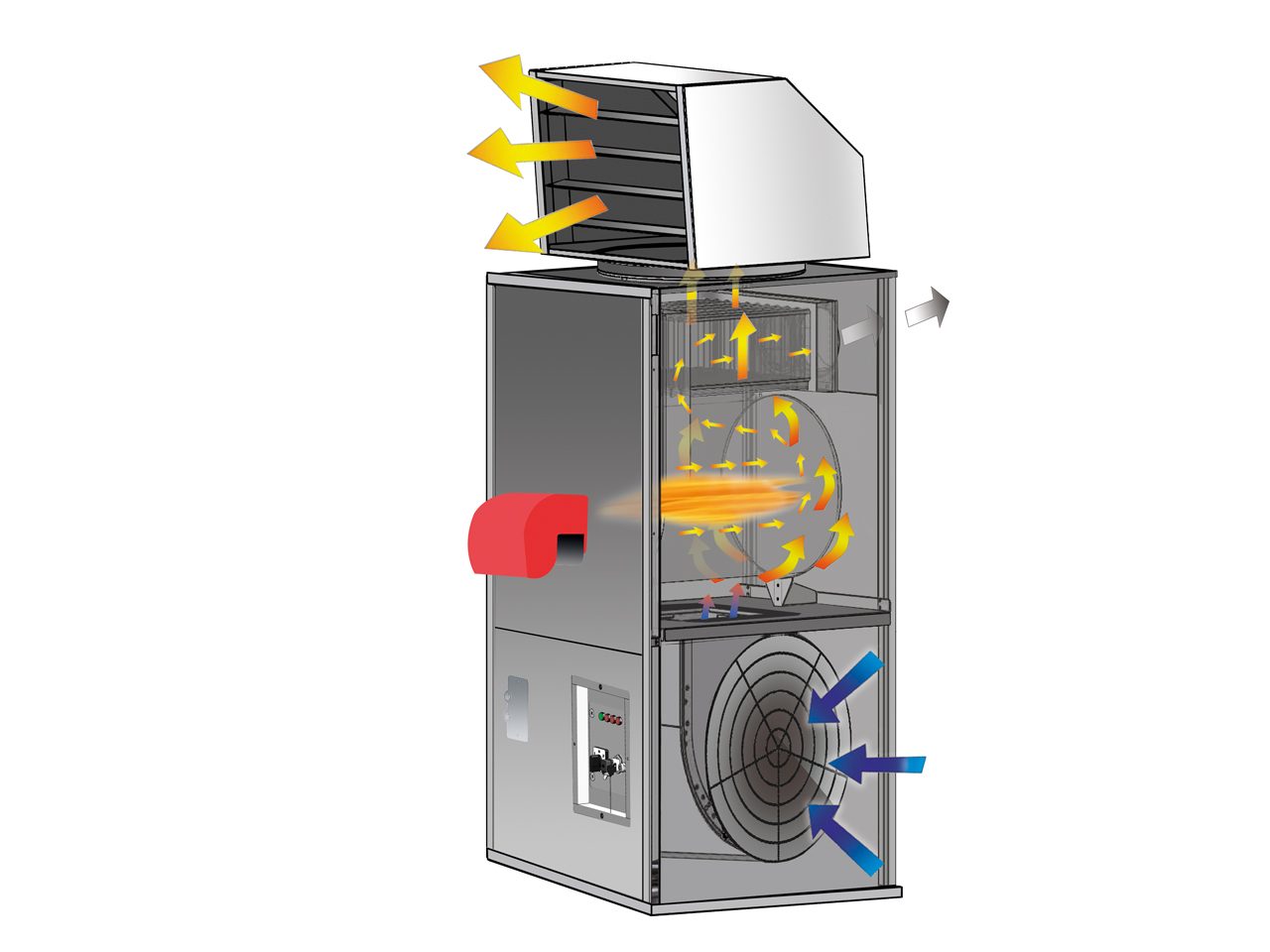

The new heat exchanger combined with the new high-performance fans allow for heat output of 92 / 93%
-
Before heating and after cooling of combustion chamber
-
Panel with reinforcement cross pleats to ensure superior rigidity and strenght (SP 110-235)
-
Thermostat: FAN for fan control; LIMIT: for burner control; OVERHEATING: safety thermostat in case of overheating, with manual reset
-
Bearing structure with removable panels for internal washing, even on hanging machines
-
All installation inserts and screws are exclusively metric, not self-tapping
-
Ventilator (IP 55):
- very low noise fan (noise level ≤ 69db at 2 meters)
- high output, high performance fan guarantees increased air flow and static pressure (500 Pa) for uniform and long distance diffusion of warm air through channels or ducts
- fan anchorage on machine’s bearing structure through sturdy rods
- adjustable fresh air re-uptake shutter (SP 110-235)
-

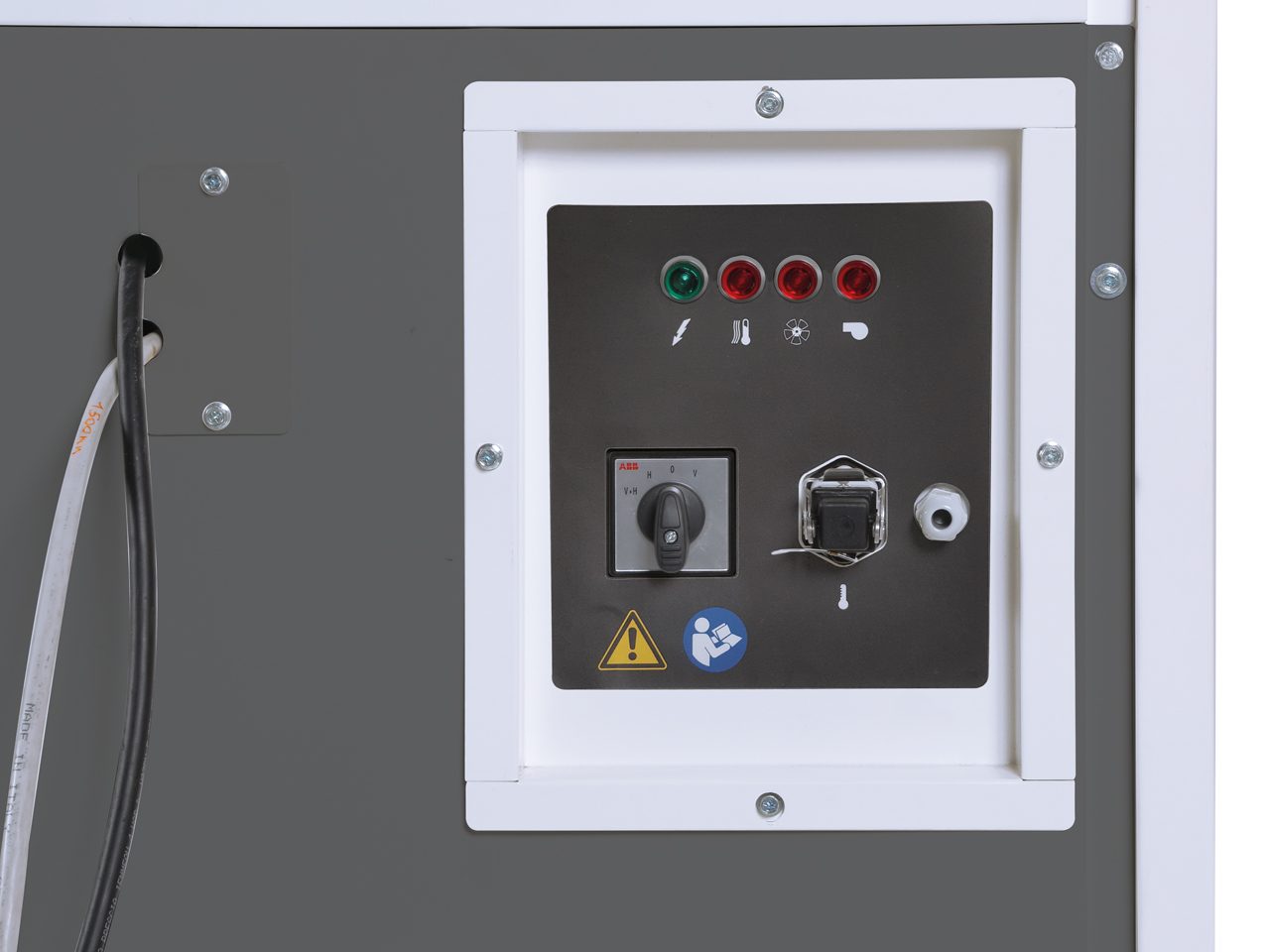

Control rear electrical panel (IP 65):
- can be connected to thermostat/humidistat/timer
- Integrated in the bottom side
